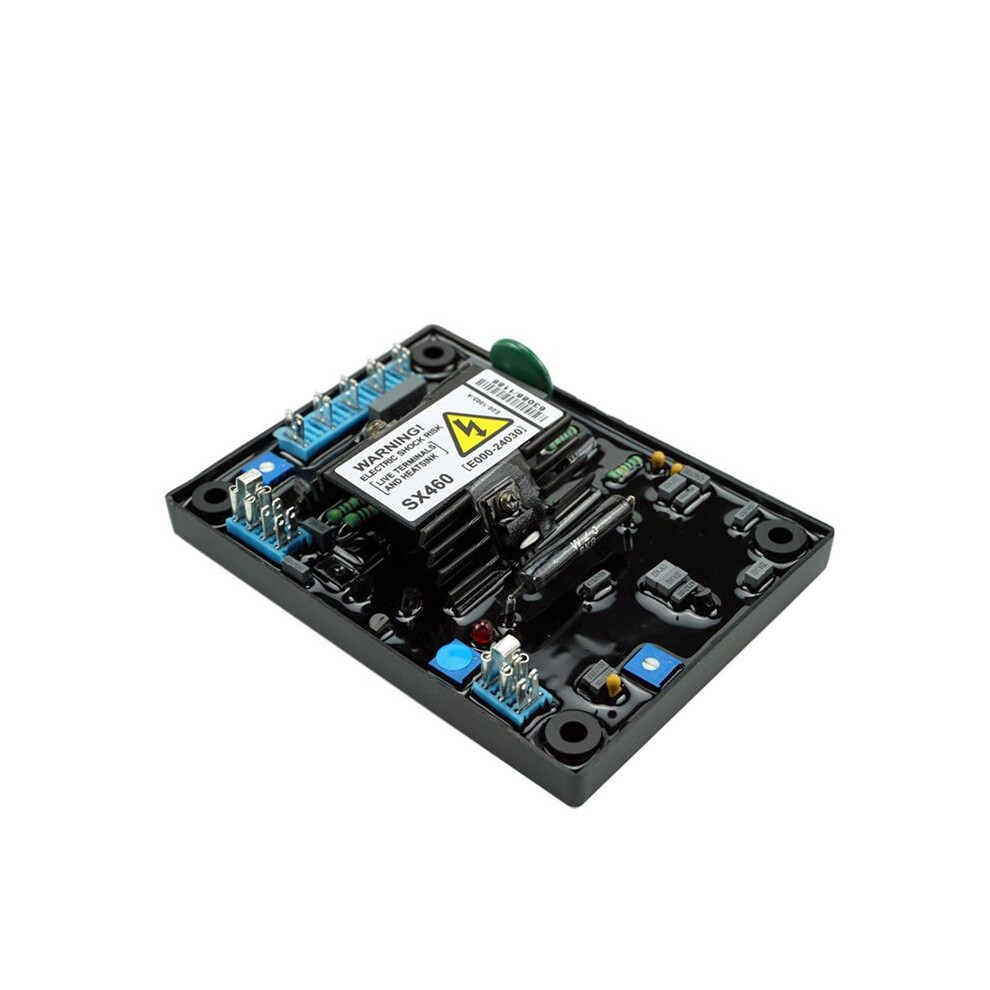

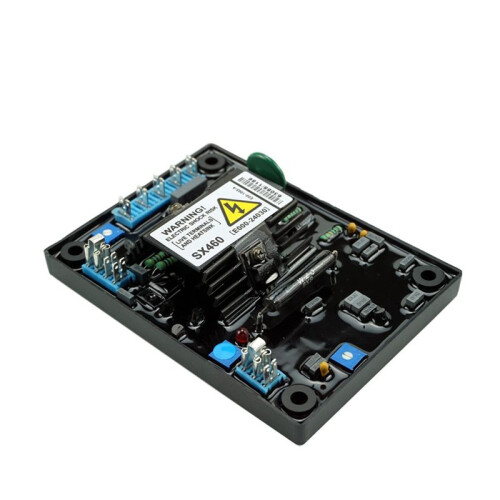

SX460 AVR Generator Automatic Voltage Regulator 120/240V AC Single-Phase Two-Wire Generator Set Accessories E000-24602
În stoc
De ce îți va plăcea să cumperi de la OnBuy:
- Câștigi Cashback la fiecare achiziție – folosește-l la următoarea comandă
- Livrare gratuită – la milioane de produse de pe site
- Clienții ne iubesc – 135,000 de recenzii cu evaluare “Excelent”
Prețurile articolelor vândute de OnBuy includ TVA.
Opțiuni de plată în rate fără dobândă disponibile
Vezi descrierea completă și detaliile produsului
Livrare: Standard (35,00 RON) | vin 2 - mie 7 oct.
Returnări: 30 zile
Protecție la plată pentru 180 de zile
Te-ar putea interesa și
Rezumat
- features: 1,SX460 is a half-wave phase-controlled thyristor type Automatic Voltage Regulator(AVR) and forms part of the exciation system for a brush-less generator.
- 2,In addition to regulating the generator voltage,the AVR circuitry includes under-speed and sensing loss protection features.Excitation power is derived directly from the generator termainals.
- 3,Positive voltage build up from residual levels is ensured by the use of effcient semiconductors in the power circuitry of the AVR.
- 4,Provision is made for the connection of a remote voltage trimmer,allowing the user fine control of the generator output
- 5,The AVR is linked with the main stator windings and the exciter field windings to provide closed loop control of the output voltage with load regulation of +/-1.0%. In addition to being powered from the main stator, the AVR also derives a sample voltage from the output windings for voltage control purposes.
Descriere SX460 AVR Generator Automatic Voltage Regulator 120/240V AC Single-Phase Two-Wire Generator Set Accessories E000-24602
features: 1,SX460 is a half-wave phase-controlled thyristor type Automatic Voltage Regulator(AVR) and forms part of the exciation system for a brush-less generator.
2,In addition to regulating the generator voltage,the AVR circuitry includes under-speed and sensing loss protection features.Excitation power is derived directly from the generator termainals.
3,Positive voltage build from residual levels is ensured by the use of effcient semiconductors in the power circuitry of the AVR.
4,Provision is made for the connection of a remote voltage trimmer,allowing the user fine control of the generator output
5,The AVR is linked with the main stator windings and the exciter field windings to provide closed loop control of the output voltage with load regulation of +/-1.0%. In addition to being powered from the main stator, the AVR also derives a sample voltage from the output windings for voltage control purposes.
Specifications:
Color: black
Material: ABS+PCB
Model: SX460
Detection and power input: voltage 120 (95-132)/240 (190-264) V AC single-phase two-wire with jumper copper selection
Field output: maximum 90V at 207V AC input
Current: continuous 4A, non-continuous 10A in 10 seconds
Voltage regulation accuracy:Less than 1%
System requirements: brushless generator within 80KW
Package Contents:
1 x SX460 voltage regulator
Detalii
| OPC | PWTRKKJ |
|---|---|
| Coduri | 6031186281543 (EAN) |
| Informații despre produs și siguranță |
Date despre produs
| Height | 5cm |
|---|---|
| Width | 11cm |
| Length | 16cm |
| Weight | 0.284kg |
| Colour | black |
| Material | ABS+PCB |
