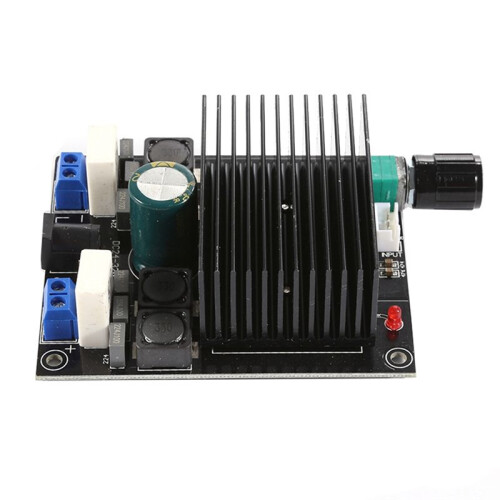

TDA7498 Digital Amplifier Board Module Dual Channel 2x100W High Power 24V Computer Speaker Amplifier Module

Descriere TDA7498 Digital Amplifier Board Module Dual Channel 2x100W High Power 24V Computer Speaker Amplifier Module

1. TDA7498 Is The First 100W+100W Amplifier Currently The Market, Which Supports Single-Chip Integrated Analog, Logic And High-Voltage Functions.
2. Compared With Other Class D Amplification Processes That Create Higher Chip Area Energizers, Stmicroelectronics'Bcd6s Has A Higher Efficiency Ratio While Also Reducing Crosstalk And Improving Sound Quality.
3. In Addition, The Bcd6s High-Power Output Circuit Integrates Nmos And Pmos Complementary Transistors, Eliminating The Need For Bootstrap Capacitors And Cathode Load Diodes Required In The Old Process. The Distortion (Thd+N) Of Stmicroelectronics Tda7498 Is Less Than 0.01%, Which Can Provide A Higher Quality Listening Experience.
4. Use for-Original TDA7498, And The Main Filter Electrolytic Capacitor Is From A Famous With A Capacity Of 2200uF, Ensuring Strong And Continuous .
5. The Resistors Use High-Precision 0805 Chip Resistors, And The Main Circuit Uses Five-Ring Metal Film Resistors With An Accuracy Of 1%, Ensuring A Good Signal-To-Noise Ratio Of The Whole Machine.

The PCB Uses 1.6mm Thick Double-Sided Sheets, 2.0 OZ Copper Thickness, And Full Tin Spraying Process To Ensure Good Passing Performance Of Large And Small Currents. First-Class PCB Quality.
Working Method: Class D
Quiescent Current: 50mA
Work Efficiency: 90%
Rated Output Power: 2*100W
Frequency Response: 20HZ-20KHZ
Working Voltage: 20V- 36V
Recommended Power Supply Voltage: DC32V
Maximum Output Current: 7A
Note:Different Batches May Have Differences In Product Appearance, Color, And Printed Characters, Which Will Not Affect The Use
Colour:As Shown
Material:PCB

Package Contents:
1 * Power Amplifier Board Module
