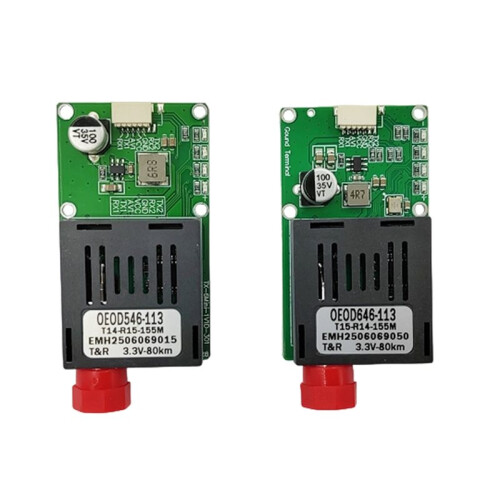

TTL Optical Transceiver Module 80KM Optical End Device Dedicated Optical Port Interface Module UART/SBUS
În stoc
De ce îți va plăcea să cumperi de la OnBuy:
- Câștigi Cashback la fiecare achiziție – folosește-l la următoarea comandă
- Livrare gratuită – la milioane de produse de pe site
- Clienții ne iubesc – 129,000 de recenzii cu evaluare “Excelent”
Prețurile articolelor vândute de OnBuy includ TVA.
Opțiuni de plată în rate fără dobândă disponibile
Vezi descrierea completă și detaliile produsului
Livrare: Standard (23,28 RON) | mie 5 - mar 11 aug.
Returnări: 30 zile
Protecție la plată pentru 180 de zile
Cele mai populare în Adaptoare seriale
Rezumat
- The wavelength of the fiber on the sky side is 1490nm, The wavelength of the fiber on the ground side is 1550nm
- The interface is defined as: RX/TX/AV/VCC/GND
- RX is connected to the CRSFTX of the flight control, and TX is connected to the CRSFRX of the flight control
- The AV on the sky side is connected to the AV signal output port of the flight control, and the VCC power supply voltage is 5.5V-26V
- The AV on the ground side is output to the AV signal input port of the display or VTX, and the VCC power supply voltage is 5.5V-26V
Descriere TTL Optical Transceiver Module 80KM Optical End Device Dedicated Optical Port Interface Module UART/SBUS
The wavelength of the fiber the sky side is 1490nm, The wavelength of the fiber the ground side is 1550nm
The interface is defined as: RX/TX/AV/VCC/GND
RX is connected to the CRSFTX of the flight control, and TX is connected to the CRSFRX of the flight control
The AV the sky side is connected to the AV signal output port of the flight control, and the VCC power supply voltage is 5.5V-26V
The AV the ground side is output to the AV signal input port of the display or VTX, and the VCC power supply voltage is 5.5V-26V
Specifications:
Dimensions: length x width x height - 50mmx30mmx8.5mm:
Power supply: 5.5V-26V: (2S-6S battery)
Power consumption: less than or equal to 5W:
Communication interface: MX-SH1.0mm-5P: CRSF interface/CVBS video port
Fiber optic interface: FC: Communication distance: maximum 80KM

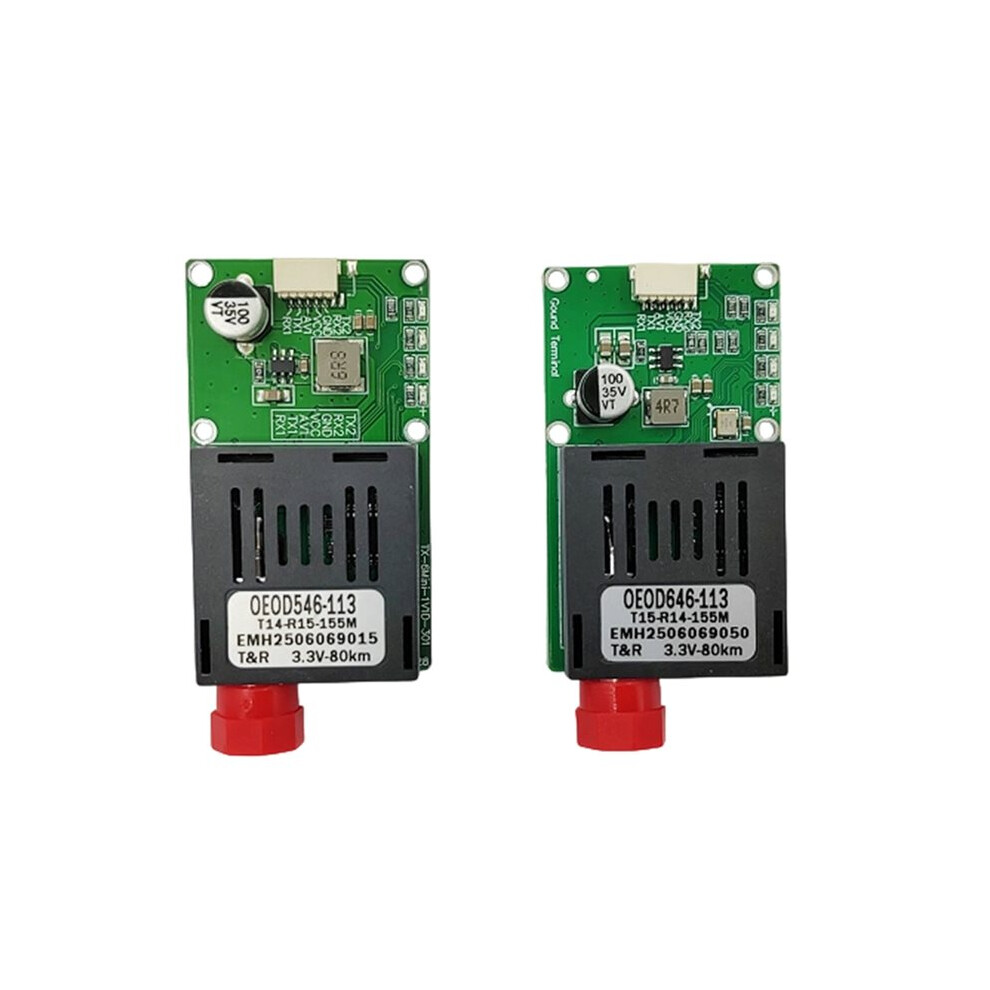

Note: The product indicator lights from top to bottom are: power light, fiber optic light, video light, data light; GND is the ground wire, VCC is the power supply, AV is the video, TX is the TTL signal output, and RX is the TTL signal input.
Due to different batches, there may be differences in product appearance, color, and printed text, which will not affect the use.
Color:Green
Material:PC+Plastic
Package Contents:
1 * Transmitter Module
1 * Receiving Module
Detalii
| OPC | PTGSDTX |
|---|---|
| Coduri | 6031969013941 (EAN) |
| Informații despre produs și siguranță |
Date despre produs
| Height | 2cm |
|---|---|
| Width | 7cm |
| Length | 8cm |
| Weight | 0.034kg |
| Colour | Green |
| Material | PC+Plastic |
