Universal Garage Door Remote Control Receiver 2CH Controller for Transmitter RX Multi Frequency 433-900MHz Black

Descriere Universal Garage Door Remote Control Receiver 2CH Controller for Transmitter RX Multi Frequency 433-900MHz Black

1) Select the correct for remote to be programmed by moving dip switches or DOWN. For example 433,92Mhz Marantec remote controls, just move Dip- 7 .
2) Press the learn button. The will LED turn .
3) Press the button the remote, the LED flashes 4 times. It means that remote control was programmed successfully.
4) Repeat step 2 for another button.
5)The 2-nd channel programming procedure is the same. Erase all data from the memory card: Press and hold either learn button. The LED will start flash. Keep this button pressed, until the LED will turn off. All saved data in the memory card will be erased permanently and can not be recovered

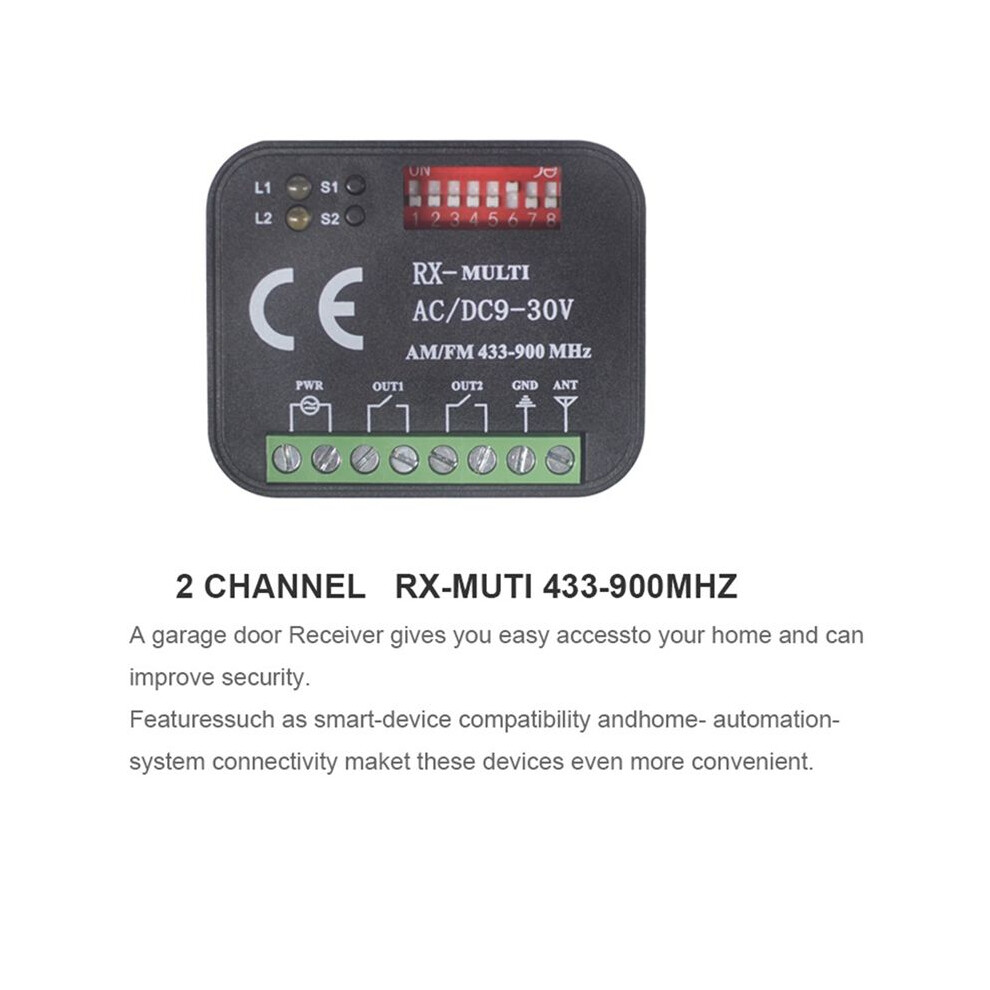

Name: Universal receiver SMG-662.
Operating Voltage: 9V-30V
Channel: 2.
Frequency: 433-900MHZ.
Distance: 30-50 meters.

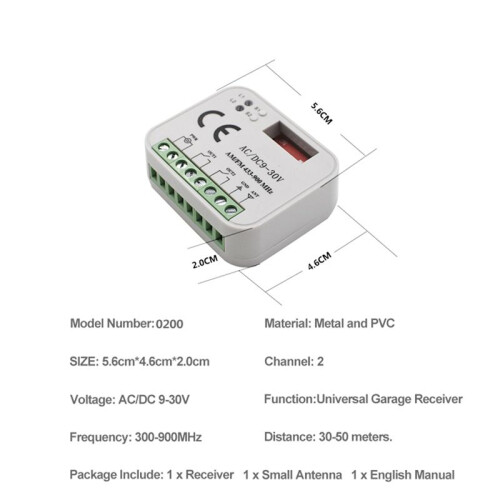

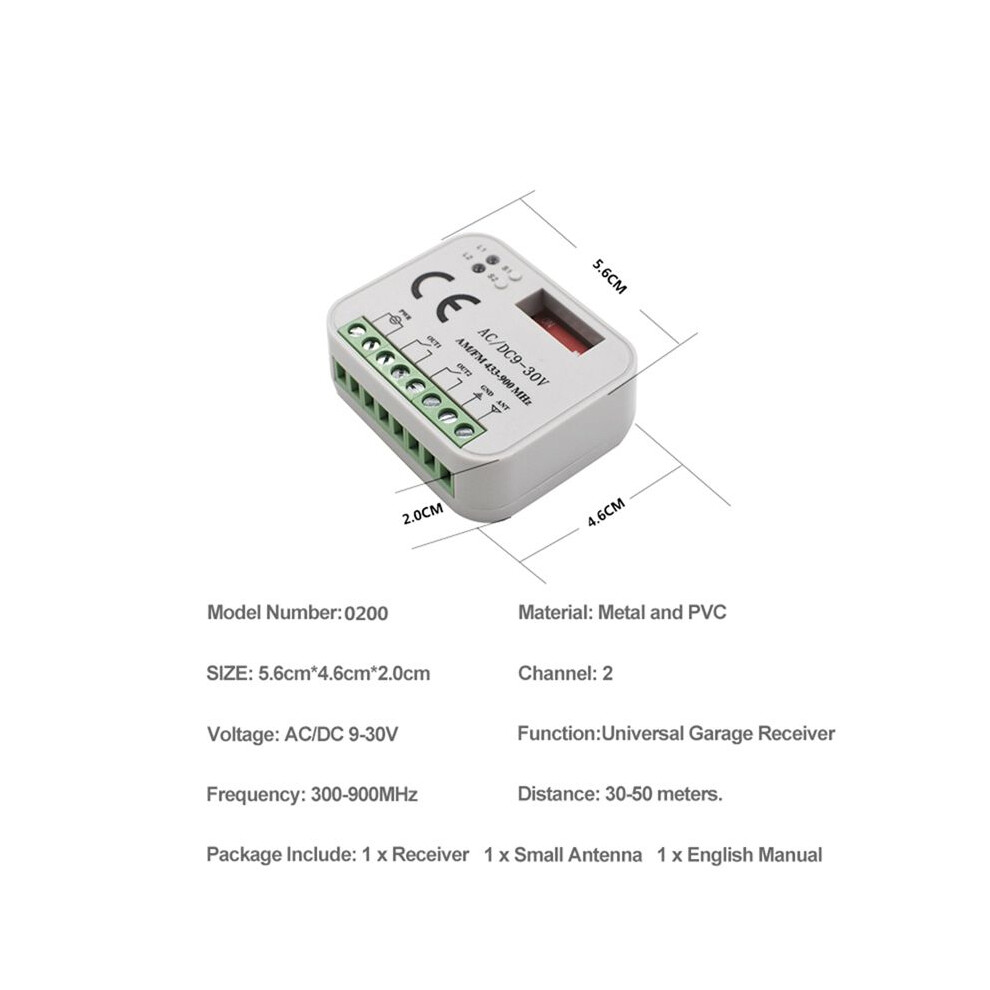

Very size: 5.5cm x 4.5cm x 1.0cm.
One receiver can work with 400 codes.
It don't interference other remotes and receivers.

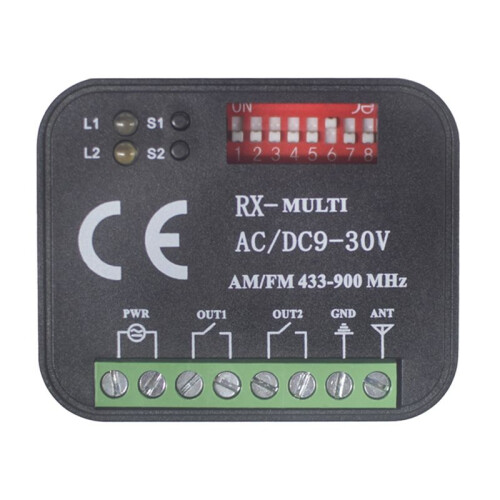

selector: With 8 dip switches user can make different combination for different remote brands.
Code: Rolling and Fixed code & Learning code.
Uses: Receiver is designed to control any gate automation system, burglar alarm system, electric doors, windows, lifting equipment, gateways, lifting devices. This is an easy to use, good looking, low power consumption and is easy to connect to your existing system.
Power Input Selector: This receiver can work at AC/ 9V~30V. However, it's better to change the PIS according to the power input. If the input is great than 24V, shorten pin 2&3; shorten 1&2 if input less than 24V.
Colour:black
Material:ABS

Package Contents:
1 x Receiver Controller
