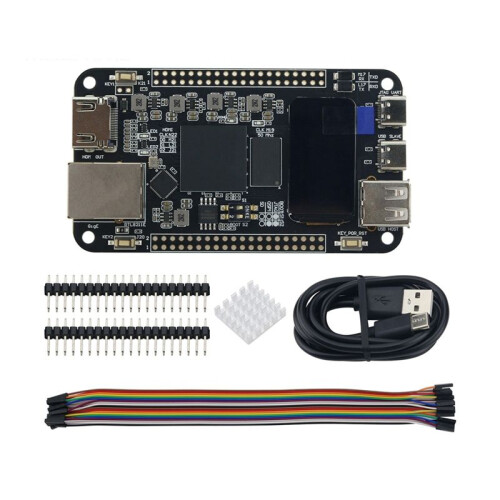

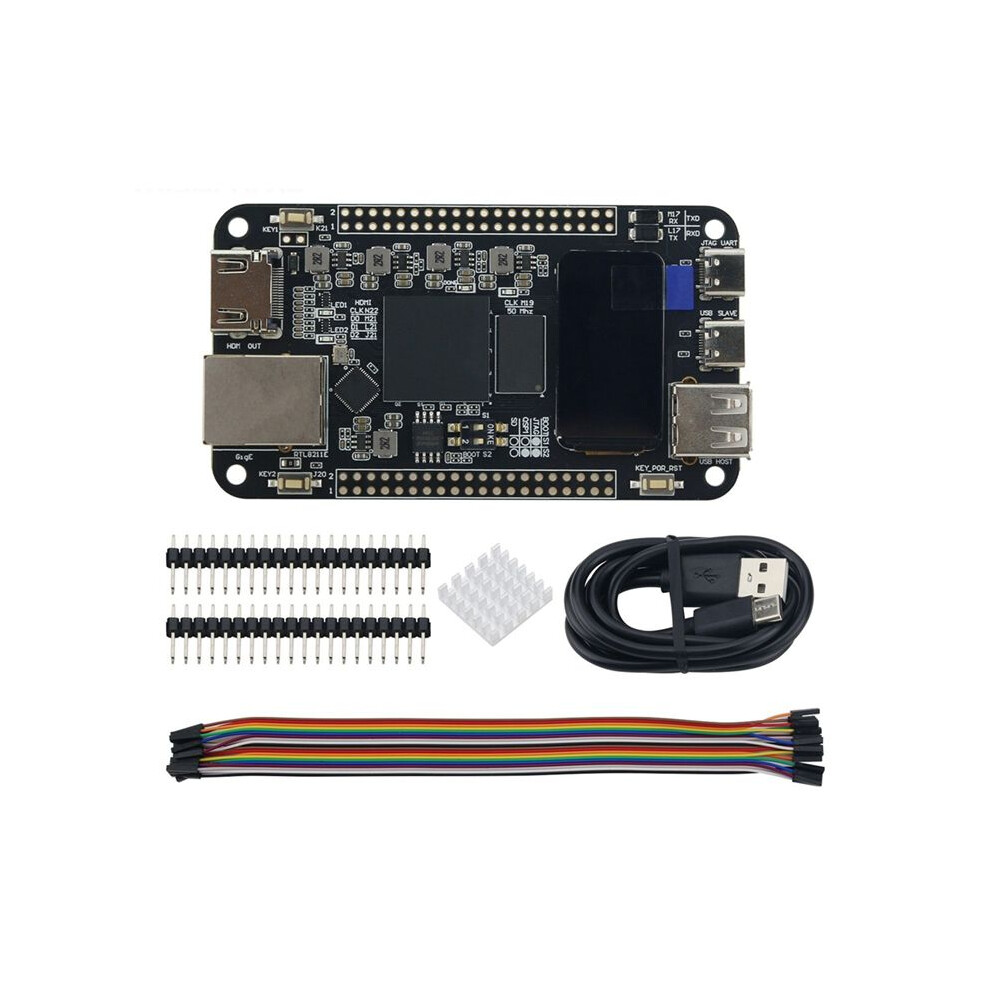

Unwelded SP Version 7020 FPGA Minimum System Development Board (Downward Welding) Core Board Onboard Downloader

Nou

În stoc

De ce îți va plăcea să cumperi de la OnBuy:

Câștigi Cashback la fiecare achiziție – folosește-l la următoarea comandă
Livrare gratuită – la milioane de produse de pe site
Clienții ne iubesc – 130,000 de recenzii cu evaluare “Excelent”

Vezi descrierea completă și detaliile produsului

Cantitate

913,12 RON

1.506,65 RON Reducere de 39%!

+46,42 RON livrare

1% Câștigați 9,13 RON instant Află mai multe

Adaugă în coș

Prețurile articolelor vândute de OnBuy includ TVA.

Opțiuni de plată în rate fără dobândă disponibile

Vezi descrierea completă și detaliile produsului

Livrare: Standard (46,42 RON) | lun 10 - lun 17 aug.

Vândut de: Hoeappt

Returnări: 30 zile

Protecție la plată pentru 180 de zile

Adaugă în coș

Descriere & Detalii

Rezumat

1. The power position of the pins on one side has been adjusted. V1.3 is consistent with V1.2 and is no longer compatible with V1.1
2. The model of TI power supply chip has been adjusted
3. The CLK pin of HDMI has been adjusted to SRCC clock pin (it can adapt to more third-party HDMI IP cores)
Development Board for Xilinx FPGA
Onboard Downloader for Xilinx

Descriere Unwelded SP Version 7020 FPGA Minimum System Development Board (Downward Welding) Core Board Onboard Downloader

1. The power position of the pins one side has been adjusted. V1.3 is consistent with V1.2 and is no longer compatible with V1.1
2. The model of TI power supply chip has been adjusted
3. The CLK pin of has been adjusted to SRCC clock pin (it can adapt to more third-party IP cores)

Please note: the physical slightly color difference or difference, does not affect the use, please do not mind, thank you!
Board resources:Main chip 7020 (new chip industrial grade)
512MB DDR3
TF card slot
A16MB QSPIFLASH (can be responsible for startup)
EEPROM 2KB (PL)
Two LEDs (PL)
Two buttons (PL) + a POR reset button
One UART (PL)
One onboard XILINX downloader
One USB can be used as USB SLAVE or USB HOST10. Lead out 68 GP10 (all lead out from PL end) (34 groups) all connected in pairs with differential lines, and the differential lines are of equal length One side of the BANK is independently powered, and the BANK voltage can be adjusted by resistors
Gigabit Ethernet (connected to PL end)
output interface
SP: 1.47-inch vertical screen (172X320) or SP2: 1.3-inch square screen (240x240) (connected to PL end)
PL is connected to 50M active crystal oscillator
, USB and downloader are all connected to ESD electrostatic protection devices 8-layer immersion gold board can run
Color: As Shown
Material: Metal

Package Contents:
1set x Minimum System Development Board

Detalii

OPC	PX29YZK
Coduri	4711886927751 (EAN)
	Informații despre produs și siguranță

Date despre produs

Height	5cm
Width	16cm
Length	16cm
Weight	0.2285kg
Colour	As Shown
Material	Metal
