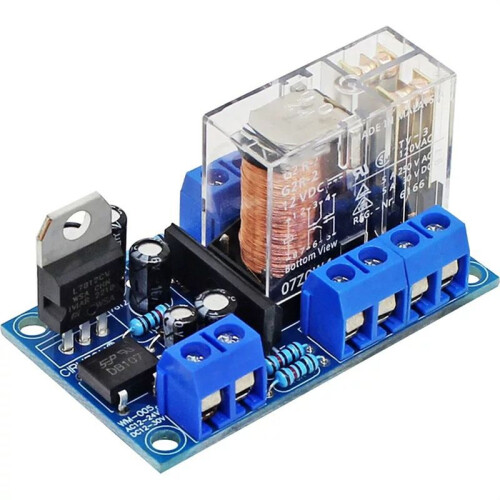

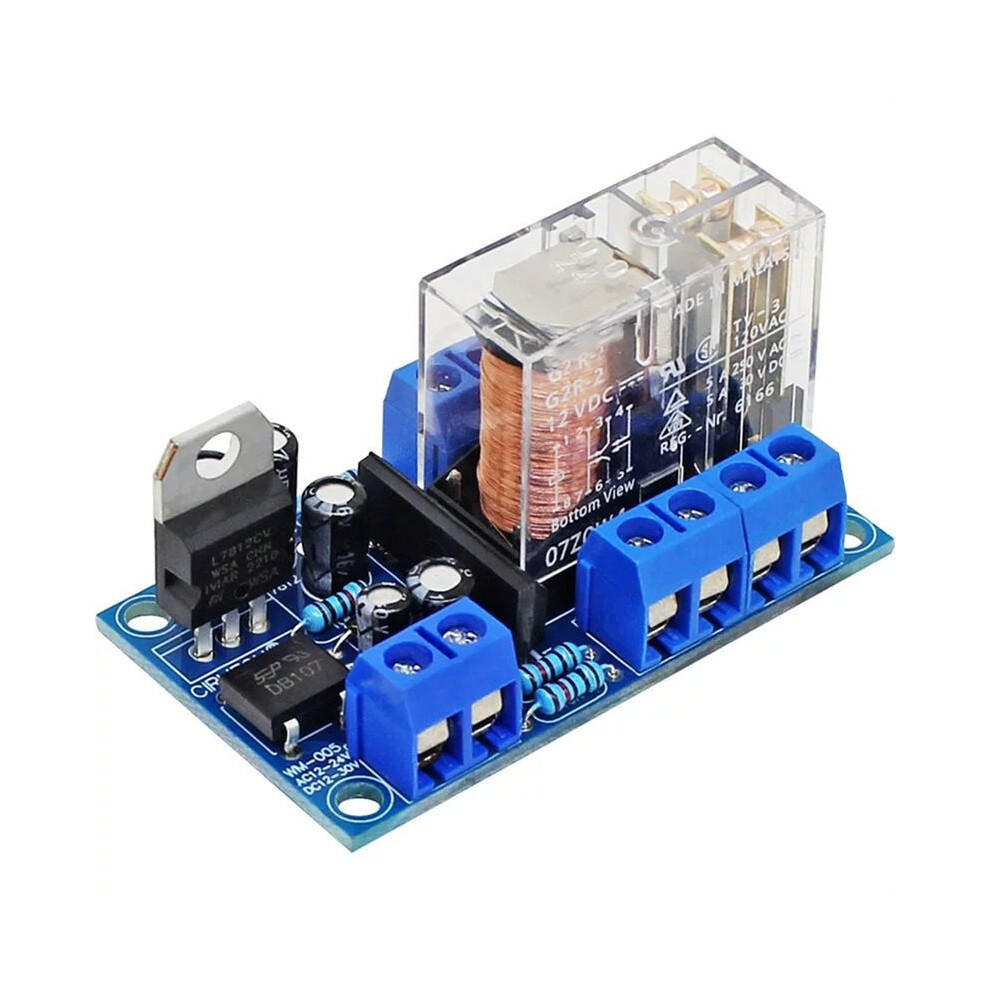

UPC1237 Speaker Protection Board for Relay DIY Passive Speaker and Off Delay Anti-Impact Module
În stoc
De ce îți va plăcea să cumperi de la OnBuy:
- Câștigi Cashback la fiecare achiziție – folosește-l la următoarea comandă
- Livrare gratuită – la milioane de produse de pe site
- Clienții ne iubesc – 127,000 de recenzii cu evaluare “Excelent”
Prețurile articolelor vândute de OnBuy includ TVA.
Opțiuni de plată în rate fără dobândă disponibile
Vezi descrierea completă și detaliile produsului
Livrare: Standard (28,62 RON) | lun 13 - sâm 18 iul.
Returnări: 30 zile
Protecție la plată pentru 180 de zile
Cele mai populare în Piese și componente pentru difuzoare TV
Rezumat
- 1. Start-up delay DC protection, anti-shock when power off;
- 2. 7812 is used for voltage stabilization, and the power supply range allows AC12V to AC24V;
- 3. The pull-in time is about 2 seconds;
- 4. The use power is up to 200 watts, which can be increased to 400 watts when used in mono parallel connection;
- 5. The circuit is simple and reliable. It is very easy to make and free of debugging;
Descriere UPC1237 Speaker Protection Board for Relay DIY Passive Speaker and Off Delay Anti-Impact Module
1. Start- delay protection, anti-shock when power off;
2. 7812 is used for voltage stabilization, and the power supply range allows AC12V to AC24V;
3. The pull-in is about 2 seconds;
4. The use power is to 200 watts, which can be increased to 400 watts when used in mono parallel connection;
5. The circuit is simple and reliable. It is very easy to make and free of debugging;
The product is suitable for OCL or OTL output power amplifier circuit, not suitable for BTL!
Use independent windings to supply power to the protection circuit, so that the power loop can be closed, otherwise the speaker ground and signal ground are mixed together, which will easily produce interference and hum. (The common use of the front-level power supply and the protection circuit can easily produce humming).
Color: As Shown
Material: Plastic+Metal
Package Contents:
1 x UPC1237 speaker protection board
Detalii
| OPC | PV8P7RG |
|---|---|
| Coduri | 4714027949957 (EAN) |
Date despre produs
| Height | 3cm |
|---|---|
| Width | 6cm |
| Length | 11cm |
| Weight | 0.035kg |
| Colour | As Shown |
| Material | Plastic+Metal |
