USB Chip Card Reader Built-in Embedded IC Card Contact Card Reader Module Plug and

Descriere USB Chip Card Reader Built-in Embedded IC Card Contact Card Reader Module Plug and

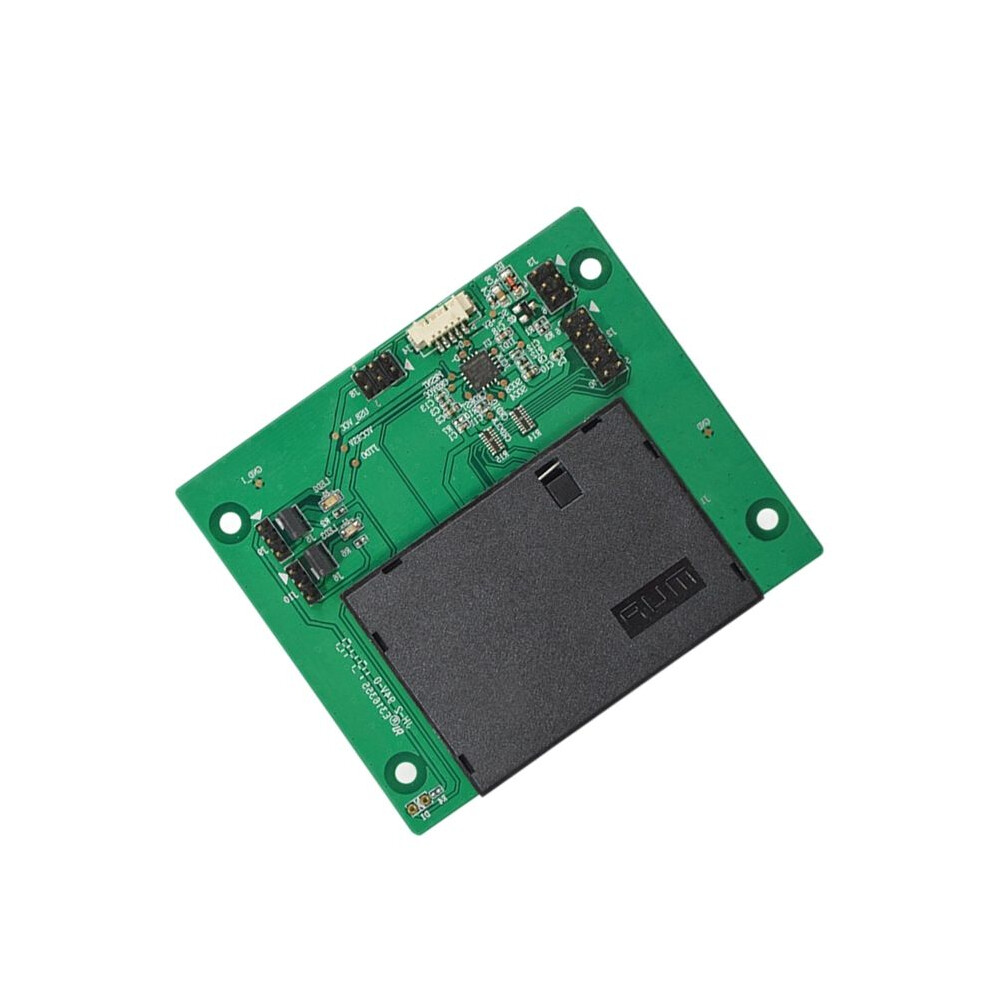

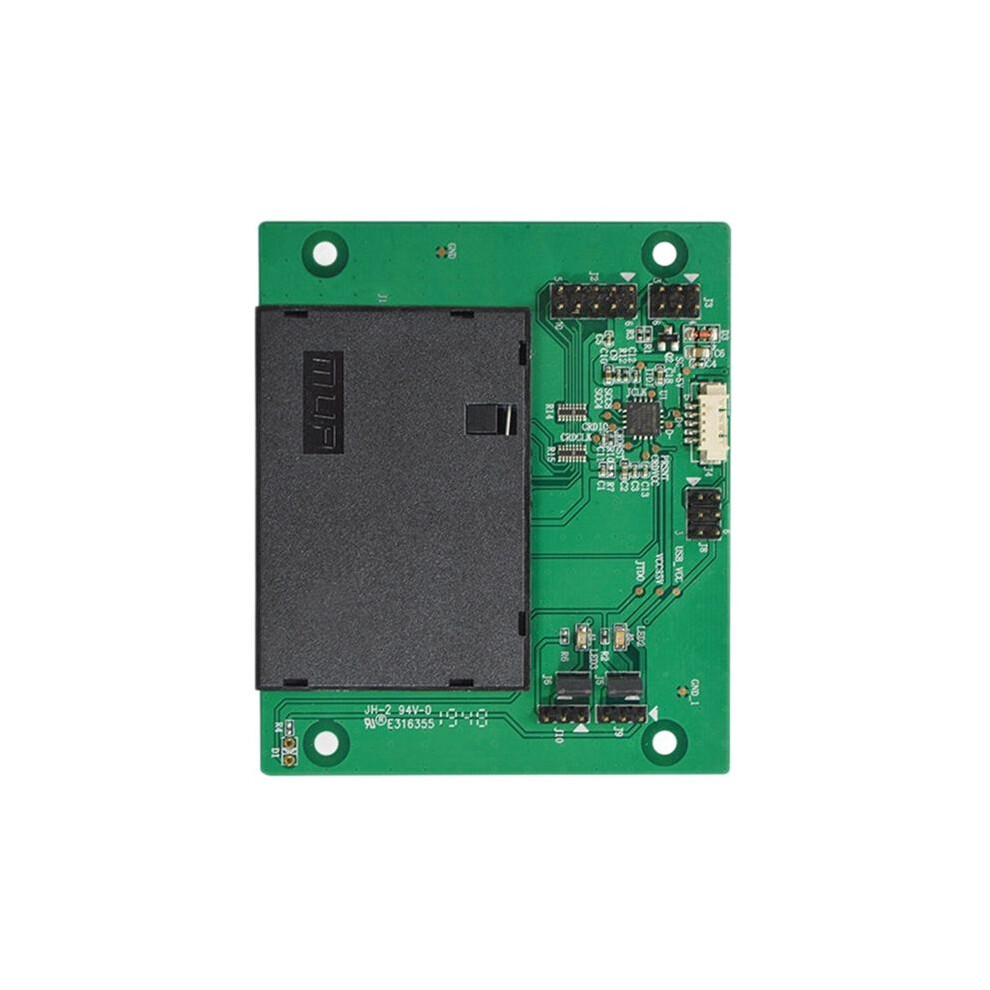

The ACM39U-Y3 uses the globally recognized ACR39 core to provide a secure access control solution. It comes in a module form factor that allows easy implementation of card-based solutions in embedded systems.
The ACM39U-Y3 supports for ISO 7816 Class A, B, and C cards. In addition, it is also suitable for memory cards and microprocessor cards that comply with T=0 and T=1 protocols. It has a USB full-speed interface and a card read and write speed of 600 Kbps.
The ACM39U-Y3 is also easy to install and use in a variety of environments. It complies with PC/SC and CCID standards, and its drivers are compatible with operating systems such as for Windows, Linux, and for OS. In addition, the ACM39U-Y3 can also be integrated with systems running for Android platform 3.1 and above.

USB 2.0 Full Speed Interface
Plug and - CCID support for maximum mobility
Card Reader:
1)Supports ISO 7816 Class A, B and C (5 V, 3 V, 1.8 V) cards
2)Supports CAC (Common Access Card)
3)Supports SIPRNET card
4)Supports J-LIS card
5)Supports microprocessor card with T=0 or T=1 protocol
6)Supports memory card
7)Supports PPS (Protocol and Parameter Selection)
8)With short circuit protection
Application Programming Interface:
Supports PC/SC
Supports CT-API (via wrapper PC/SC)
Supports for Android 3.1 and above
USB Interface
Protocol USB CCID
Connector Type 1 x 5-pin connector
2 x 3-pin connector
Speed USB Full Speed (12 Mbps)
Contact card interface
Number of slots 1 full-size card slot
Standard ISO 7816 Part 1-4, Class A, B, C (5 V, 3 V, 1.8 V)
Protocol T=0; T=1; Memory card support
Other CAC, PIV, SIPRNET, J-LIS cards
Color: As Shown
Material: PCB

Package Contents:
1 x Chip Card Reader
