Descriere & Detalii
Rezumat
- 1. The output voltage is DC 110~2600V. You can turn the voltage adjustment button clockwise to make the voltage larger, and turn it counterclockwise to make the voltage smaller.
- 2. The output current is 0.25~3.4mAh. You can turn the voltage adjustment button clockwise to make the current larger, and turn it counterclockwise to make the current smaller.
- 3. When testing MOS tubes, transistors and Zener diodes, it is recommended to adjust the current to the minimum scale of 0.25mA. When testing LED backlight panels, it is recommended to adjust the current to the maximum scale of 3.4mAh.
- 4. Portable size: The small size of this tool is very convenient for daily use. You can carry it in a tool bag without taking up too much storage space.
- 5. Built-in 600 mAh large-capacity lithium battery for power supply, which can be charged in time through the Type-C interface. 6. Wide application: This tool can be widely used for maximum voltage capacity testing of MOS, transistors, IGBTs, diodes, Zener diodes, diode bridges, voltage verification of capacitors and varistors, LED backlight and light panel testing, etc.

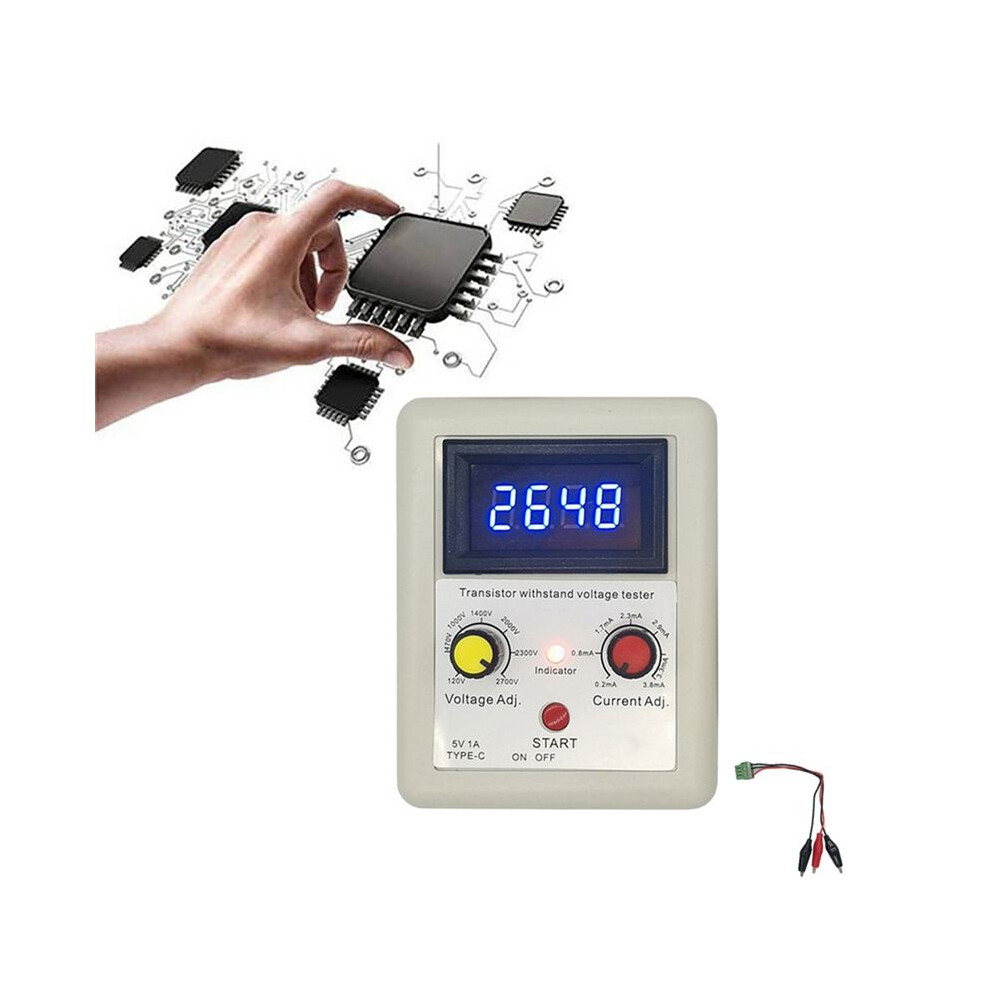

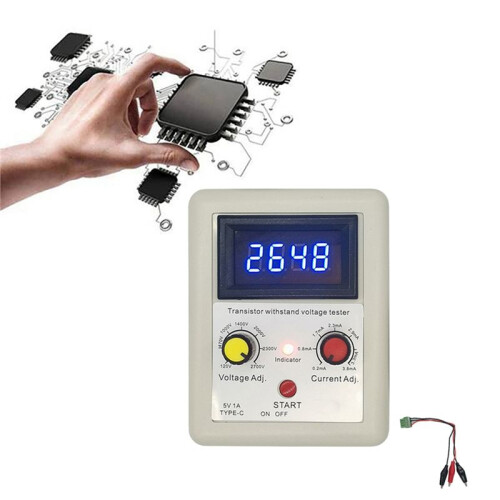

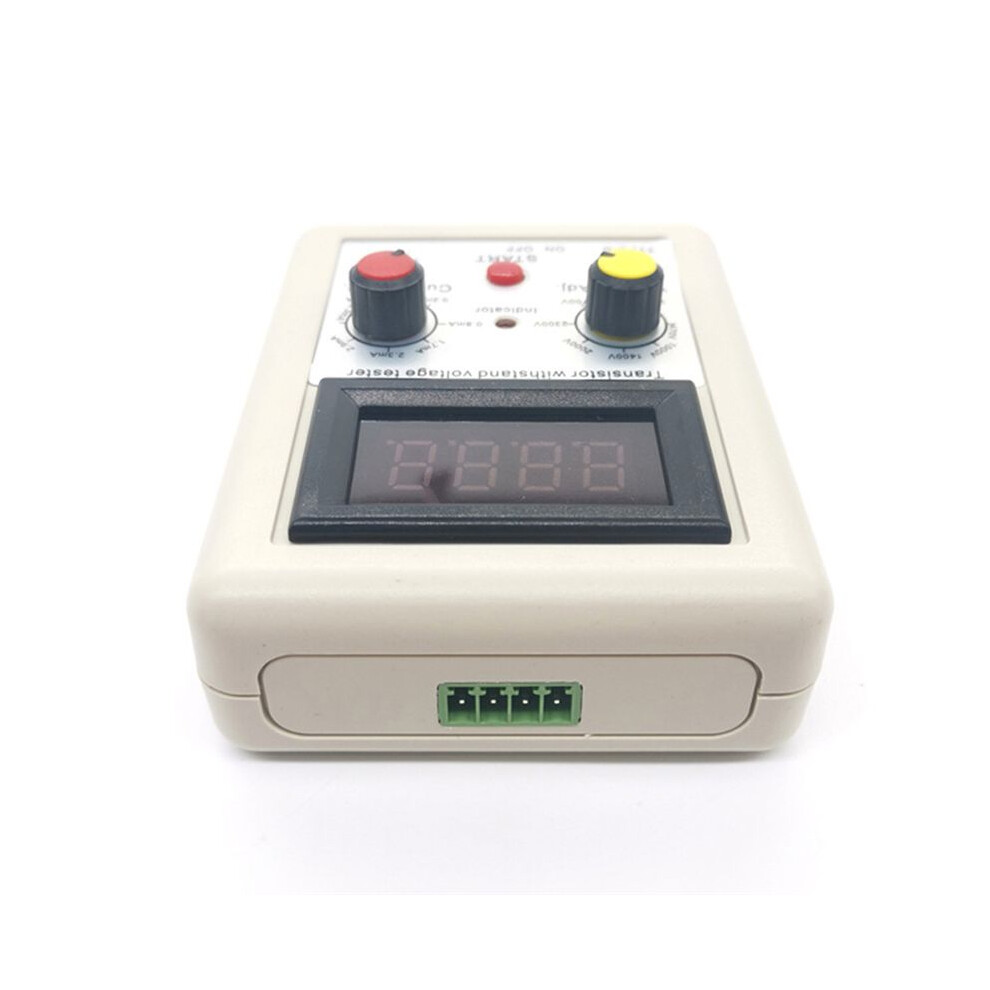

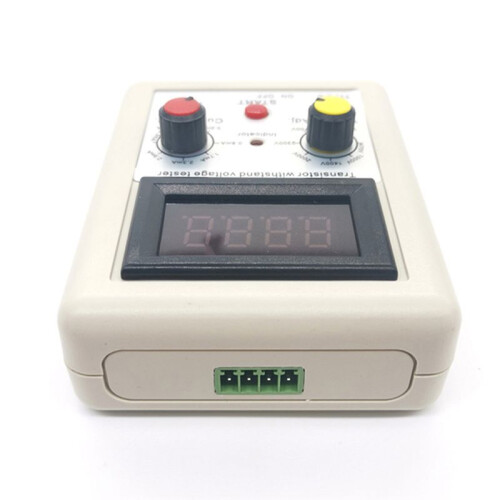

Descriere Voltage Capability IGBT Transistor Tester MOS Triode Diode LED Voltage Capability Tester Withstand Voltage TestingTool B
1. The output voltage is 110~2600V. You can turn the voltage adjustment button clockwise to make the voltage larger, and turn it counterclockwise to make the voltage smaller.
2. The output current is 0.25~3.4mAh. You can turn the voltage adjustment button clockwise to make the current larger, and turn it counterclockwise to make the current smaller.
3. When testing MOS tubes, transistors and Zener diodes, it is recommended to adjust the current to the minimum scale of 0.25mA. When testing LED backlight panels, it is recommended to adjust the current to the maximum scale of 3.4mAh.
4. Portable size: The small size of this tool is very convenient for daily use. You can carry it in a tool bag without taking too much storage space.
5. Built-in 600 mAh large-capacity lithium battery for power supply, which can be charged in through the Type-C interface. 6. Wide application: This tool can be widely used for maximum voltage capacity testing of MOS, transistors, IGBTs, diodes, Zener diodes, diode bridges, voltage verification of capacitors and varistors, LED backlight and light panel testing, etc.
Product parameters:
Battery capacity: 3.7V 600mAH
Charging port: TYPE-C
Input: 5V 1A
Charging current: Max.550mA
Output voltage: 120-2700V
Output current: 0.2-3.8mA
Applicable components: MOS tube/IGBT/transistor/diode/electrolytic capacitor/LED/MOV/unidirectional thyristor/rectifier bridge
Test target: breakdown voltage value of electronic components
Notice:
1. Do not use it to test high-voltage large electrolytic capacitors such as 450V/220UF. It is possible to test low voltage capacitors such as 2200UF/35V.
2. If there is no output voltage when pressing the red high-voltage start button, it is likely that the lithium battery voltage is lower than 3.1V, which cannot power the tester an
Detalii
| OPC | PVJDYHB |
|---|---|
| Brand | ISTOVO |
| Coduri | 4714212631650 (EAN) |
| Informații despre produs și siguranță |
Date despre produs
| Height | 5cm |
|---|---|
| Width | 9cm |
| Length | 13cm |
| Weight | 0.1375kg |
| Colour | White |
| Size | blue |
| Material | plastic |
