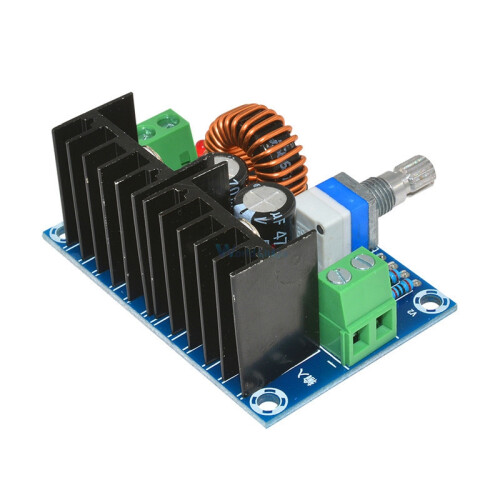

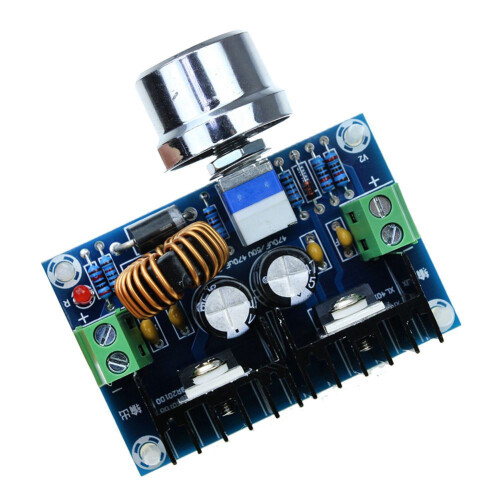

Voltage Regulator Regulator XH-M401 XL4016E1 High-Power Buck Module -

Descriere Voltage Regulator Regulator XH-M401 XL4016E1 High-Power Buck Module -

Model Number: XH-M401
Type: Voltage Regulator
Operating Temperature: standard
Condition: New
Supply Voltage: 4-40V To 1.25-36V
is,customized: Yes
Dissipation Power: standard
Application: Computer
Package: other
match 1: diy
match 2: -
match 3: buck converter
match 4: 1.2v-36v converter
match 5: 100w step down
match 6: 100w step down module
match 7: step down
Descrizione del prodotto
Product name: step-down module Converter
Voltage regulating mode: PWM modulation
Input voltage: DC4-40V
Output voltage: DC1.25-36V
Max output current: 8A (more than 5A for long use,need Fan if over 5A)
Max power: 200W
Conversion efficiency: 94%
Switching frequency: 180KHZ
Chip: switching regulator Regulating chip XL4016 with Over current protection, Over temperature protection,Short circuit protection
When reach maximum output current 8A, need to add fan. Long term work recommended about 5A
Panel Mounting:
1. Drill holes in the Panel 7mm
2. Extended potentiometer handle
3. Lock screw sleeve upper knob
colour: photo color
Material: metal
size: Dimensions: 61*41*27mm
Package Contents:
1 x step down voltage power module
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
