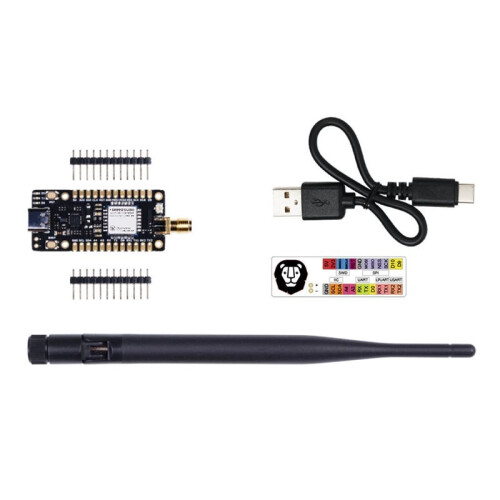

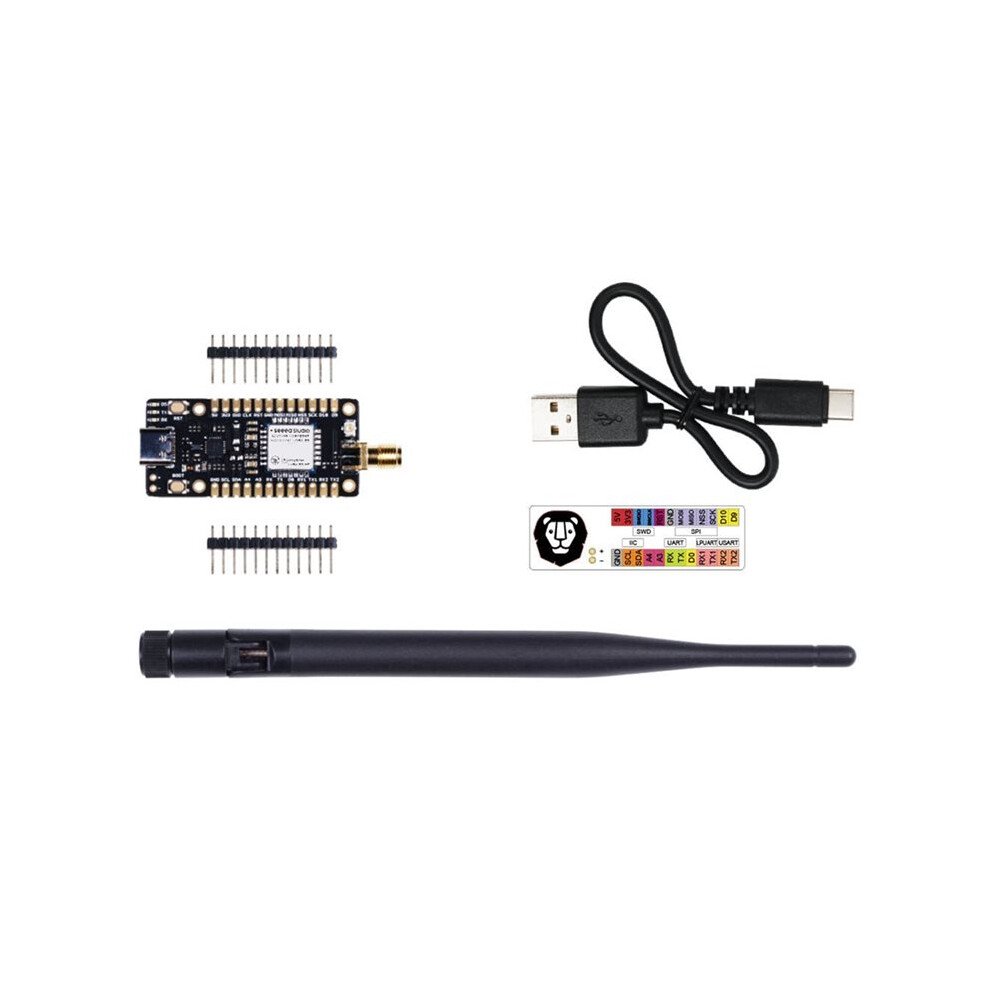

Wio-E5 Dev Board - STM32WLE5JC, ARM Cortex-M4 and SX126x Embedded, Supports LoRaWAN EU868 & US915

Descriere Wio-E5 Dev Board - STM32WLE5JC, ARM Cortex-M4 and SX126x Embedded, Supports LoRaWAN EU868 & US915

Wio-E5 is a compacted-sized development board suitable for the rapid testing and building of small-size prototyping and helps you design your ideal Long Range wireless IoT device with a long-distance transmission range.
Wio-E5 Dev Board builds in and leads out full GPIO of the Wio-E5 STM32WLE5JC LoRa module. Supporting Long Range protocol and global frequency, the Wio-E5 is able to achieve a transmission range of to 10 in open areas.
It supports EU868 and US915, making it suitable for wireless sensor networks and other IoT devices that require battery power, low power consumption and long range.
This ultra-compact module has extremely low power consumption and is capable of supporting both (G)FSK and Long Range. With its built-in AT command firmware, makes it easy for developers to build their prototypes or applications.
It can easily support LoRaWAN protocols and a variety of frequency plans, making it an ideal solution for Long Range sensor nodes and a range of wireless communication applications. Whether you need to set Wireless Meter Reading, IoT Nodes, or a Sensor Network, the Wio-E5 is perfectly suited for low power wide area IoT scenarios.
Features
High Performance: The transmit power to 22dBm @868/915MHz; -136.5dBm sensitivity for SF12 with 125KHz BW.
Long Distance Use:158dB link budget
Wireless Connectivity: Embedded Long Range protocol, AT command, support global Long Range frequency plan
Use-friendly: It features fully lead-out GPIOs, as well as convenient RESET and BOOT buttons board.
Specifications:
voltage - supply: 3.7V - 5V
power - output: to +20.8 [email protected]
wo
