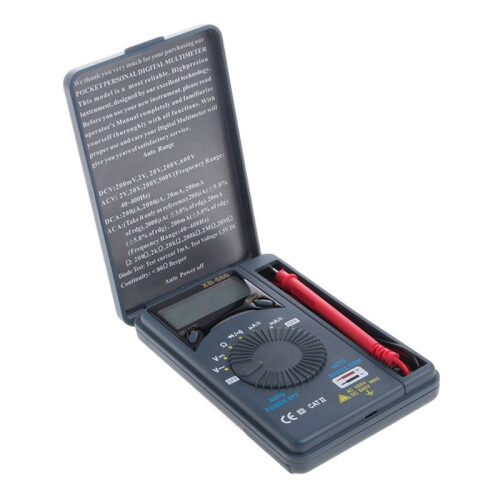

XB866 Auto Range LCD Voltmeter Tester Tool AC/for Pocket Digital Multime

Descriere XB866 Auto Range LCD Voltmeter Tester Tool AC/for Pocket Digital Multime

Overrange for protection for all ranges
Accuacy is specified for a period of year after calibration and at 18 degree to 28 degree with relative humidity to 75%
It includes 7 function with 25 Between Terminals And Earth Ground; 600V for or 500V
Show Value: 1999 counts Polarity Indication:"-" indicates negative polarity

Overrange Indication: Display" OL" or "-OL"
: approx.0.4second Until showing of function and electrical capacity
Specification:
Auto Power Supply: 15min
Temperature, Factor less than 0.1*Accuracy/Degree
Operating Temperature: 0 Degree To 40 Degree(32F to 104 F)
Storage Temperature: 0 Degree To 50 Degree(10F to 122 F)
Circumstance Temperature: 235 Degree Relative Humidity:less than 70%
Auto
for 200mV, 2V, 20V, 200V, 600V
2V, 20V, 200V, 500V (Frequency 40-400Hz)
for Current: 200uA, 2000uA, 20mA, 200mA
Current: (Take it only as reference) 200uA(5% of rdg), 2000uA (3% of rdg),
20mA (5% of rdg), 200mA (3% of rdg) (Frequency 40-400Hz)
Resistance: 200Ω, 2KΩ, 20KΩ, 200KΩ, 2MΩ, 20MΩ
Diode Test: test current 1mA, test 1.5V
Continuity: less than 80Ω Beeper
Colour:As Shown
Material:plastic
Power Supply: 2 x 1.5V batteries (Not included batteries)
Note:
Please check as much as possible to make sure the item is what you need.
The actual product may have slight color difference or difference, which will not affect the use

Package Contents:
1 x LCD Digital Multimeter (Without battery Two 1.5V batteries)
