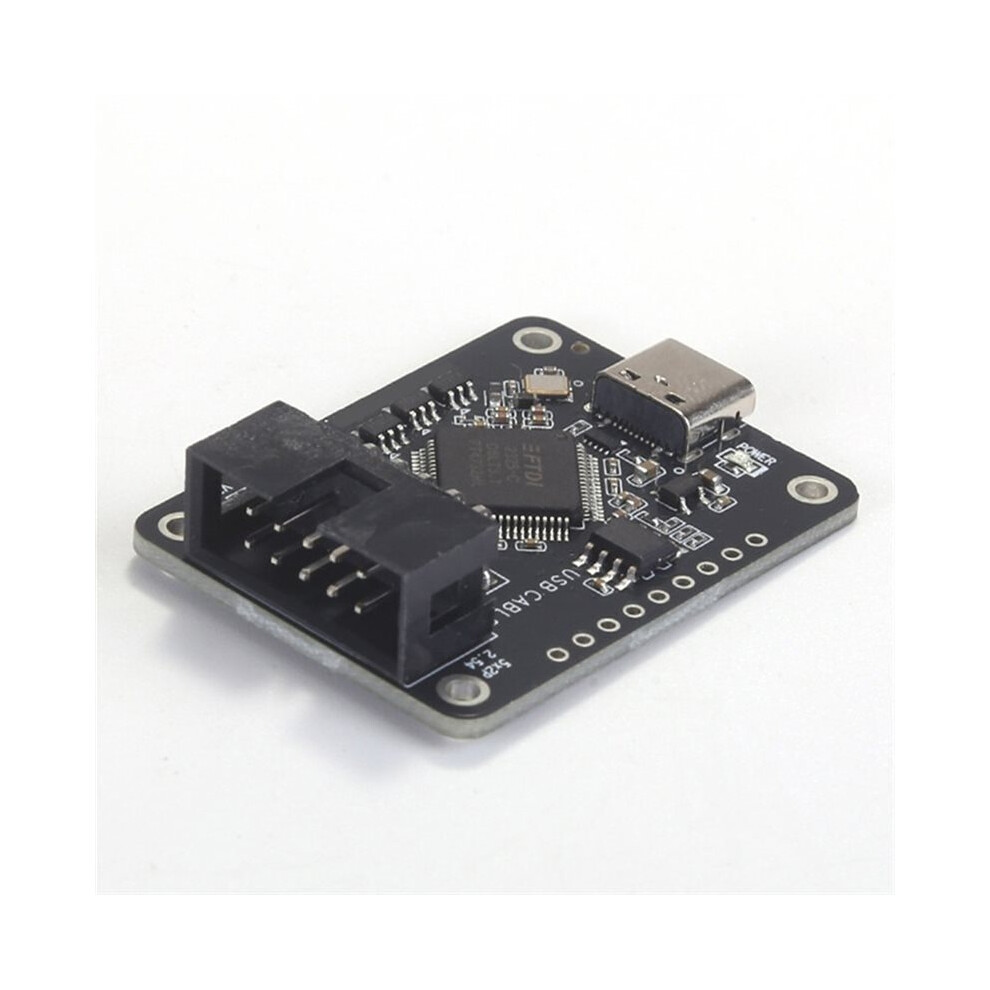

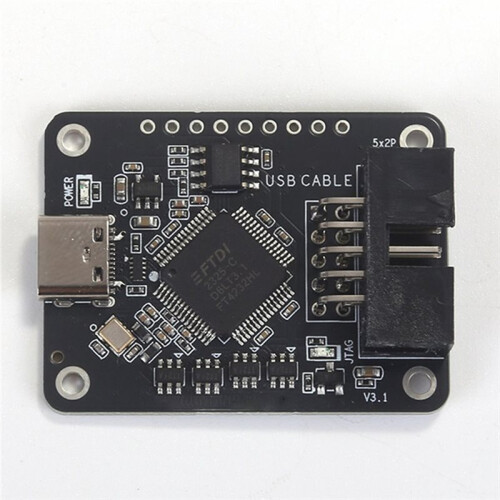

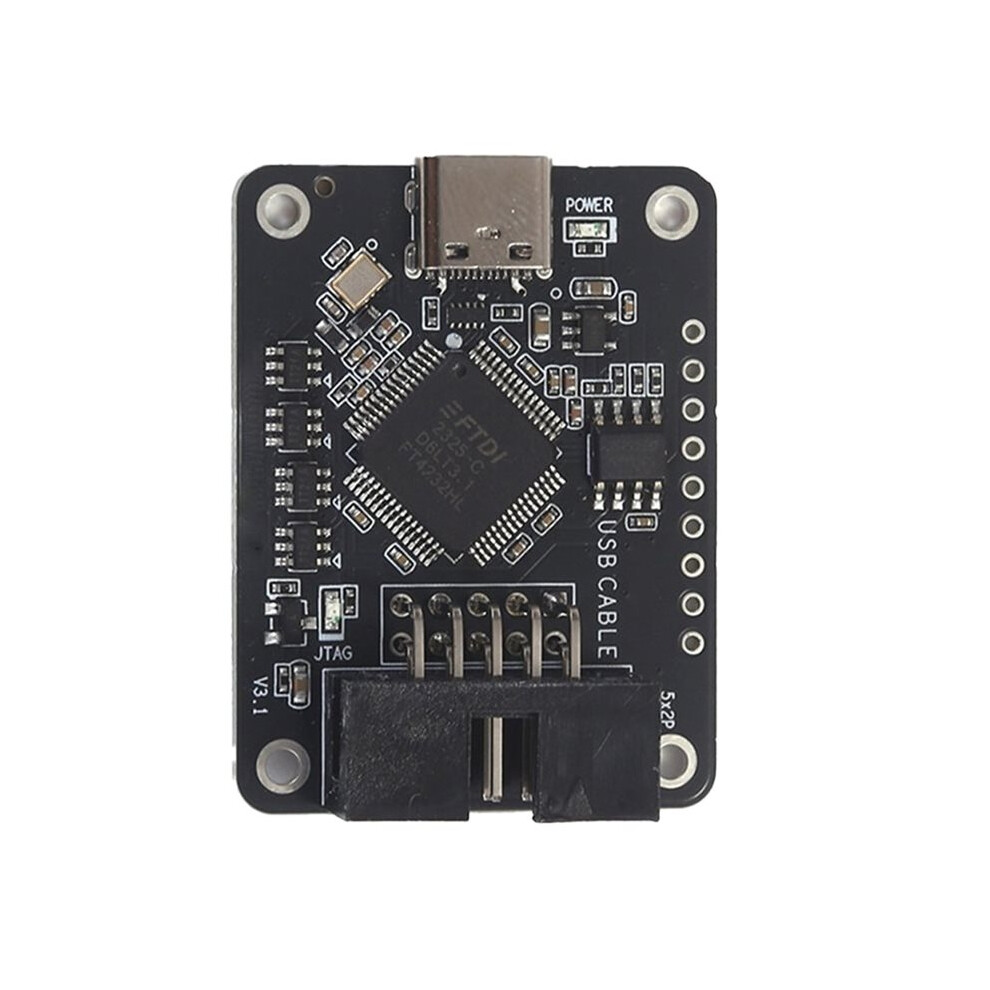

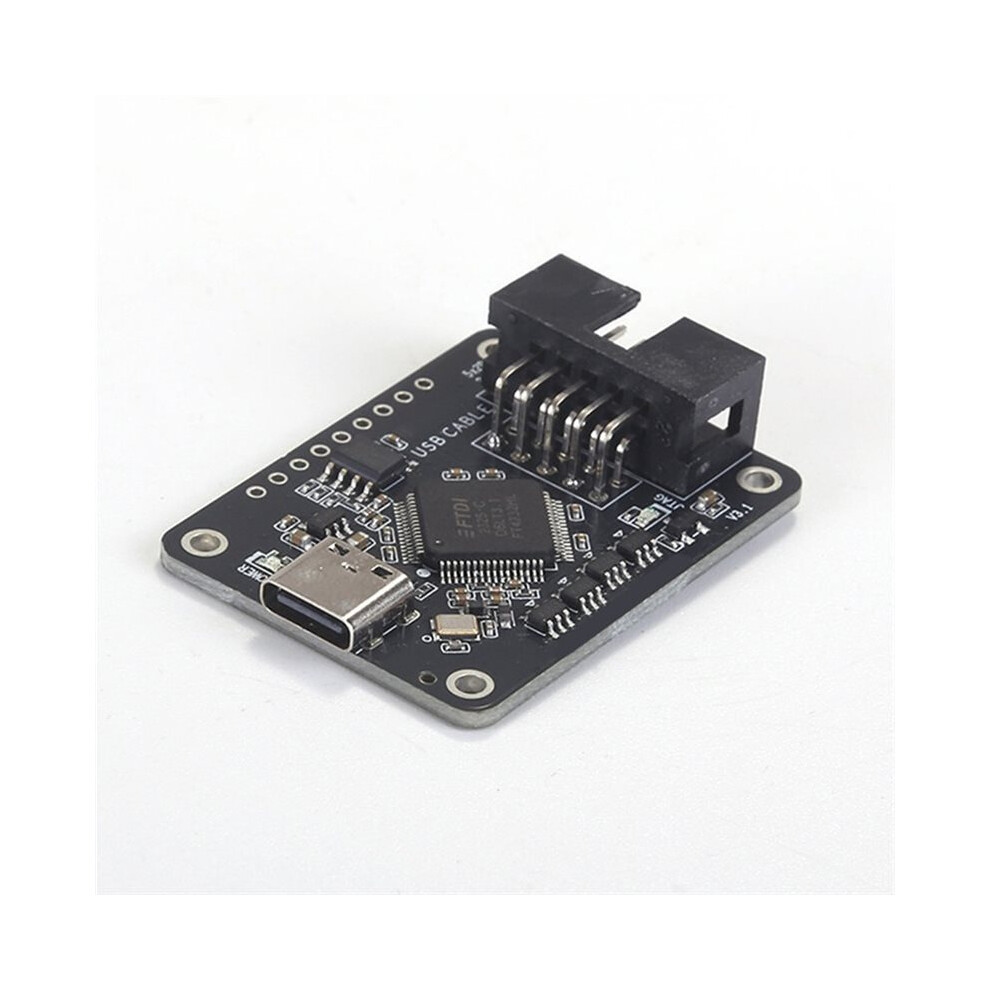

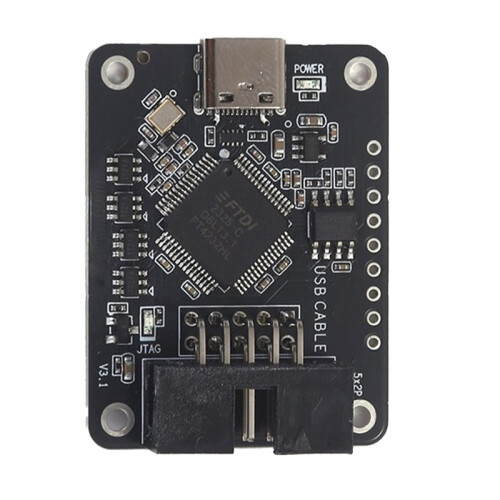

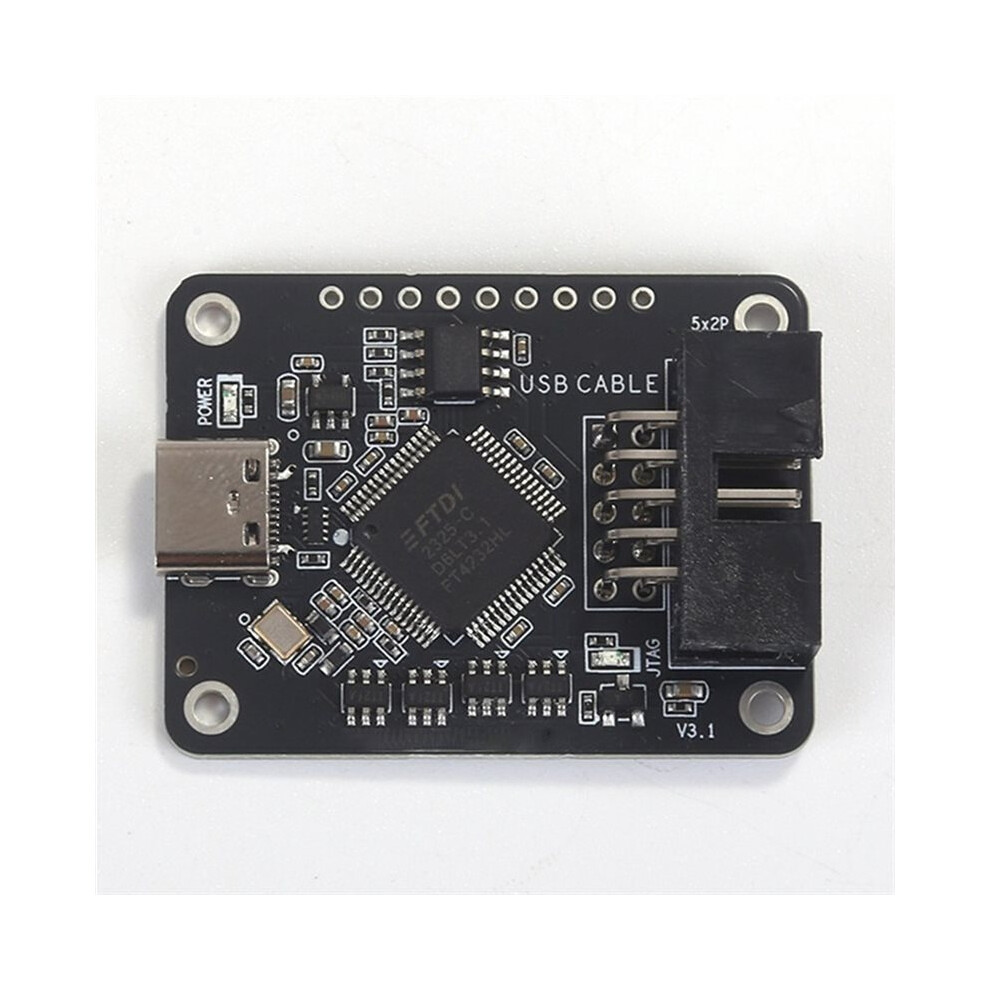

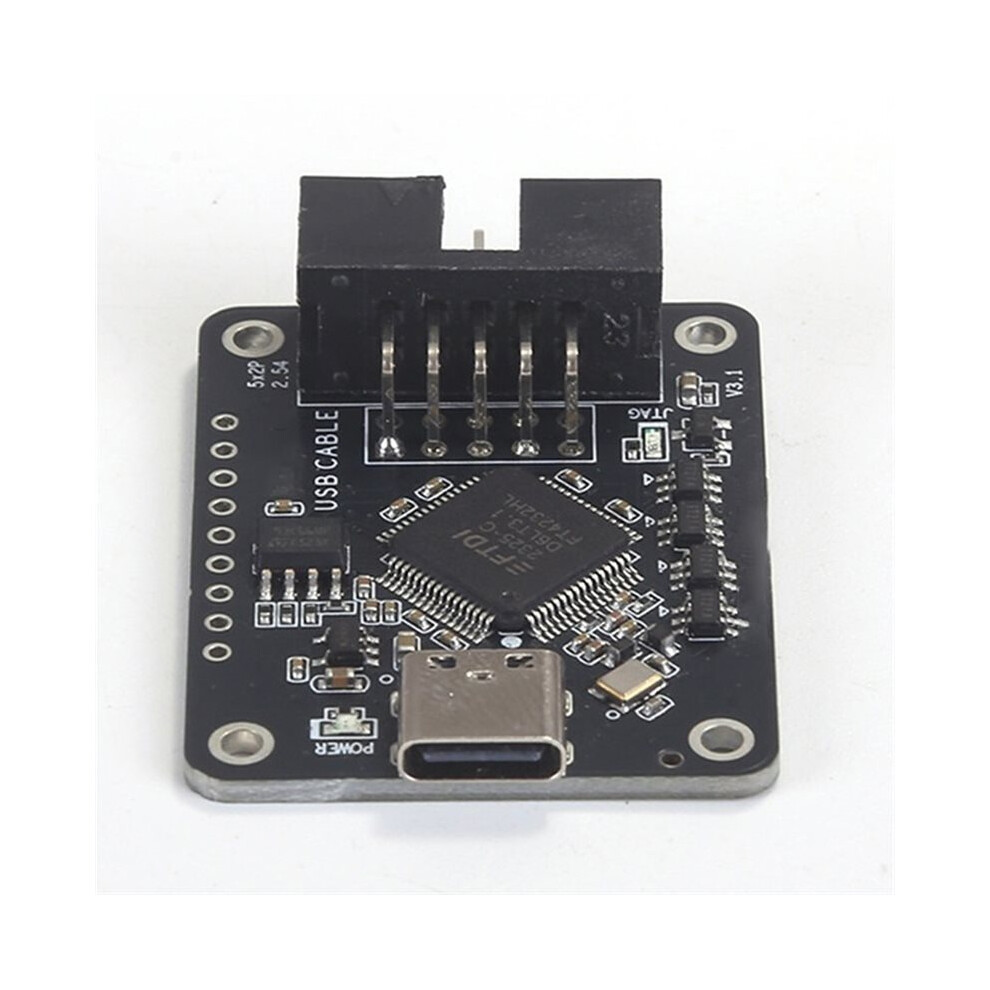

XILINX Programmer Downloader, Standard 10-Pin JTAG, FT4232H, JTAG Debugger

Descriere XILINX Programmer Downloader, Standard 10-Pin JTAG, FT4232H, JTAG Debugger

FTDI controller solution (FT232HQ Original Version or FT4232HL New Version) offering stable and reliable performance.
Standard 10-pin (2x5P, 2.54mm pitch) JTAG interface; compatible with the full range of Xilinx FPGAs and Zynq development boards (direct connection to brands like Heijin/BlackGold).
Supports BANK voltage ranges from 1.65V to 5.5V; features a built-in buffer chip to accommodate various logic level standards.
The FT4232HL version adds ESD protection for the USB interface and provides three additional 3.3V UART channels (the original FT232H version supported only a single JTAG channel).
Full support for the Vivado development environment (ISE is no longer supported).

[Interface and Compatibility]
Connects directly to our store's mainboards via a JTAG cable.
Connects directly to domestic Xilinx development boards (10-pin JTAG, e.g., Heijin/Black Gold).
14-pin target boards can be connected using the included jumper wires (pin-to-pin mapping).
The JTAG section features buffering and supports the full BANK voltage range of 1.65V to 5.5V.
Color: Black
Material: PCB+Plastic+Metal

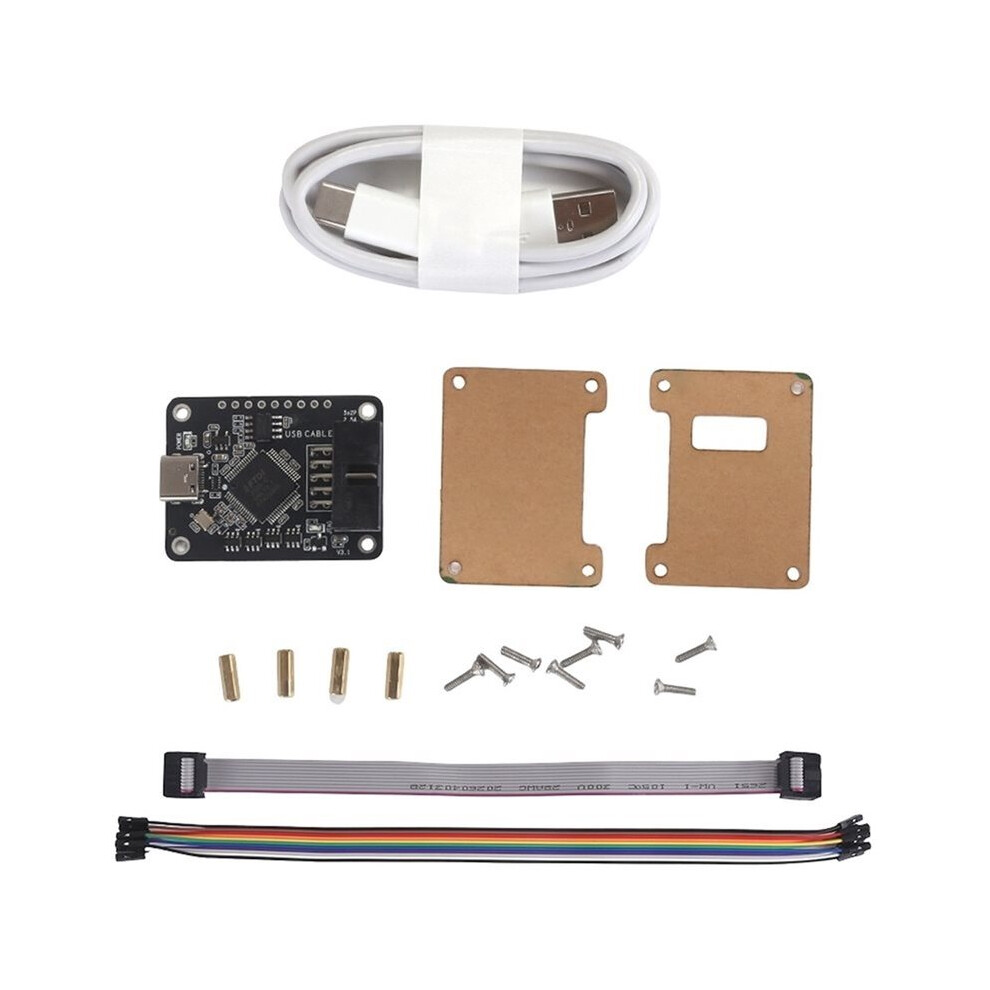

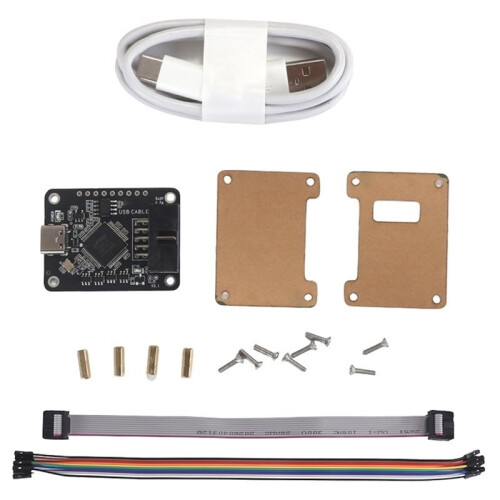

Package Contents:
1 x Downloader
1 x Housing/Case
1 x Type-C cable (color selected at random)
1 x JTAG ribbon cable
1 x 10-pin DuPont cable
1 x Set of accessories
