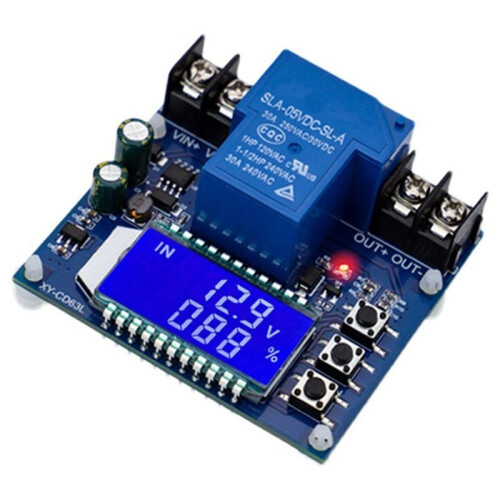

XY-CD63L 30A Battery Charge Discharge Controller Low Voltage Cut Off Undervoltage Overvoltage Protection Display
Brand ISTOVO
Nou
În stoc
De ce îți va plăcea să cumperi de la OnBuy:
- Câștigi Cashback la fiecare achiziție – folosește-l la următoarea comandă
- Livrare gratuită – la milioane de produse de pe site
- Clienții ne iubesc – 131,000 de recenzii cu evaluare “Excelent”
158,37 RON
195,31 RON
Reducere de 19%!
Livrare GRATUITĂ
1%
Câștigați 1,58 RON instant
Află mai multe
Prețurile articolelor vândute de OnBuy includ TVA.
Opțiuni de plată în rate fără dobândă disponibile
Vezi descrierea completă și detaliile produsului
Livrare: Prioritate (Gratuit) | joi 20 - sâm 22 aug.
Returnări: 30 zile
Protecție la plată pentru 180 de zile
Te-ar putea interesa și
Descriere & Detalii
Rezumat
- This product is a voltage controller, which turns on and off the output through a relay, which only acts as a switch and cannot change the voltage.

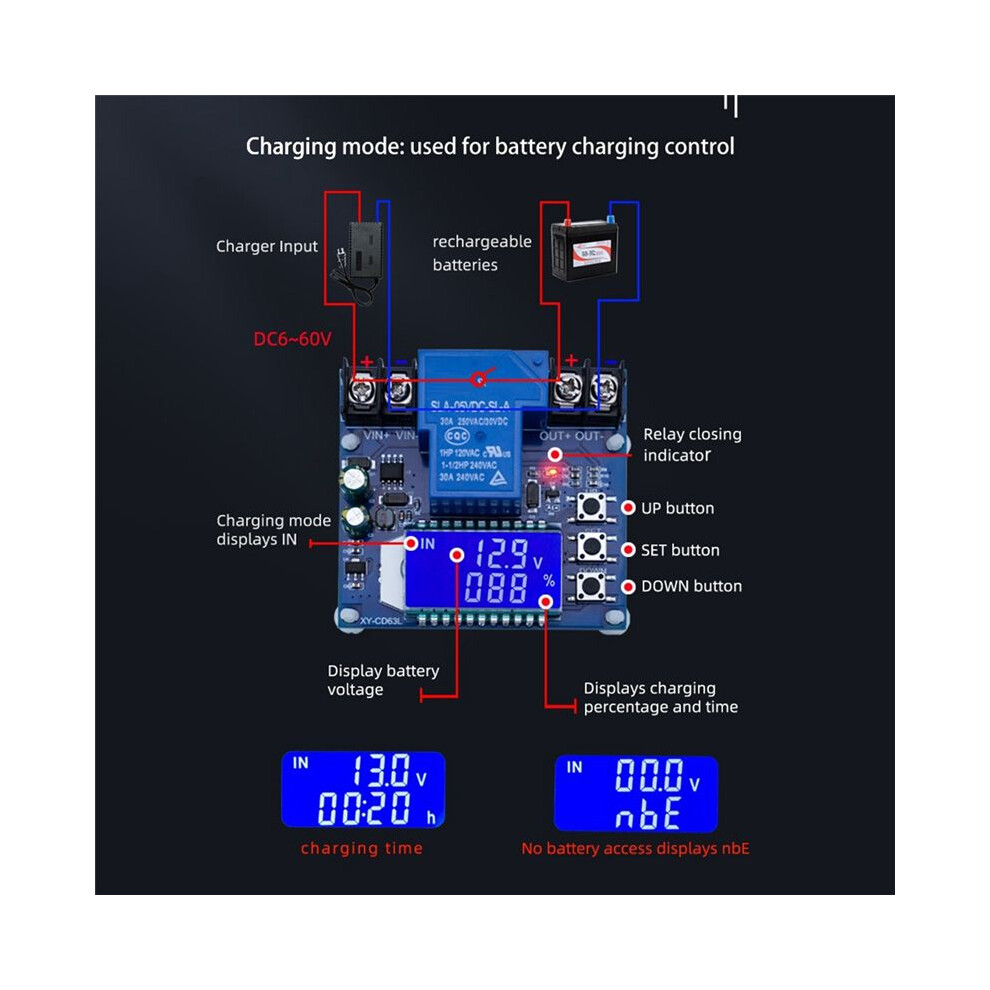

- Charging mode IN: By setting the upper limit voltage UP and the lower limit voltage dn; when the battery voltage less than or equal to the lower limit voltage dn, the relay is turned on, and the charger starts to charge the battery; when the battery voltage greater or equal to the upper limit voltage UP, the relay is disconnected to complete an automatic charging; the relay is turned on, IN flashes, indicating that it is charging.

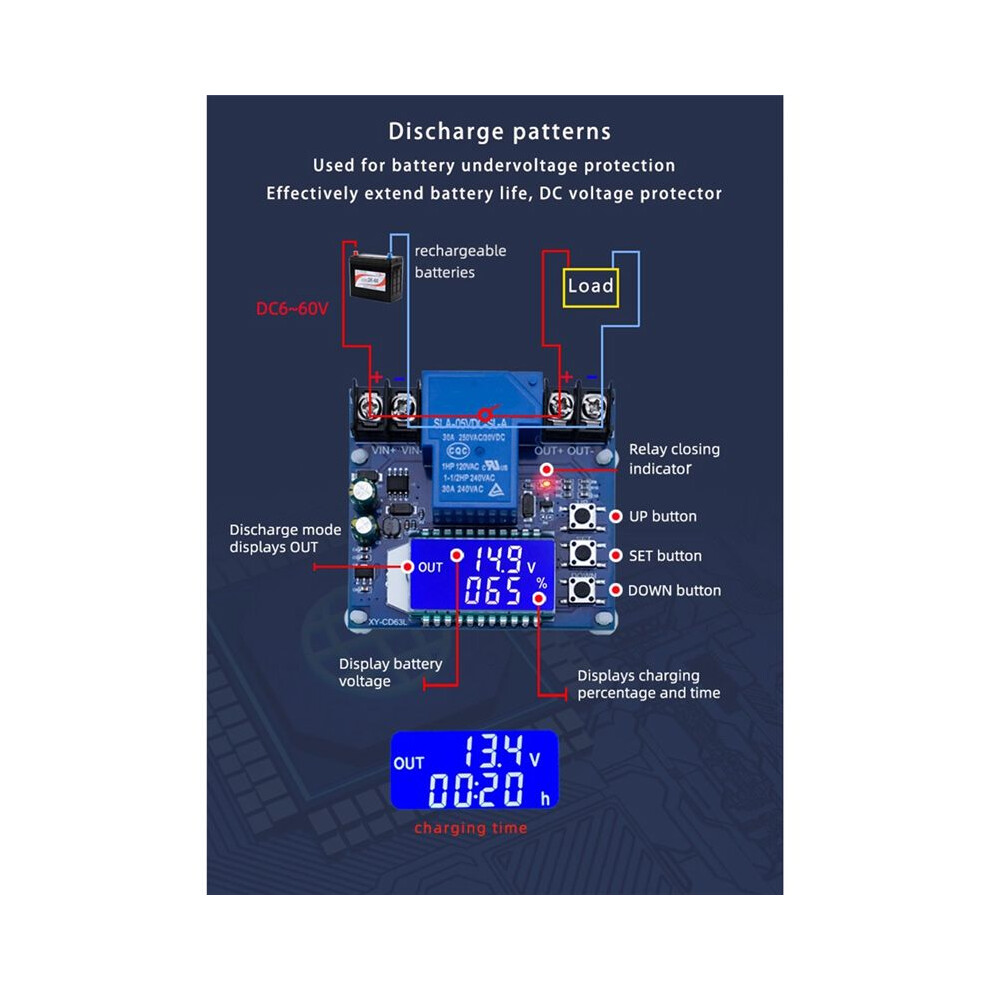

- Discharge mode OUT: By setting the upper limit voltage UP and the lower limit voltage dn; when the battery voltage greater or equal to the upper limit voltage UP, the relay is turned on and starts to discharge; when the battery voltage less than or equal to the lower limit voltage dn, the relay is disconnected to complete an automatic discharge function; the relay is turned on and OUT flashes, Indicates that it is discharging.
- Note: This product is a simple voltage controller, which uses a relay to turn on and off the output. It only functions as a switch and cannot be transformed.
- Battery Charge Discharge Controller
Descriere XY-CD63L 30A Battery Charge Discharge Controller Low Voltage Cut Off Undervoltage Overvoltage Protection Display
This product is a voltage controller, which turns and off the output through a relay, which only acts as a and cannot change the voltage.
Charging mode IN: By setting the upper limit voltage and the lower limit voltage dn; when the battery voltage less than or equal to the lower limit voltage dn, the relay is turned , and the charger starts to charge the battery; when the battery voltage greater or equal to the upper limit voltage , the relay is disconnected to complete an automatic charging; the relay is turned , IN flashes, indicating that it is charging.
Discharge mode OUT: By setting the upper limit voltage and the lower limit voltage dn; when the battery voltage greater or equal to the upper limit voltage , the relay is turned and starts to discharge; when the battery voltage less than or equal to the lower limit voltage dn, the relay is disconnected to complete an automatic discharge function; the relay is turned and OUT flashes, Indicates that it is discharging.
Note: This product is a simple voltage controller, which uses a relay to turn and off the output. It only functions as a and cannot be transformed.
Function:
Calculation of voltage percentage: battery voltage/(upper limit voltage-lower limit voltage)
Button:
button: Short press to to display percentage and , long press for 5 seconds to modes, charging mode: IN, discharging mode: OUT
SET button: Short press to view the currently set parameters; long press the SET button to set the parameter
DOWN button: Short press to turn off/ the relay (emergency stop function), after the LCD display is OFF, the relay is disconnected
type: Battery protector
color:
Material:PCB+electronic components
size:62 x 57 x 22mm
Package Contents:
1 x Battery protector
Detalii
| OPC | PVTPJWZ |
|---|---|
| Brand | ISTOVO |
| Coduri | 6033935007336 (EAN) |
| Informații despre produs și siguranță |
Date despre produs
| Height | 3cm |
|---|---|
| Width | 8cm |
| Length | 8cm |
| Weight | 0.06kg |
| Colour | Blue |
| Material | PCB+electronic components |
