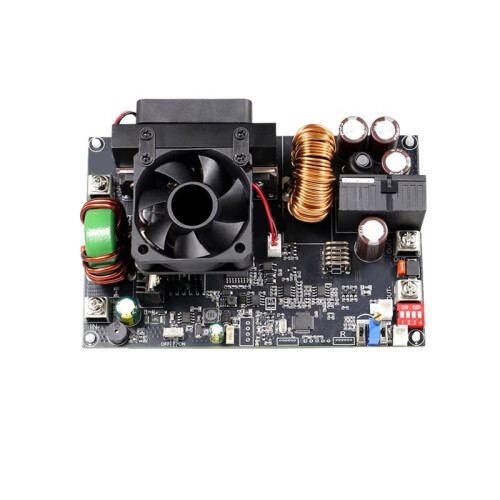

XY6550 CNC Adjustable Voltage Regulated Power Supply Constant Voltage Constant Current Module 50A 3250W DC12-140V

Descriere XY6550 CNC Adjustable Voltage Regulated Power Supply Constant Voltage Constant Current Module 50A 3250W DC12-140V

1. Supports firmware upgrades, MPPT solar charging, and serial communication
2. Features input reverse polarity protection and output backflow protection for comprehensive functionality and safeguards

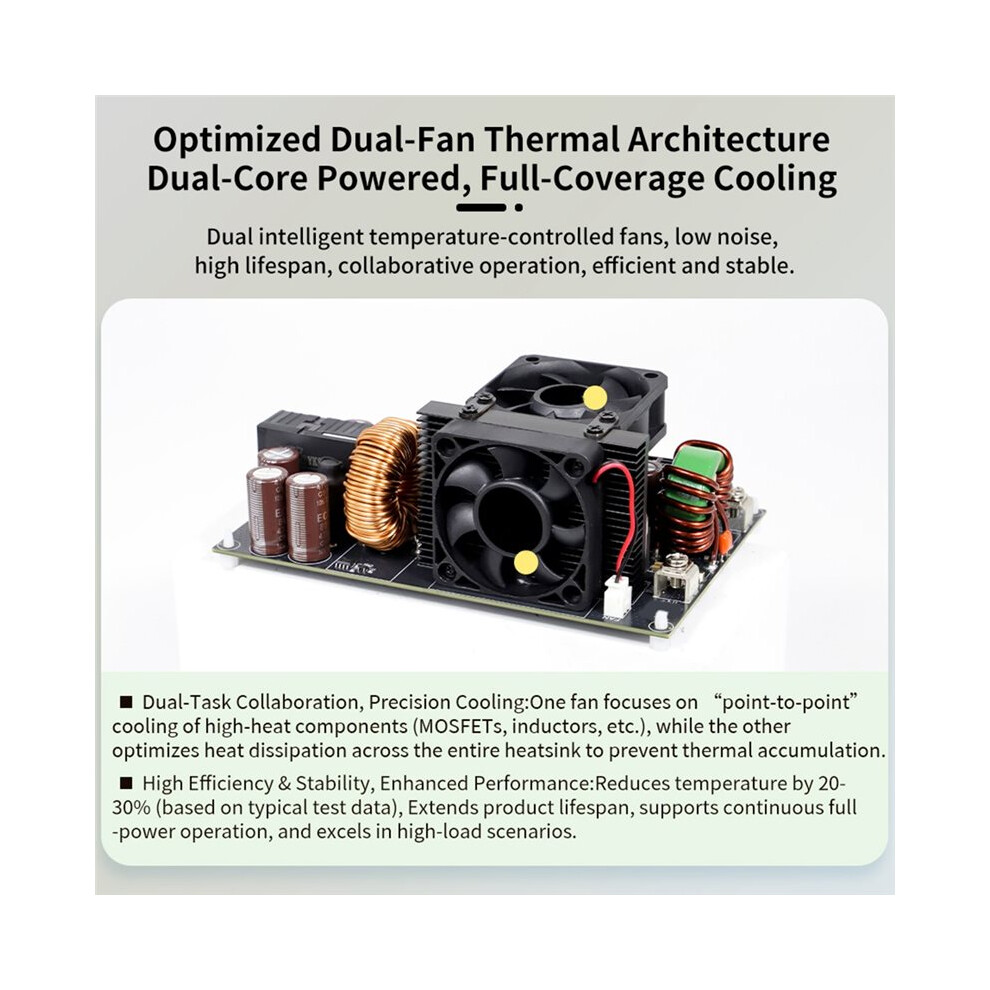

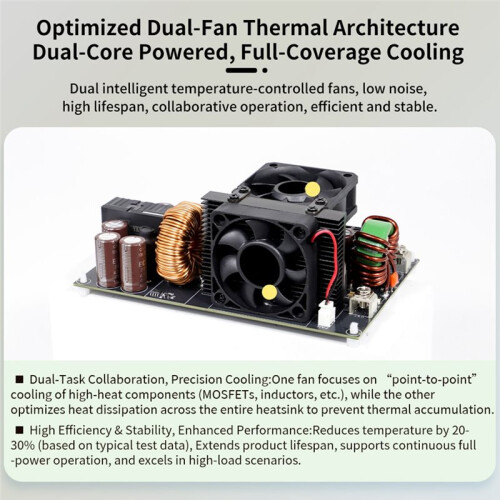

3. Two intelligent temperature-controlled PWM stepless speed fans with low noise + large-area heat sinks
4. Input utilizes common-mode choke to significantly reduce input power ripple impact, achieving low-ripple output

Parameter:
Product Name: Digital Step-Down Power Supply
Input Voltage: 12.00~70.0V
Output Voltage: 0~65.00V
Output Current: 0~50.00A
Output Power: 3250W
Voltage Resolution: 0.01V
Resolution of current: 0.01A
Accuracy of voltage: 0.5%+1 word
Accuracy of current: 0.5%+3 word
Stored Data Sets: 10 sets
Conversion Efficiency: Approx. 95%
Max output voltage:Input voltagex0.945
Buzzer:YES
Soft start: YES
Output ripple typical value:vpp-200mv
MPPT function: Support MPPT solar charging

Protection mechanism:
Input Reverse Polarity Protection: YES
Output Backflow Prevention: YES
nput under-voltage (LVP):(10-75V, default 10V)
over-voltage (OVP):(0-67V, default 67V)
over-current (OCP):(0-52A, default 52A)
over-power (OPP):(0-3400W, default 3300W)
over-temp (OTP):60-110'c, default 110C
over- out (OHP):1 minute -99 hours 59 minutes, off by default
over-capacity (OAH):0-4200KAh, off by default
over-(OWH):0-4200KWh, off by default
EXT over-temp(ETP): 0-110C, off by default

Precautions:
1. Do not connect AC power to the input, especially 220V mains electricity.
2. This is a step-down power supply; maximum output voltage = input voltage x 0.945
Color: As Shown
Material: Metal+Plastic

Package Contents:
1 * Module
