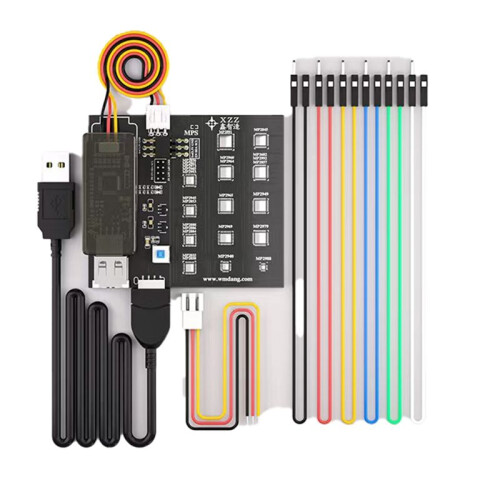

XZZ MPS Programmer Notebook Chip Read Write Tool Online/Offline Dual Operation Without Disassembly Full Set
Brand Exogio
Nou
În stoc
De ce îți va plăcea să cumperi de la OnBuy:
- Câștigi Cashback la fiecare achiziție – folosește-l la următoarea comandă
- Livrare gratuită – la milioane de produse de pe site
- Clienții ne iubesc – 129,000 de recenzii cu evaluare “Excelent”
411,77 RON
557,74 RON
Reducere de 26%!
+21,21 RON livrare
1%
Câștigați 4,12 RON instant
Află mai multe
Prețurile articolelor vândute de OnBuy includ TVA.
Opțiuni de plată în rate fără dobândă disponibile
Vezi descrierea completă și detaliile produsului
Livrare: Standard (21,21 RON) | vin 31 iul. - mie 5 aug.
Returnări: 30 zile
Protecție la plată pentru 180 de zile
Cele mai populare în Baterii pentru telefoane mobile
Descriere & Detalii
Rezumat

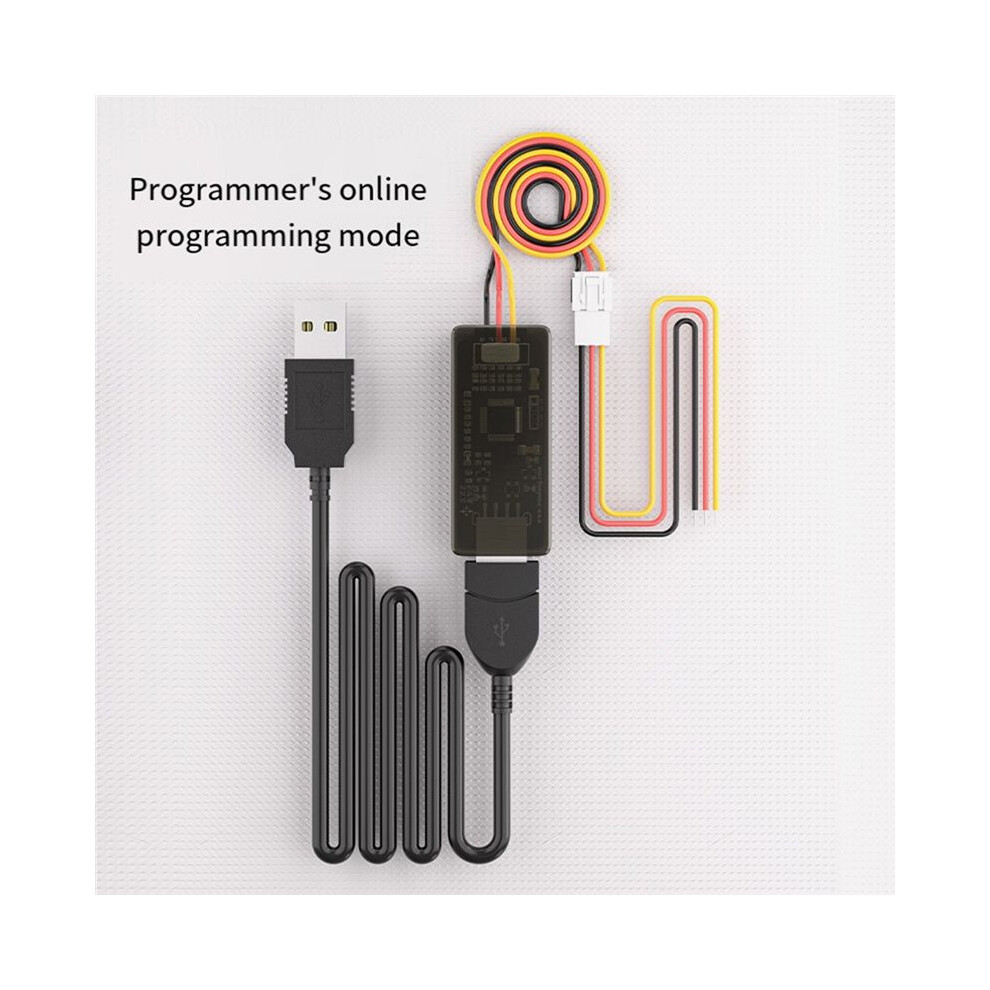

- XZZ Notebook MPS Programmer with Offline Board supports offline/online dual mode operation, allowing notebook chip read, write and repair without disassembly. Jumping wires connect the motherboard for online programming, and the CPU is soldered on the MPS board for offline programming.
- List of devices supported by the programmer:
- 1. Notebook Core Power Monitor Programming: MP2940, MP2940A, MP2940C, MP2942, MP2943, MP2944, MP2945, MP2948C, MP2949A, MP2950, MP2959, MP2962, MP2969, MP2979A.
- 2. Server Telecom Core Power Monitor Programming: MP2955/56/58, MP2951, MP2853, MP2888/86/84, MP2965/66/68, MP5023, MP2975/78/72, MP2855, MP2949A, MP5920, MP5922, MP2926, MP2988.
- 3. Computing and Telecom Core: MP2971/73, MP2845/45A, MP2856/57, MP2880, MP2882/72/74/78, MP2960, MP2964, MP9941, MP2975/72/76178, MP2985/92/93, MP2986/83, MP2995, MP5990, MPQ2977, MPQ2967, MPQ2861/MP2862, MPQ8646, MP2860/MP2891, MP2890/MP2891A.
Descriere XZZ MPS Programmer Notebook Chip Read Write Tool Online/Offline Dual Operation Without Disassembly Full Set
XZZ Notebook MPS Programmer with Offline Board supports offline/online dual mode operation, allowing notebook chip read, write and repair without disassembly. Jumping wires connect the motherboard for online programming, and the CPU is soldered the MPS board for offline programming.
List of devices supported by the programmer:
1. Notebook Core Power Monitor Programming: MP2940, MP2940A, MP2940C, MP2942, MP2943, MP2944, MP2945, MP2948C, MP2949A, MP2950, MP2959, MP2962, MP2969, MP2979A.
2. Server Telecom Core Power Monitor Programming: MP2955/56/58, MP2951, MP2853, MP2888/86/84, MP2965/66/68, MP5023, MP2975/78/72, MP2855, MP2949A, MP5920, MP5922, MP2926, MP2988.
3. Computing and Telecom Core: MP2971/73, MP2845/45A, MP2856/57, MP2880, MP2882/72/74/78, MP2960, MP2964, MP9941, MP2975/72/76178, MP2985/92/93, MP2986/83, MP2995, MP5990, MPQ2977, MPQ2967, MPQ2861/MP2862, MPQ8646, MP2860/MP2891, MP2890/MP2891A.
MPS Import and Export Program Tutorial:
1. When opening the MPS software and program-ming is not connected, a red message "USB is not connected!" will appear below.
2. When the programmer is connected, the red message "USB is not connected!" will disappear below.
3. The programmer is connected to the chip through a 3P plug, with a black wire of GND, a red wire of SDA, and a yellow wire of SCL.
4. If you are unsure of the specific point, please refer to the chip PDF, such as MP28888, where pin 34 is SCL and pin 35 is SDA.
5. Power the target board and click SCAN to search for the chip. Note that the chip needs to be powered to recognize it.
6. ldentified chip MP2888A with PMBUS address of 20H and Vendor ID of 25H.
7. If there are multiple chips, the list will be displayed the left. Click the chip title to select.
8. Input is used to set the basic parameters of the chip, such as the number of phases, etc.
9. Click "Reglster" to backup and flash programs this interface.
1
Detalii
| OPC | PVXXSDD |
|---|---|
| Brand | Exogio |
| Coduri | 4712756101981 (EAN) |
| Informații despre produs și siguranță |
Date despre produs
| Height | 4cm |
|---|---|
| Width | 11cm |
| Length | 16cm |
| Weight | 0.173kg |
| Colour | Black |
| Size | Full Set |
| Material | PCB |
