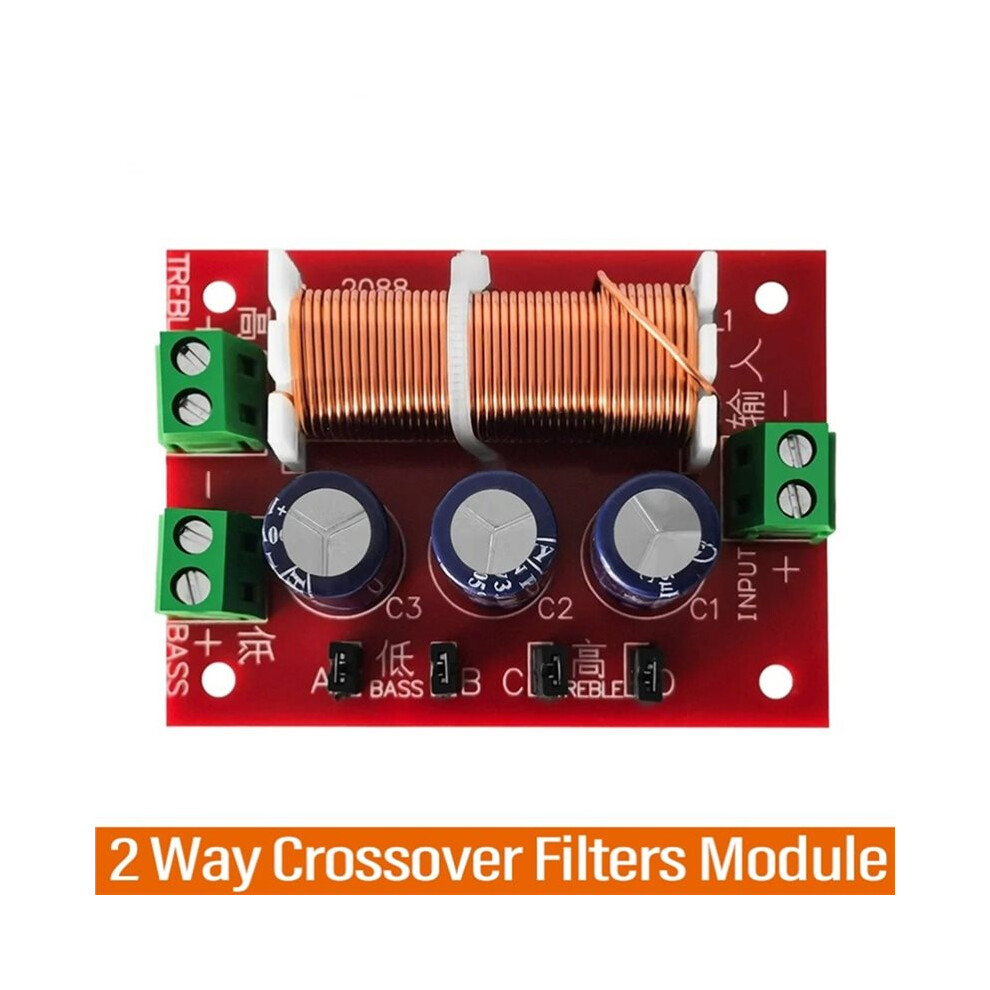

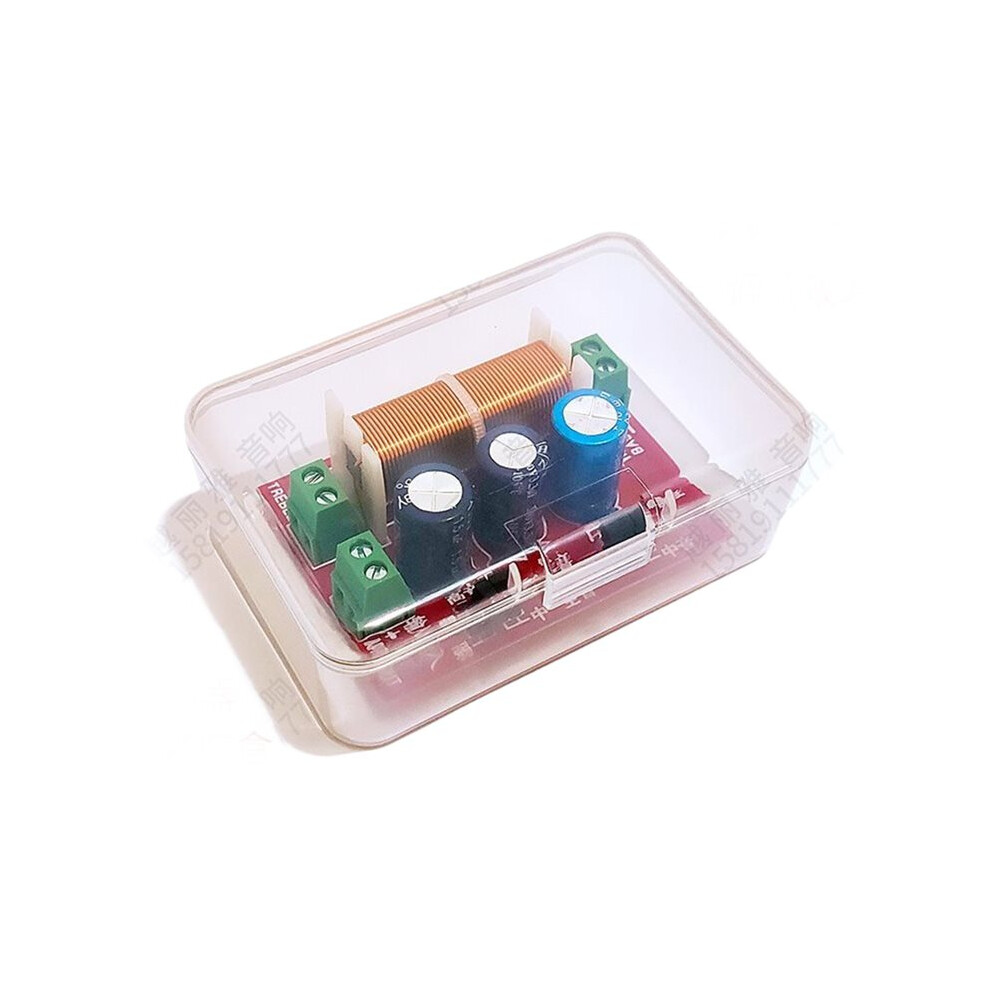

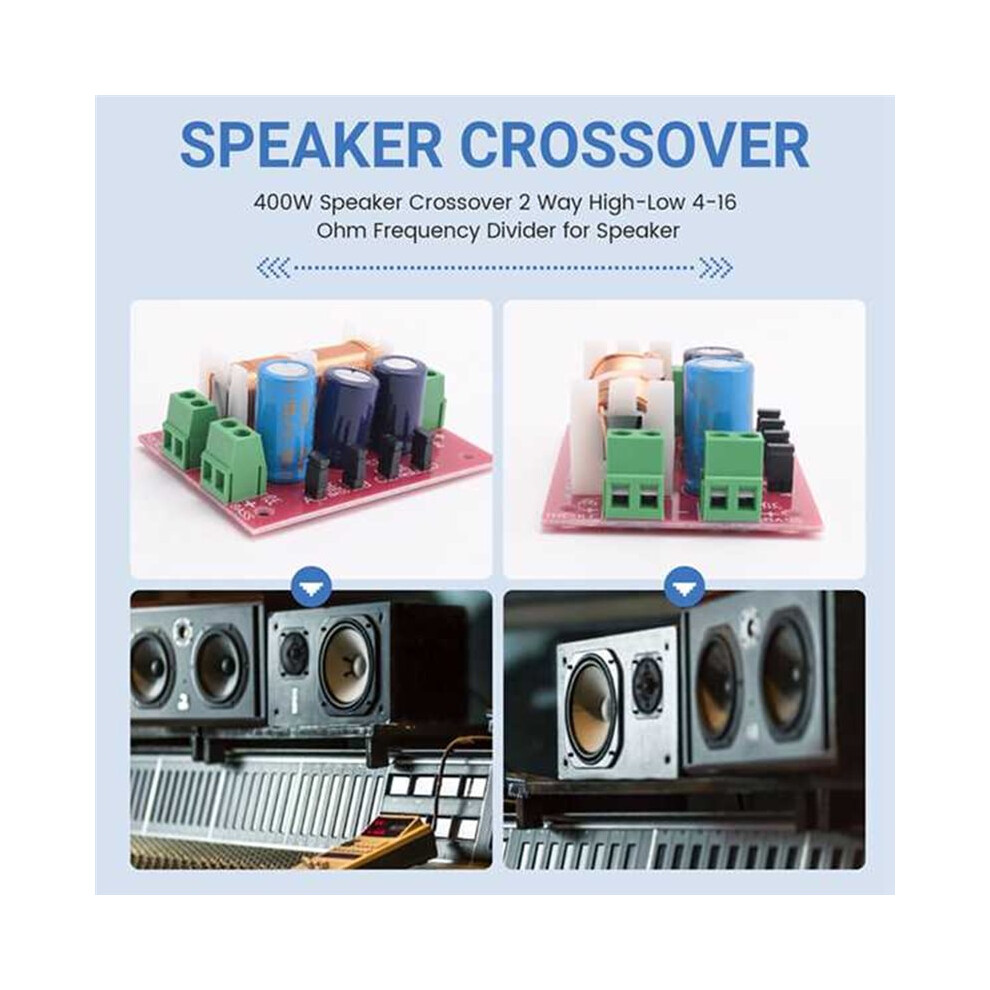

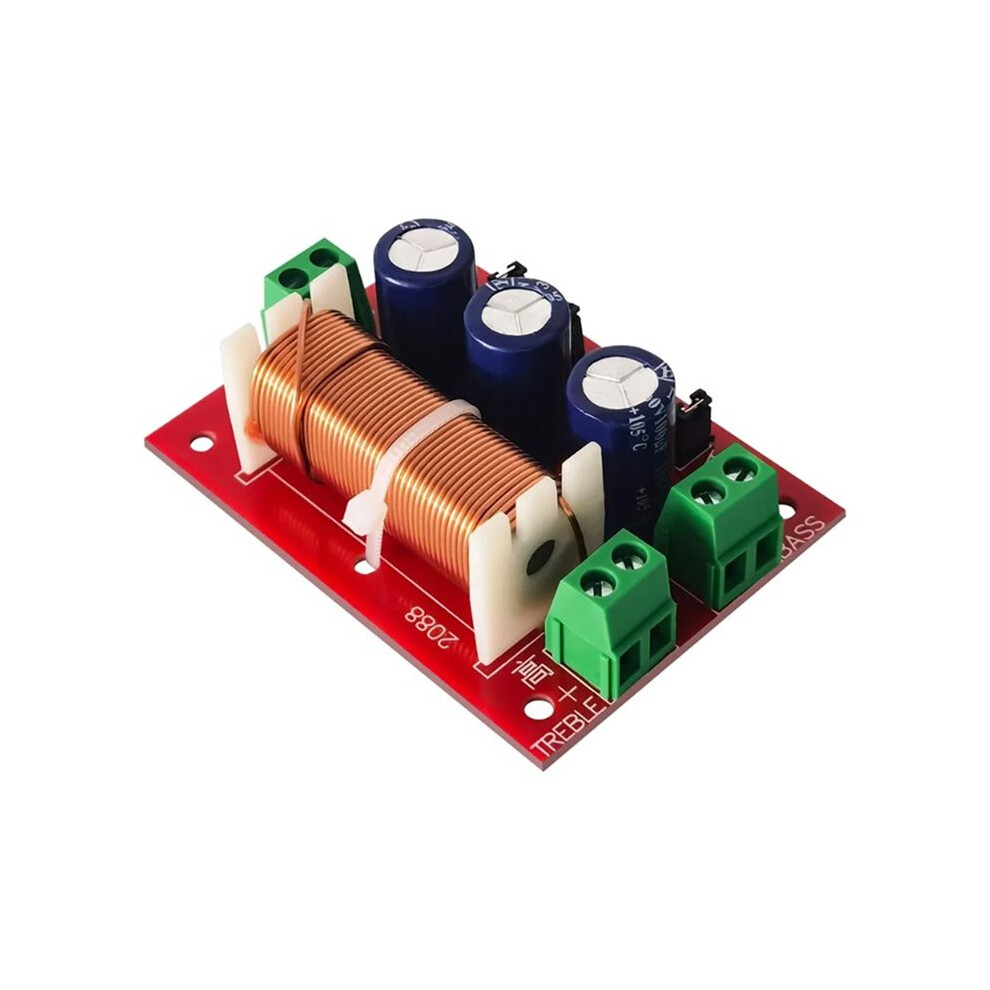

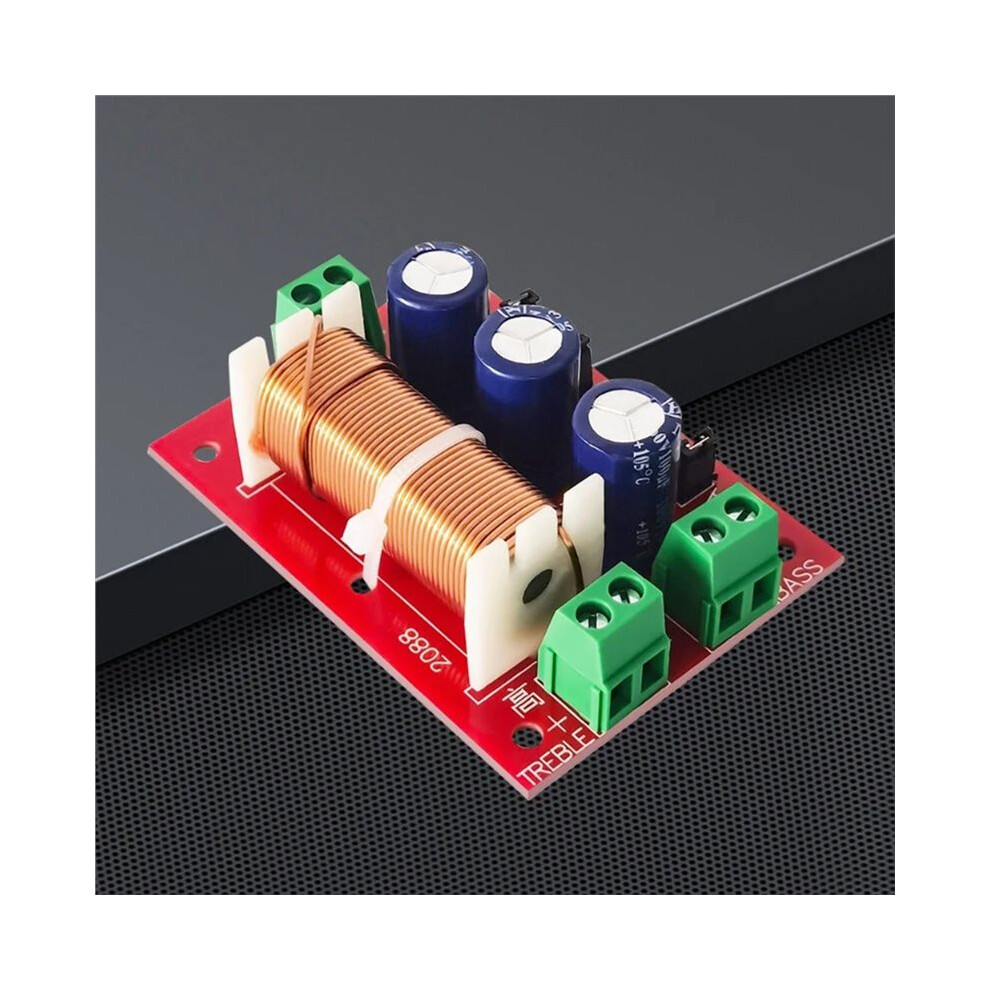

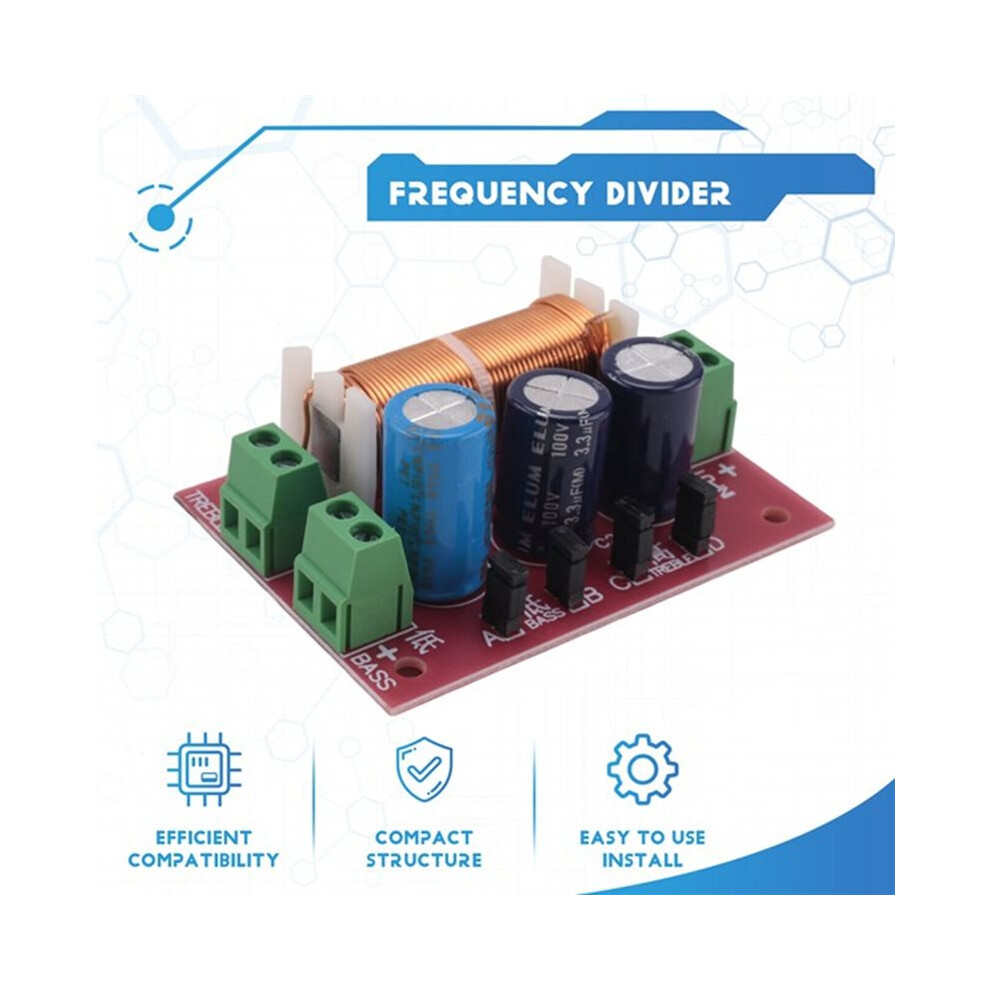

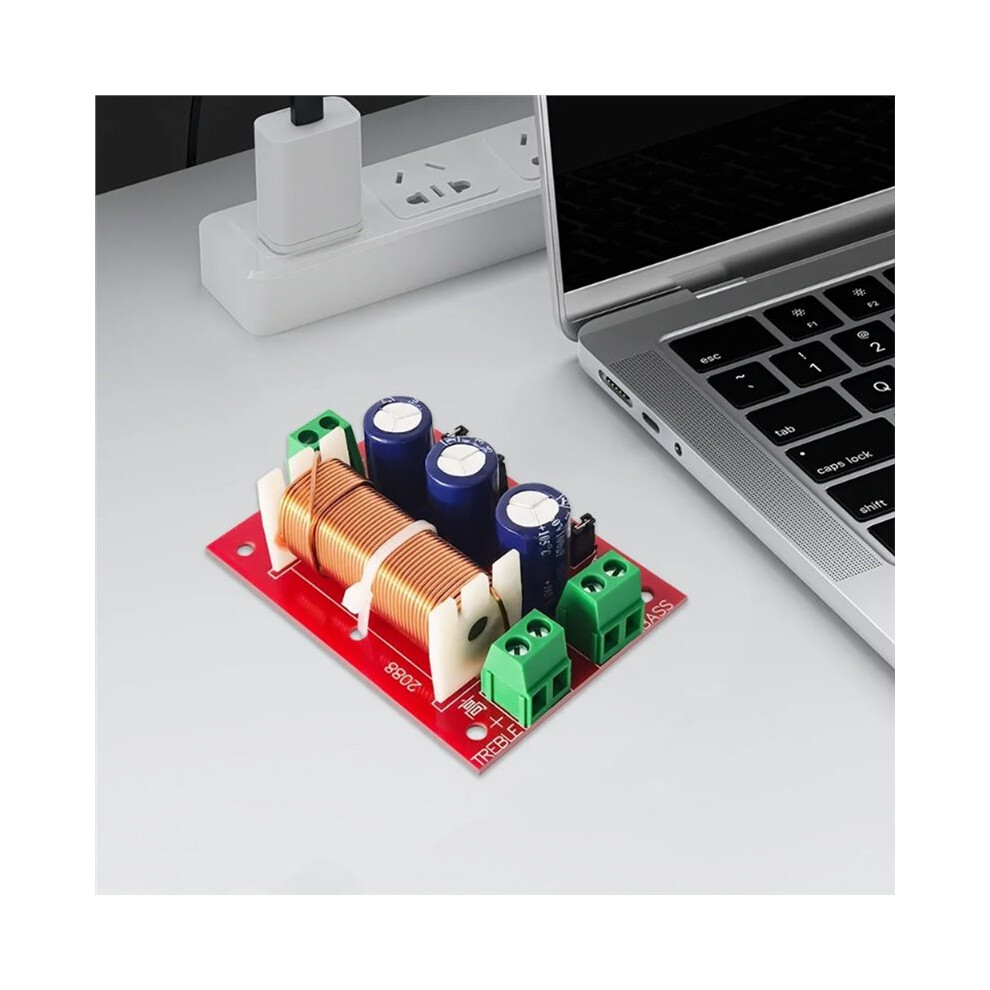

YLY-2088 2 Way Crossover Filters Module 400W Audio Speaker Frequency Divider Adjustable Full Range Treble with Shell

Descriere YLY-2088 2 Way Crossover Filters Module 400W Audio Speaker Frequency Divider Adjustable Full Range Treble with Shell

High power output of 400W, suitable for various audio applications.
Wide impedance range of 4-16 ohms, compatible with different speaker systems.
Constructed with oxygen-free copper for superior sound quality and durability.
User-friendly wiring instructions for high and low split frequency connections.
Comprehensive control of sound quality with a reasonable design and exquisite appearance, ensuring optimal performance.
Model: YLY-2088
Frequency point: not located, determined by debugging
Material: The inductor is wound with oxygen free copper, with a pure copper wire diameter of 08.
Instructions for use:
High and low split frequency wiring:
Input: Connect to the power amplifier or rear junction box;
TREBLE: Connected to a tweeter;
BASS: Connected to the bass speaker.

Wiring base twisting operation:
Use a small slotted screwdriver to loosen in a counterclockwise direction, slide the compression plate down, peel and insert the wire, and tighten clockwise.

Full frequency coaxial connection method:
Connect the speaker to the BASS/bass position, and then find a small wire to connect from the positive pole of the bass to the positive pole of the tweeter.
Color: As Shown

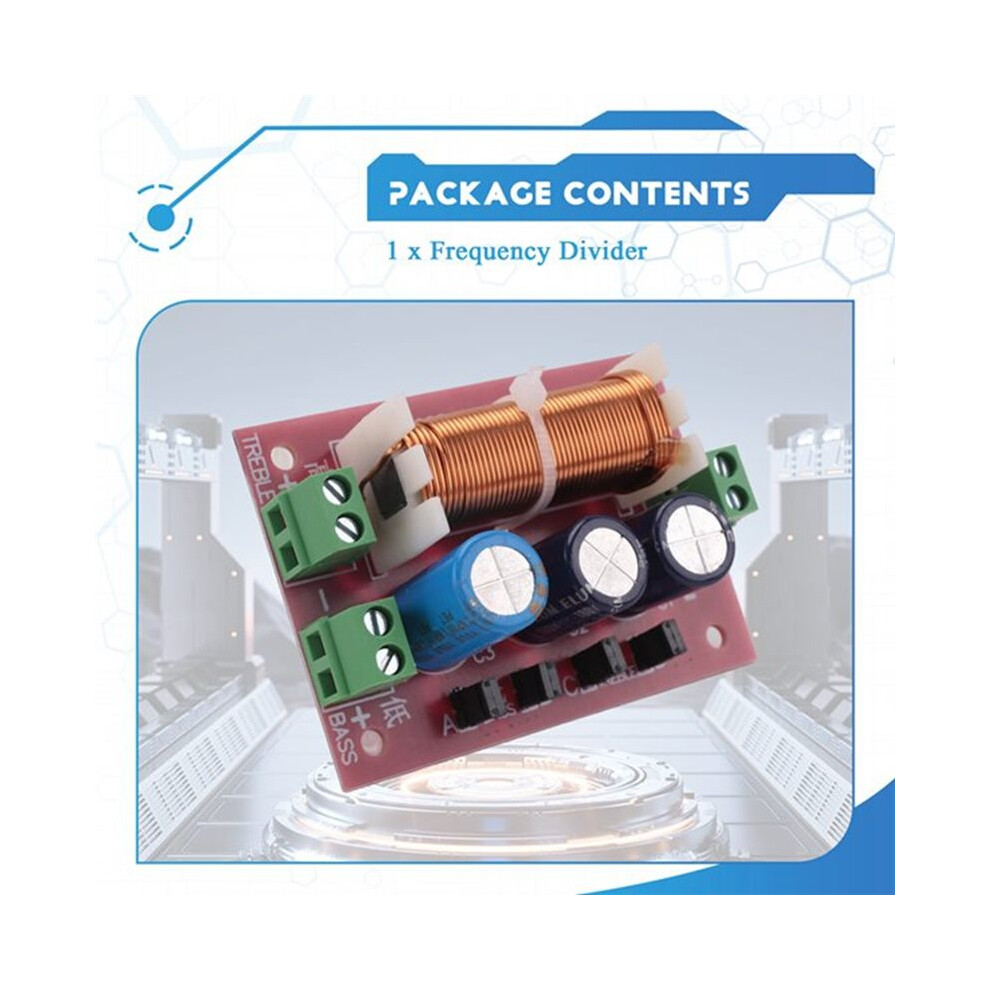

Package Contents:
1*YLY-2088
