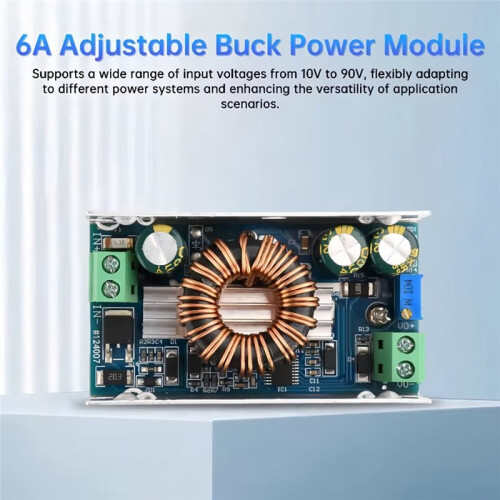

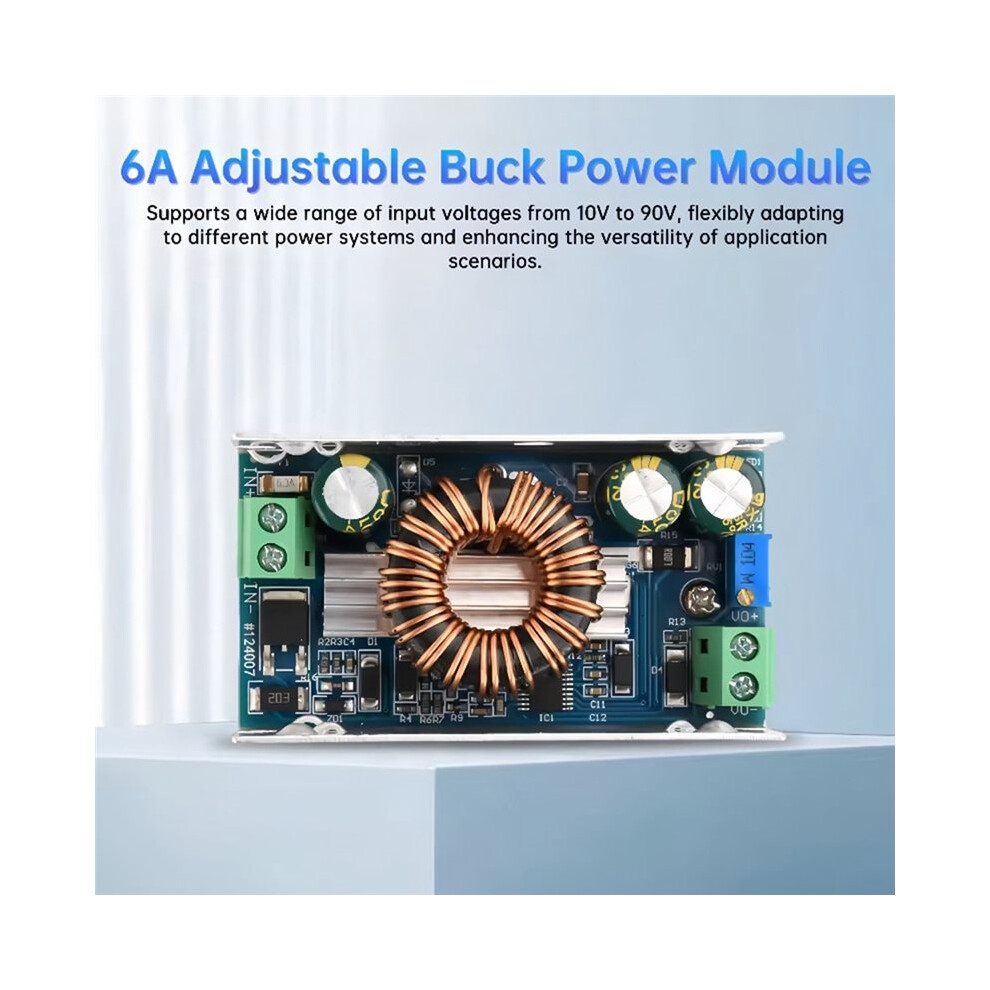

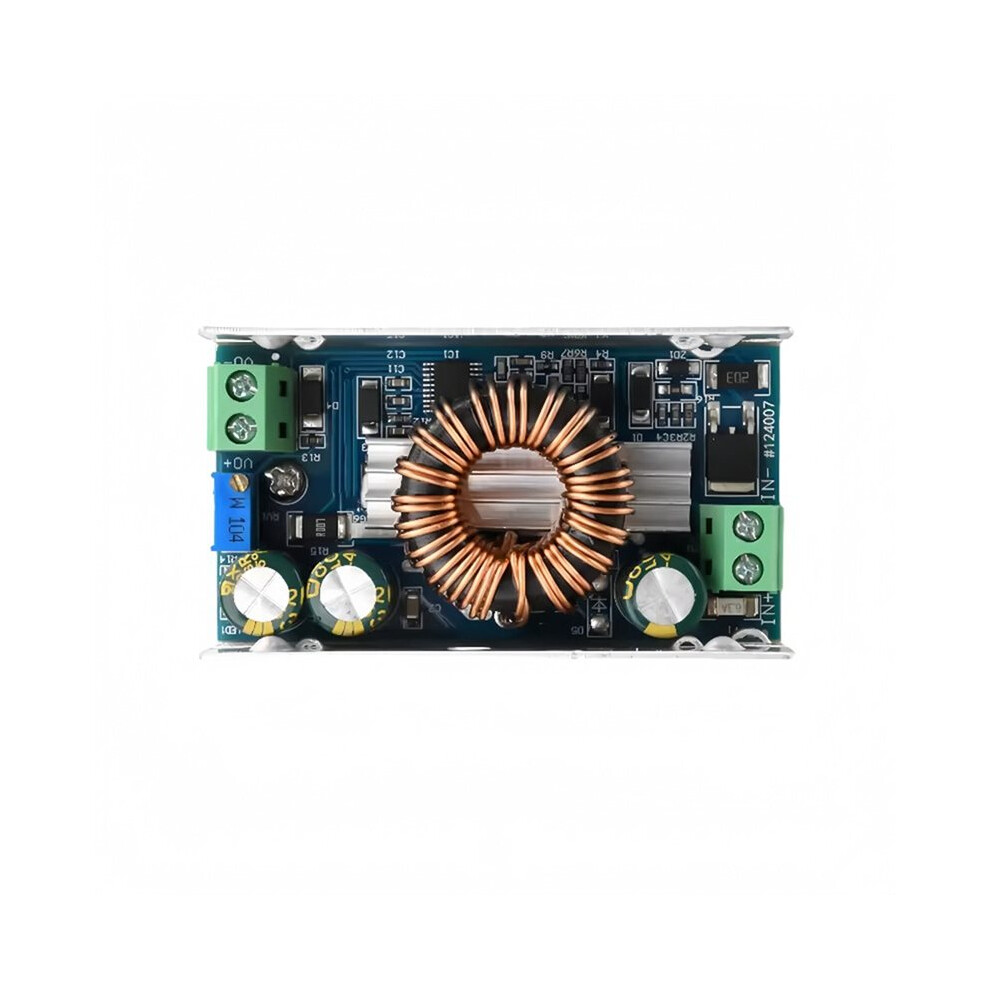

100W 6A - Buck Converter Step Down Module Constant Current LED Driver Power Step Down Power Voltage Regulator Module

100W 6A - Buck Converter Step Down Module Constant Current LED Driver Power Step Down Power Voltage Regulator Module Beskrivning

1. to 100W, able to provide stable power supply for a variety of high- devices, to meet the needs of industrial and advanced DIY projects
2. Supports a wide range of input voltages from 10V to 90V, flexibly adapting to different power systems and enhancing the versatility of application scenarios.

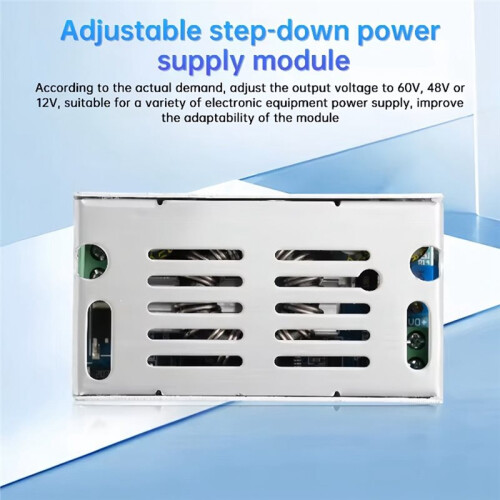

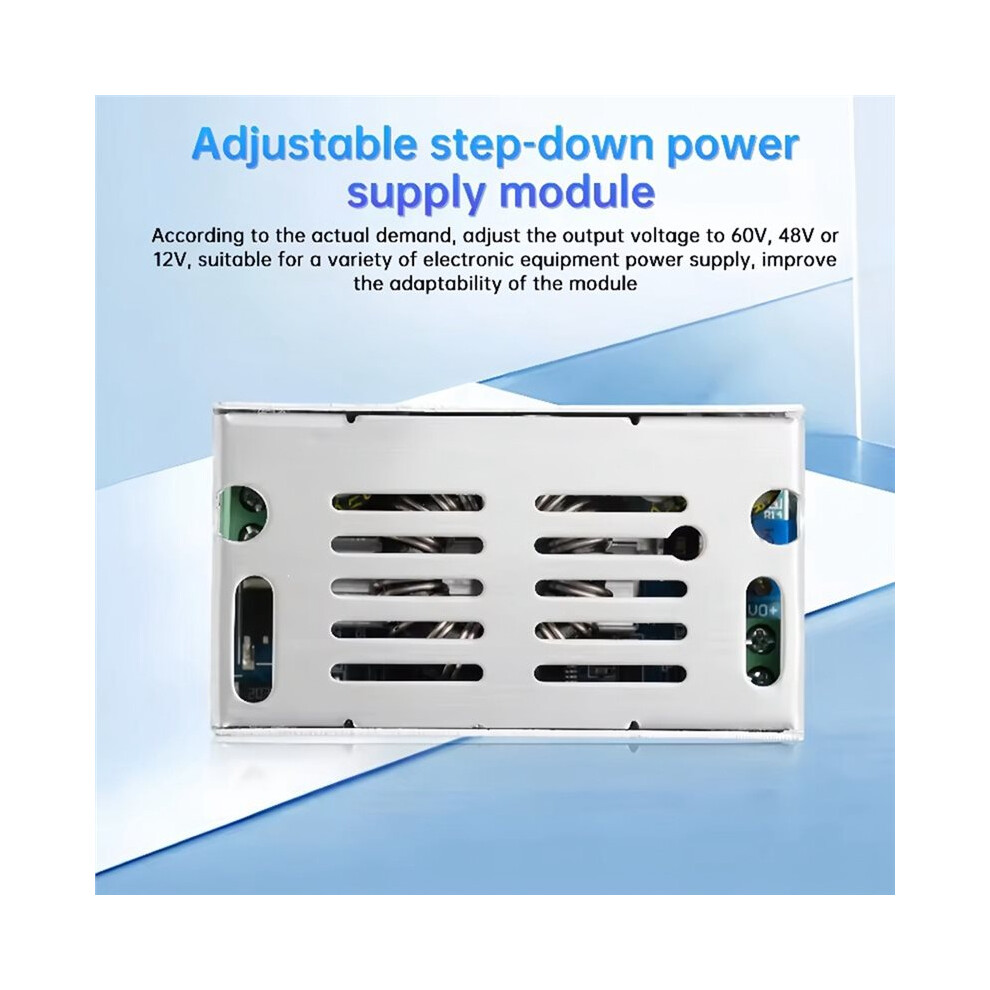

3. Adjust the output voltage to 60V, 48V or 12V according to the actual demand, applicable to a variety of electronic equipment power supply, improving the adaptability of the module.
4. Adopting high-efficiency synchronous rectification design, compared with the traditional step-down mode, it significantly improves the conversion efficiency, reduces waste, and generates less heat.
5. Optimized heat dissipation design, with heat sinks, can effectively emit heat to ensure long-term stable operation and prolong the life of the module. Suitable for electric vehicle battery conversion, communication equipment, LED lighting drive, industrial control systems, security monitoring and high-end audio equipment, etc., a wide range of uses.

Input voltage: DC10-90V
Output voltage: DC1.5-60V (for applications where the input voltage is higher than the output voltage cannot be boosted)
Output current: MAX6A (high voltage output, please reduce the amount of use, the temperature exceeds 65 degrees need to add cooling)
Maximum power: 100W (maximum current 6A at low voltage output, maximum power 100W at high voltage output)
Operating frequency: 180KHz conversion efficiency: 97.5% (typical)
Operating Temperature: -40 to +85
Potentiometer adjustment direction: clockwise (increase), counterclockwise (decrease)

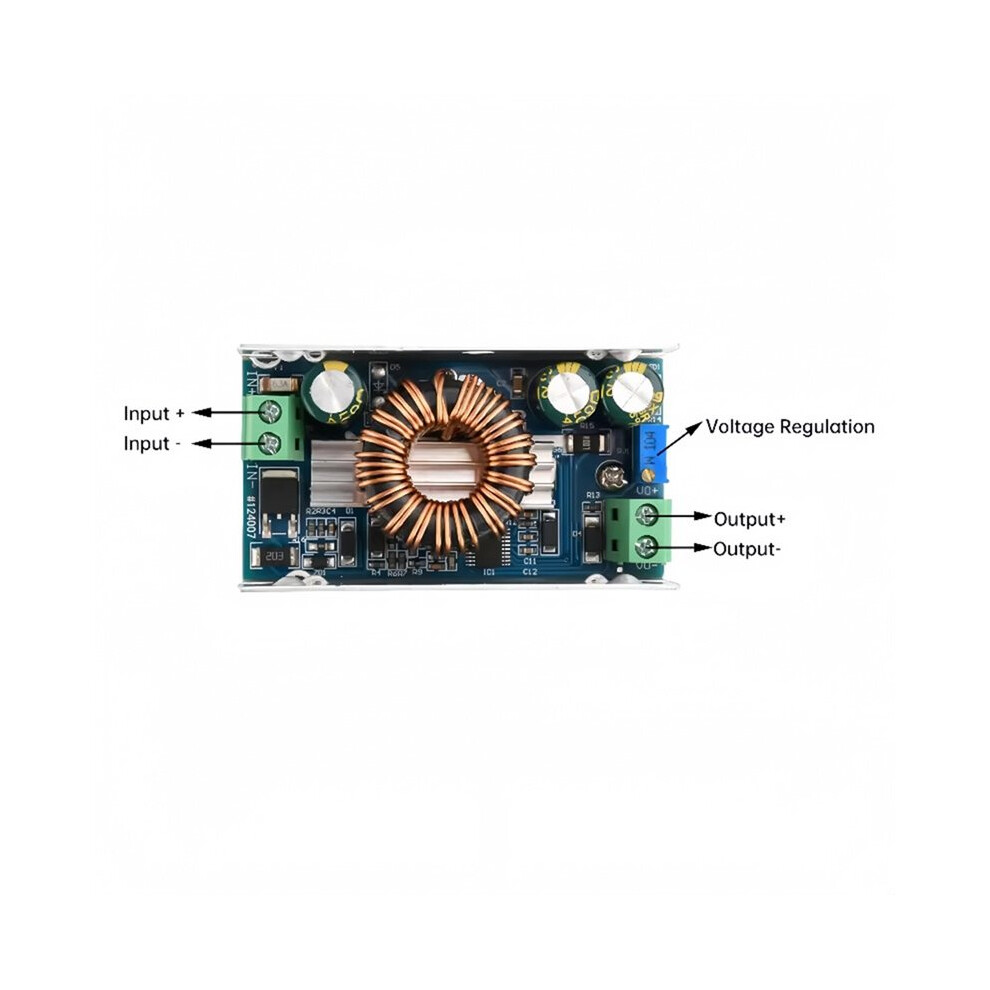

Wiring: terminal block
Color:Silver
Material:Metal

Package Contents:
1 * Buck Converter Step Down Module
