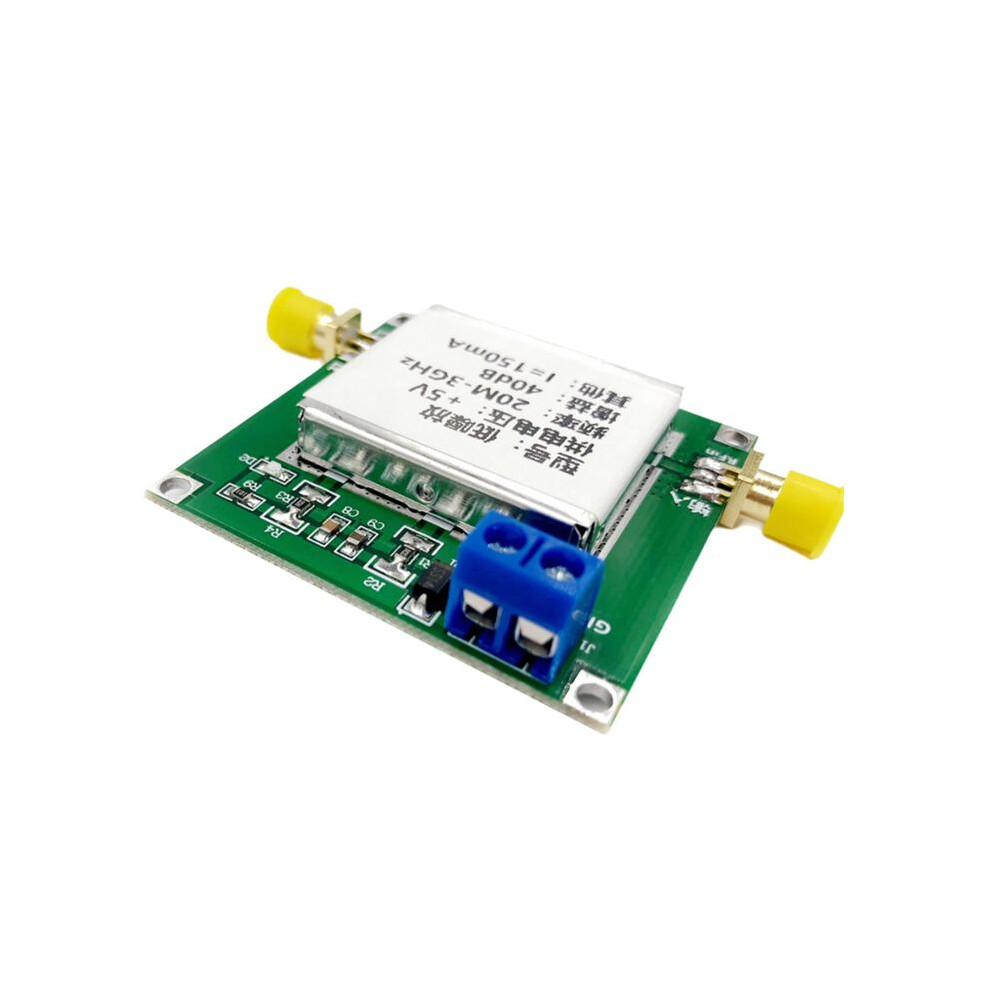

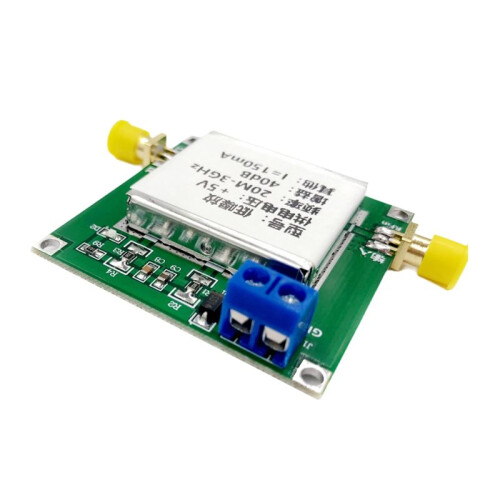

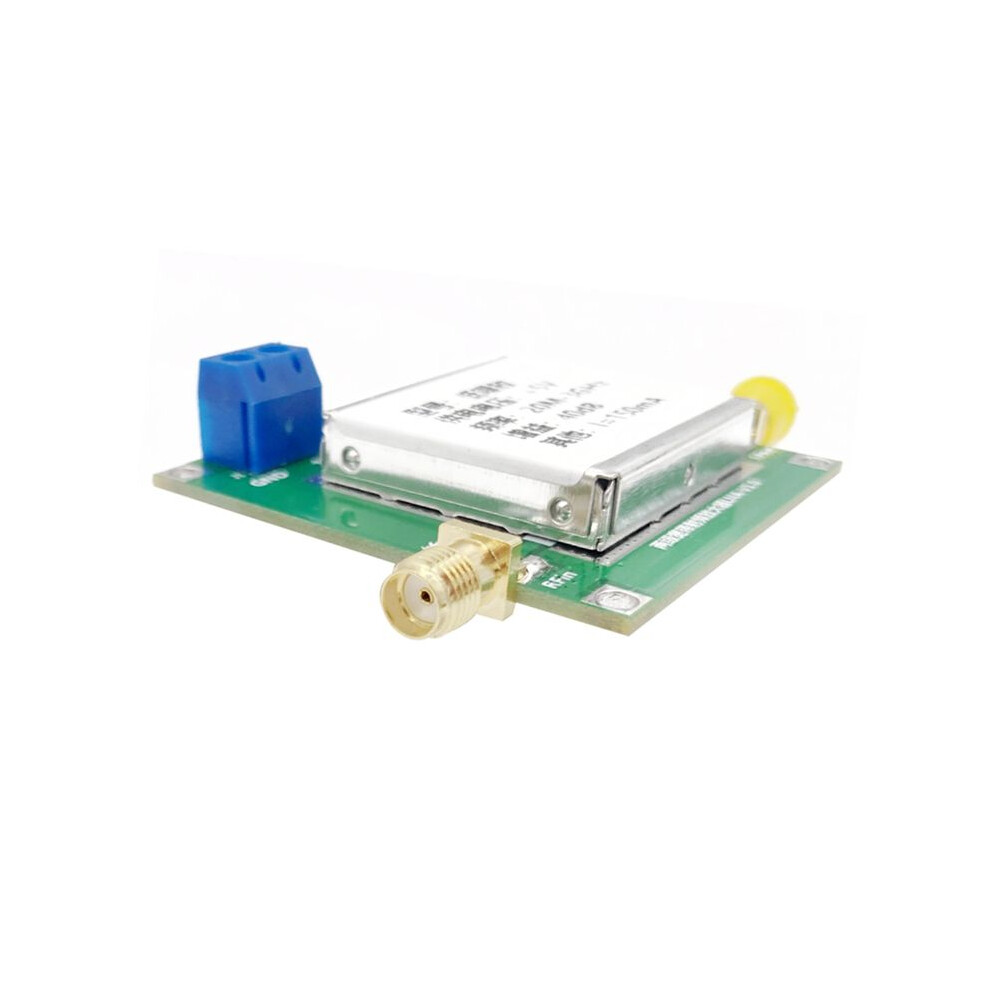

20M-3G 40DB RF Low Noise Amplifier 5V High Flatness Noise Coefficient 1.3dB Module
Ny
I lager
Varför du kommer att älska att handla på OnBuy:
- Tjäna Cashback på varje köp – använd den hur du vill. Spara, spendera eller ta ut.
- Fri frakt – på miljontals produkter på sajten
- Kunder älskar oss – 132,000 recensioner med betyget “Utmärkt”
345,40 kr
569,91 kr
Spara 39%!
+50,00 kr frakt
1 %
Tjäna 3,45 kr direkt
Läs mer
Priserna för varor som säljs av OnBuy inkluderar moms.
Räntefria betalningsalternativ finns tillgängliga
Se fullständig produktbeskrivning och detaljer
Leverans: Standard (50,00 kr) | ons 2a - tis 8e sep
Returer: 30 dagar
180 dagars betalningsskydd
Du kanske också gillar
Beskrivning & information
Sammanfattning
- The amplifier has wide frequency range, stable gain, small noise figure and large dynamic range (+ 19 5dBm 1dBP )It is especially suitable for all kinds of RF receiving front-end circuit, increasing communication distance!
- Widely used in short wave, FM broadcasting, remote control receiver, cable TV signal amplifier, Beidou, GPS satellite navigation, 2.4G Bluetooth, WiFi receiver RF front end and other places that need low noise and small signal RF amplification! The amplifier has a shielding case and a protection diode against reverse connection.
- RF Amplifier Module
- Module
- Amplifier Module
20M-3G 40DB RF Low Noise Amplifier 5V High Flatness Noise Coefficient 1.3dB Module Beskrivning
The amplifier has wide frequency range, stable gain, small noise figure and large dynamic range (+ 19 5dBm 1dBP )It is especially suitable for all kinds of RF receiving front-end circuit, increasing communication distance!
Widely used in short wave, FM broadcasting, remote control receiver, cable TV signal amplifier, Beidou, GPS satellite navigation, 2.4G , WiFi receiver RF front end and other places that need low noise and small signal RF amplification! The amplifier has a shielding case and a protection diode against reverse connection.
1. Power supply voltage: 5V (typical current value I Less than 150mA)
2. Gain: 40dB, input and output impedance: 50 ohm
3. Maximum output power: 19dbm (under 6vpp / 50 ohm load)
4. Input signal: Less than 20dbm (output signal has been distorted when input is greater than - 20dbm)
5. Bandwidth: 20MHz to 3GHz (gain varies with frequency, please refer to S21 curve index for details)
6. Noise figure: 1.3db (measured at 1.5GHz)
Color: As Shown
Material: ABS
Package Contents:
1 x Low noise amplifier module
Detaljer
| OPC | PX62GXY |
|---|---|
| Koder | 4711976563012 (EAN) |
| Produkt- och säkerhetsinformation |
Produktdata
| Height | 2cm |
|---|---|
| Width | 5cm |
| Length | 7cm |
| Weight | 0.02kg |
| Colour | As Shown |
| Material | ABS |
