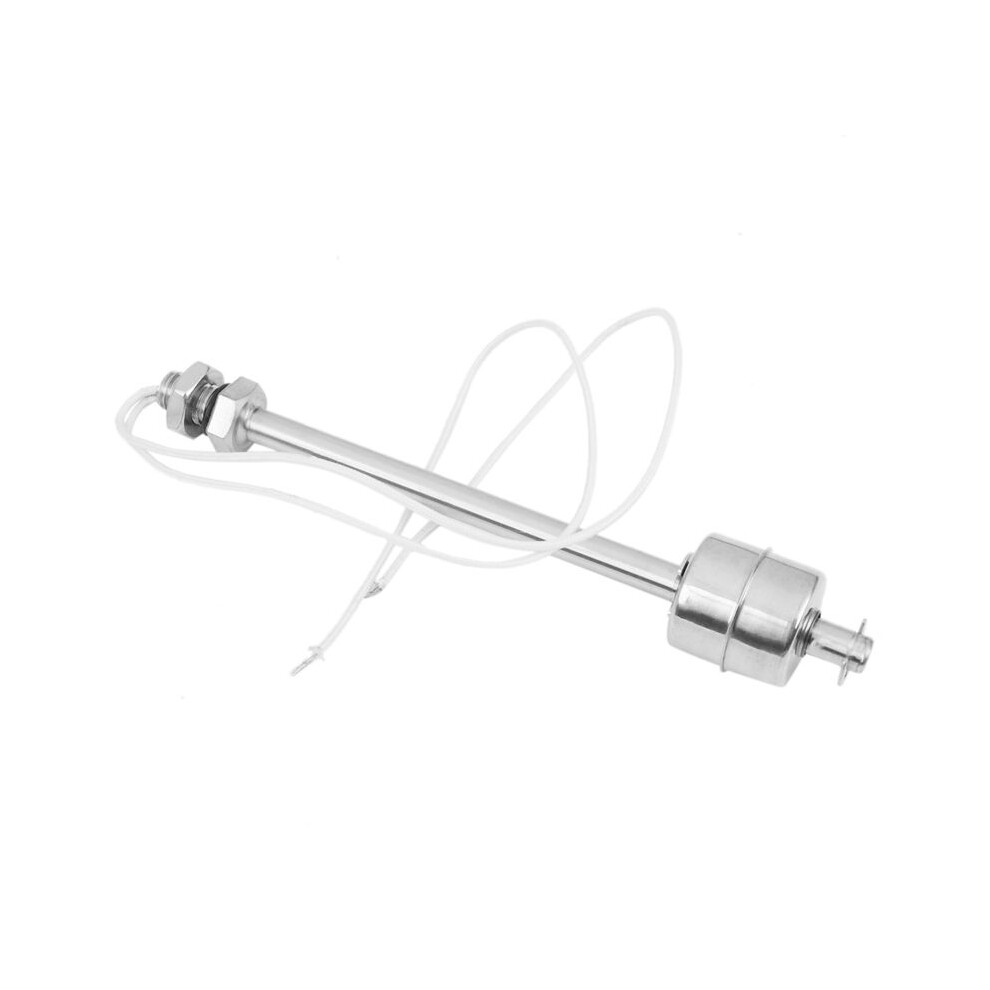

3PCS 150mm Stainless Steel Float Tank Liquid Water Level Sensor 220V

3PCS 150mm Stainless Steel Float Tank Liquid Water Level Sensor 220V Beskrivning

Float can not directly control solenoid valves or power relays, exchanges and contacts and the like. To add a small relay (eg HH54P) transition.
Float level is a simple structure, easy to use level control device, it is not necessary to provide power, no complicated circuit, it has a smaller volume than mechanical switches, long life and other advantages.
In shape as long as the material selection is correct, and the nature of any liquid or pressure, temperature can be used, which in the shipbuilding industry, generating equipment, petrochemical, food industry, water treatment equipment, dyeing and finishing industry, hydraulic machinery, etc. have been widely application.
Tired of guessing how much water or fuel is left in your tank you need this new liquid float , which is made of stainless steel.
This small size, low-cost can be used in most liquid environments. It can also be easily converted from normally open to normally close by inverting the float.

Specifications:
Contact rating (Max): 50W
Switching voltage: 0-220VDC/AC
Breakdown voltage(Max): 300V
Carry current(Max): 1.5A
Contract resistance(Max): 100mOhm
Temperature rating: -10 - +120Celsius
Max. pressure: 1MPa
Cable length: approx. 35cm
Stick length: 150mm
Mounting hole: M10
Material:stainless steel
Color: Silver
Net Weight: 2.42oz/Pcs

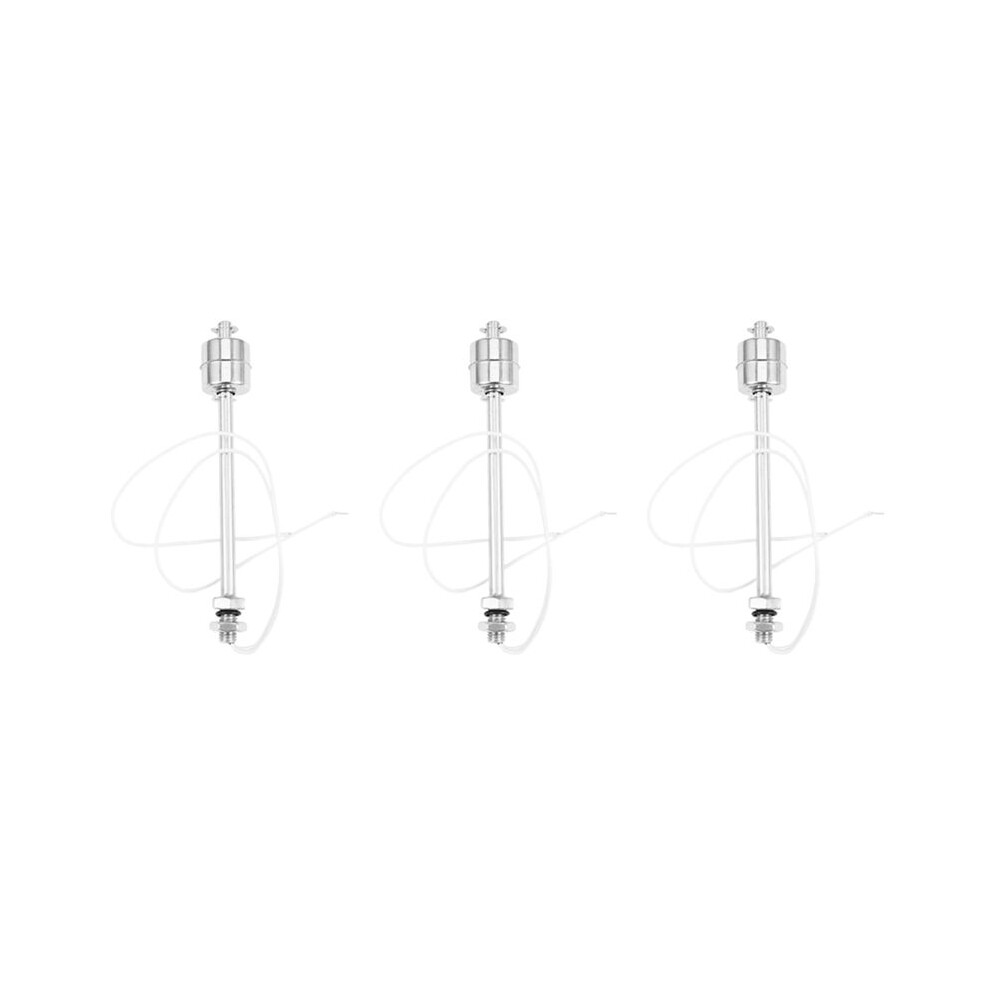

Package Contents:3 x Float Stainless Steel
