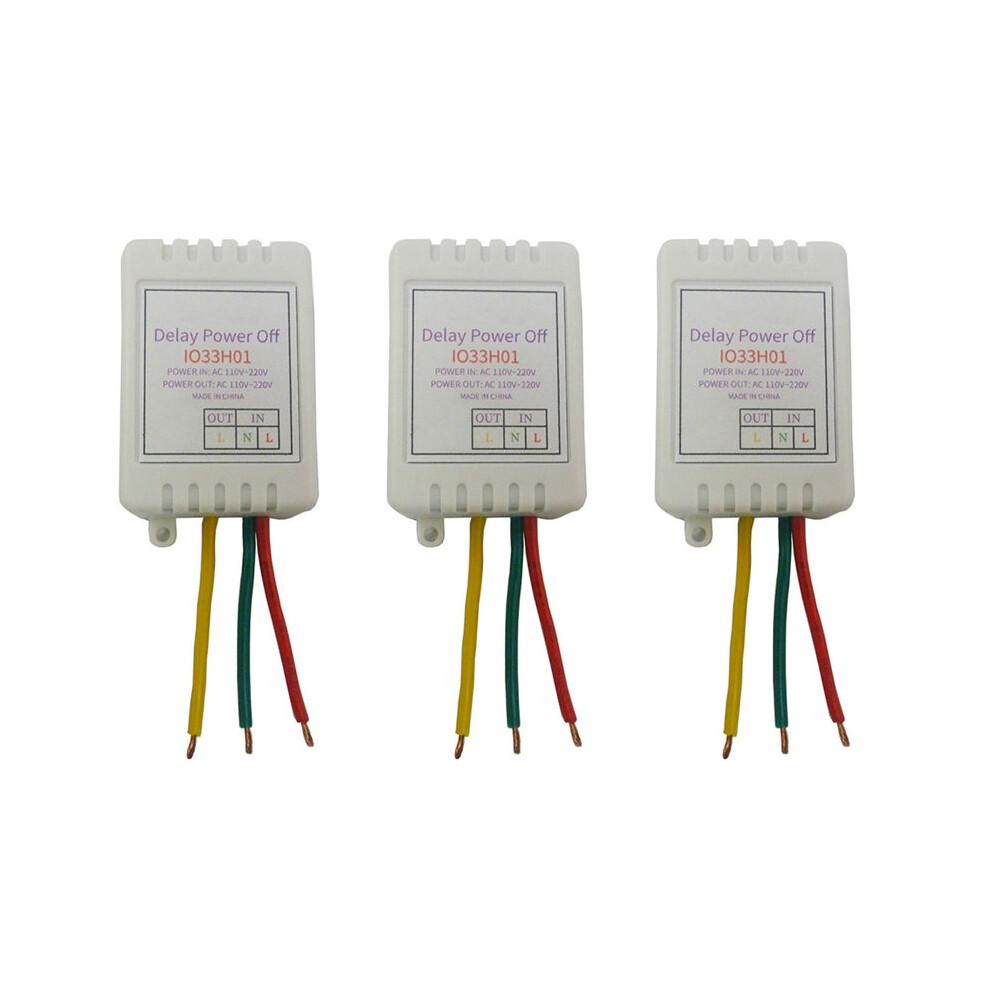

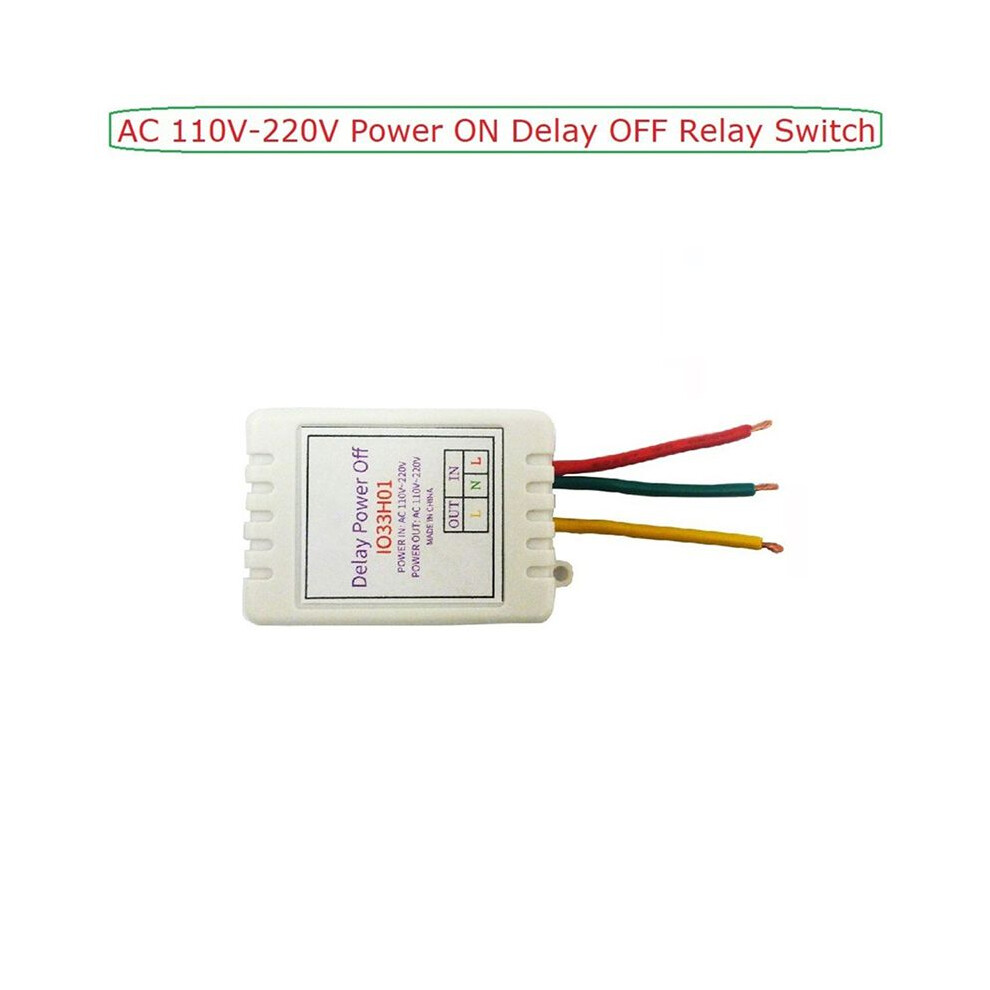

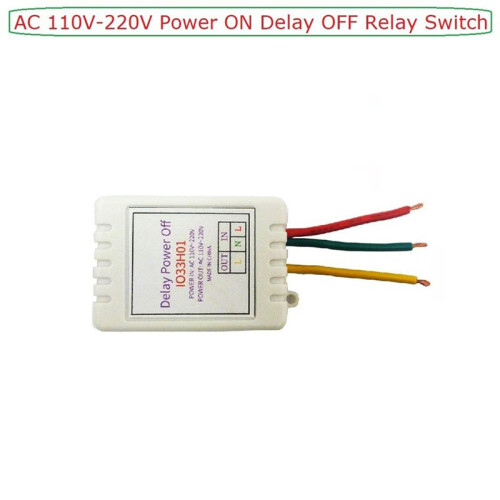

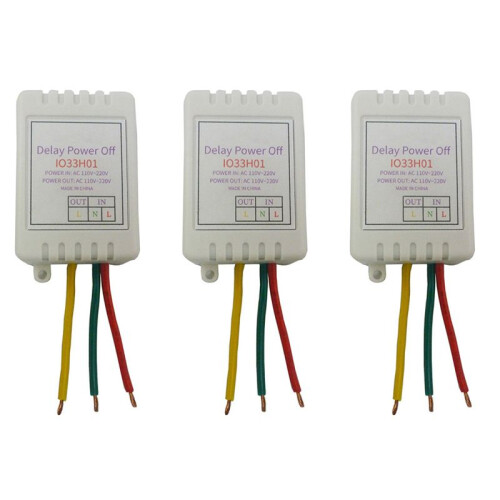

3X 1-480Min Timer Adjustable Disconnect Delay Controller AC110V 220V Power- Delay OFF Relay 7A Voltage Output B

3X 1-480Min Timer Adjustable Disconnect Delay Controller AC110V 220V Power- Delay OFF Relay 7A Voltage Output B Beskrivning

Function: Delay for a period of to stop power supply.
Small size, Simple to use. Stable performance.
Module function: This module is a delayed shutdown module. When the set delay expires, the power supply is stopped.
Wide range of uses: such as exhaust fans, motors, air coolers, cooling fans, germicidal lamps, humidifiers, heaters, etc.
Applicable scene: living room, kitchen, bathroom, bedroom, corridor, stairs, etc.

Parameter:
Output current: 7A (MAX 10A)
Output voltage: AC110-220V
Power supply voltage: AC 110-220V
Number of control channels: 1 output
Control power: 1400W (max) incandescent lamp, saving lamp 300W (max)
With LED indicator to show the working status (constant light means working, flashing means the delay is over)
16 delay modes to choose from (1 minute, 3 minutes, 5 minutes, 10 minutes, 15 minutes, 25 minutes, 30 minutes, 40 minutes, 50 minutes, 60 minutes, 90 minutes, 120 minutes, 180 minutes, 240 minutes minutes, 300 minutes, 480 minutes)
Working status: After power , the indicator light (PWR) is always ; after the delay is over, the indicator light (PWR) will continue to flash.
Instructions:
①: Set the that needs to be delayed (live setting is not allowed);

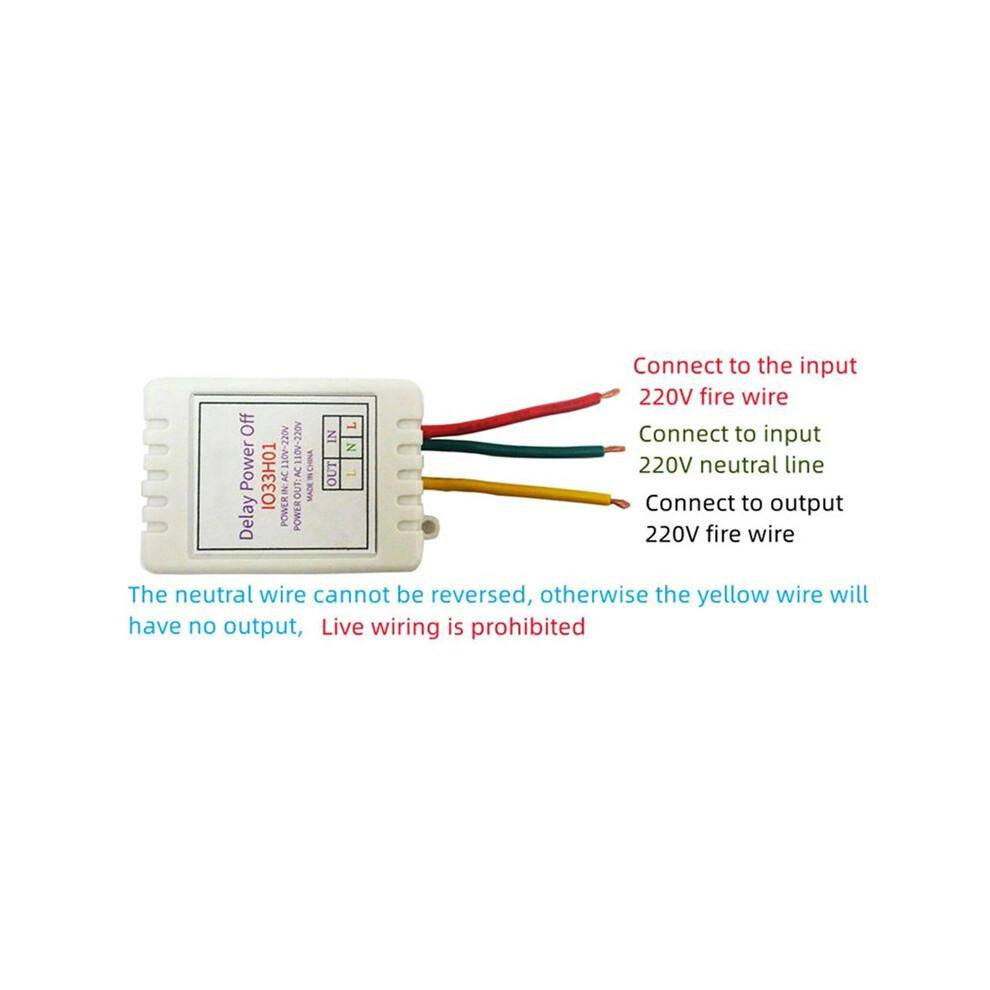

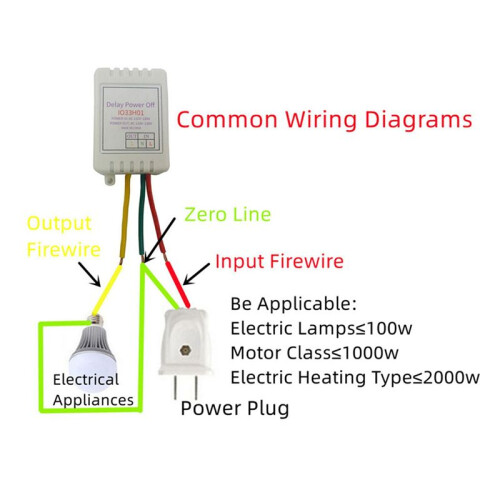

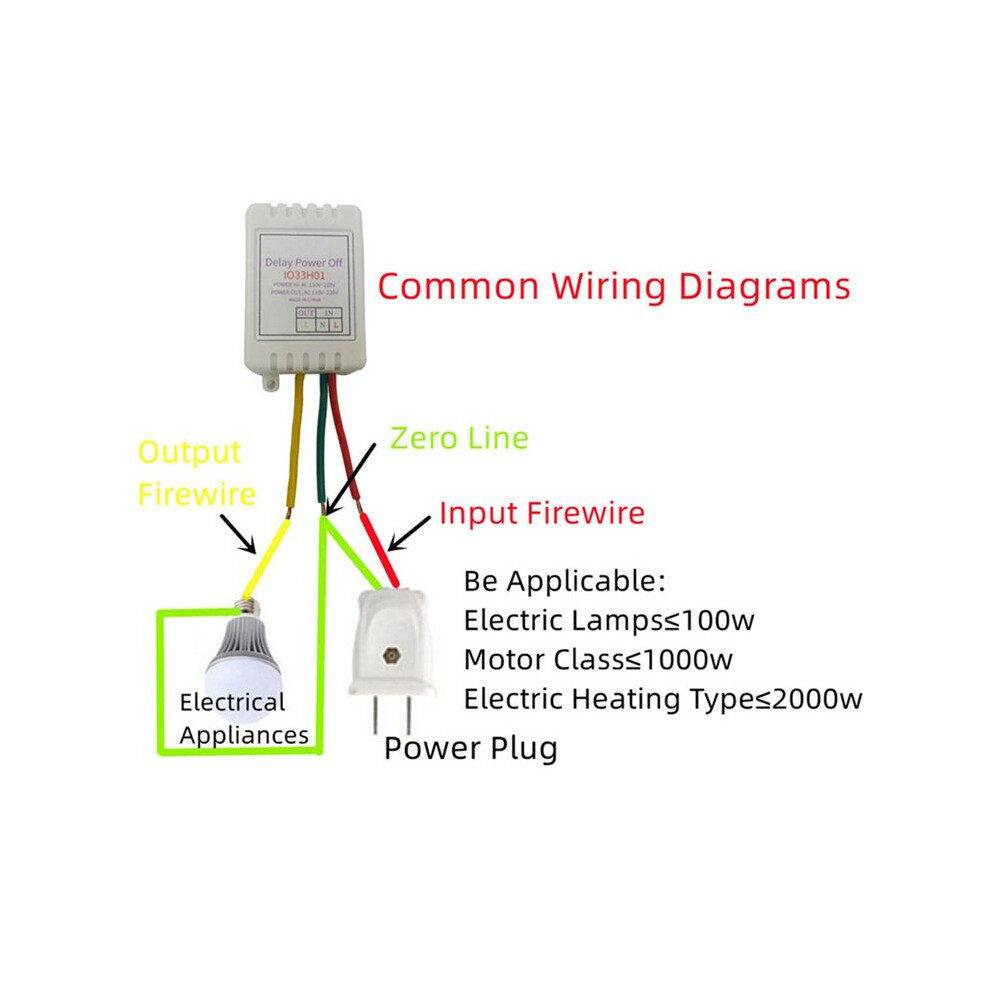

②: After checking that the wiring is correct, power . After power-, the module starts to work (the indicator light is always ), and when the is , the module stops power supply (the indicator light flashes).
1. If you need to shut down in advance during use, you can directly disconnect the main power supply of the module.
2. Start the second delay: power again.
Colour: As Shown
Material:PCB+Components
style:B with housing
Due to different product batches, the appearance may vary, which does not affect the use

Package Contents:
