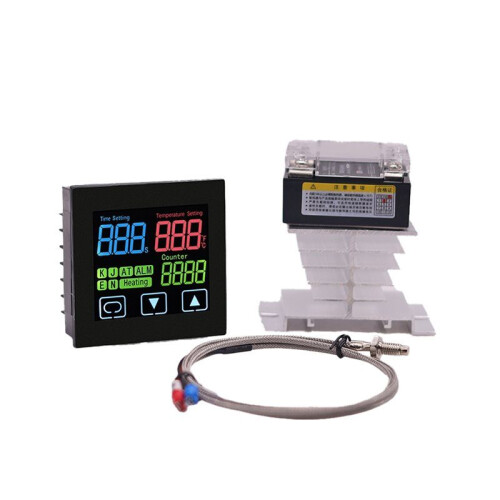

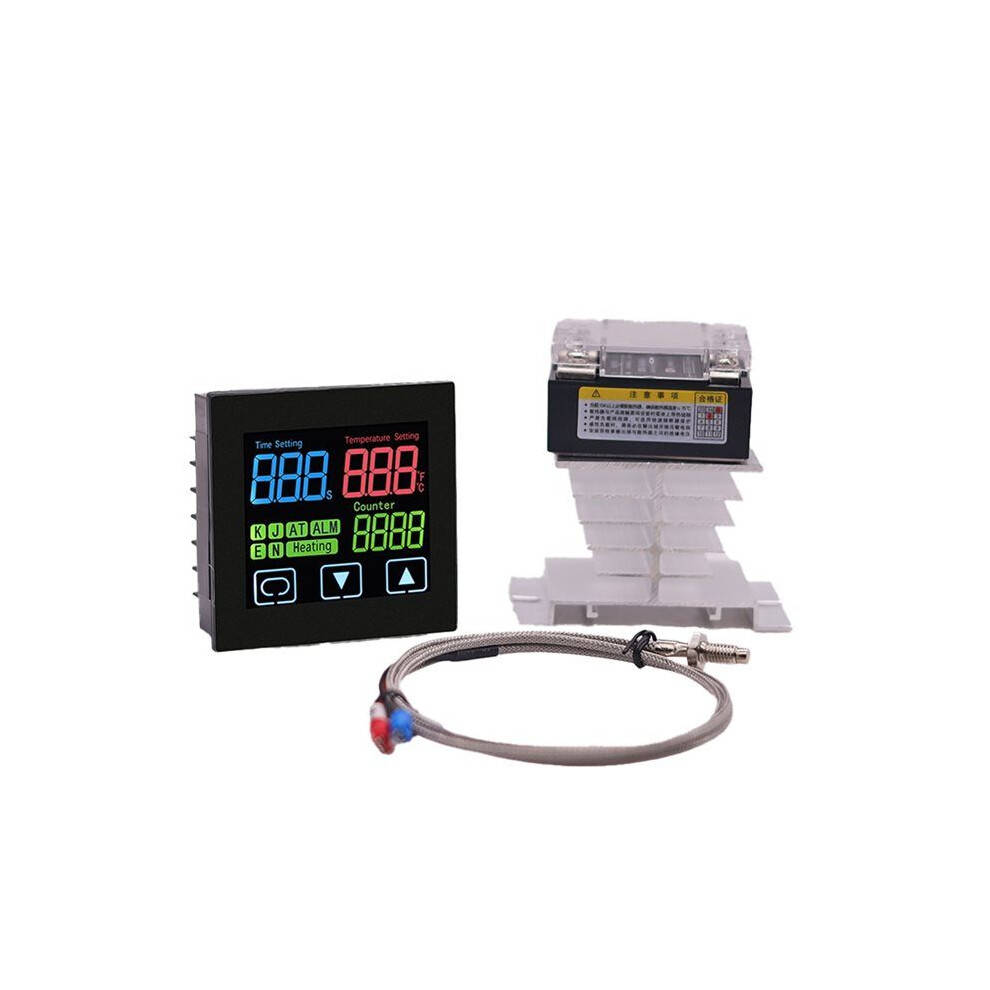

40A SSR Heat Press Machine Thermostat with Timer and Counter Hot Stamping PID Temperature Controller

40A SSR Heat Press Machine Thermostat with Timer and Counter Hot Stamping PID Temperature Controller Beskrivning

Power supply: 100V-240V AC
Output: voltage output for SSR (Please note: SSR output is used for temperature control, it only be activated when measure temperature value lower than set temperature value , they are independent from timing . )
Temperature range: -20 to 600 Celsius
Temperature unit: Celsius degree / Fahrenheit degree(user can program it inside)
Mounting hole cutout size: 68 x 68mm

Unit:Second or minute (user can program it inside)
range:0-999s or 0-999min
Low temperature function:
When measure temperature lower than 50'C for a few minutes, thermostat will jude that the sensor was not contact with heater , it will display "HEt" to remind user . User should check the sensor and restart it . User can close this function by programming.
Package Details:
1 x thermostat
1 x solid-state relay
1 x K-type thermocouple
1 x solid-state relay heat sink
Color: As Shown
Material: plastic

Package Contents:
1 * Temperature controller set
