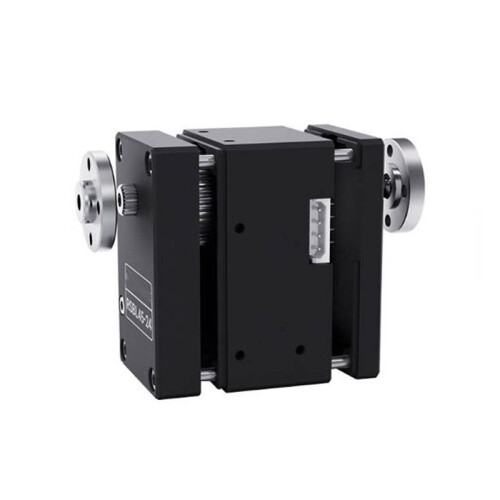

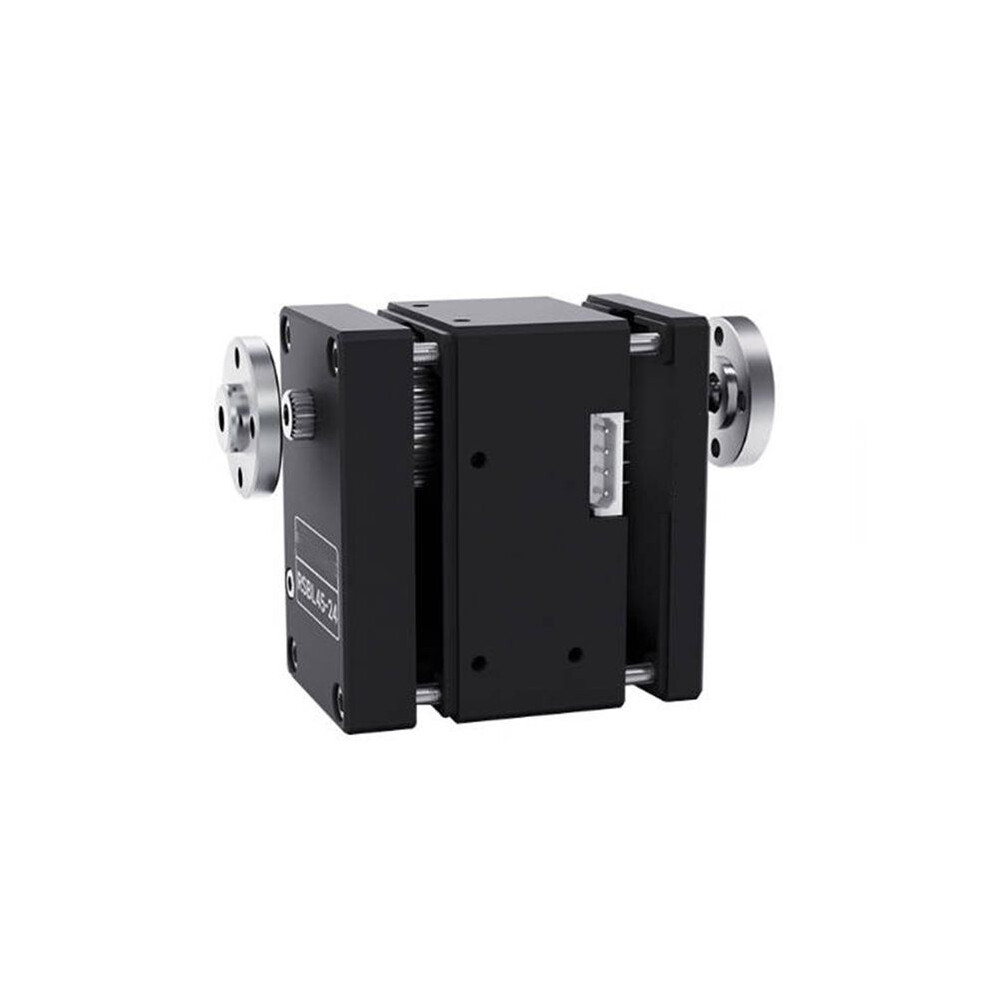

45kg.cm RSBL45-24 Servo Motor High Precision Large Torque Aluminum Alloy Case with Programmable 360 Magnetic Encoder

45kg.cm RSBL45-24 Servo Motor High Precision Large Torque Aluminum Alloy Case with Programmable 360 Magnetic Encoder Beskrivning

Aluminum Alloy Case + CNC Processing: To lmprove The Heat Tolerance, Size Stability, Rigidity, And Mechanical Performance Of The Case.
Brushless Motor + Steel Gear Box: To Ensure The Strength And Durability Of Servo Motor Power Transmission.
High Precision 360 Magnetic Encoder: Adopts 12-bit high-precision magnetic encoding angle sensor. Compared with the carbon film potentiometer, the angle of the magnetic encoder is enlarged to 360, and the resolution is increased by 4 times. Since there is a and no friction between the magnetic encoder and the radial magnet, the motor is effectively extended.
Large Torque, Easy To Use: To 45kg.Cm Torque 24V Voltage, Suitable For Building Quadruped Robots, Hexapod Walkers, Robotic Arms And Other Robotic Projects Requiring Multiple Motors
UART Serial Bus Control: To 253 Servo Motors Controlling At The Same , With Simple Wiring, Reducing The Occupation Of The Serial Port.

PRODUCT MODEL:RSBL45-24
TORQUE:45kg.cm@24V
ROTATION ANGLE:360(0-4095)
POSITION SENSOR RESOLUTION:0.088(360/4096)
MECHANISM LIMIT ANGLE:No limit
WORKING VOLTAGE:9-24V(typ.24V)
GEAR:high precision steel gear (reduction ratio 1.353)
NO-LOAD SPEED:0.142sec/60degree70RPM@24V
ENCODER TYPE:360 magnetic encoder
ID RANGE:1-253 (1 by default)
BAUDRATE:38400bps-1Mbps(1Mbps by default)
NO-LOAD CURRENT: 160mA
LOCKED-ROTOR CURRENT: 2.3A
KT: 1.9kg.cm/A
WEIGHT: 100g
FEEDBACK:Position, Load, Speed, Input Voltage, Current, Temperature
Color:Black
Material:Metal

Package Contents:
1 * Servo Motor
