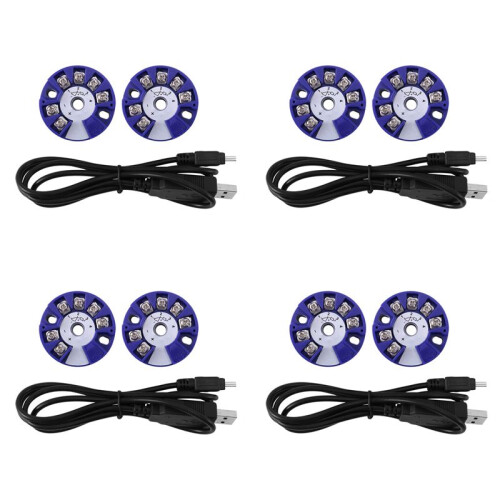

4set Programmable Thermocouple RTD PT100 to 4-20MA Converter TC RTD Input 4-20MA Output Temperature Transmitter

4set Programmable Thermocouple RTD PT100 to 4-20MA Converter TC RTD Input 4-20MA Output Temperature Transmitter Beskrivning

Internal embedded cold-junction compensation.Have USB port to do configuration.Signal input type, temperature range are programmable through software.
Universal RTD TC thermocouple signal input, 2-wire 4-20mA output.12-35V wide range power supply.Support 2-wire, 3-wire, 4-wire RTD PT100/CU50 input, ohm signal input.
Support all the thermocouple signal input, type K, J, T, S, N, R, E, B etc. Standard -mounted package. Refined frosted external shell, flame-retardant material.
High performance in withstanding shock, vibration, external interference, etc. In compatible with all the PLC, temperature controller, meter, etc. Industrial grade operating temperature range: -40 to +85

Signal input: Thermocouple or 2-wire RTD, 3-wire RTD, 4-wire RTD.
Output: 2-wire 4-20mA current.
Output current limit: 20.3mA
Power supply: 12-35VDC, 0.2mA excitation current.
Measuring Accuracy: 0.5% TC input, 0.2% RTD input.
Temperature Drift: less than equal 25ppm/ F.S.
Excitation current: 0.20.01mA
Load capacity: 250Ωor 500Ω
Protection circuit: Reverse polarity connection protection.
Software programmable: Yes, have programming usb cable, configuration software (English).
Support HART: Not supported
Operating temperature: -30-+80
Storage temperature: -40-+120
Installation:M4x2 screw, standard -mounted.
Material:plastic
colour:

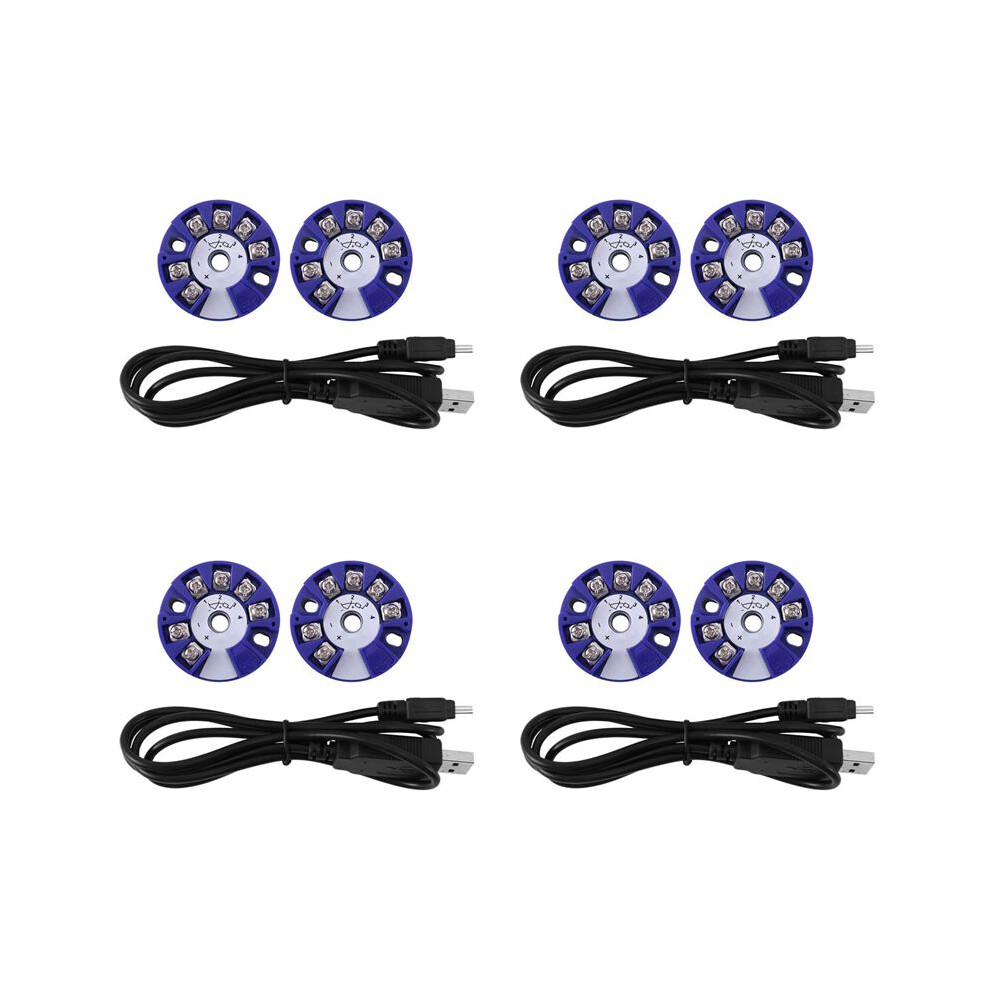

Package Contents:
8 x Temperature Transmitter
4 x USB Config Cable
