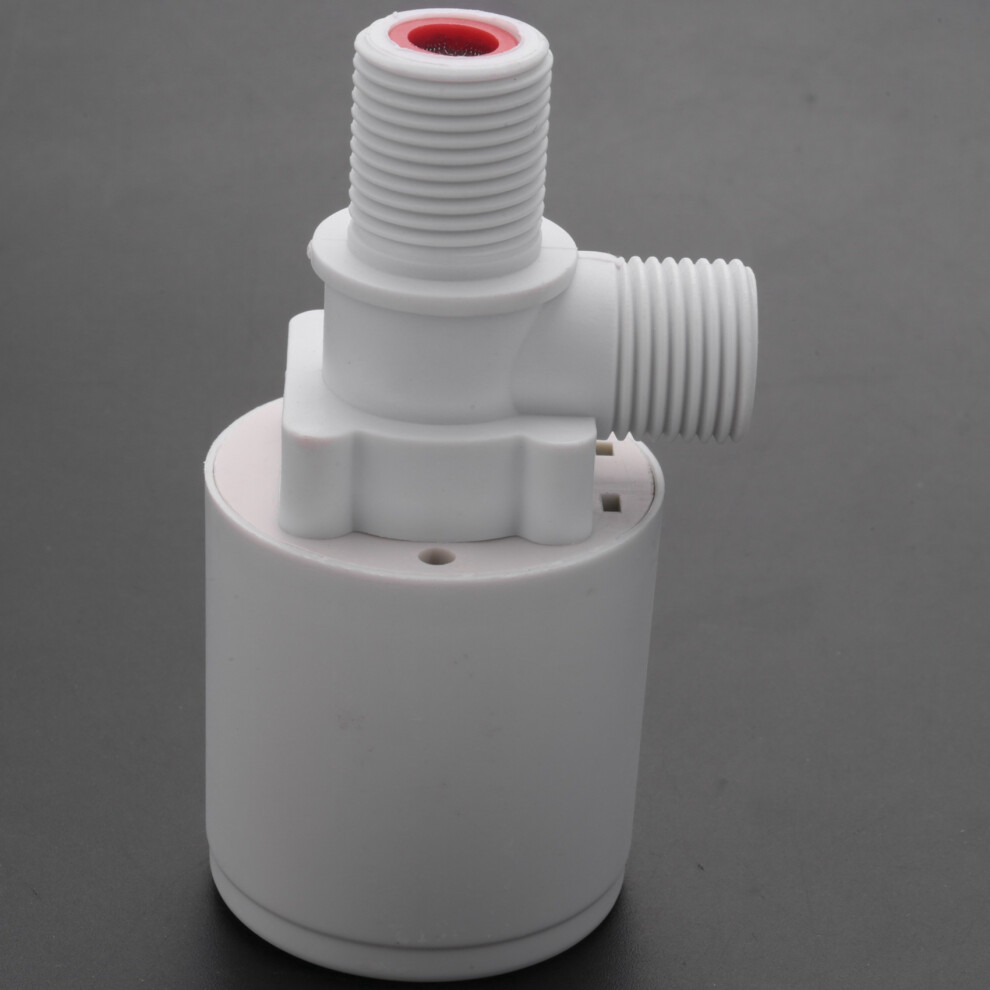

4X Solar Water Tank Water Tower Pool Automatic Water Level Controller Plastic Float Valve

4X Solar Water Tank Water Tower Pool Automatic Water Level Controller Plastic Float Valve Beskrivning

New and High Quality
This valve is the replacement of the traditional float ballcock, which can be applied to various systems of high water tanks, pools, water towers of the industry and civil construction, etc.
Automatic control, low self-complementary water, water full automatic stop.Four intakes, large volume of water
Beautiful appearance, small size, practical, simple installation.Without electricity, easy to use, long life, low failure rate, saving water resources
When the pool or tank water levels fall, the valve body will sink down and then the forerunner of the control valve will be opened. As the pipe water pressure affects, the seal face of control valve will be opened. Finally the water comes out and vice versa

Specifications:
Type: Upright Inner Installation
Working pressure range: 1-10KG(0.1-1MPa)
Applicable Medium: clean water
Applicable Medium temperature: less than equal 70
Resistance to high temperature medium temperature: 70~120
Outlet Diameter: G1/2
Size: 100.2x58x50mm
Quantity: 4 Pc
color: White
material: plastic
Package Contents: 4 x Water level control valve
Note:
This production belongs to the liquid level control valves. When installed, the float must be vertical. if you need to install from the top , a Elbow needed to connect the float valve and the inlet . Firstly, the feed should be fixed in horizontal plane and then connect the automatic water level control valve the water inlet according to the standard. The main water inlet should be lined with the control valves' Normal Diameter. When using, the globe valve should be all open. If two valves are installed in the same pool, the two valves should be held in the same horizontal plane. Before installing, please clean the impurities in the pipes in case of blocking.
