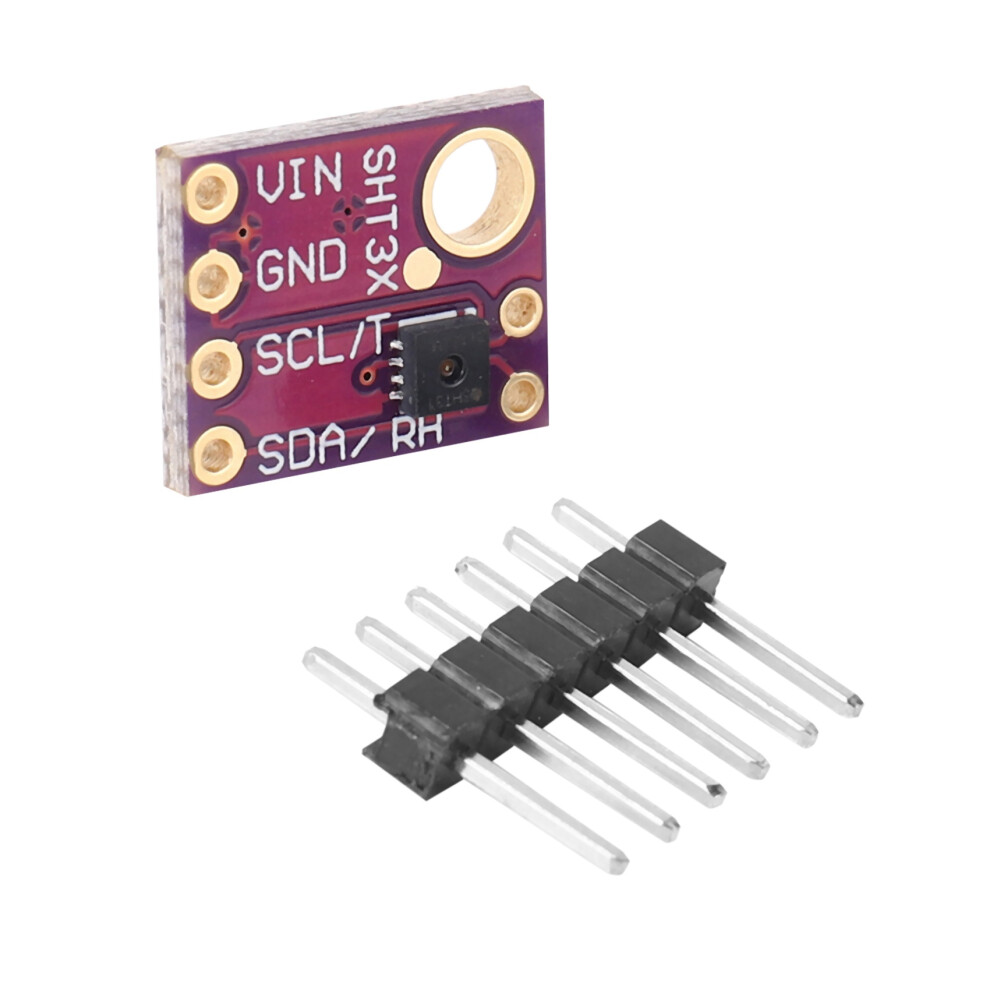

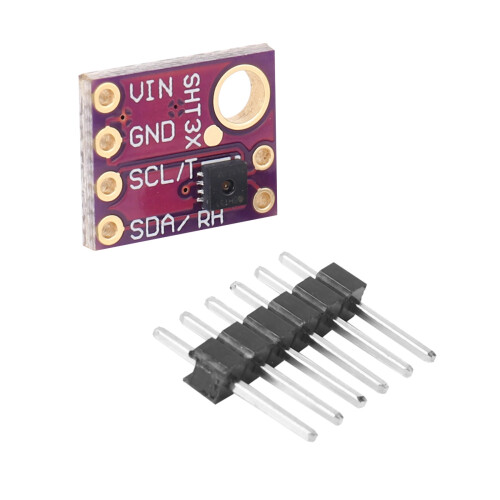

6Pcs SHT31-D Temperature Humidity Sensor Digital Output Sensor Module IIC I2C Interface 3.3V for Raspberry Pi

6Pcs SHT31-D Temperature Humidity Sensor Digital Output Sensor Module IIC I2C Interface 3.3V for Raspberry Pi Beskrivning

Supply voltage range: 2.4 to 5.5V (typically 3.3V)
RH working range: 0-99.99%RH ; I2C interface, communication rate to 1MHz, with two user-selectable addresses
Operating temperature range: -40 to 125Celsius (-40 to 257Fahrenheit)
RH response : 8 seconds (tau63%)
Typical accuracy is +/- 2% RH and +/- 0.3 inch with high accuracy

Sensor Manufacturer: #SHT31-DIS
RH response : 0- RH
Interface: I2C
Power Pins:
Vin - this is the power pin. The chip can use 2.5-5VDC for power. To power the board, give it the same power as the logic level of your microcontroller - e.g. for a 5V like for , use 5V. For a 3.3V controller like a Raspbery Pi, connect to 3.3V GND - common ground for power and logic
SCL - I2C clock pin, connect to your microcontrollers I2C clock . This pin has a 10K pullup resistor to Vin
SDA - I2C data pin, connect to your microcontrollers I2C data . This pin has a 10K pullup resistor to Vin

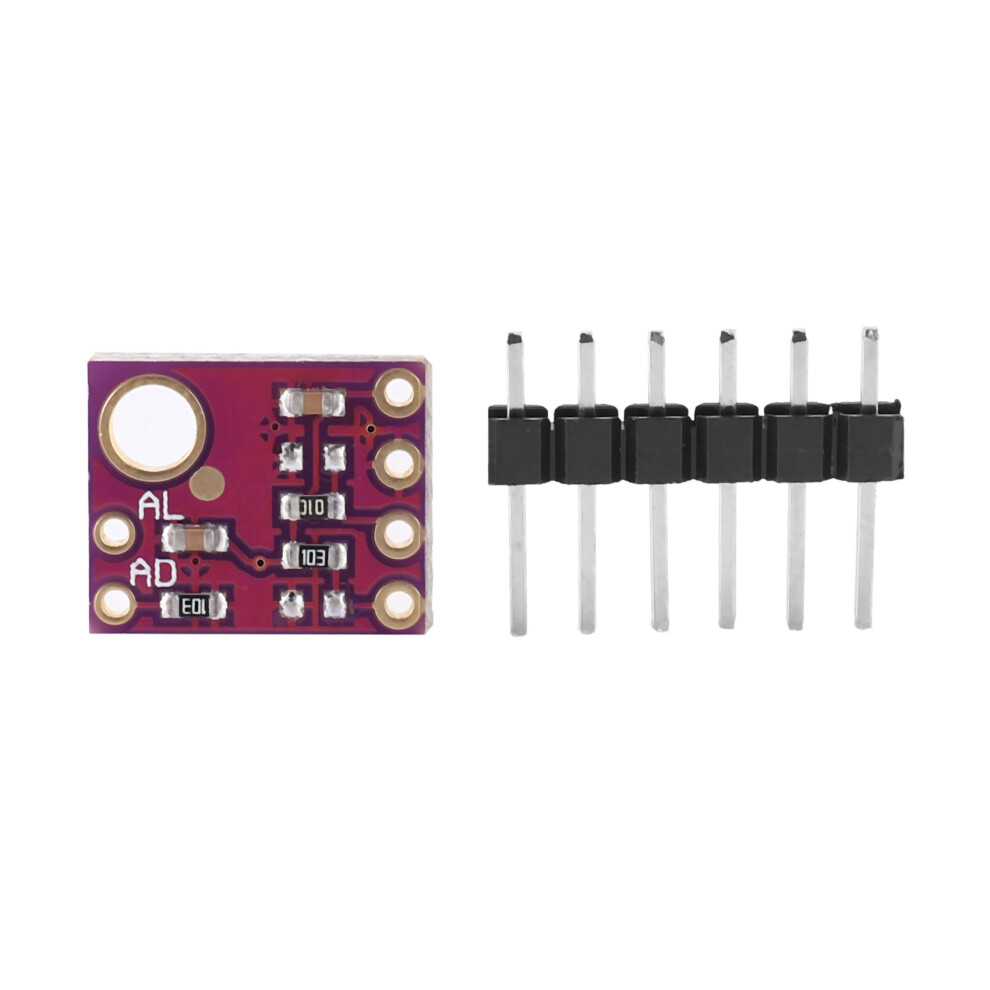

ADR - This is the I2C address selection pin. This pin has a 10K pull down resistor to make the default I2C address 0x44. You can tie this pin to Vin to make the address 0x45
RST - Hardware reset pint. Has a 10K pullup it to make the chip active by default. Connect to ground to do a hardware reset!
ALR - Alert/Interrupt output. You can set the sensor to alert you when an event has occured. Check the datasheet for how you can set the alerts
Colour:Photo Color
Material:plastic

Package Contents:

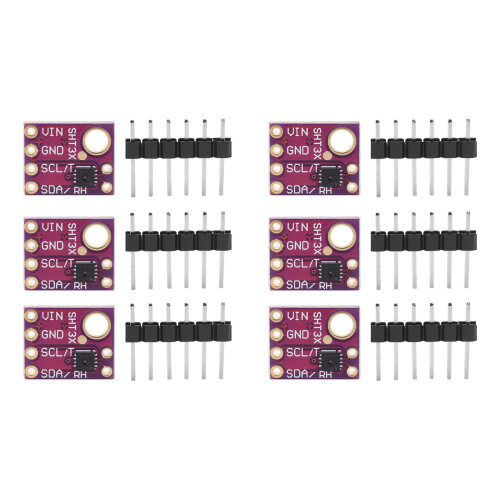

6 x SHT31-D Temperature Humidity Sensor
