ESP32-P4-ETH Development Board RJ45 MIPI- Interface 40PIN GPIO 32MB PSRAM for AI Deepseek with POE

ESP32-P4-ETH Development Board RJ45 MIPI- Interface 40PIN GPIO 32MB PSRAM for AI Deepseek with POE Beskrivning

128KB ROM,16KB LP ROM,768KB L2MEM,32KB LP ,8KB TCM
Powerful image and voice processing capabilities, including image and voice processing interfaces such as JPEG codec, pixel processing accelerator (PPA), image signal processor (ISP) and H264 video encoder,32MB PSRAM in chip package, 32MB Nor Flash externally integrated
Common peripheral interfaces such as MIPI-CSI, MIPI-, USB 2.0 OTG, Ethernet, SDIO 3.0, card slot, microphone and speaker terminals are brought out the board
2x20 pin headers are provided the board, leading to 27 remaining programmable GPIOs
Security mechanisms: secure boot, Flash encryption, hardware encryption accelerator, and hardware random number generator. It also supports hardware access protection, enabling access rights management (APM) and privilege separation

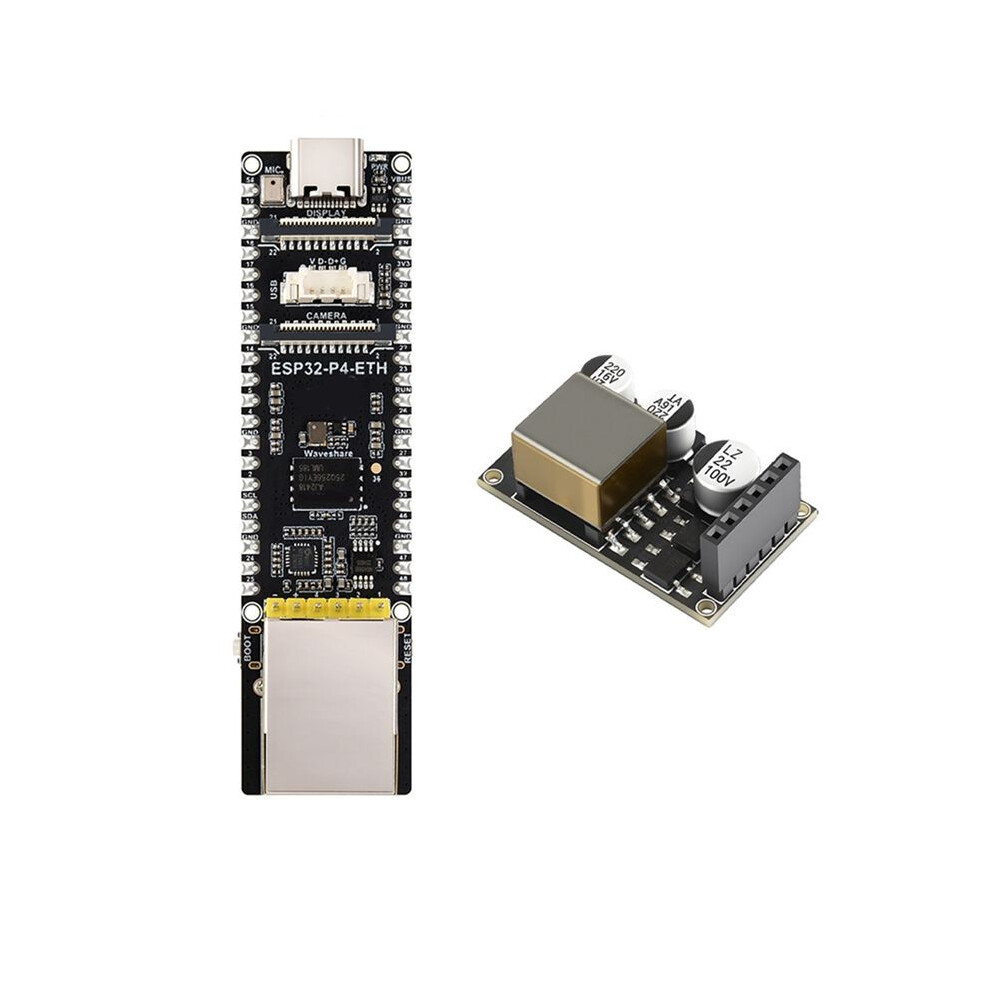

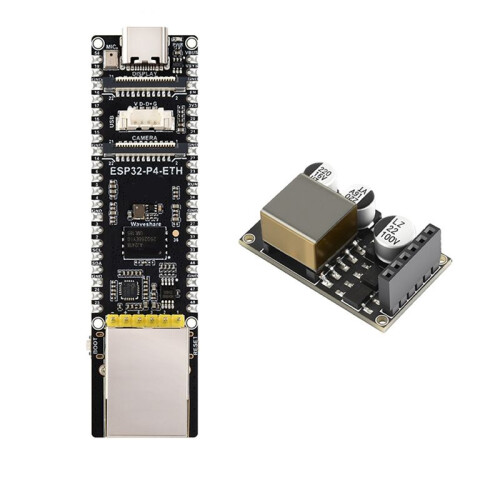

This product is a multimedia development board based the ESP32-P4. It provides a rich set of human-computer interaction interfaces, including MIPI-CSI (integrated image signal processor, MIPI-), SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART, and TWAI. It also supports USB OTG 2.0 HS and Ethernet, and has an onboard 40-pin GPIO expansion header compatible with some for Raspberry Pi expansion boards, enabling a wider range of application adaptability.
The ESP32-P4 is equipped with a RISC-V dual-core processor, supports to 32MB of PSRAM, and features peripherals such as USB 2.0, MIPI-CSI/, and H.264 encoding, meeting the needs of low-cost, high-performance, and low-power multimedia development.
Furthermore, the ESP32-P4 integrates a digital signature peripheral and a dedicated key management unit to ensure data and operation security. Designed for high-performance and high-security applications, the ESP32-P4-ETH meets the needs of embedded systems for human-computer interaction, computing, and I/O expansion
