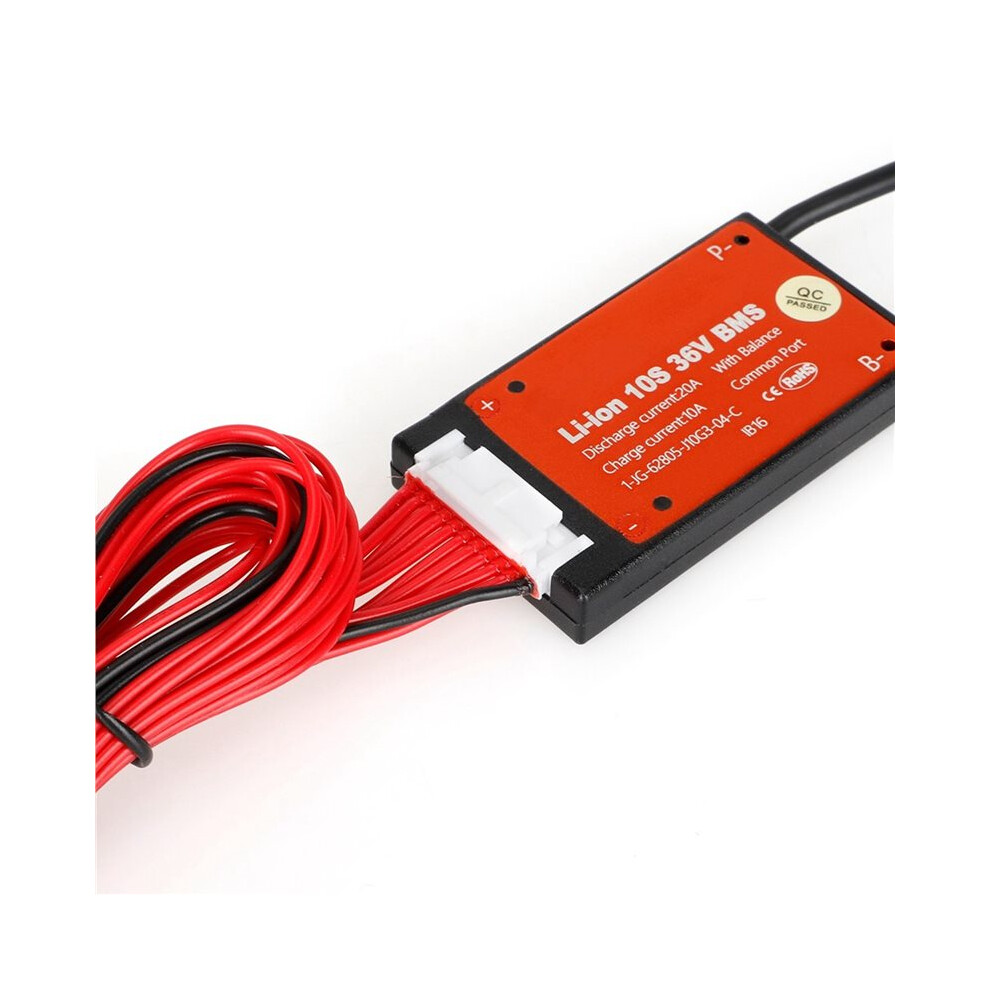

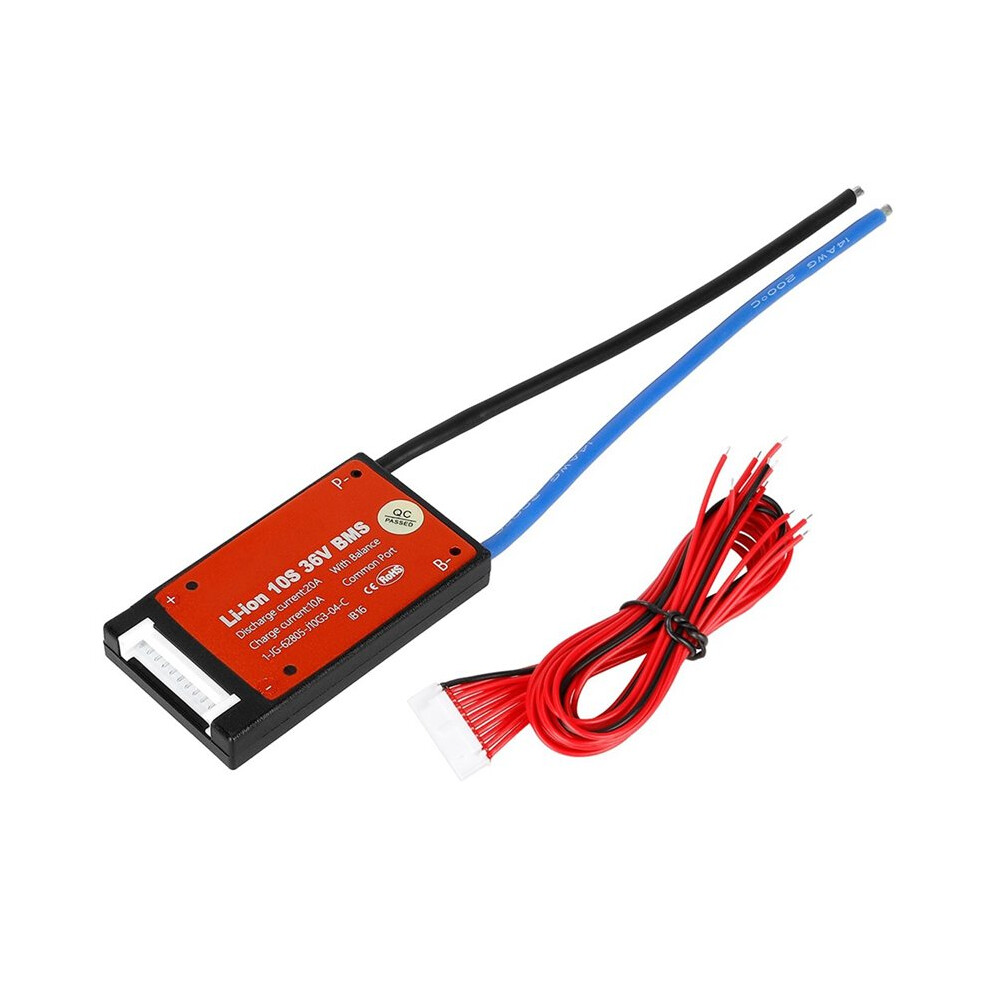

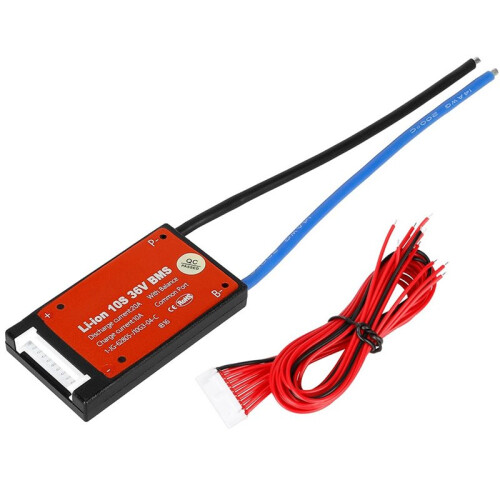

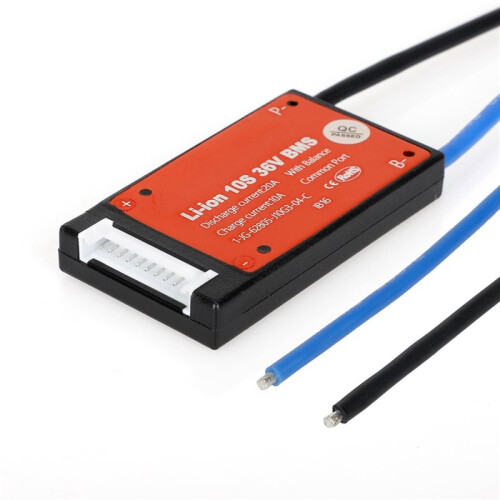

Li-Ion Battery Pack 10S 36V 20A BMS Used for Continuous with Balance Function Battery BMS Protection Board

Li-Ion Battery Pack 10S 36V 20A BMS Used for Continuous with Balance Function Battery BMS Protection Board Beskrivning

10S 36V20Abms is used for 10series 36V battery pack.
We can design it for various lithium batteries like LiFepo4, LiMn2O4, and Li-polymer etc.
The main functions are: over charge protection, over discharge protection, over current protection, short-circuit protection, temperature protection etc.
BMS manufactured by high quality Mos and IC imported . Keep your battery long cycle serivce life .

Strong load ability, constant discharge current 20A, use high voltage resistance, low inner resistance power Mosfet. The heat sink will greatly help cooling.
IC itself has power balancing function. The circuit is simple and reliable.
Typical voltage detection for each cell. So each battery will be prevented over charged or over discharged. Over current and short circuit protection function is very reliable.Long short circuit of the load won't affect the PCB and the battery.Temperature protection during charging and discharging.
Extreme low power consumption. The consumption of the whole device is less than 50uA.
PCB use high anti-corrosion, high water resistance, high impedance ESD conformal Coating.
Color: Red
Material: Plastic+Metal

Package Contents:
1 x Battery BMS protection board

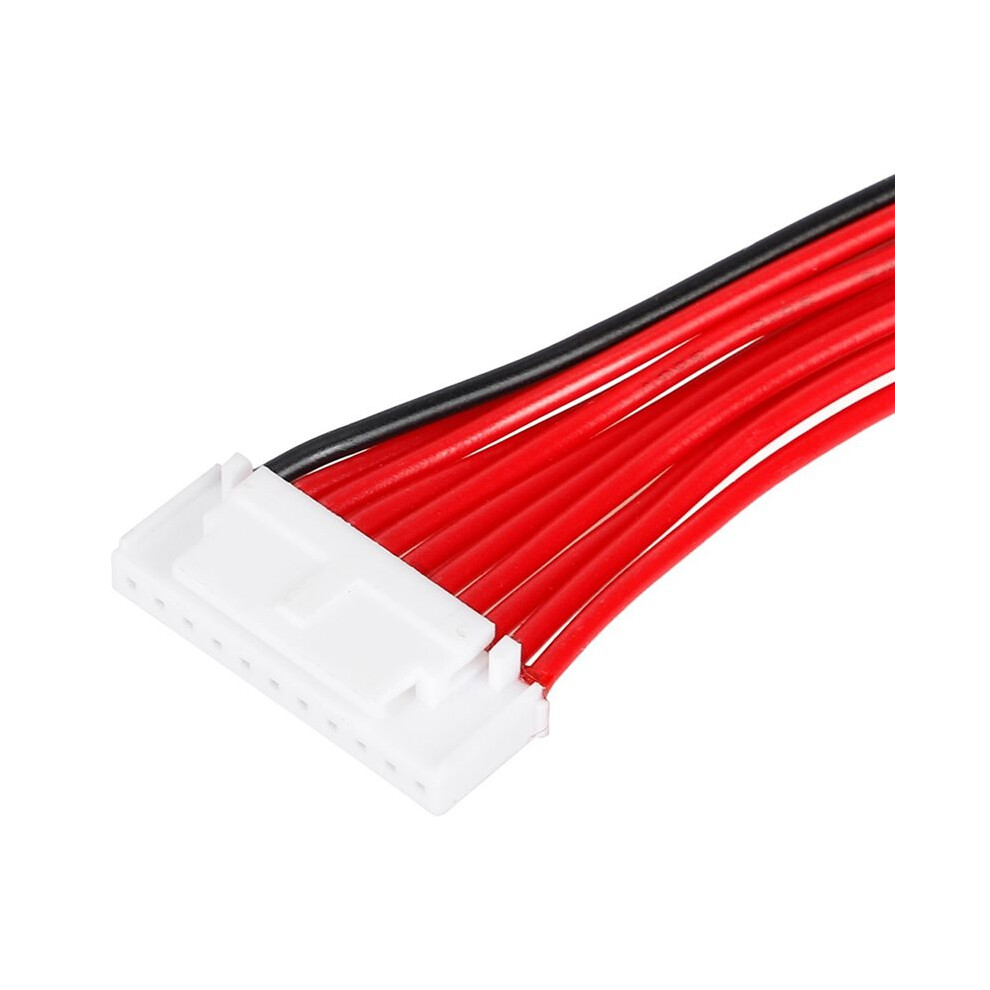

1 set x cables
