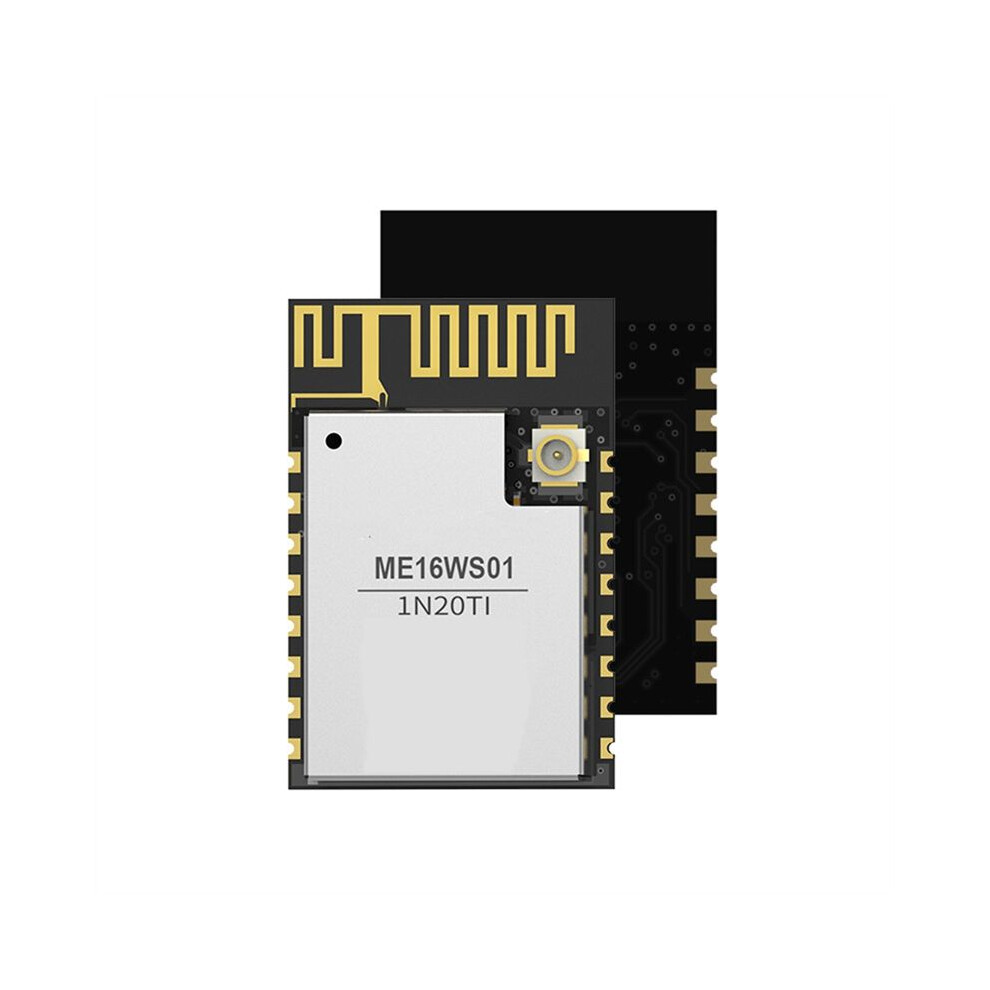

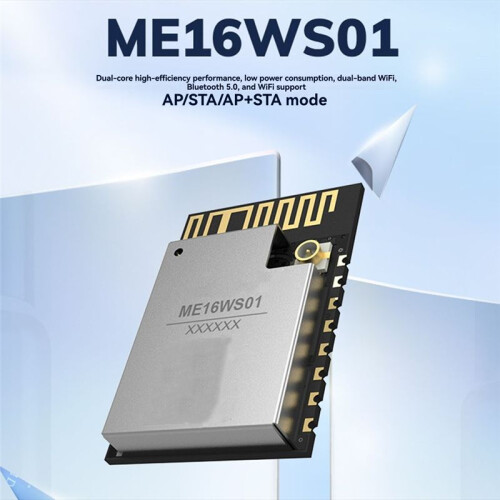

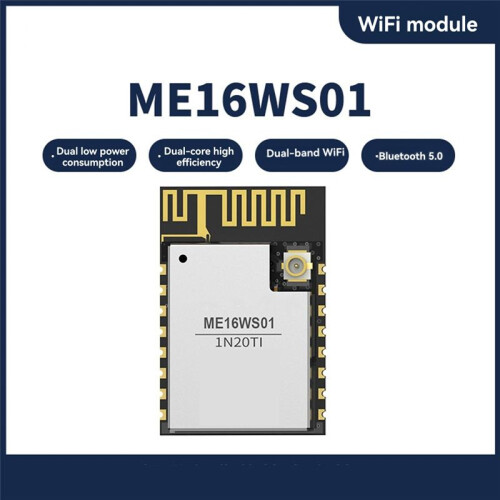

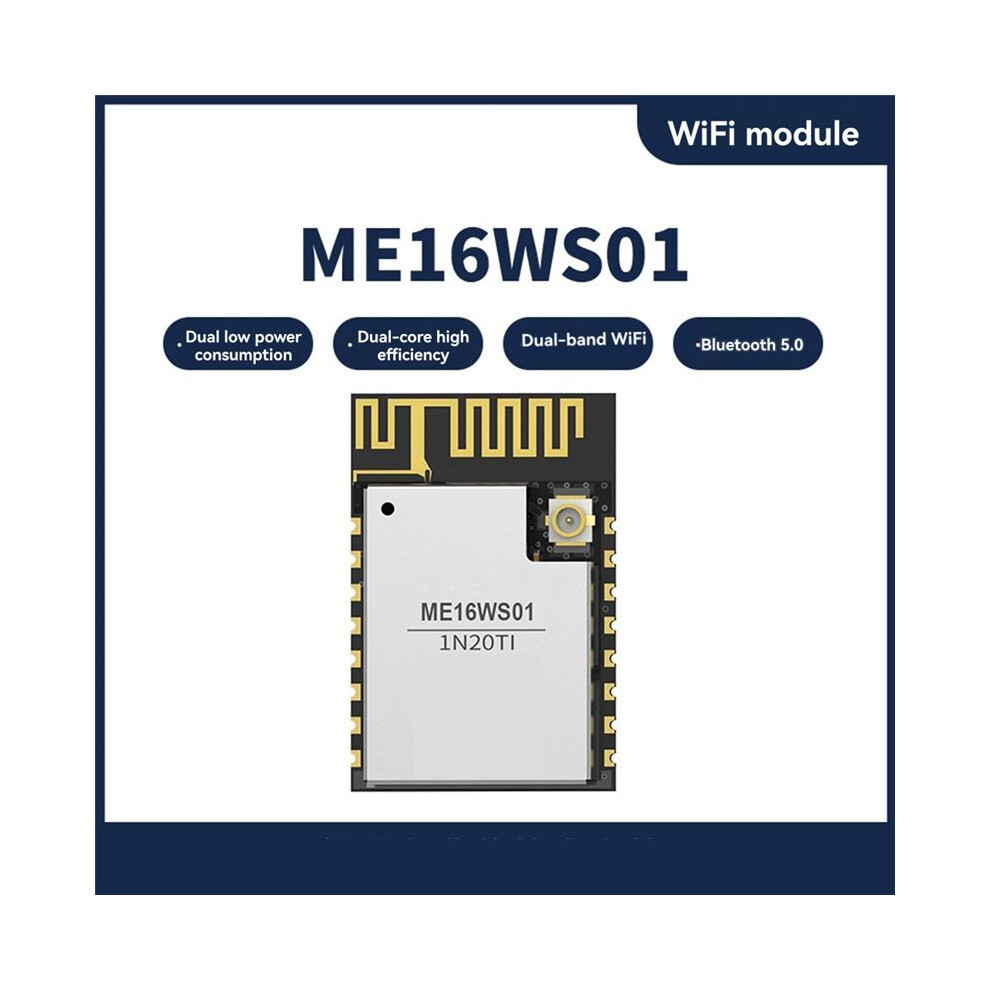

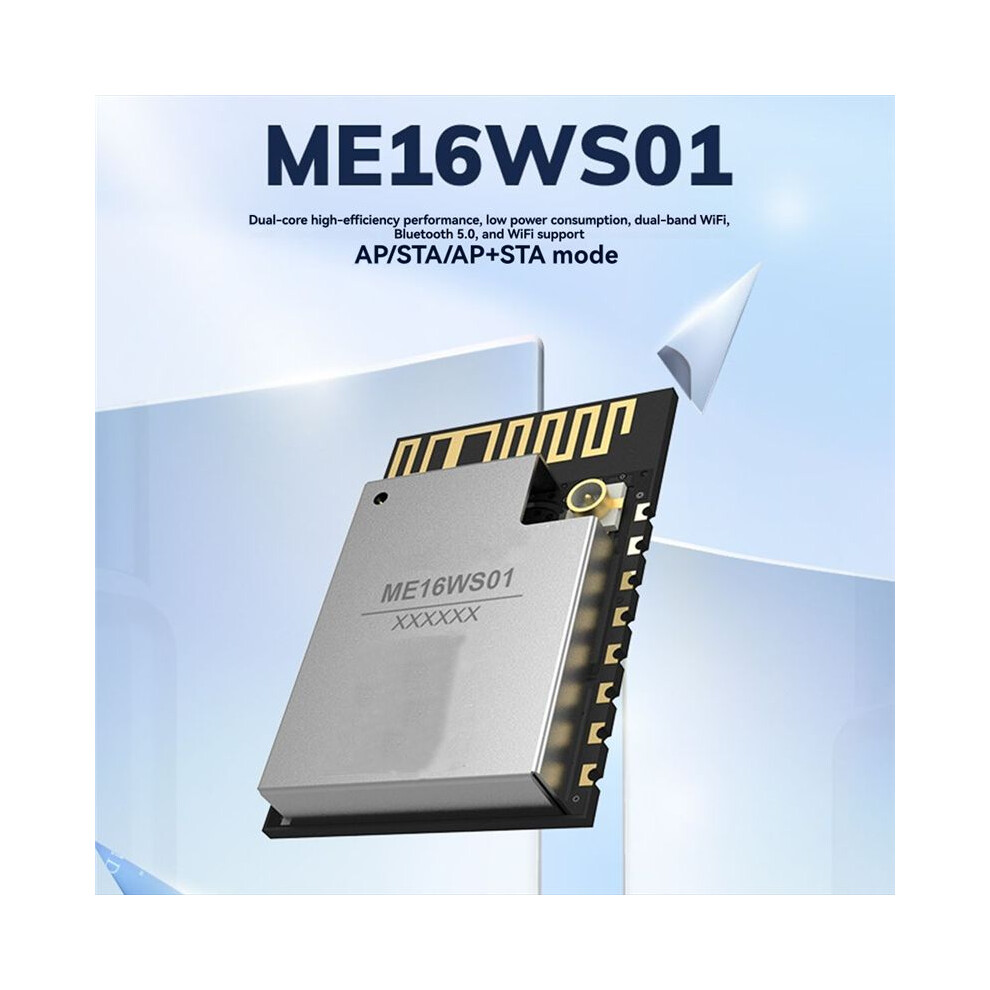

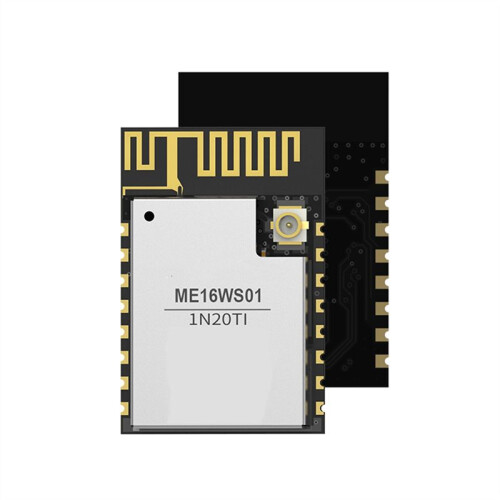

MinewSemi + WiFi Module ME16WS01 High-Performance Dual-Core Supports WiFi AP STA Mode 2MB Flash Module

MinewSemi + WiFi Module ME16WS01 High-Performance Dual-Core Supports WiFi AP STA Mode 2MB Flash Module Beskrivning

Antenna Type: PCB/IPEX Socket

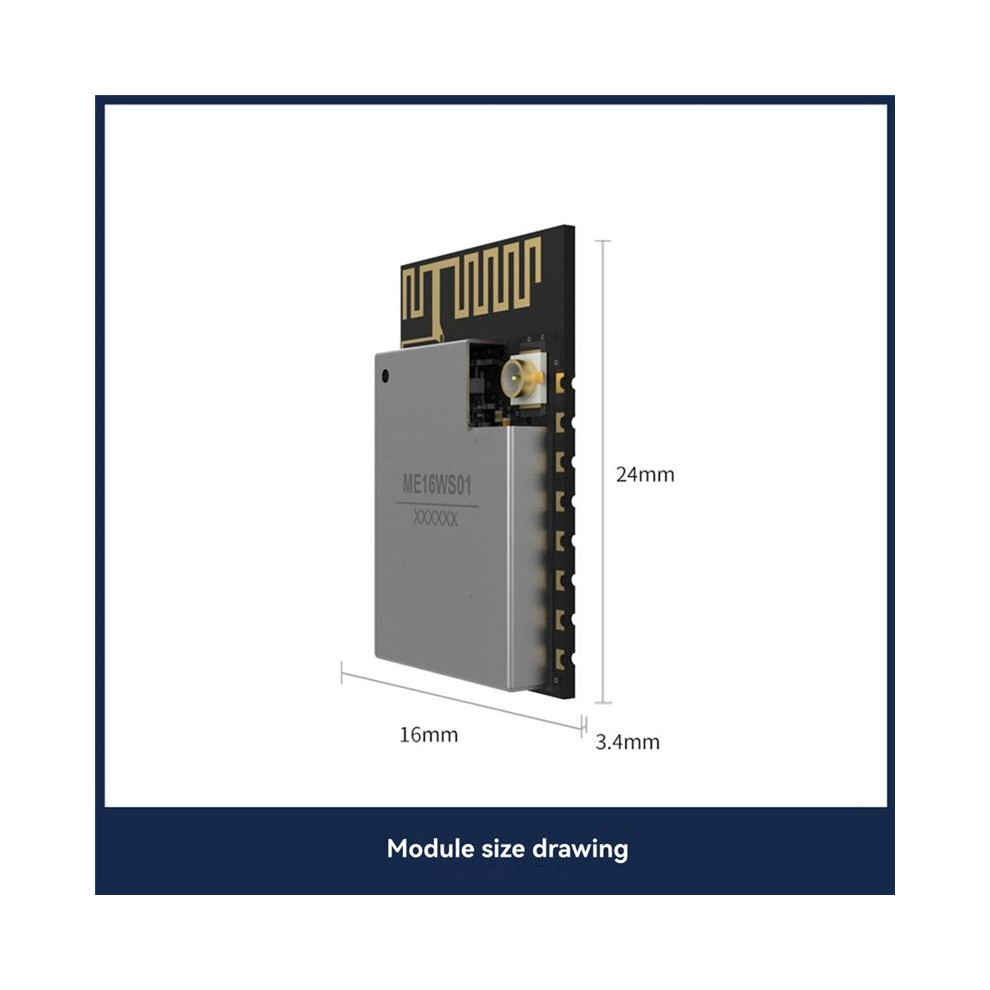

Module Dimensions: 24 x 16 x 3.4mm
GPIOs: 11
Receiver Sensitivity: BLE: -98dBm / Wi-Fi: -95dBm
Transmitter Power: BLE: -40 to +8dBm / Wi-Fi: +20dBm

Module Overview:
The ME16WS01 is a dual-band wireless WiFi module based the RTL8720DN SoC. It features an ARM-v8 core and a Cortex-M4F-compatible RF transceiver, operating at to 200 MHz. It also includes 2MB of Flash program space, 512KB of RAM, and 64KB of RAM, along with integrated 2.4GHz and 58GHz transceivers and other powerful supporting resources, providing a comprehensive solution for WiFi and connectivity. The RTL8720DN supports WiFi AP/STA/AP+STA modes, supports Low (BLE) assisted network configuration, and provides a set of configurable GPIOs for controlling various peripherals.
Chip Model: RTL8720DN
Storage: 2MB
RAM: 512KB + 64KB
Electrical Parameters:
Operating Voltage: 3.0V-3.6V (Typical Supply Voltage: 33V)
Operating Current: Greater than 500mA ( Current Greater than 500mA)
Operating Temperature: -40 to +85(Storage Temperature: -40 to +125)
Transmitter Power: BLE: -40 to +8dBm / Wi-Fi: +20dBm (Configurable)
Number of I/O : 11
Color:Black
Material:PCB

Package Contents:
1 * Module
