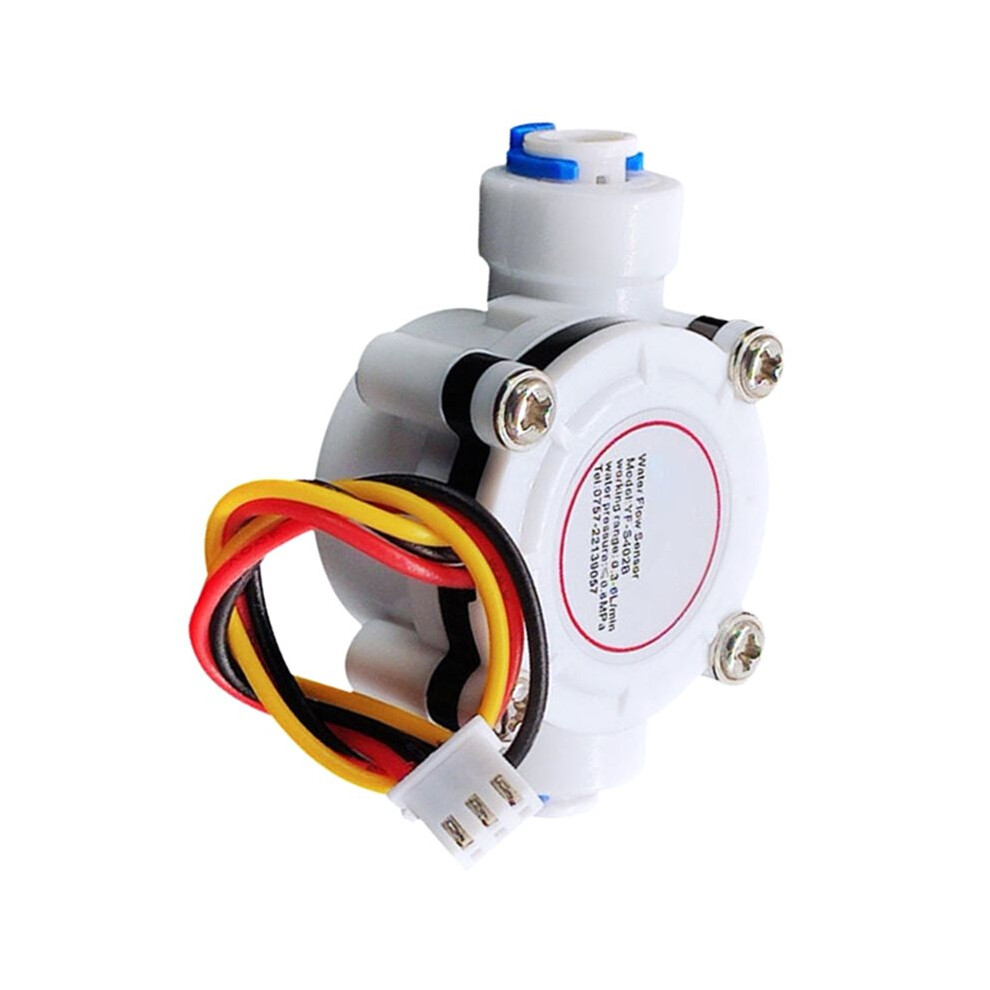

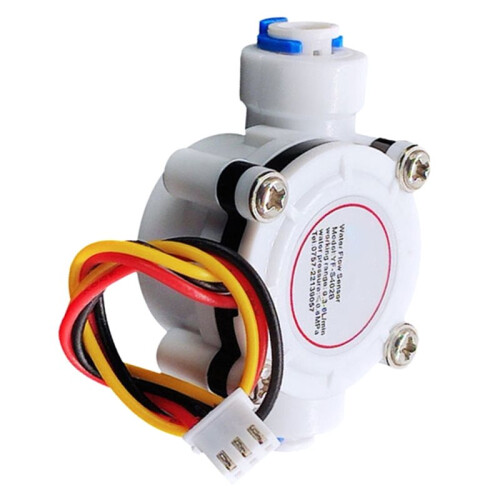

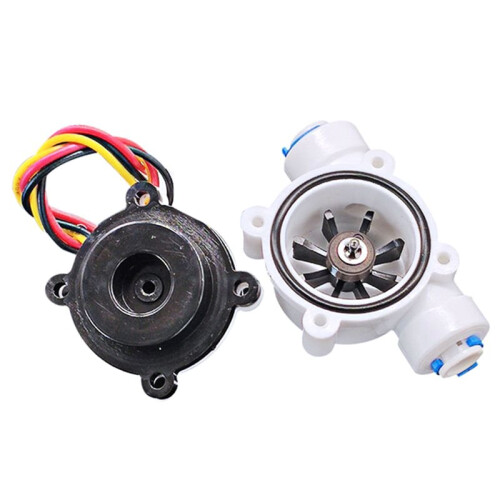

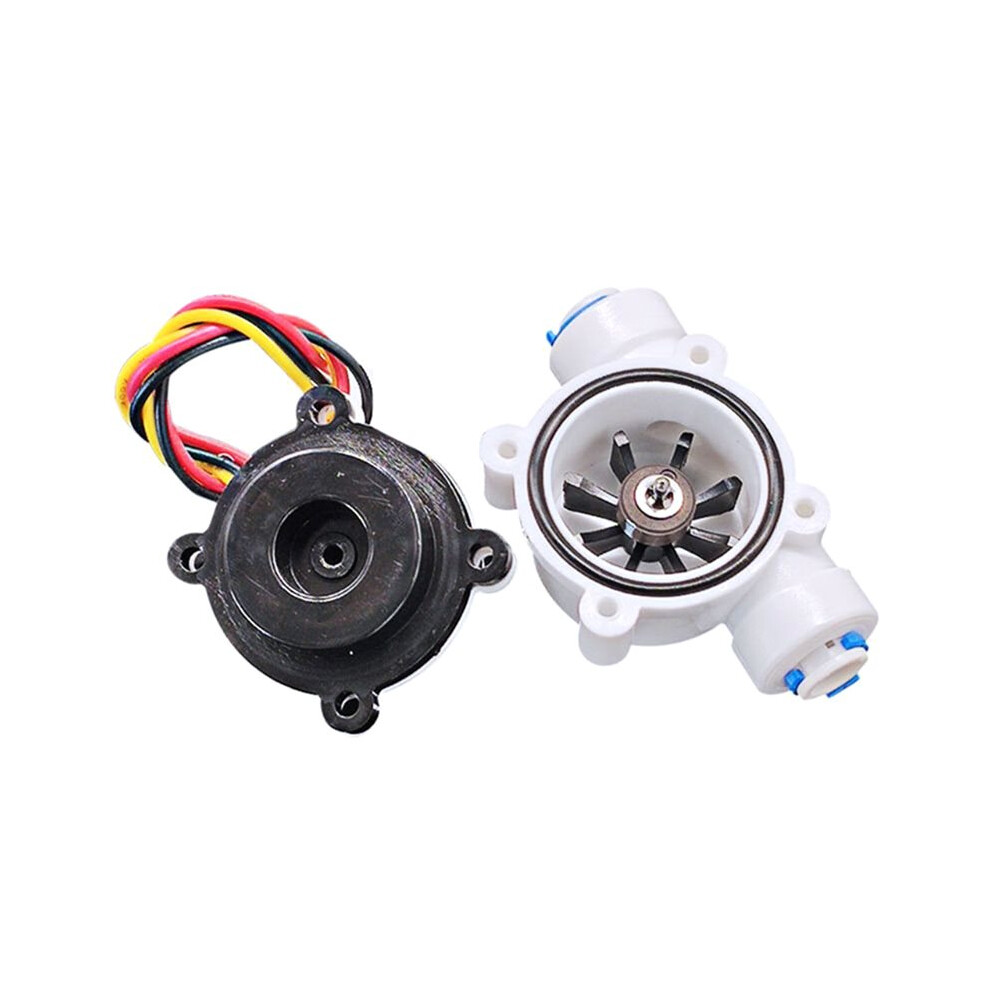

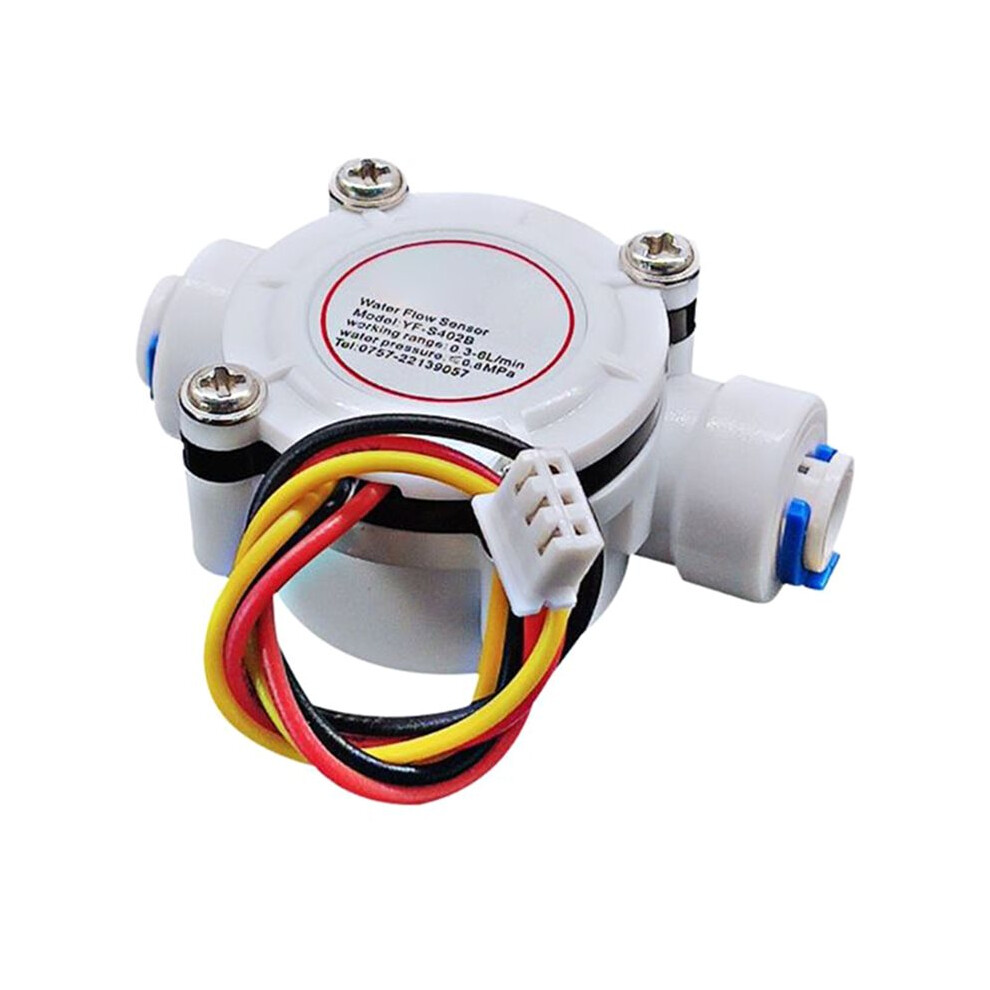

S402B 2 Points PE Pipe Water Flow Sensor Hall Flowmeter G 1/4" Fast Connection Interface,Water Dispenser Flow Meter
Ny
I lager
Varför du kommer att älska att handla på OnBuy:
- Tjäna Cashback på varje köp – använd den hur du vill. Spara, spendera eller ta ut.
- Fri frakt – på miljontals produkter på sajten
- Kunder älskar oss – 130,000 recensioner med betyget “Utmärkt”
201,73 kr
+49,43 kr frakt
1 %
Tjäna 2,02 kr direkt
Läs mer
Priserna för varor som säljs av OnBuy inkluderar moms.
Räntefria betalningsalternativ finns tillgängliga
Se fullständig produktbeskrivning och detaljer
Leverans: Standard (49,43 kr) | mån 10e - lör 15e aug
Returer: 30 dagar
180 dagars betalningsskydd
Mest populärt inom Ventiler & mätare för VVS
Populärt
Populärt
Beskrivning & information
Sammanfattning
- Made of high quality ABS and metal material, it is solid, durable and good performances, serve you for a long-term. 0.5-6L/minutes, high efficiency, stable performances. G 1/4" fast connection interfaces, easy to install. Suitable for water dispenser, water heater and so on.
- Product Parameters:Start water flows: Less than 0.20L/minutes;Starting water pressure: Less than 0.1Mpa;Working flows range: 0.5-6L/minutes;
- Pay attention to clean the air impellers on the residual water when the output signal is not highers than 150HZ, idle for time should be 30 seconds.
- Bearing water pressure: up to 0.8Mpa;Operating voltage range: 3.5-12VDC;Operating current: 0.51.5MA;Working environment temperature: 1-100;Applicable environment temperature: -40-100;Output characteristic: (32xQ)Q for traffic L/minutes, Hz (Hz); Error ±3% Service life: 106H;
- Electrical strength: Over 600VAC, Durations of 5S leakage current 3mA Insulation resistance: Over 100mΩ, The insulation resistance between the connector and the housing body or the valves body.
S402B 2 Points PE Pipe Water Flow Sensor Hall Flowmeter G 1/4" Fast Connection Interface,Water Dispenser Flow Meter Beskrivning
Made of high quality ABS and metal material, it is solid, durable and good performances, serve you for a long-term. 0.5-6L/minutes, high efficiency, stable performances. G 1/4" fast connection interfaces, easy to install. Suitable for water dispenser, water heater and so .
Product Parameters:Start water flows: Less than 0.20L/minutes;Starting water pressure: Less than 0.1Mpa;Working flows range: 0.5-6L/minutes;
Pay attention to clean the air impellers the residual water when the output signal is not highers than 150HZ, idle for should be 30 seconds.
Bearing water pressure: to 0.8Mpa;Operating voltage range: 3.5-12VDC;Operating current: 0.51.5MA;Working environment temperature: 1-100;Applicable environment temperature: -40-100;Output characteristic: (32xQ)Q for traffic L/minutes, Hz (Hz); Error 3% Service life: 106H;
Electrical strength: Over 600VAC, Durations of 5S leakage current 3mA Insulation resistance: Over 100mΩ, The insulation resistance between the connector and the housing body or the valves body.
Color: White
Material: plastic
Package Contents:
1*S402B Water Flow Sensor
Detaljer
| OPC | PWZVRJV |
|---|---|
| Koder | 6031441503816 (EAN) |
| Produkt- och säkerhetsinformation |
Produktdata
| Height | 3cm |
|---|---|
| Width | 5cm |
| Length | 9cm |
| Weight | 0.037kg |
| Colour | White |
| Material | Plastic |
