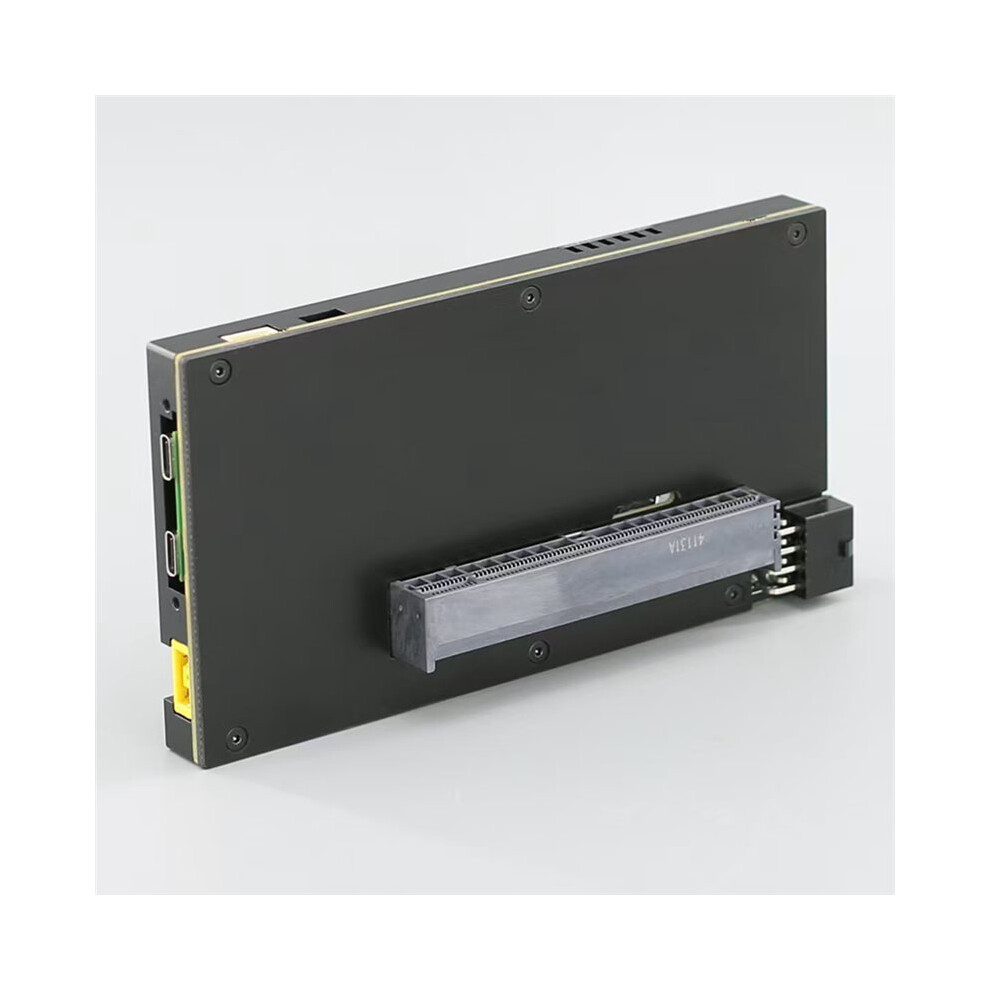

TH3P4GaN V2 3/4 USB4 Card Docking Station GPU Dock with Chassis for Square Power Interface

TH3P4GaN V2 3/4 USB4 Card Docking Station GPU Dock with Chassis for Square Power Interface Beskrivning

The docking station has a built-in cooling fan and a dual air duct design to dissipate heat for the docking station and the card backplane.
Provide dual 8Pin and 16Pin (12VHPWR) card power cables to provide 280W continuous and stable power supply for the card. (This data is measured using a 330W GaN power supply. To ensure system stability, it is recommended that the maximum power consumption of the card used is within 290W.)

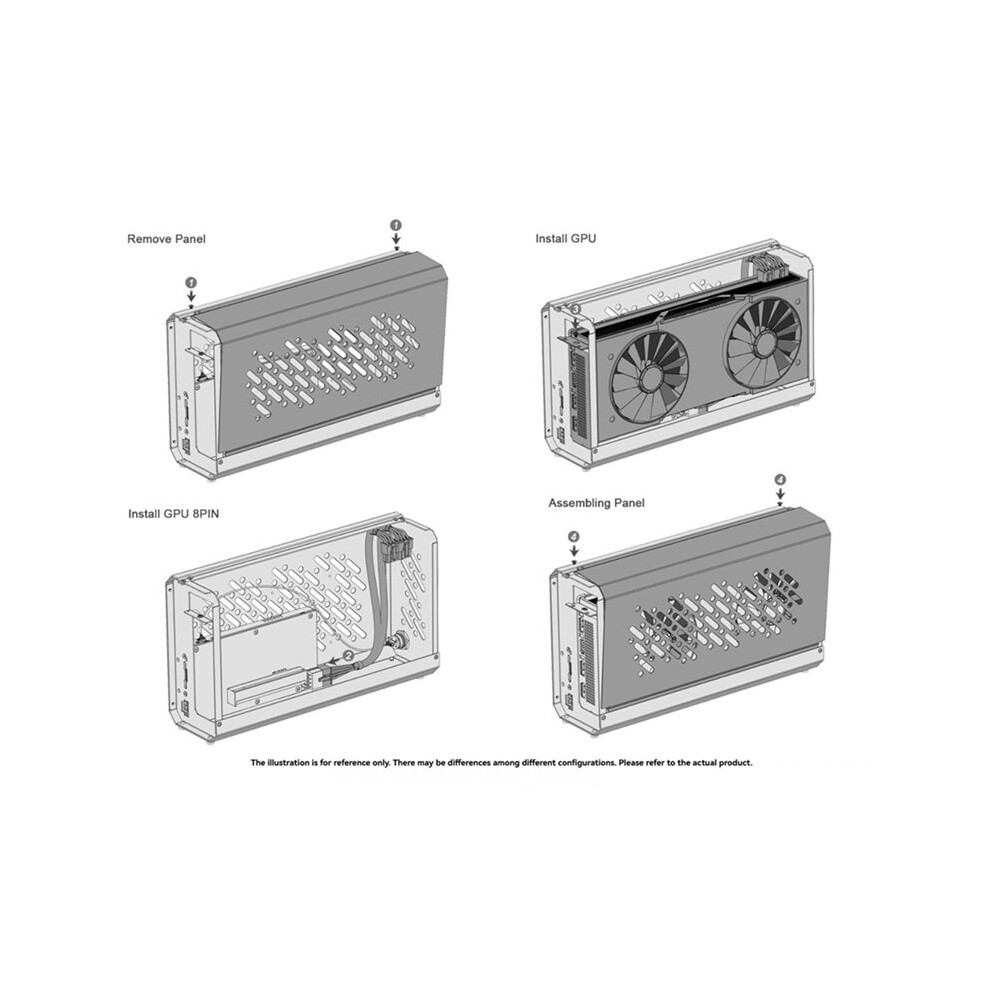

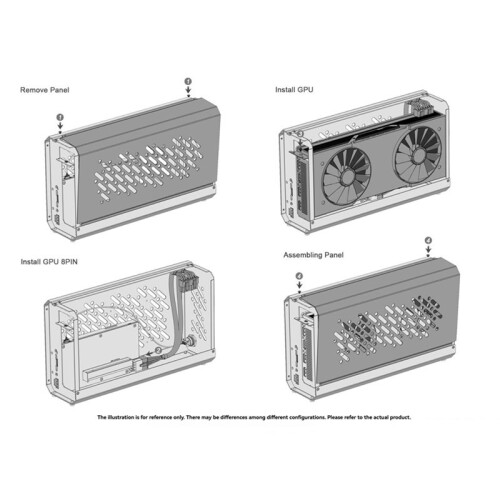

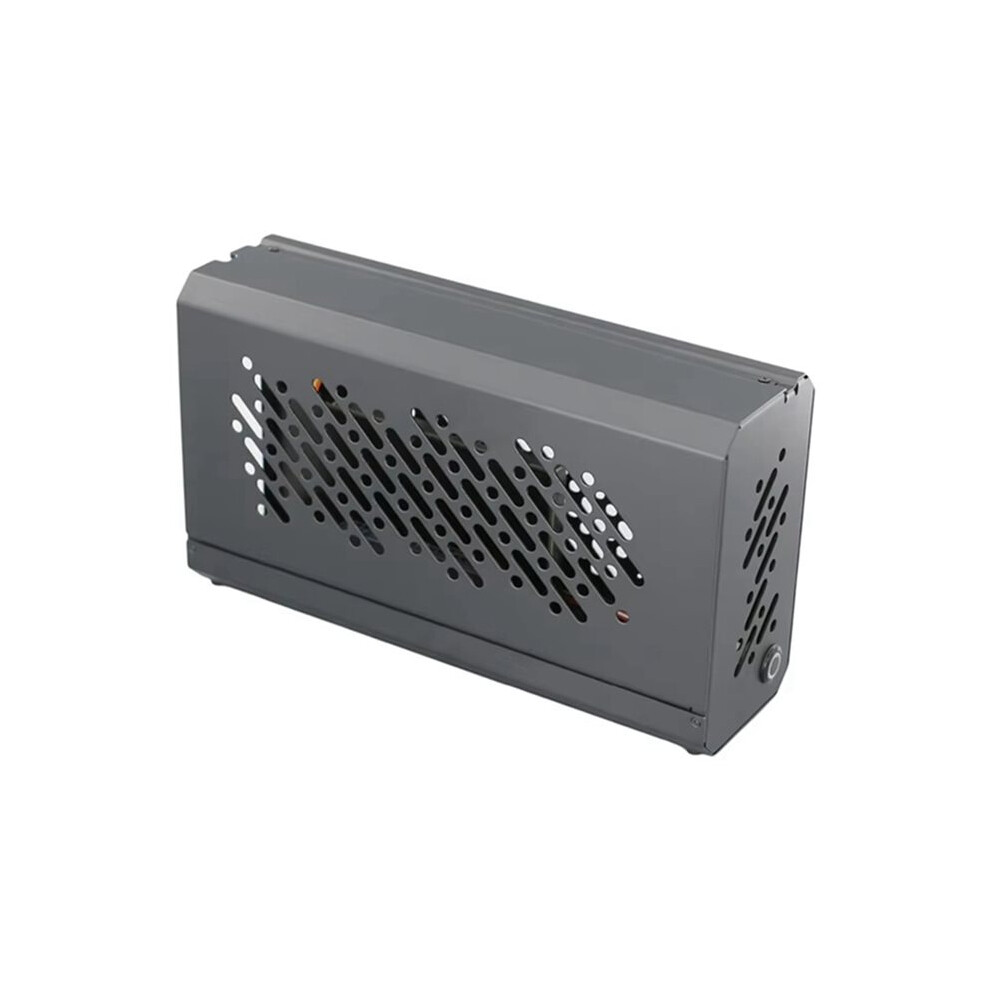

The docking station Equipped with a chassis, the maximum supported size of the card supported by this chassis is 268mm long, 133mm high, and 52m wide. If the card length exceeds 262mm, it may be necessary to remove the front panel of the chassis for installation.
Parameters:

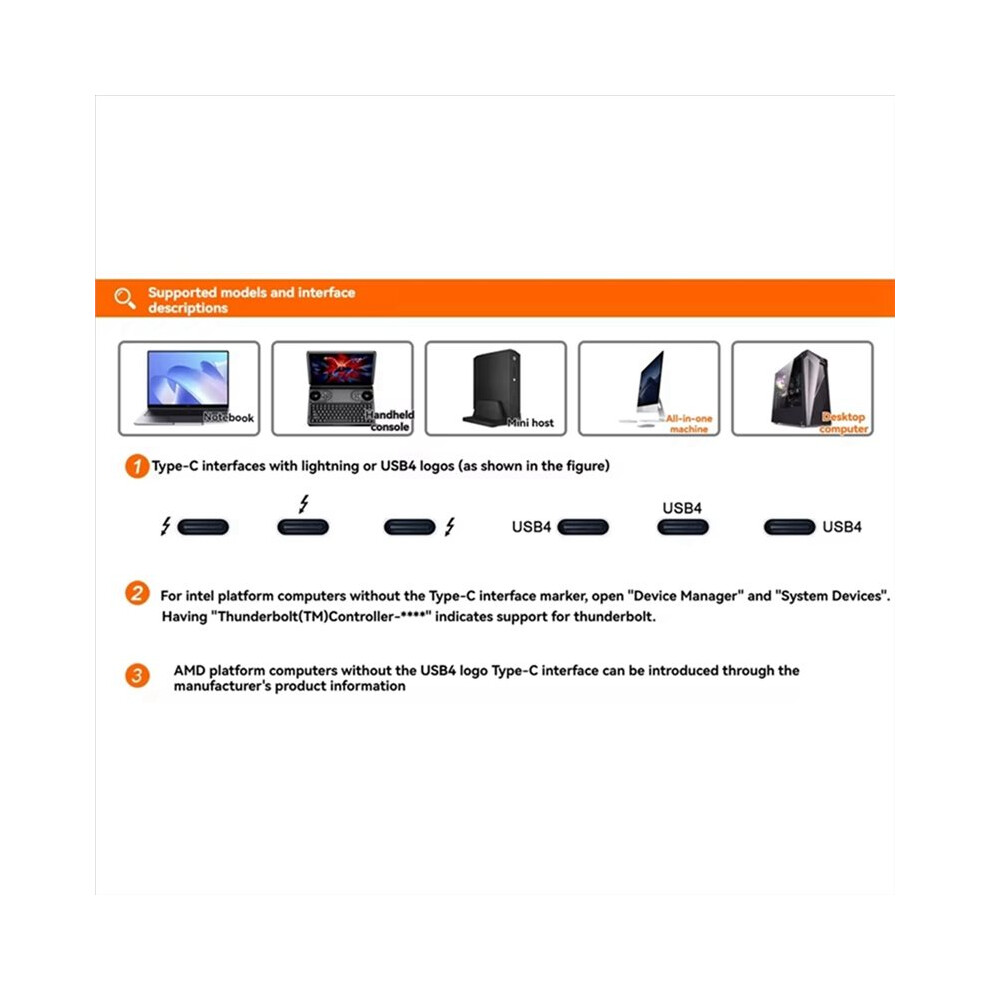

Interface:for Thunderbolt3/4 USB4 *2
Chipset: JHL7440 or JHL7540 (Note: The main control chip JHL7440 or JHL7540 is shipped randomly, but the chip performance parameters are the same and will not affect use.)
Daisy chain: Support
Daisy chain: Support
Supported power supply: Support GaN power supply/laptop power supply
Applicable scenarios: portable/desktop use
PD charging: Max 20V4.25A@85W
Power interface: for Square Port
card power consumption: 330W (20V)
Other functions: Synchronous start and stop (synchronous start and stop means that the docking station, card and power supply start and shut down with the computer.)
Special note:
1. Some devices with Thunderbolt3 interfaces actually run at 16Gbps due to computer chipset limitations.
2. Software or games have different requirements for PCI-E bandwidth, and the performance will be different. Mid and low-end cards will have better performance because they do not require high PCI-E bandwidth. Connecting a monitor to the output of the expansion card will
