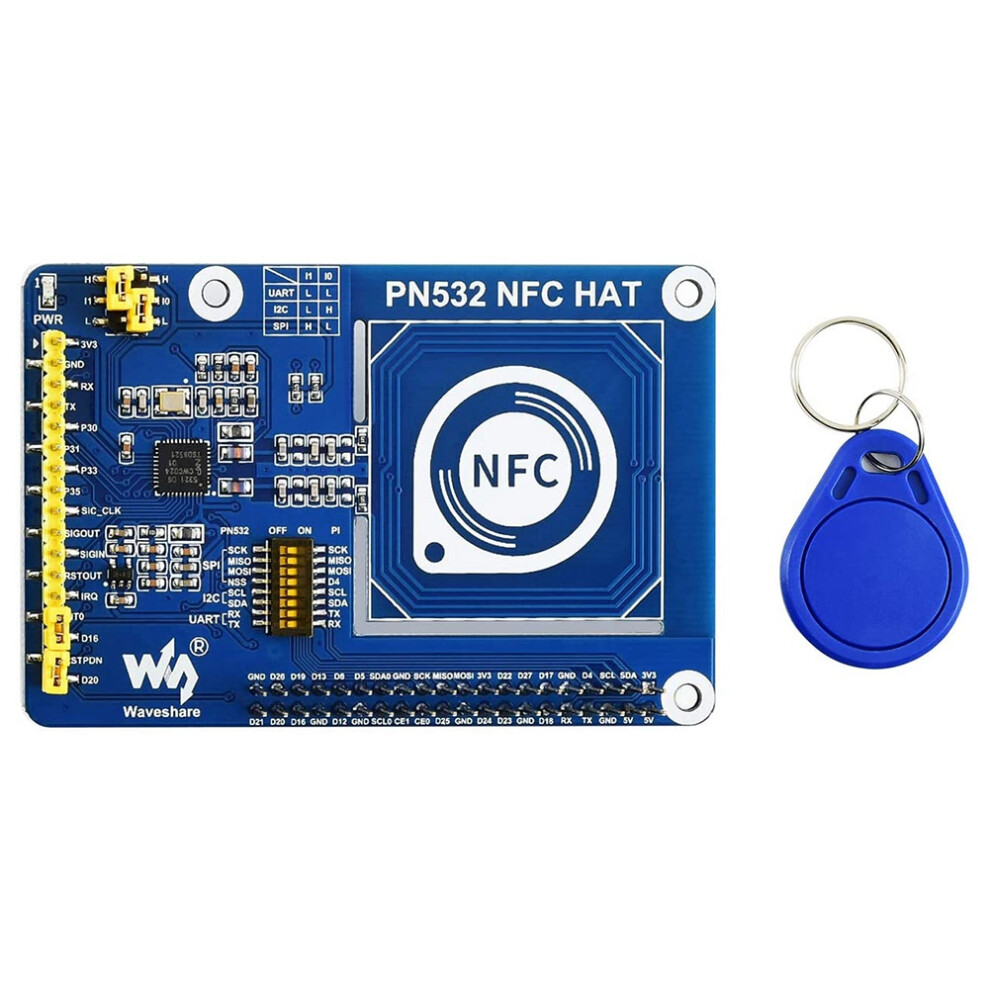

Waveshare PN532 NFC HAT for Raspberry Pi in the 13.56MHz Frequency Supports Three Communication Interfaces I2C SPI and UART
I lager
Varför du kommer att älska att handla på OnBuy:
- Tjäna Cashback på varje köp – använd den hur du vill. Spara, spendera eller ta ut.
- Fri frakt – på miljontals produkter på sajten
- Kunder älskar oss – 134,000 recensioner med betyget “Utmärkt”
Priserna för varor som säljs av OnBuy inkluderar moms.
Räntefria betalningsalternativ finns tillgängliga
Se fullständig produktbeskrivning och detaljer
Leverans: Standard (49,00 kr) | ons 30e sep - mån 5e okt
Returer: 30 dagar
180 dagars betalningsskydd
Du kanske också gillar
Sammanfattning
- This is a Raspberry Pi NFC HAT based on PN532 operating in the 13.56MHz frequency range. It supports three communication interfaces: I2C, SPI, and UART.
- NFC (Near Field Communication) is a wireless technology allows contactless point-to-point data communication between devices within a short distance of 10 cm. It is widely used in applications such as access control system, smart tickets, meal card, etc.
- Based on the popular NFC controller PN532 with multi interface options, this HAT will easily enable NFC function for your Raspberry Pi.
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards Onboard PN532 chip, supports various NFC/RFID cards like MIFARE/NTAG2xx, etc. Three interface options: I2C, SPI, and UART, configured via jumpers and switches
- Breakout control pins, for easily connecting with host boards like STM32/Arduino Comes with development resources and manual (examples for Raspberry Python/C, STM32, Arduino)
Waveshare PN532 NFC HAT for Raspberry Pi in the 13.56MHz Frequency Supports Three Communication Interfaces I2C SPI and UART Beskrivning
This is a Raspberry Pi NFC HAT based PN532 operating in the 13.56MHz frequency range. It supports three communication interfaces: I2C, SPI, and UART.
NFC (Near Field Communication) is a wireless technology allows contactless point-to-point data communication between devices within a short distance of 10 cm. It is widely used in applications such as access control system, tickets, meal card, etc.
Based the popular NFC controller PN532 with multi interface options, this HAT will easily enable NFC function for your Raspberry Pi.
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards Onboard PN532 chip, supports various NFC/RFID cards like /NTAG2xx, etc. Three interface options: I2C, SPI, and UART, configured via jumpers and switches
Breakout control pins, for easily connecting with host boards like STM32/ Comes with development resources and manual (examples for Raspberry Python/C, STM32, )
Specifications
NFC controller: PN532
Operating voltage: 3.3V/5V
Operating frequency: 13.56MHz
Communication interfaces: I2C, SPI, UART (default)
Default baudrate: 115200 bps
Operating modes:
reader/writing mode supporting ISO/IEC 14443A / IC scheme
reader/writing mode supporting FeliCa scheme
reader/writing mode supporting ISO/IEC 14443B scheme
card operation mode supporting ISO 14443A / IC scheme
card operation mode supporting FeliCa scheme
ISO/IEC18092, ECM340 point-to-point
colour:
Material:plastic
Package Contents:
1x PN532 NFC HAT Module
1x IC Classic Card
Detaljer
| OPC | PT96B72 |
|---|---|
| Koder | 6034148771991 (EAN) |
| Produkt- och säkerhetsinformation |
Produktdata
| Height | 4cm |
|---|---|
| Width | 7cm |
| Length | 12cm |
| Weight | 0.0705kg |
| Colour | blue |
| Material | plastic |
