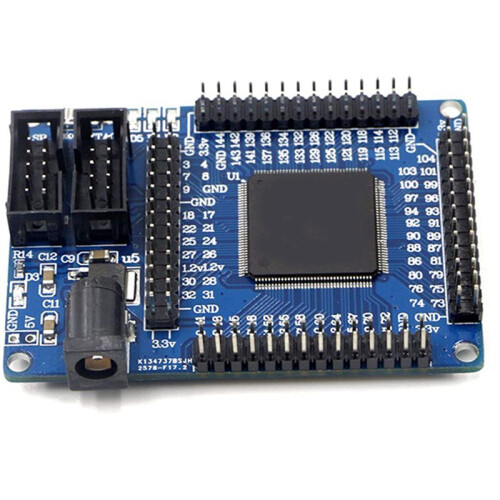

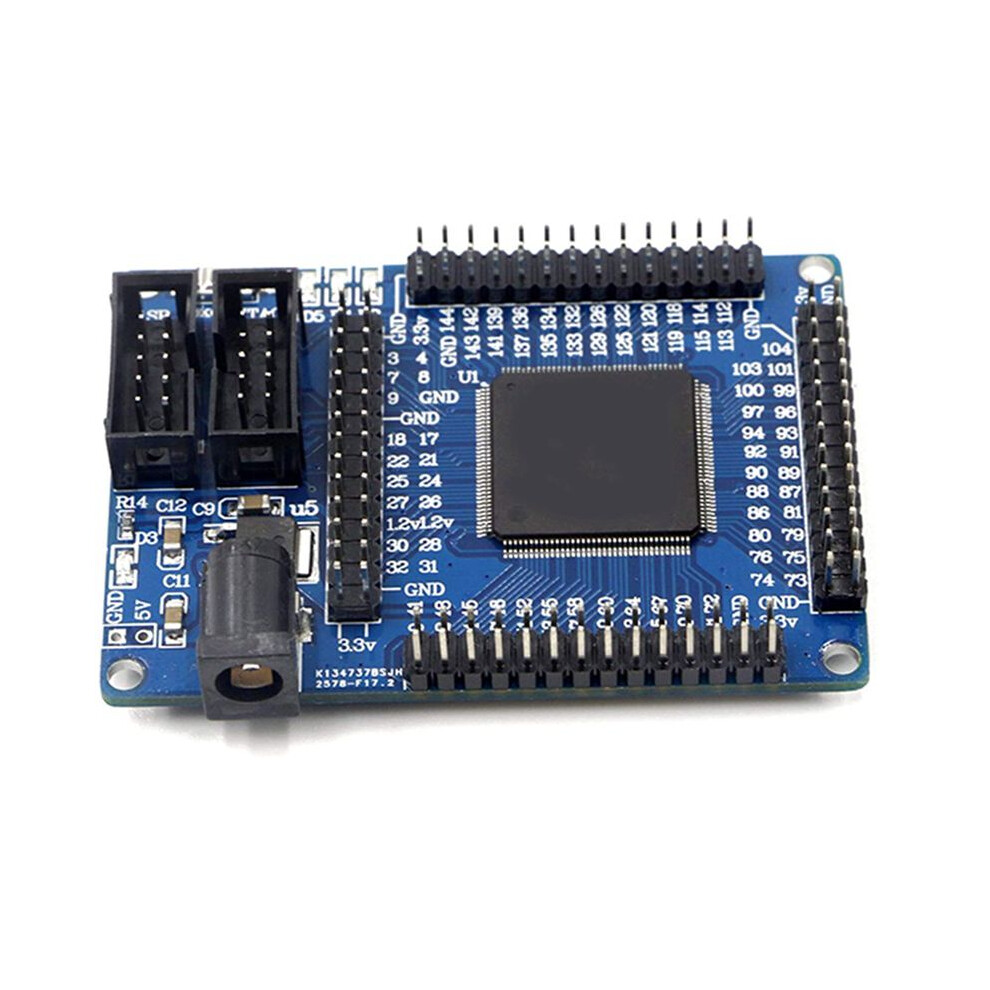

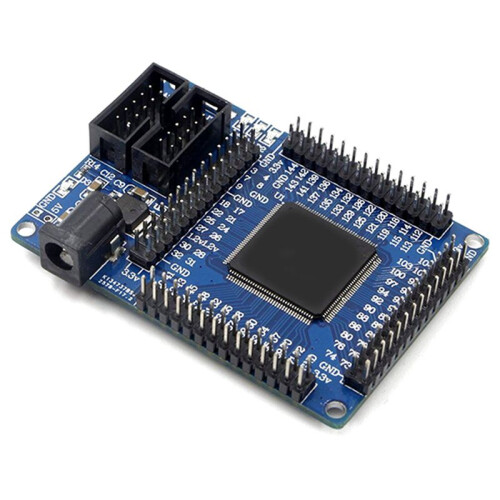

3X for ALTERA FPGA Cyslonell EP2C5T144 Minimum System Learning Development Board Board

3X for ALTERA FPGA Cyslonell EP2C5T144 Minimum System Learning Development Board Board Popis

The use of cycloneiiep2 Celsius 5t144 fragmented Altera's FPGA as the core minimum system, easily embedded in the actual system.
Complete simple logic control, data acquisition, signal processing, math calculations and other functions.
The core board FPGA chip pin is omnidirectional. The board can be directly attached to the board. The 5 V power board can be charged by pushing the socket or by pushing out the array.

Hardware Configuration:
Marine ep2 Celsius 5t144 chip.
The EPROM chip uses epcs4 with 4 mbit.
Marine 50 M active crystal (back).
Use a high power outlet that is powered by a 5 V power supply.
There is a power indicator and a reset .
With the car 3 SMD LED, you can do LED test experiments.
All IO connectors and clock pin PIN leads through which you can extend to any memory and perimeter.
The board uses high quality tantalum capacitors for power supply filtering.
Support for the development of niosii embedded CPU.
Colour:
Material: PCB
Size: 71.9x 51.7mm

Package Contents:
3 x EP2C5T144 Development Board
