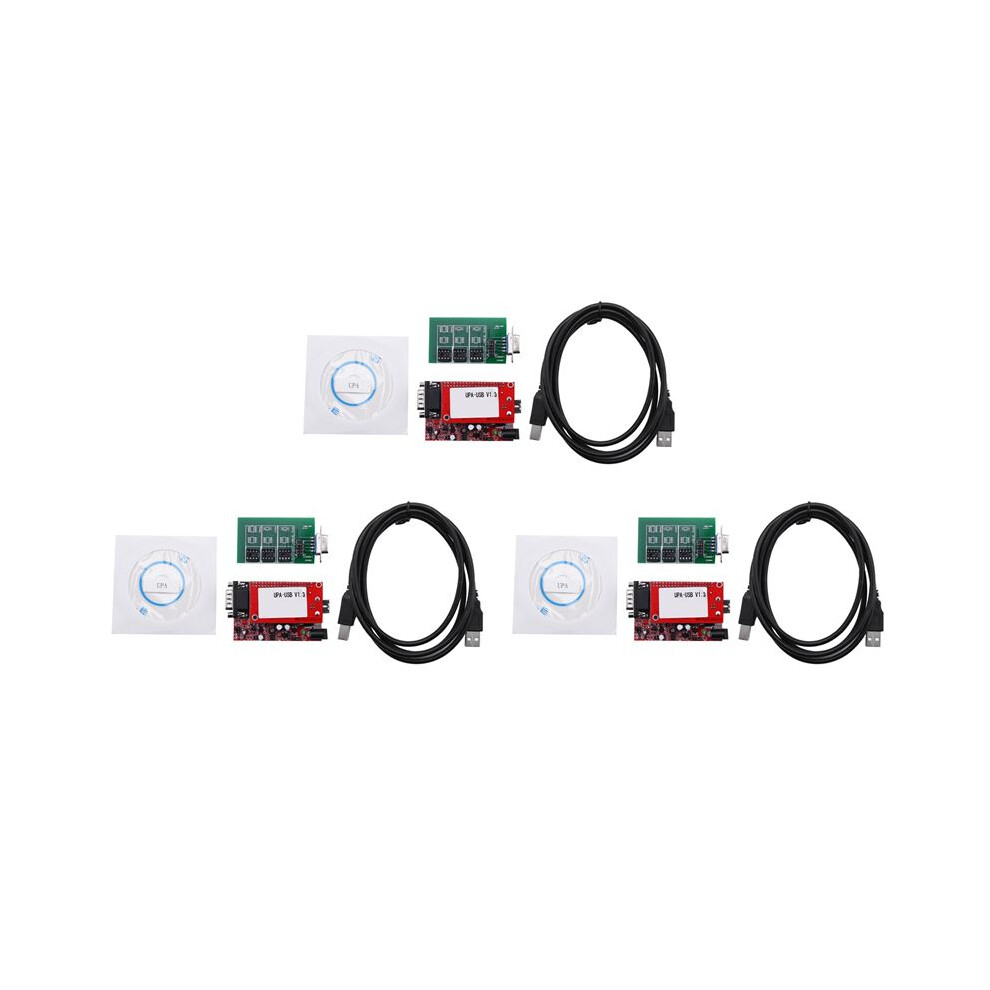

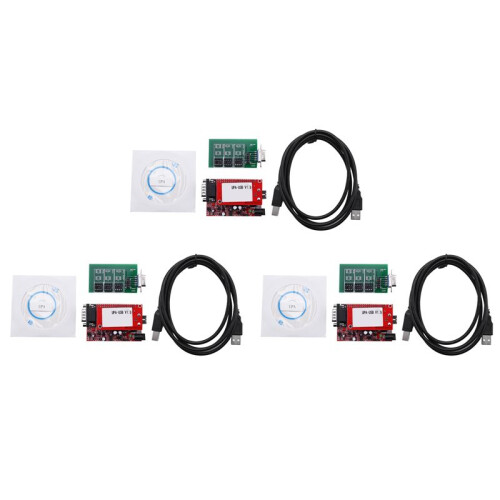

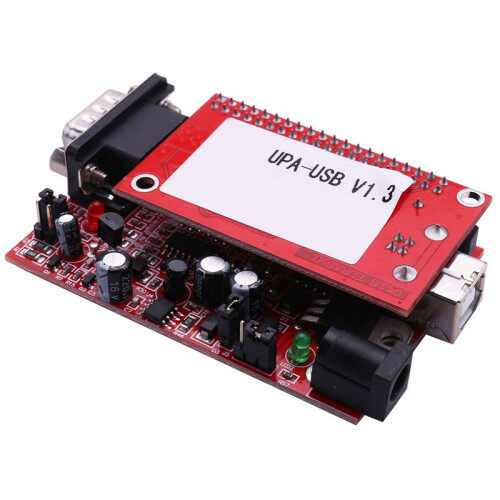

3X Upa USB Programmer Diagnostic-Tool Upa-USB Ecu Programmer Upa USB V1.3 with Adapter for 2013 Version Main Unit
Značka ISTOVO
Nové
Na sklade
Prečo si zamilujete nakupovanie na OnBuy:
- Získajte cashback pri každom nákupe – použite ho okamžite na ďalšiu objednávku
- Doprava zadarmo – na milióny produktov na celej stránke
- Zákazníci nás milujú – 127,000 hodnotení s “Vynikajúcim” hodnotením
61,72 €
74,29 €
17 % zľava!
+1,50 € doručenie
1%
Získajte 0,62 € okamžite
Zistiť viac
Ceny produktov predávaných spoločnosťou OnBuy sú uvedené s DPH.
K dispozícii sú aj bezúročné možnosti platby
Zobraziť celý popis a podrobnosti o produkte
Doručenie: Štandard (1,50 €) | pon 6 - pia 10 júl
Vrátenie tovaru: 30 dní
180-dňová ochrana platieb
Najobľúbenejšie v Skrine na šitie
Popis a podrobnosti
Zhrnutie
- Simply connect the motherboard of the UPA programmer directly or using a DB9 male / female extension cable (1: 1) Insert the correct configuration key into the slot on the main board and start programming via ZIF or DIP female ! You can also use the included DIL to 10 flat ribbon pins, place it inside the ZIF plug and connect a clip or clamps for the use of ISP from there.
- Motorola MCU. Choose the adapter you want to use, connect the flat cable for the adapter (PIN1 is always indicated on both the cable and the adapter) and also on the 10-pin ISP connector on the main board.
- Select the VCC supply source via the bridge on the main board next to the ISP connector (on = target upa supply ... off = target has its own supply). Slide the adapter over the soldered PLCC MCU on the target PCB. (No welding, no pinout revision, no pin counting, saves a lot of time and problems and allows your work to be faster, more accurate and easier). Once your workshop is equipped with our set of adapters, you will have a new UPA experience.
- STMicroelectronics :ST62-40/45/49; NSC：CR16-HCS5(9)/MCS5(9)/MES5(9)/MFS5(9)/MCT5(9)/HCT5(9)
- for Microchip: PIC12F-508/509/629/675,PIC16F-627(A)/628(A)/648A/72/73/74/76/77/818/819/83/84(A)/870/871/872/873(A)/874(A)/876(A)/877(A)
3X Upa USB Programmer Diagnostic-Tool Upa-USB Ecu Programmer Upa USB V1.3 with Adapter for 2013 Version Main Unit Popis

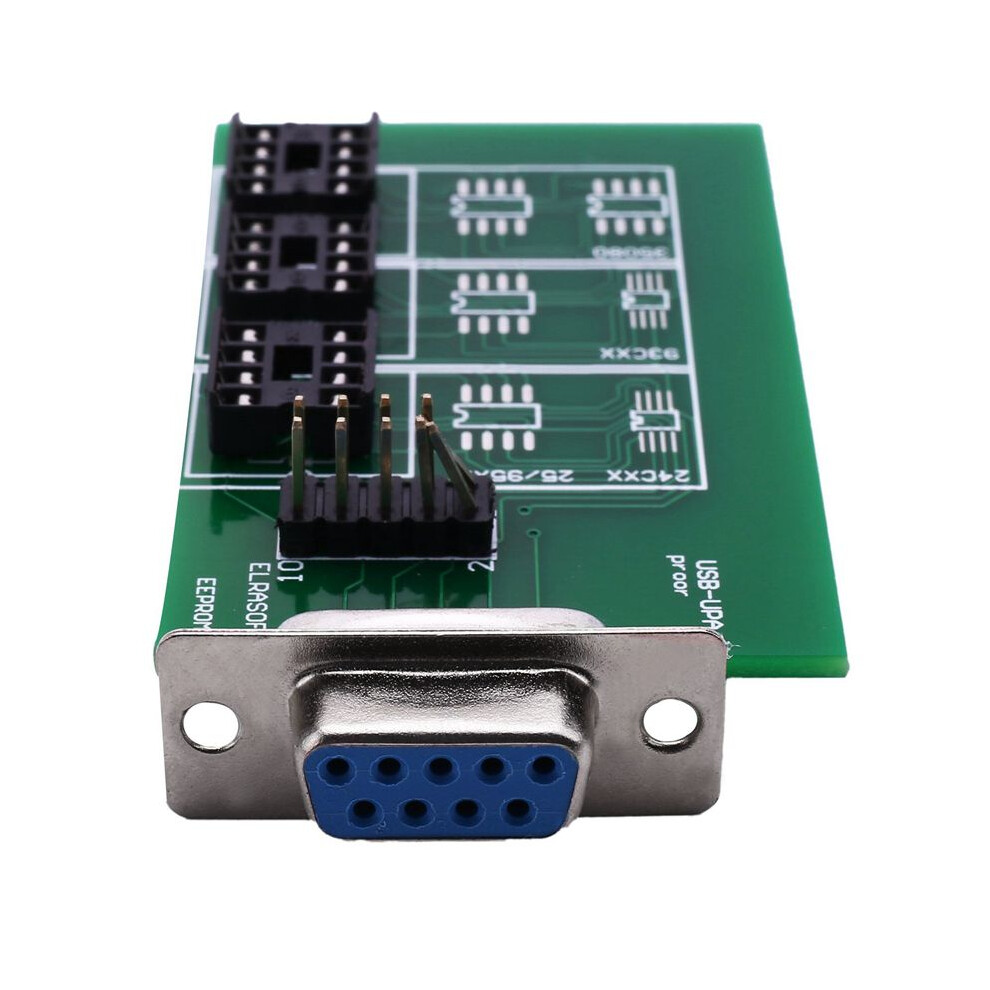

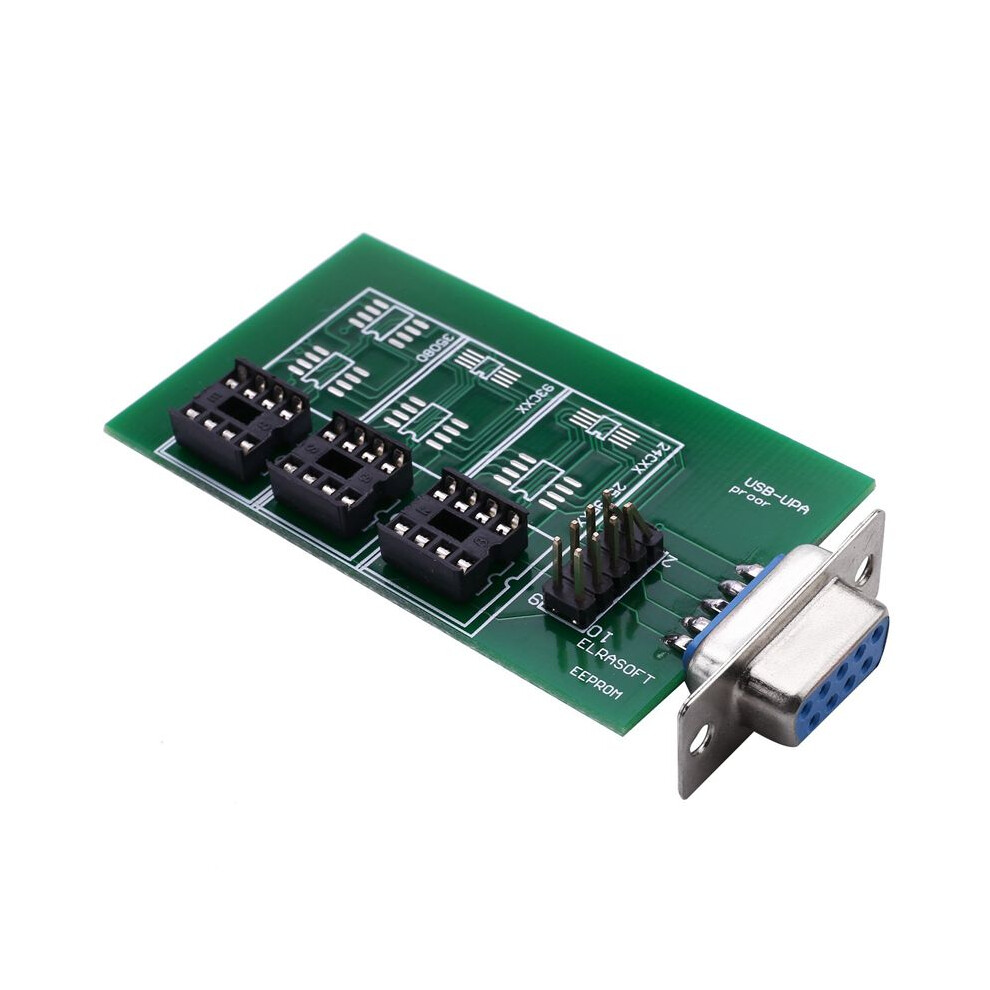

Simply connect the motherboard of the UPA programmer directly or using a DB9 male / female extension cable (1: 1) Insert the correct configuration key into the slot on the main board and start programming via ZIF or DIP female ! You can also use the included DIL to 10 flat ribbon pins, place it inside the ZIF plug and connect a clip or clamps for the use of ISP from there.
Motorola MCU. Choose the adapter you want to use, connect the flat cable for the adapter (PIN1 is always indicated on both the cable and the adapter) and also on the 10-pin ISP connector on the main board.
Select the VCC supply source via the bridge on the main board next to the ISP connector (on = target upa supply ... off = target has its own supply). Slide the adapter over the soldered PLCC MCU on the target PCB. (No welding, no pinout revision, no pin counting, saves a lot of time and problems and allows your work to be faster, more accurate and easier). Once your workshop is equipped with our set of adapters, you will have a new UPA experience.
STMicroelectronics :ST62-40/45/49; NSC：CR16-HCS5(9)/MCS5(9)/MES5(9)/MFS5(9)/MCT5(9)/HCT5(9)
for Microchip: PIC12F-508/509/629/675,PIC16F-627(A)/628(A)/648A/72/73/74/76/77/818/819/83/84(A)/870/871/872/873(A)/874(A)/876(A)/877(A)
for Motorola:
MC68HC05-B6/B8/B16/B16/B32/E6/E6/H12/L28/P3/P3*/X16/X32
MC68HC08AS20, MC68HC08AS32, MC68HC08AS60, MC68HC08AZ32, MC68HC(9)08AZ32A, MC68HC908AZ60, MC68HC908AZ60A, MC68HC11/A1/A8/E9/EA9, MC68HC11-E20/F1/K4/KA2/KA4/KG4/KS2/KS8/L6/P2/PA8/PH8
MC68HC912-B32/BE32/D60/D60A/DC128A/DG128/DG128A, MC9S12-D64/A128/DG128/DG256/H128/H256
Atmel 8051 Architecture: AT89S-51/52/53/8252/8253
Atmel AVR 8-Bit Risk: AT90S-1200/2313/232/2333/2343/4433/4434/8515/8535, ATmega-8/16/161/162/163/323/64/103/128, ATtiny-12/15/2313
EEPROMs: 24C-01/02/04/08/16/32/64/65/128/256/512, 85C-72/8
Podrobnosti
| OPC | PP996BV |
|---|---|
| Značka | ISTOVO |
| Kódy | 4714144889648 (EAN) |
Údaje o produkte
| Height | 15cm |
|---|---|
| Width | 13cm |
| Length | 19cm |
| Weight | 0.459kg |
| Colour | red&green&blue |
| Material | Plastic + metal |
