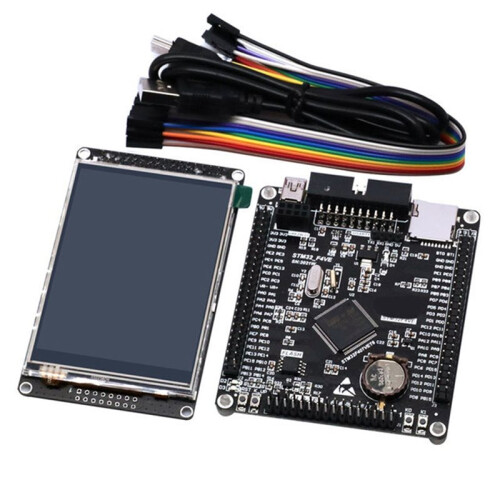

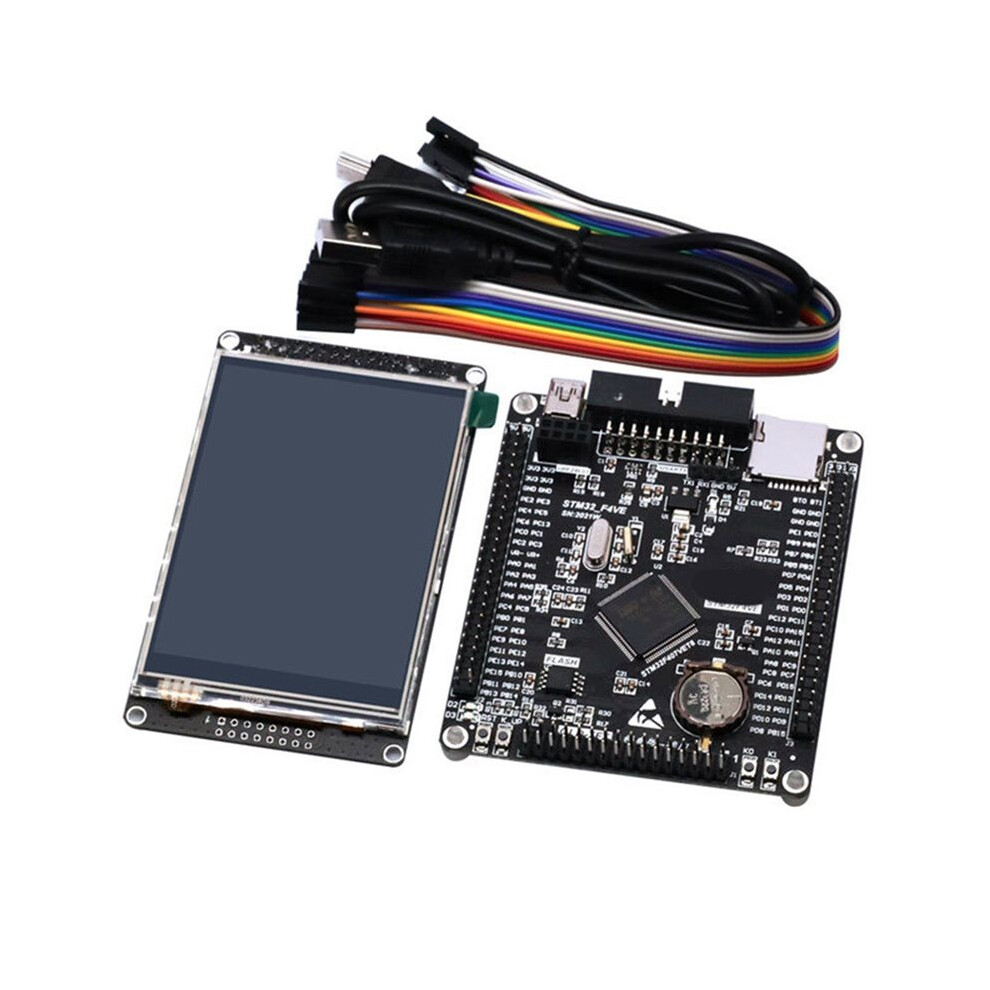

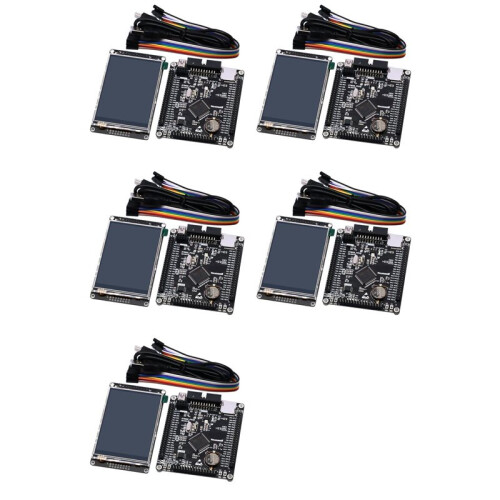

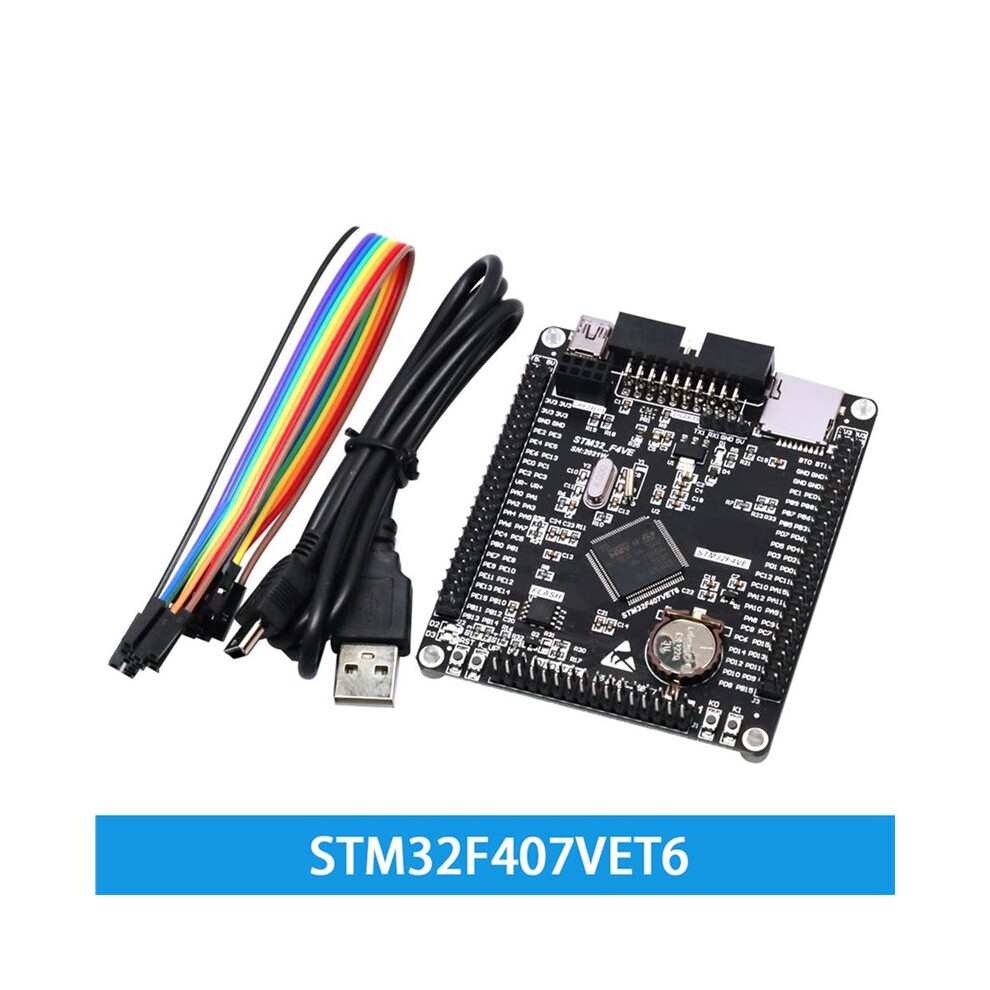

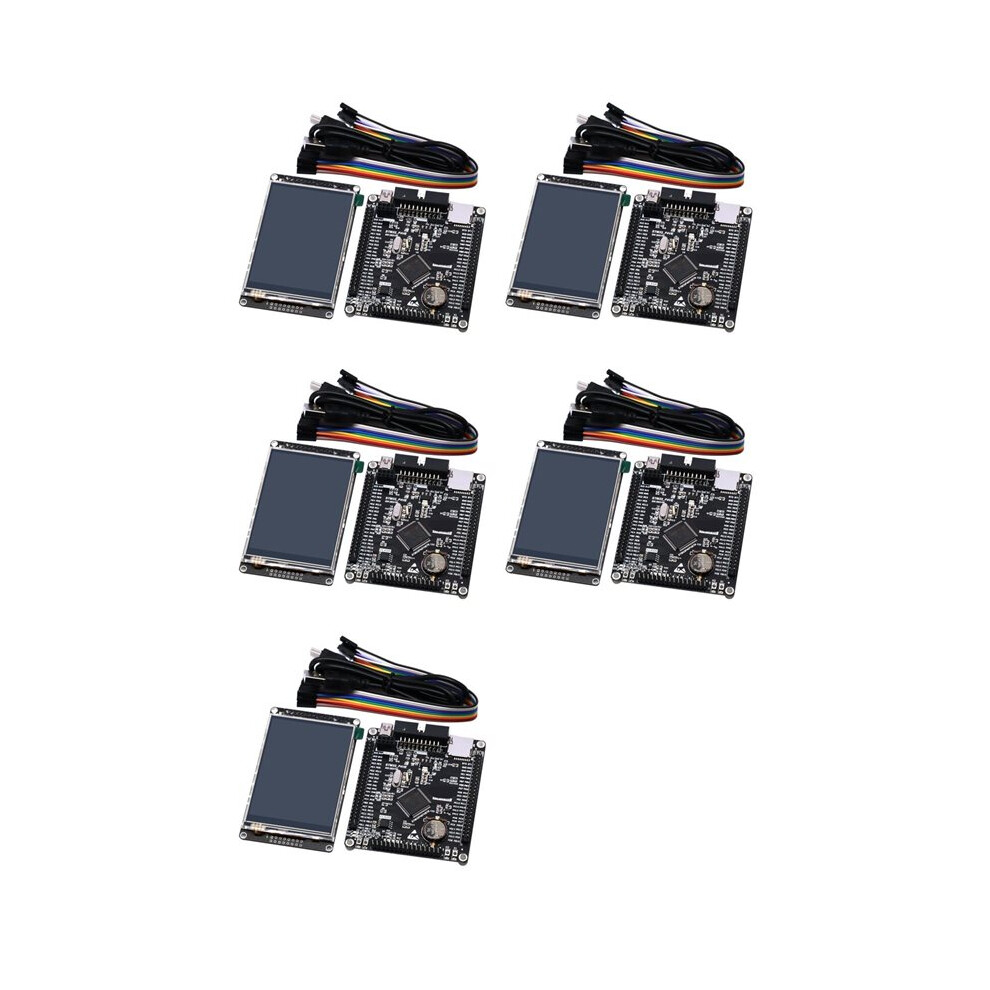

5X STM32F407VET6 Development Board Cortex-M4 STM32 Minimum System Learning Board ARM Core Board +3.2 Inch LCD TFT Screen

5X STM32F407VET6 Development Board Cortex-M4 STM32 Minimum System Learning Board ARM Core Board +3.2 Inch LCD TFT Screen Popis

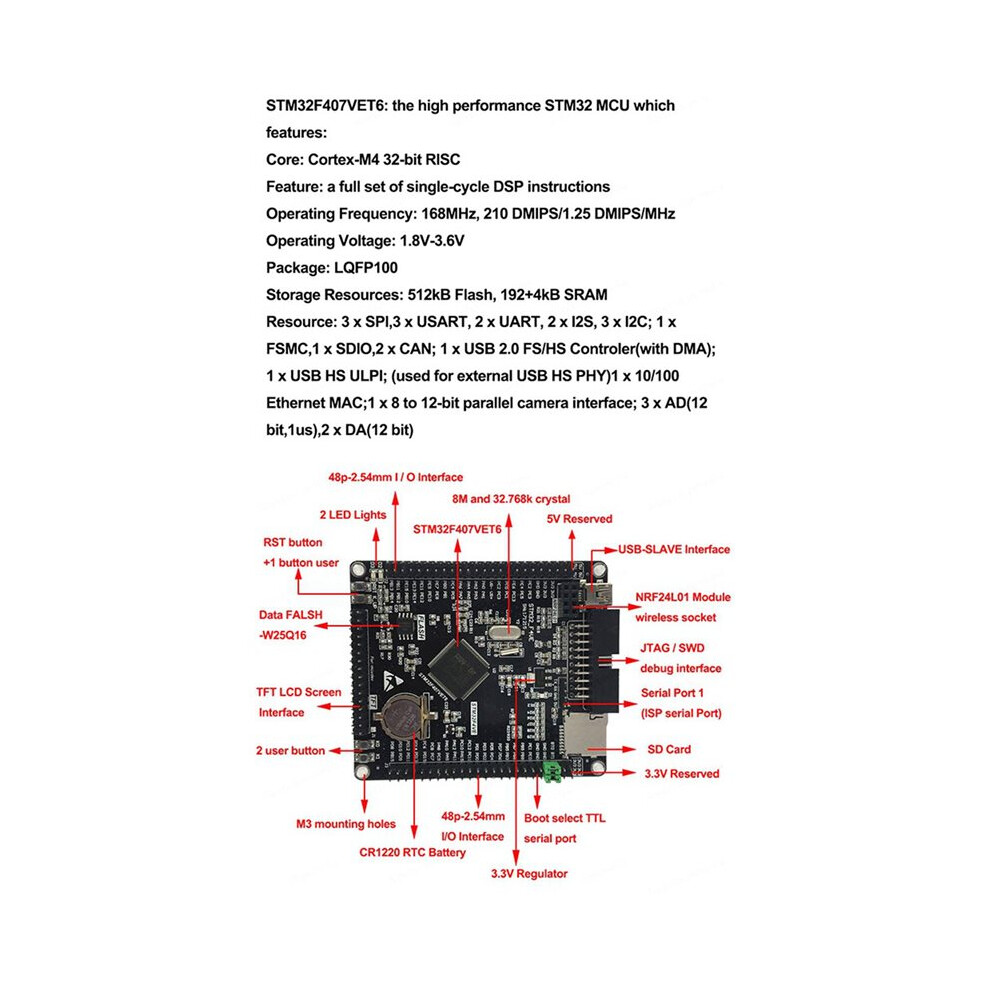

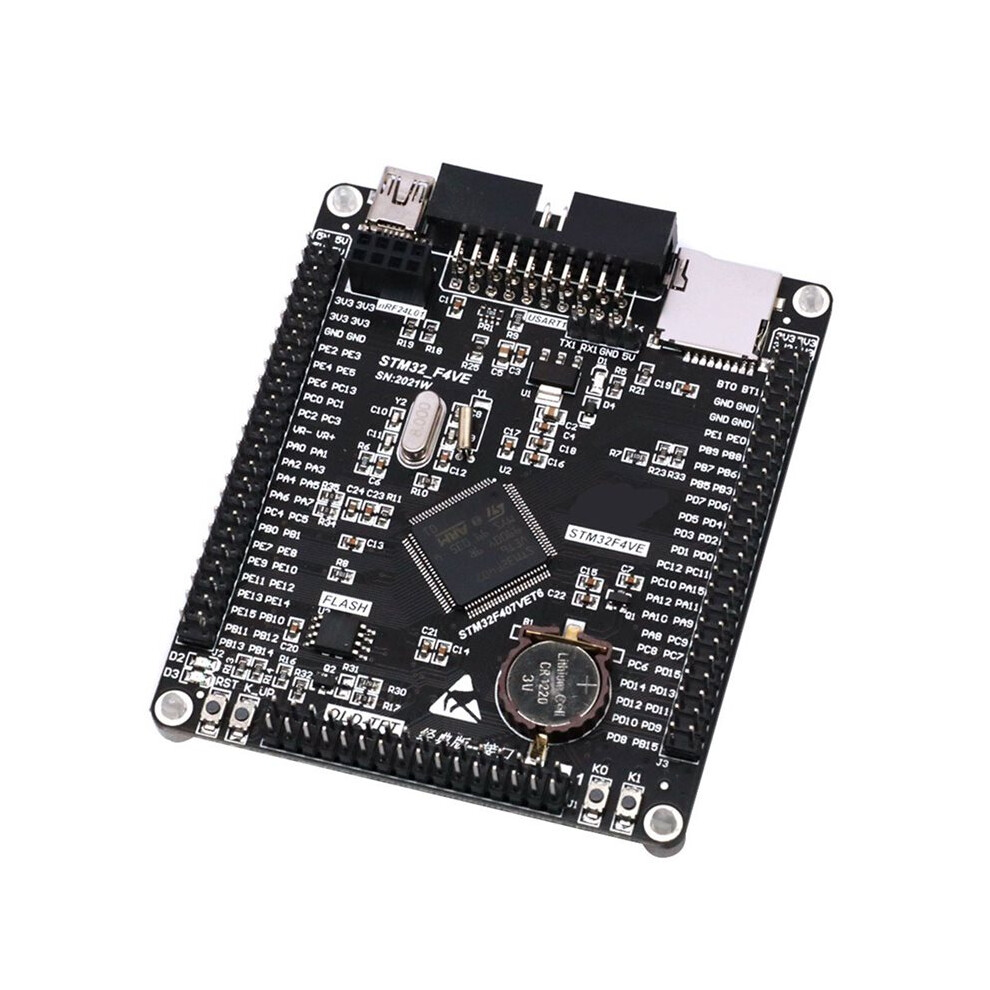

Onboard: card slot. RTC Battery:CR1220. Wireless Communication:NRF2401 Interface. Data storage:W25Q16. Support FMSC LCD Interface. Multi-user keys. All the CPU-10 lead. 2.54mm integer multiples spacing pin. STM32F407VET6:the high performance STM32 MCU which. Core: Cortex-M4 32-bit RISC. Feature:a full set of single-cycle DSP instructions. Operating Frequency: 168MHz, 210 DMIPS/1.25 DMIPS/MHz. Operating Voltage: 1.8V-3.6V. Package: LQFP100. Storage Resources: 512kB Flash, 192+4kB
Resource: 3 x SPI, 3 x USART, 2 x UART, 2 x I2S, 3 x I2C; 1 x FSMC, 1 x SDIO, 2 x CAN; 1 x USB 2.0 FS/HS Controler(with DMA); 1 x USB HS ULPI; (used for external USB HS PHY)1 x 10/100 Ethernet ; 1 x 8 to 12-bit parallel camera interface; 3 x AD(12 bit,1us), 2 x DA(12 bit)

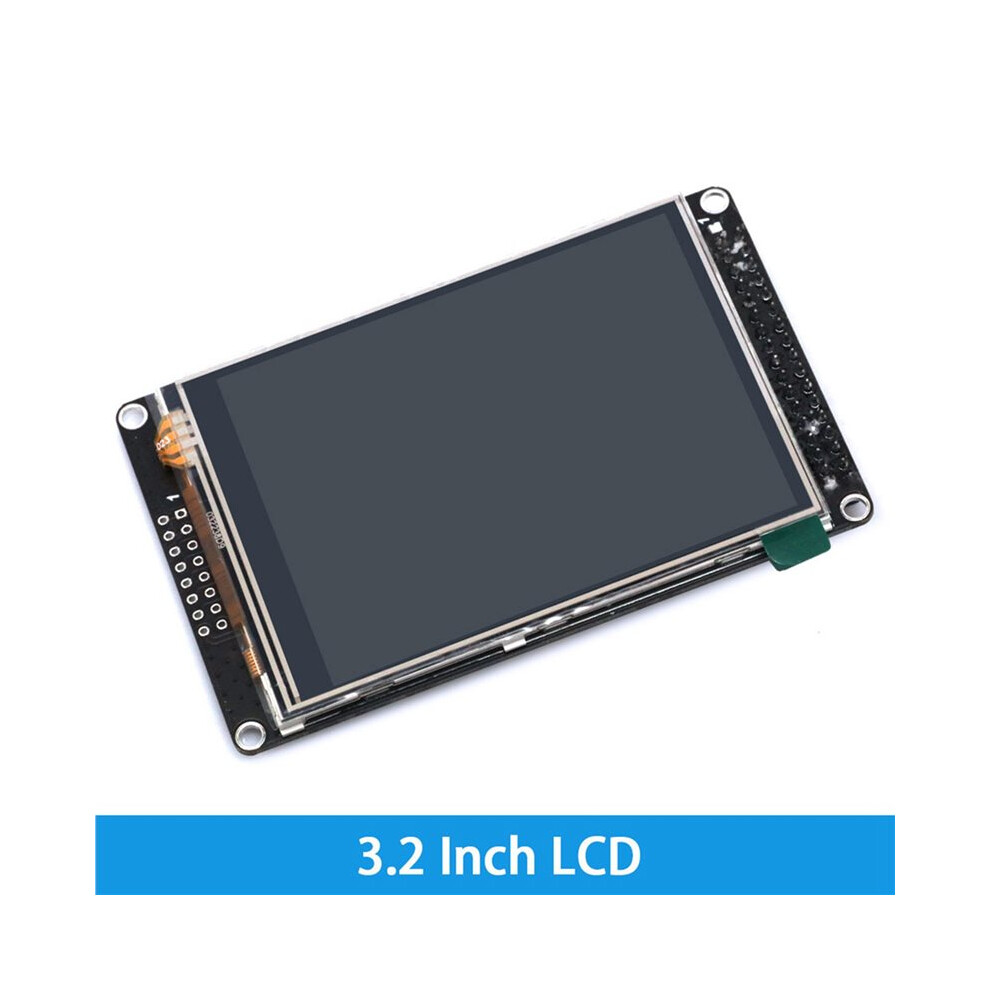

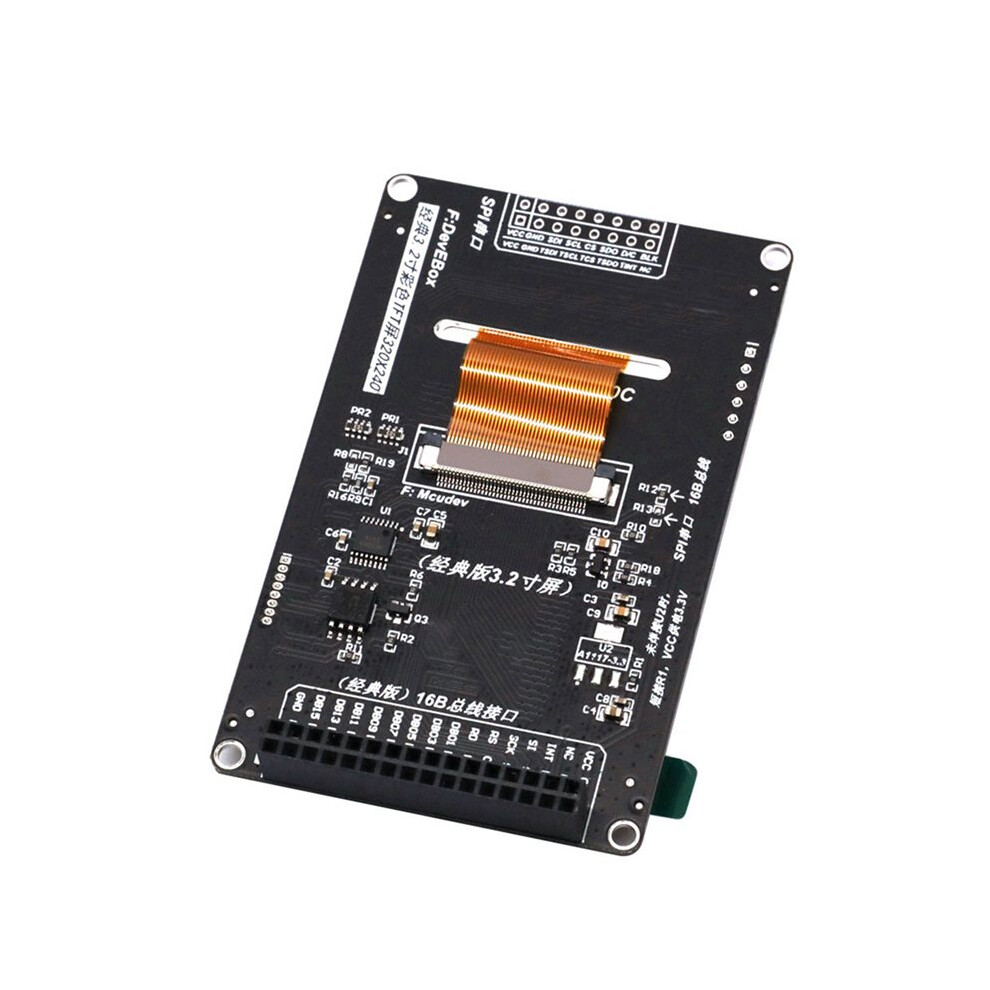

Display type:TFT 3.2. Driver IC:ILI9341. Operating Temp.:-20-70. Storage Tem.:-30-80. General Tolerance: plusmn0.2. Display resolution: [240xRGB](H) x 320(V)
Output: 720 source outputs, 320 gate outputs. Common electrode output (VCOM). a-TFT LCD driver with -chip full display RAM: 172,800 bytes.
Due to different product batches, the appearance may vary, which does not affect the use.

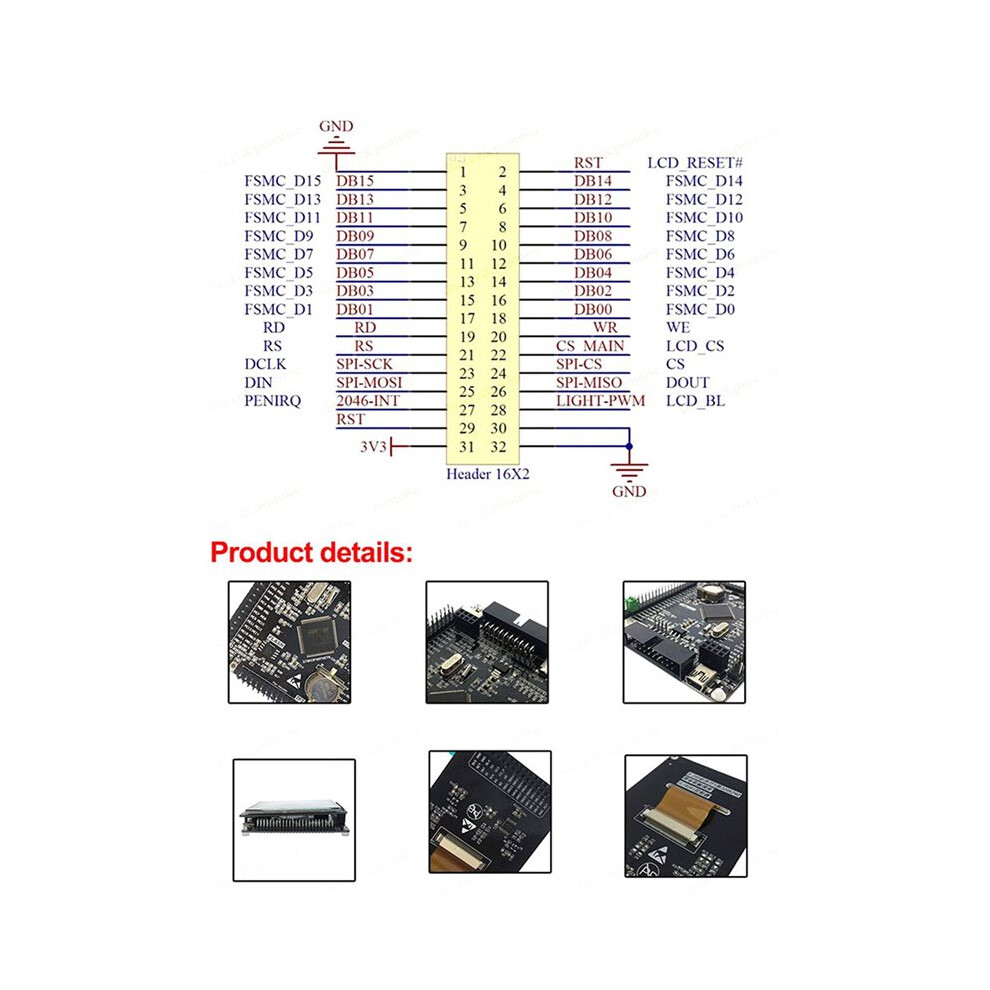

System Interface:
8-bits, 9-bits, 16-bits, 18-bits interface with 8080-I/8080-1I series MCU
6-bits, 16-bits, 18-bits RGB interface with graphic controller
3-/4- serial interface
Display mode:
Full color mode (ldle mode OFF):262K-color (selectable color depth mode by software)
Reduce color mode (Idle mode ):8-color
Power saving mode:
Sleep mode
chip functions:
VCOM generator and adjustment
Timing generator
Oscillator
/ converter /frame inversion
1 preset Gamma curve with separate RGB Gamma correction
Content Adaptive Brightness Control
MTP (3 times):
8-bits for ID1, ID2, ID3
7-bits for VCOM a
