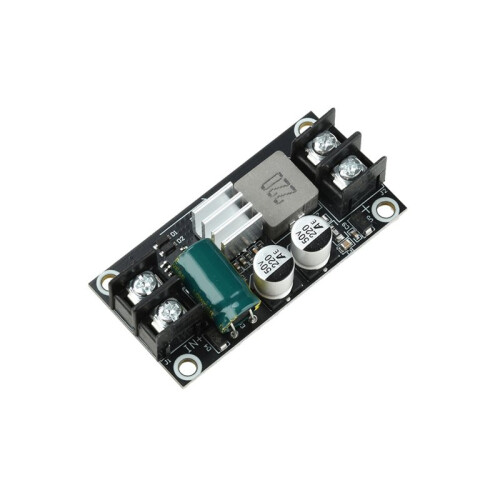

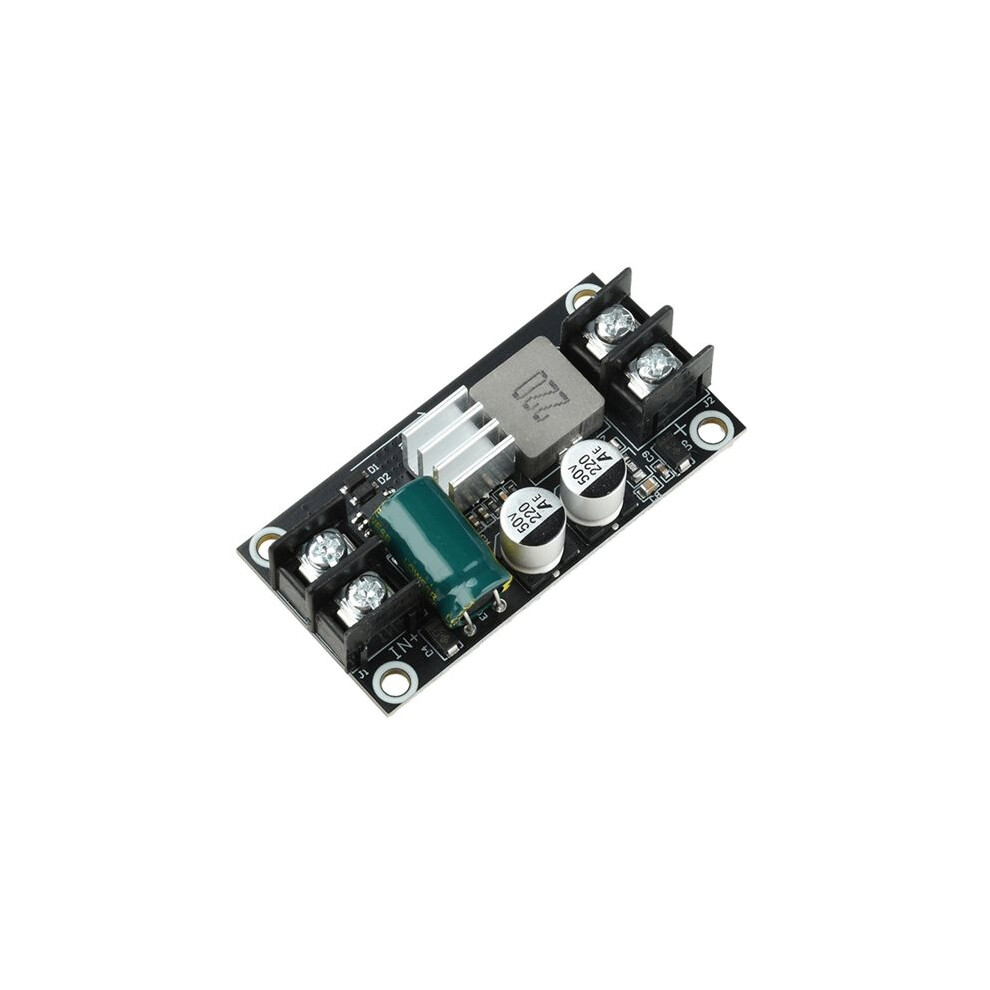

7-38V to 5V 6A Step-Down Module Low Ripple High Power Step-Down Converter Board with Reverse Polarity Protection
Na sklade
Prečo si zamilujete nakupovanie na OnBuy:
- Získajte cashback pri každom nákupe – použite ho okamžite na ďalšiu objednávku
- Doprava zadarmo – na milióny produktov na celej stránke
- Zákazníci nás milujú – 137,000 hodnotení s “Vynikajúcim” hodnotením
Ceny produktov predávaných spoločnosťou OnBuy sú uvedené s DPH.
Zobraziť celý popis a podrobnosti o produkte
Doručenie: Štandard (8,00 €) | pon 16 - sob 21 nov
Vrátenie tovaru: 30 dní
180-dňová ochrana platieb
Mohlo by sa vám tiež páčiť
Zhrnutie
- 1. Wide input voltage range (DC 7-38V), fixed 5V output, and high current-carrying capacity of 6A.
- 2. Ultra-low output ripple and clean, stable voltage; ideal for precision equipment requiring high-quality power supply.
- 3. Comprehensive protection features, including input reverse polarity protection, output short-circuit protection, and input/output TVS protection.
- 4. Soft-start design effectively suppresses inrush current at power-up, protecting downstream loads from voltage surges.
- 5. Wide operating temperature range (-40°C to +85°C) with integrated over-temperature protection, ensuring stable operation even in harsh environments.
7-38V to 5V 6A Step-Down Module Low Ripple High Power Step-Down Converter Board with Reverse Polarity Protection Popis
1. Wide input voltage range ( 7-38V), fixed 5V output, and high current-carrying capacity of 6A.
2. Ultra-low output ripple and clean, stable voltage; ideal for precision equipment requiring high-quality power supply.
3. Comprehensive protection features, including input reverse polarity protection, output short-circuit protection, and input/output TVS protection.
4. Soft-start design effectively suppresses inrush current at power-, protecting downstream loads from voltage surges.
5. Wide operating temperature range (-40C to +85C) with integrated over-temperature protection, ensuring stable operation even in harsh environments.
Input Voltage: 7-38V
Output Voltage: 5V
Output Current: 6A
Note: This is a high-power step-down (buck) module featuring input reverse-polarity protection. It is recommended to operate within a 38V input range. While a continuous 6A output is achievable in environments with good heat dissipation, the continuous current under normal operating conditions should ideally not exceed 5A. As this is a step-down module, ensure a voltage differential of at least 1V between the input and output.
Color: Black
Material: PCB
Package Contents:
1*Module
Podrobnosti
| OPC | PYQ5B9P |
|---|---|
| Kódy | 4711639785911 (EAN) |
| Informácie o produkte a bezpečnosti |
Údaje o produkte
| Height | 2cm |
|---|---|
| Width | 3cm |
| Length | 6cm |
| Weight | 0.025kg |
| Colour | Black |
| Material | PCB |
