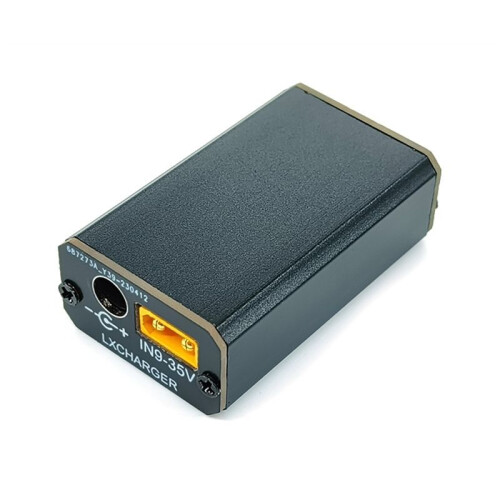

9V-35V 65W Full Protocol Mobile Phone Fast Charging Module Charger Module Supports QC4.0 PD2.0/3.0/PPS B

9V-35V 65W Full Protocol Mobile Phone Fast Charging Module Charger Module Supports QC4.0 PD2.0/3.0/PPS B Popis

The module's design, materials, and PCB manufacturing processes have been meticulously optimised to deliver these exceptional specifications and functionality within a compact footprint. Given its relatively compact dimensions and limited heat dissipation area, thermal generation during high-power operation is normal. Manufactured using premium materials, thermal performance does not compromise service life.
This product supports fast charging for all major brands, with a maximum output power of 65W.
Input: 9V-35V
Maximum Output Power: 65W

Conversion Efficiency: to 93%
Operating Temperature: -40C to +85C
Charging : Type-C + USB
Output Short-Circuit Protection
High-Current USB Output Port
Supports BC1.2 Charging Protocol
Supports for 5V/2.4A
Supports PD 2.0/3.0/PPS
Supports QC 2.0/3.0/4.0 protocols
Supports FCP, SCP, HSCP V0.0C/DASH/WARP
Supports SuperV00C 2.0
Supports multiple fast charging protocols

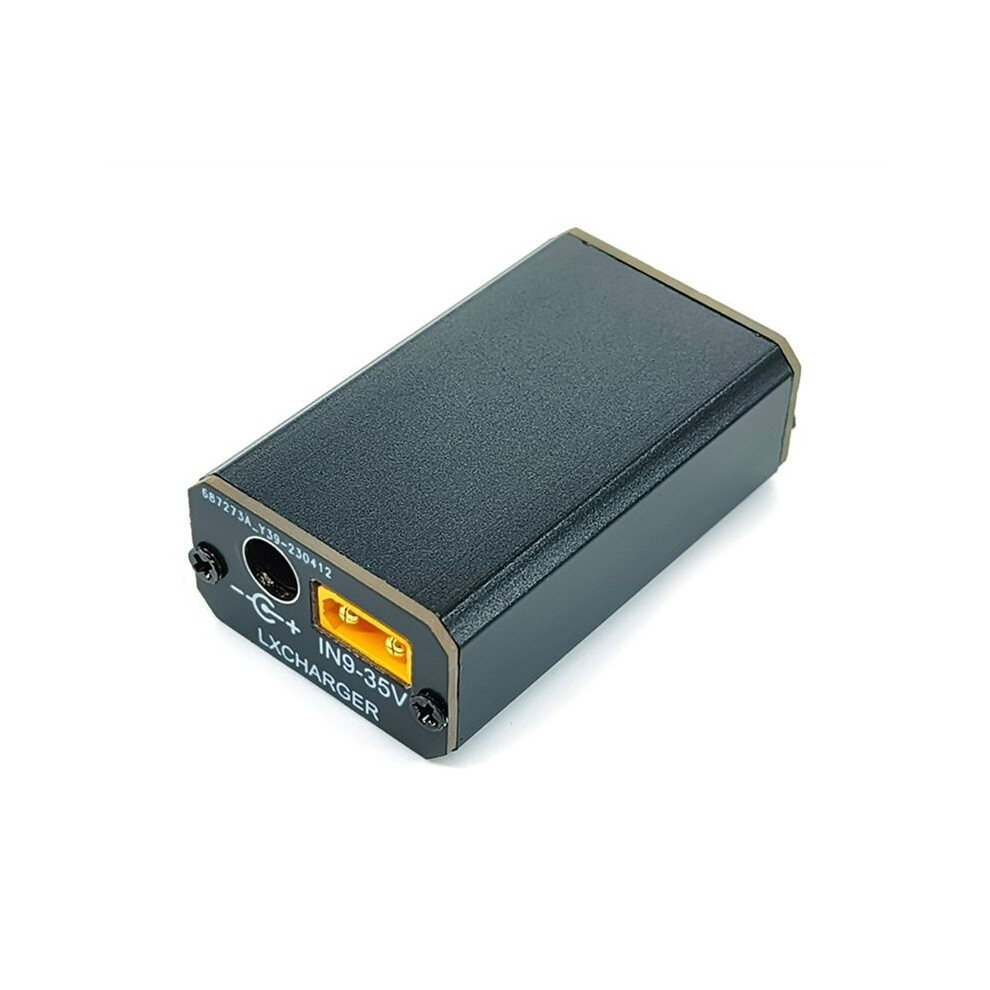

Module Input Interface:
DC5521 Input: Input 9V-35V, inner positive, outer
Specifications: B: With XT30 connector and housing
Color: Black
Material: PCB + Aluminum Alloy

Package Contents:
1 * Charging Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
