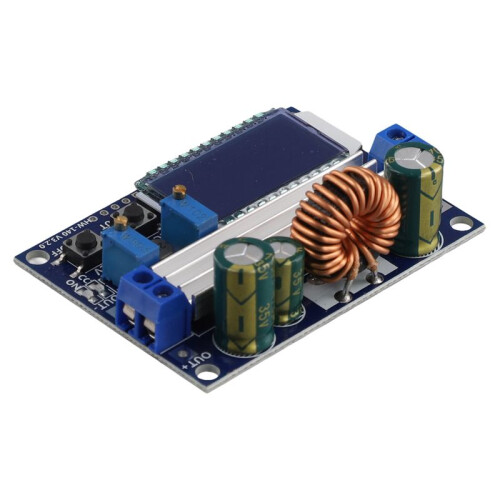

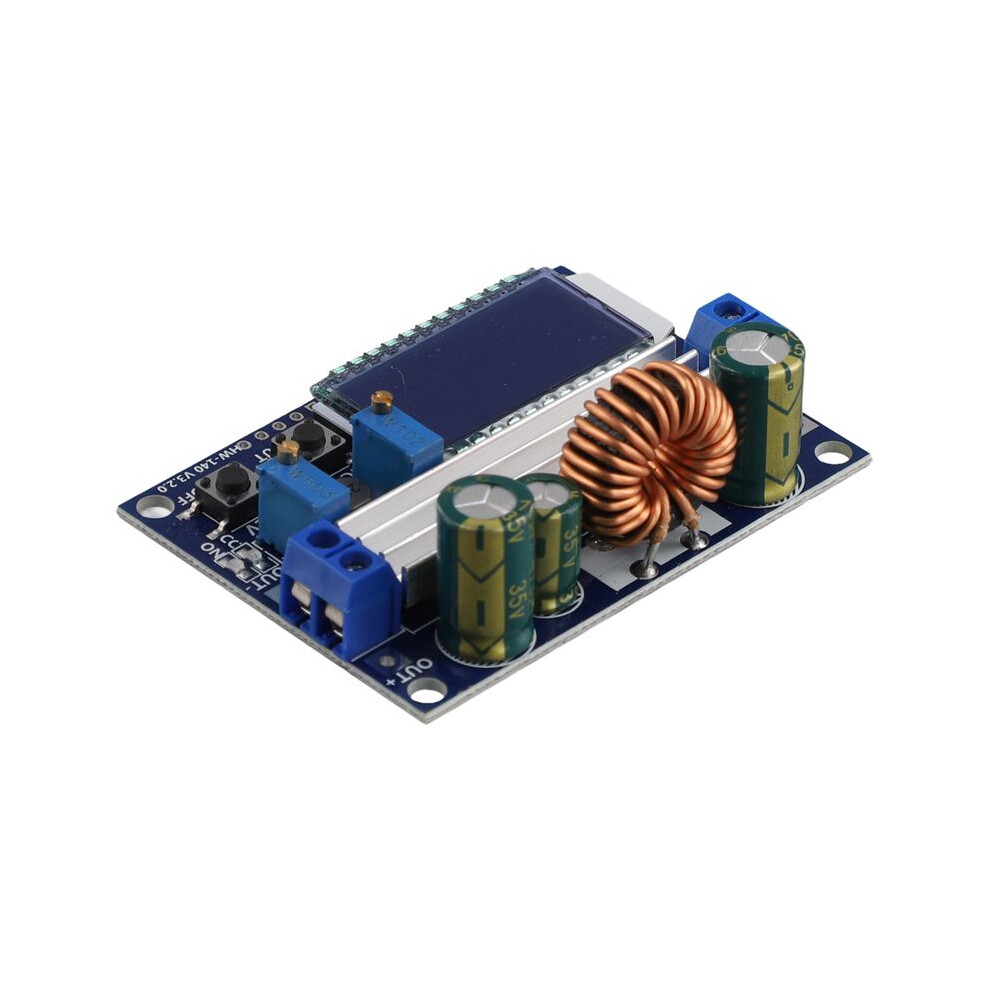

Adjustable Voltage Regulator Module with LCD Display, Versatile Step-/Down Voltage Control Perfect for DIY Electronics
Nové
Na sklade
Prečo si zamilujete nakupovanie na OnBuy:
- Získajte cashback pri každom nákupe – použite ho okamžite na ďalšiu objednávku
- Doprava zadarmo – na milióny produktov na celej stránke
- Zákazníci nás milujú – 129,000 hodnotení s “Vynikajúcim” hodnotením
7,73 €
12,75 €
39 % zľava!
+9,00 € doručenie
1%
Čo je okamžitý Cashback?
Zistiť viac
Ceny produktov predávaných spoločnosťou OnBuy sú uvedené s DPH.
K dispozícii sú aj bezúročné možnosti platby
Zobraziť celý popis a podrobnosti o produkte
Doručenie: Štandard (9,00 €) | str 5 - uto 11 aug
Vrátenie tovaru: 30 dní
180-dňová ochrana platieb
Popis a podrobnosti
Zhrnutie
- Input voltage: 5.5-30VDC (When the input voltage is 5V, voltage rise and fall can also be achieved, but the measurement of voltage and current is not accurate; when it is below 4.7V, undervoltage protection is applied)
- Output voltage: 0.5-30VDC adjustable
- Output current: 0.2-3A adjustable, with enhanced heat dissipation up to 4A (please enhance heat dissipation when the module temperature exceeds 65 degrees). Equipped with a constant current indicator light, the output power should not exceed 35W or the current should not exceed 4A when outputting at low voltage. Overloading and burning are not guaranteed!
- Voltage display resolution: 0.05V
- Current display resolution: 0.005A
Adjustable Voltage Regulator Module with LCD Display, Versatile Step-/Down Voltage Control Perfect for DIY Electronics Popis
Input voltage: 5.5-30VDC (When the input voltage is 5V, voltage rise and fall can also be achieved, but the measurement of voltage and current is not accurate; when it is below 4.7V, undervoltage protection is applied)
Output voltage: 0.5-30VDC adjustable
Output current: 0.2-3A adjustable, with enhanced heat dissipation to 4A (please enhance heat dissipation when the module temperature exceeds 65 degrees). Equipped with a constant current indicator light, the output power should not exceed 35W or the current should not exceed 4A when outputting at low voltage. Overloading and burning are not guaranteed!
Voltage display resolution: 0.05V
Current display resolution: 0.005A
Conversion efficiency:around 88%
Soft start:Yes (there is a possibility of failure during the startup of modules with high power and load)
Input reverse protection:Yes
Output end anti backflow:Yes
Short circuit protection:Yes

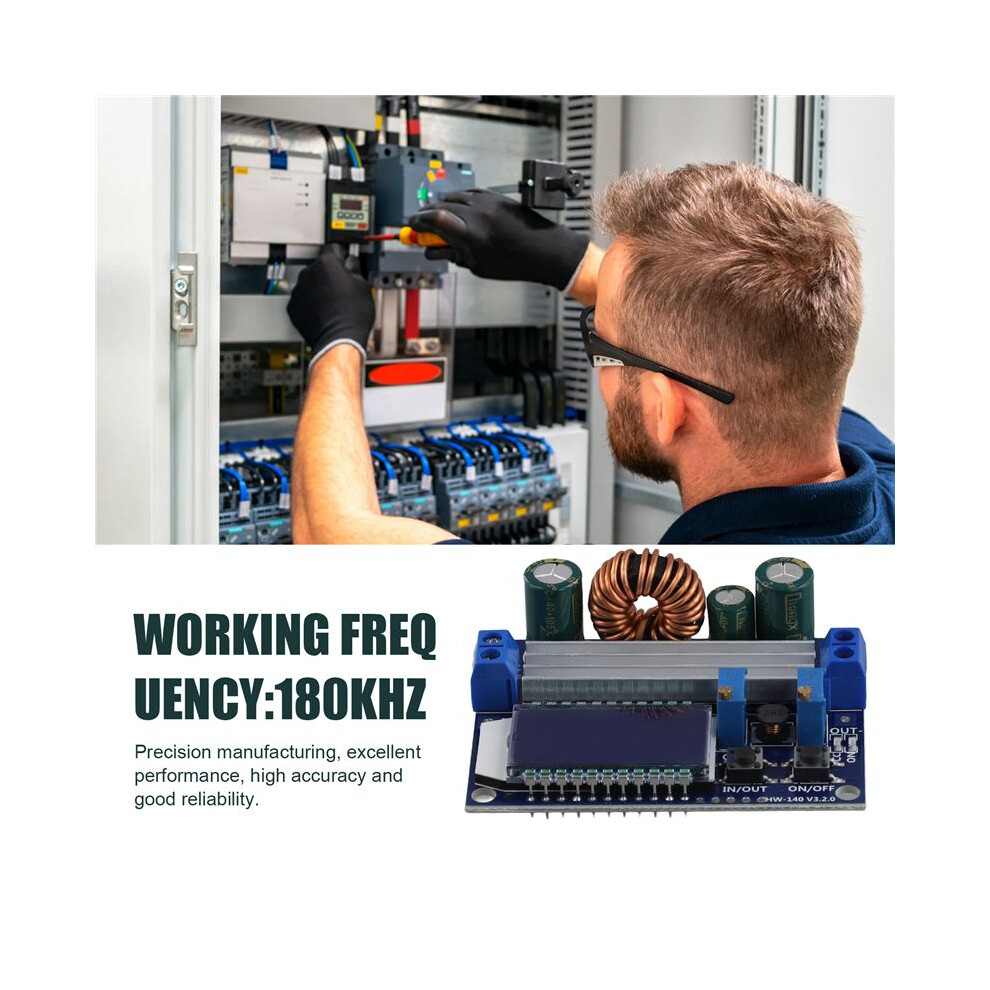

Working frequency:180KHZ
Due to different batches, there may be differences in product appearance and printed text, which will not affect use.
Colour:Black
Material:ABS

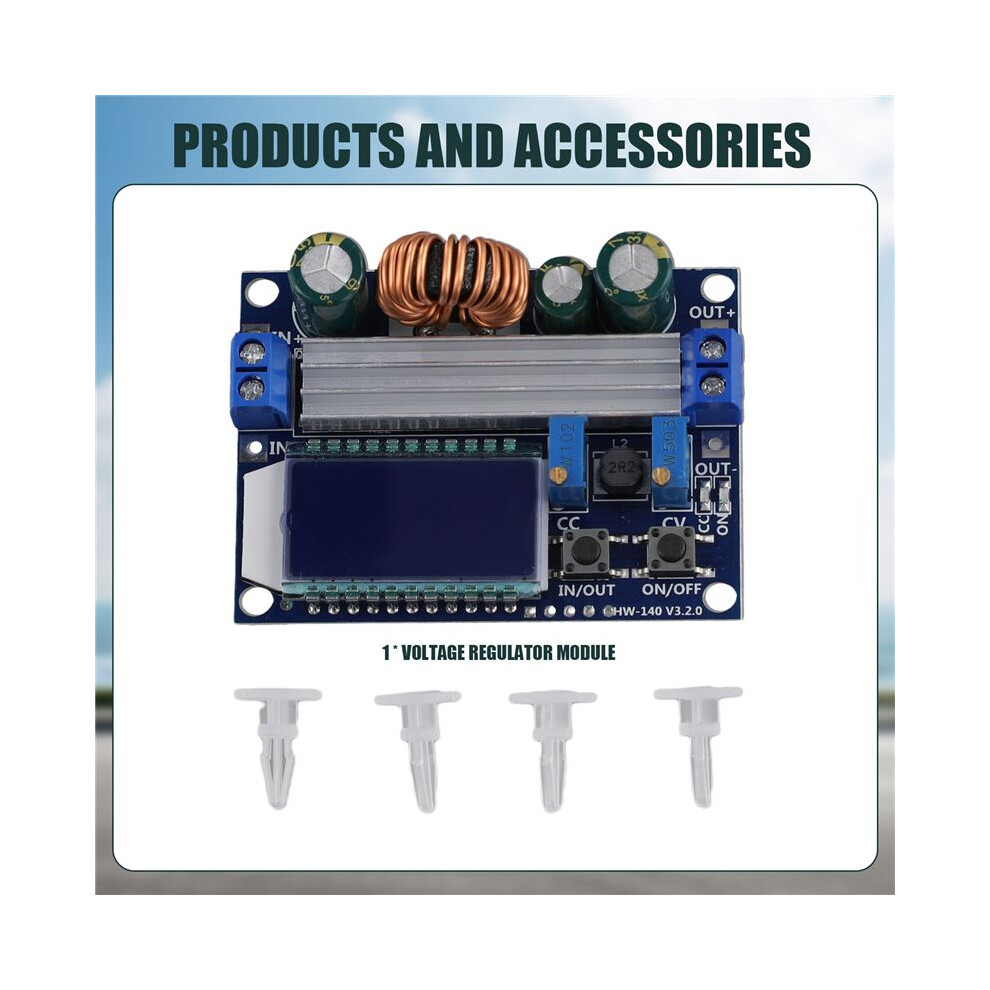

Package Contents:
1 * Voltage Regulator Module
Podrobnosti
| OPC | PWFBC86 |
|---|---|
| Kódy | 6031520736128 (EAN) |
| Informácie o produkte a bezpečnosti |
Údaje o produkte
| Height | 3cm |
|---|---|
| Width | 6cm |
| Length | 8cm |
| Weight | 0.0455kg |
| Colour | Black |
| Material | ABS |
