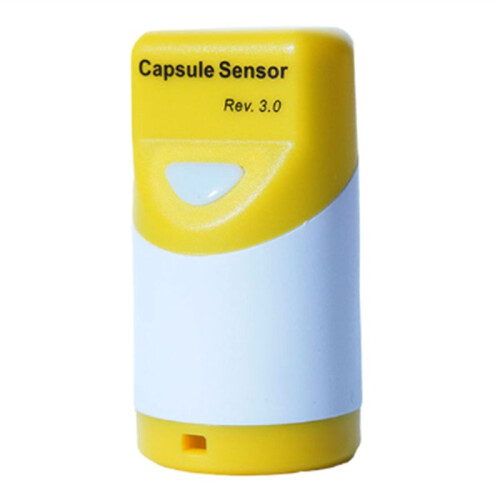

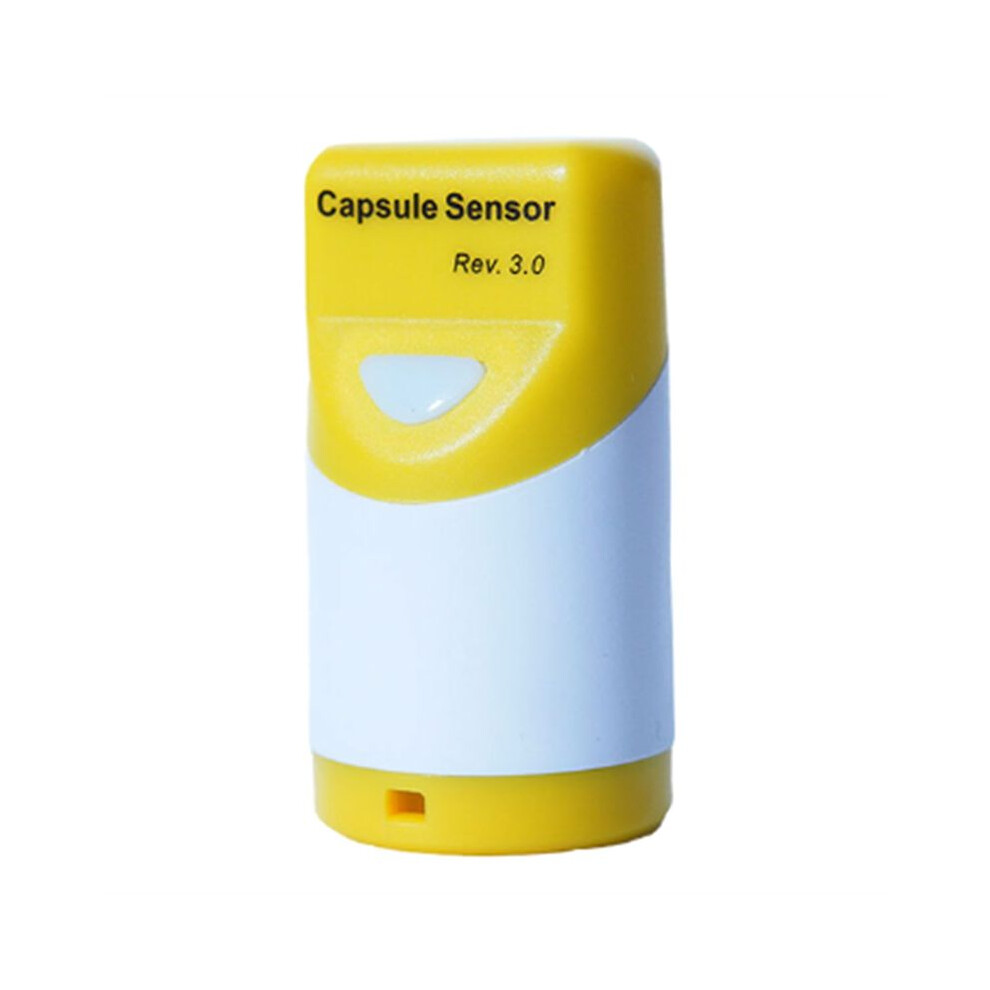

Capsule Sensor ESP32S3 Node LoRawan Development Board WiFi GNSS for Meshtatic LoRawan IoT 902-928MHZ

Capsule Sensor ESP32S3 Node LoRawan Development Board WiFi GNSS for Meshtatic LoRawan IoT 902-928MHZ Popis

Main Features: Wireless communication method include Wi-Fi, -tooth and LoRa. Modular design, with a BTB interface reserved at the bottom, capable of connecting and replacing different sensors
Touch pad and LED indicator light. Built in 250mAh rechargeable battery, magnetic suction charging port.
Built in LoRa and Wi-Fi/BLE antennas, stylish appearance, compact and light. High strength plastic, IP65 waterproof.
Support Heltec Wireless Boot system, download firmware, exchange information, and print logs through Wi-Fi.
Meshtastic project compatible. Secondary development can be done through , Platform.io,etc.

Default Satellite Configuration:
GPS + BeiDou
Frequency Bands:
GPS L1 C/A: 1575.421.023MHz
BeiDou B1I: 1561.0982.046MHz
GLONASS L1: 1597.78~1605.66MHz
Power Supply:
Voltage range 2.7~3.4V, typical value 3.3V
L76K Power Consumption at VCC=3.3V@-130dBm:
GPS:
Acquisition (mA): 23
Tracking (mA): 23
Standby (μA): 20
Backup (μA): 8
GPS + BeiDou:
Acquisition (mA): 29
Tracking (mA): 29
Standby (μA): 20
Backup (μA): 8
GPS+GLONASS:
Acquisition (mA): 29
Tracking (mA): 29
Standby (μA): 20
Backup (μA): 8
Reception Sensitivity (GPS + BeiDou):
Acquisition: -148dBm
Re-acquisition: -160dBm
Tracking: -162dBm
First Positioning (With A-GPS, average of 500 real-world tests):
Cold start: 5.5s
Warm start: 2s
Hot start: 2s
(Due to different product batches, the appearance may vary, which does not affect the use)
Material: Plastic
colour: As shown
Specification: B

Package Contents:
1 x CapSule Sensor V3(902-928MHZ)
1 x Charging Cable
1 x Lanyard
