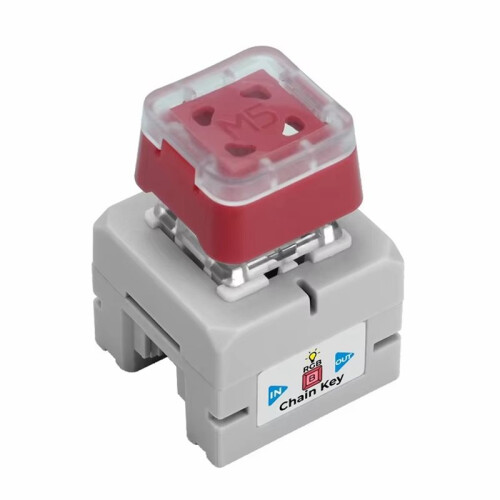

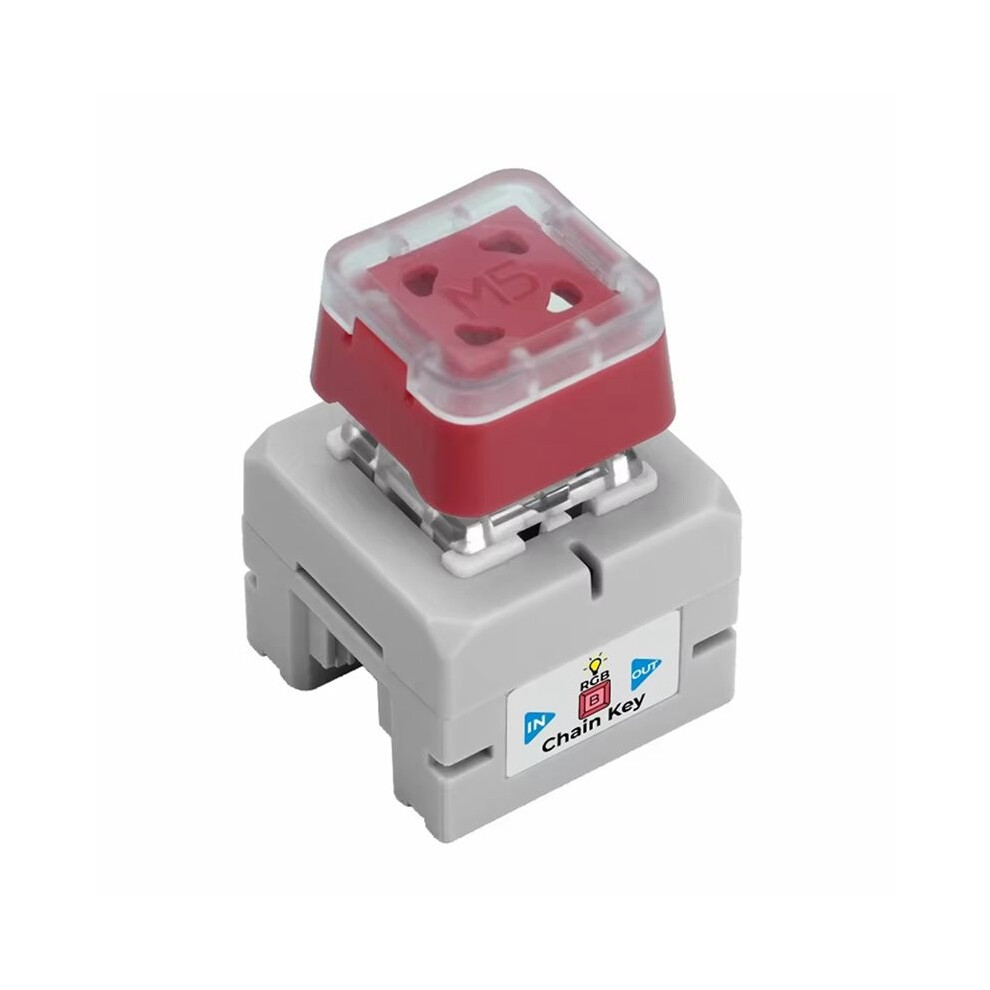

Chain Key Single-Key Input Node Integrated Programmable RGB LED, with Hot-Swappable Mechanical Keyboard Key

Chain Key Single-Key Input Node Integrated Programmable RGB LED, with Hot-Swappable Mechanical Keyboard Key Popis

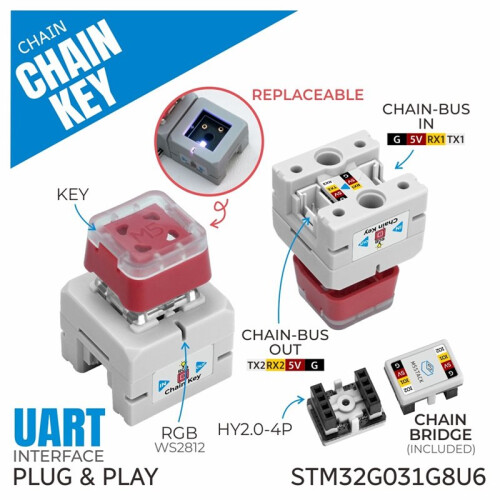

Chain Key is a single-button input node with hot-swappable mechanical keyboard keys, featuring tactile switches and integrated programmable RGB LEDs.
Suitable for human-computer interaction, home control, and other applications.
Chain Key integrates an STM32G031G8U6 core controller, uses the UART serial cascading communication protocol, and can be expanded with more Chain series devices through two HY2.0-4P expansion interfaces to build richer interactive applications.

Single-Key input
STM32G031G8U6 core controller
Hot-swappable mechanical keyboard keys
2x RGB LEDs
Uses UART serial cascading communication protocol

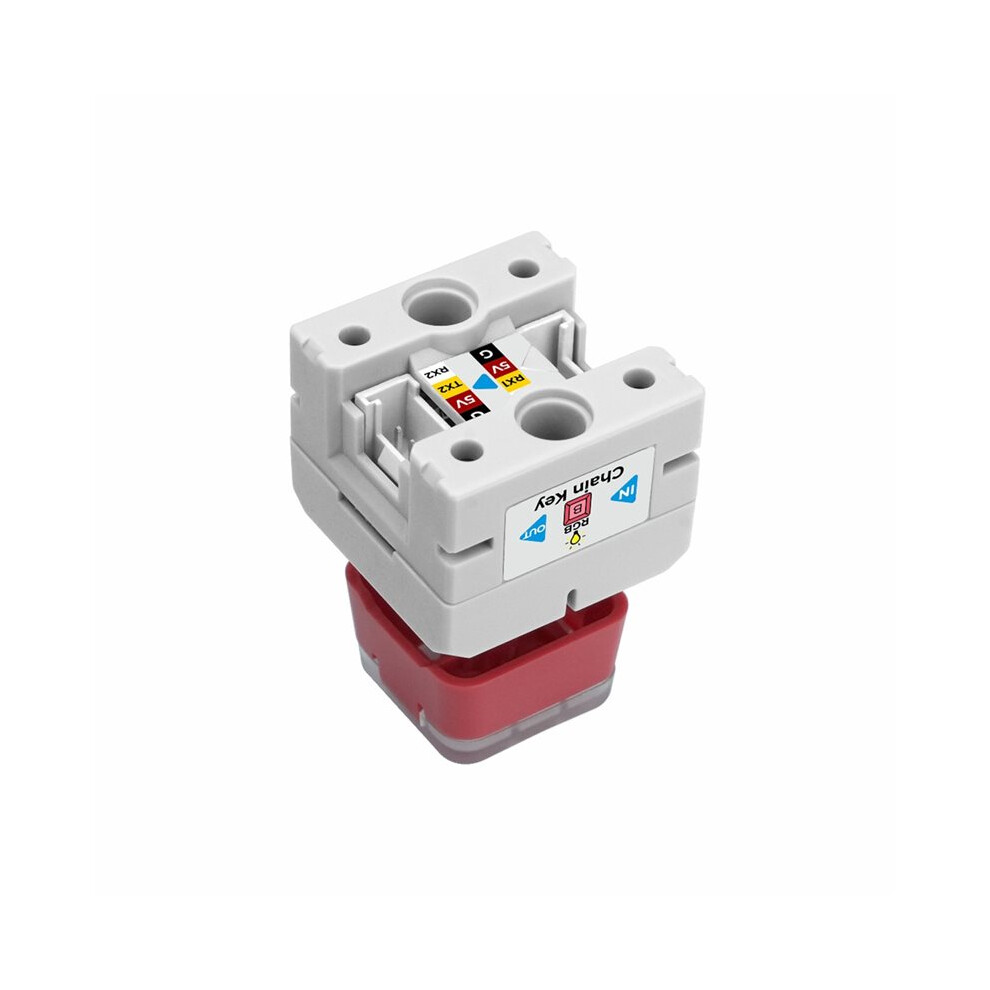

2x HY2.0-4P expansion interfaces, expandable to Chain series devices

Specifications
MCU: STM32G031G8U6
Input Power: 5V
Communication Interface: UART
Interface Specifications: 2x HY2.0-4P
RGB LEDs: 2x WS2812B
Power Consumption: 28.24mA
Operating Temperature: 0~40C
Color: As Shown
Material: plastic

Package Contents:
1* Chain Key
