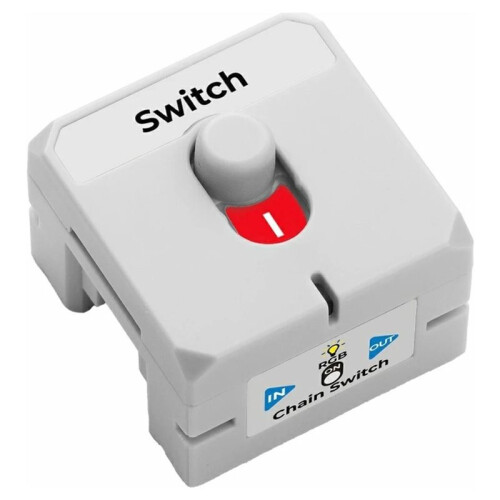

Chain Slide Input Node, Slider Mode and Mode, 12-Bit Slider Position Data Output, with RGB LED

Chain Slide Input Node, Slider Mode and Mode, 12-Bit Slider Position Data Output, with RGB LED Popis

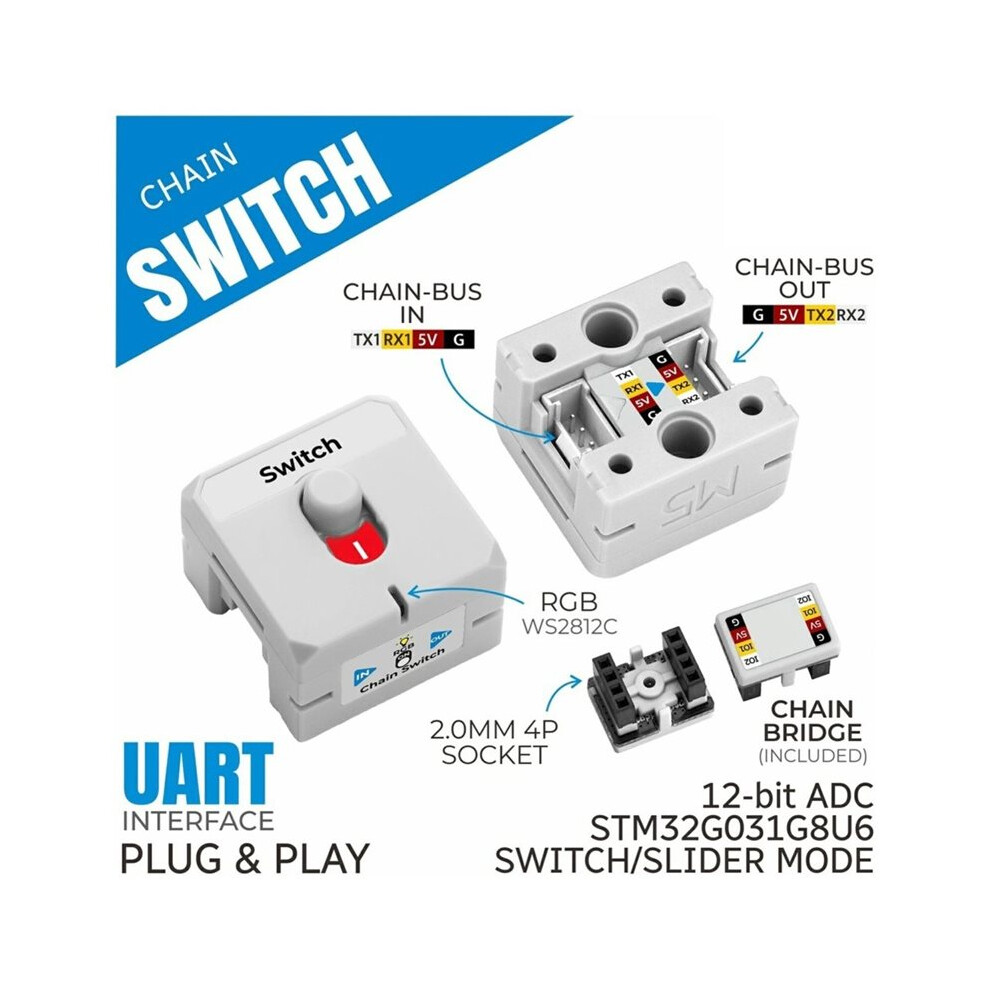

Chain is a slide input node in for M5Stack Chain series, supporting both slider mode and mode. The device can output 12-bit slider position data and is equipped with a programmable RGB LED for intuitive status feedback.
It integrates an STM32G031G8U6 core controller and adopts a UART cascading communication protocol. Through two HY2.0-4P expansion interfaces, it can connect to more Chain series devices, making it suitable for applications such as control panels, status switching, and interactive devices.

Features
Supports slider mode and mode:
Slider mode: reads the slider position and outputs a range of 0 ~ 4095
mode: outputs the state based the configured /off thresholds
12-bit ADC slider position detection
STM32G031G8U6 core controller
1x RGB LED
Uses a UART serial cascading communication protocol

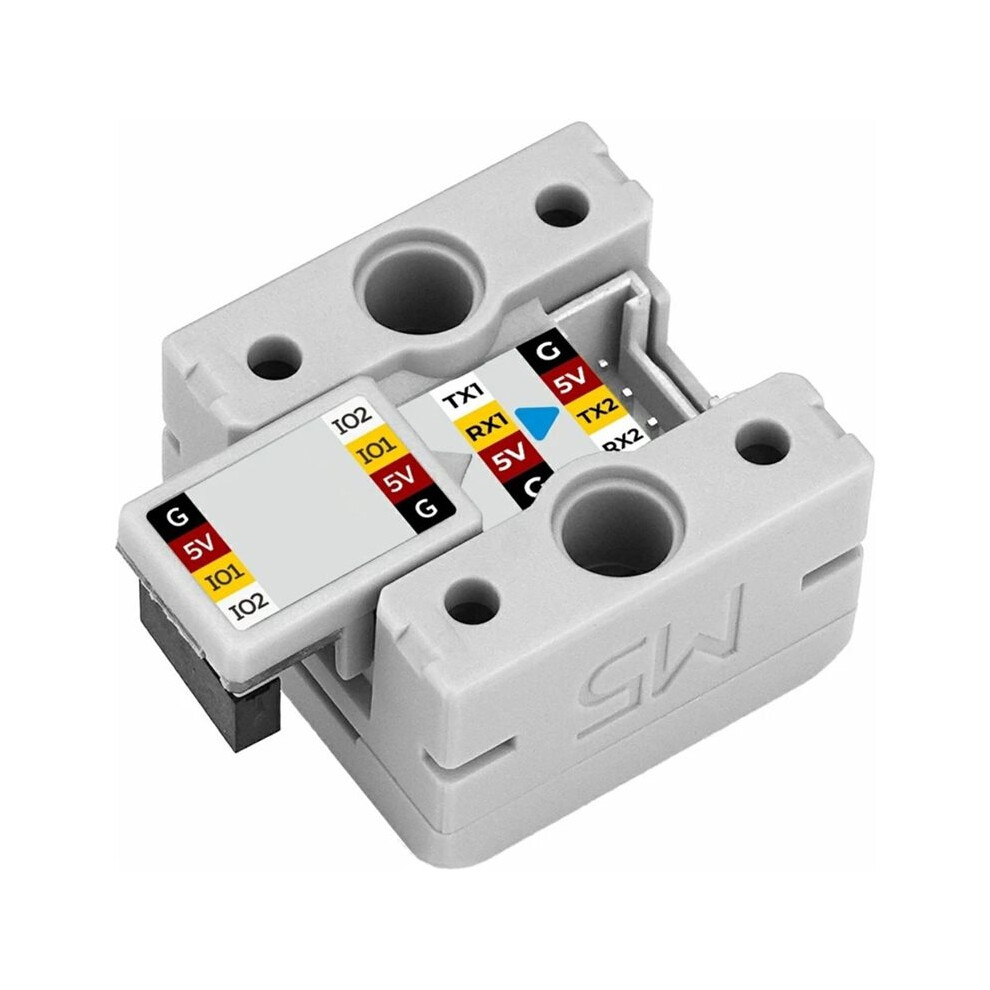

2x HY2.0-4P expansion , capable of expanding Chain series devices
Applications
Control Panel Input
Home Status Switching
Interactive Device Control
Specifications
MCU: STM32G031G8U6
Input Power: 5V
Communication Method: UART 115200bps@8N1

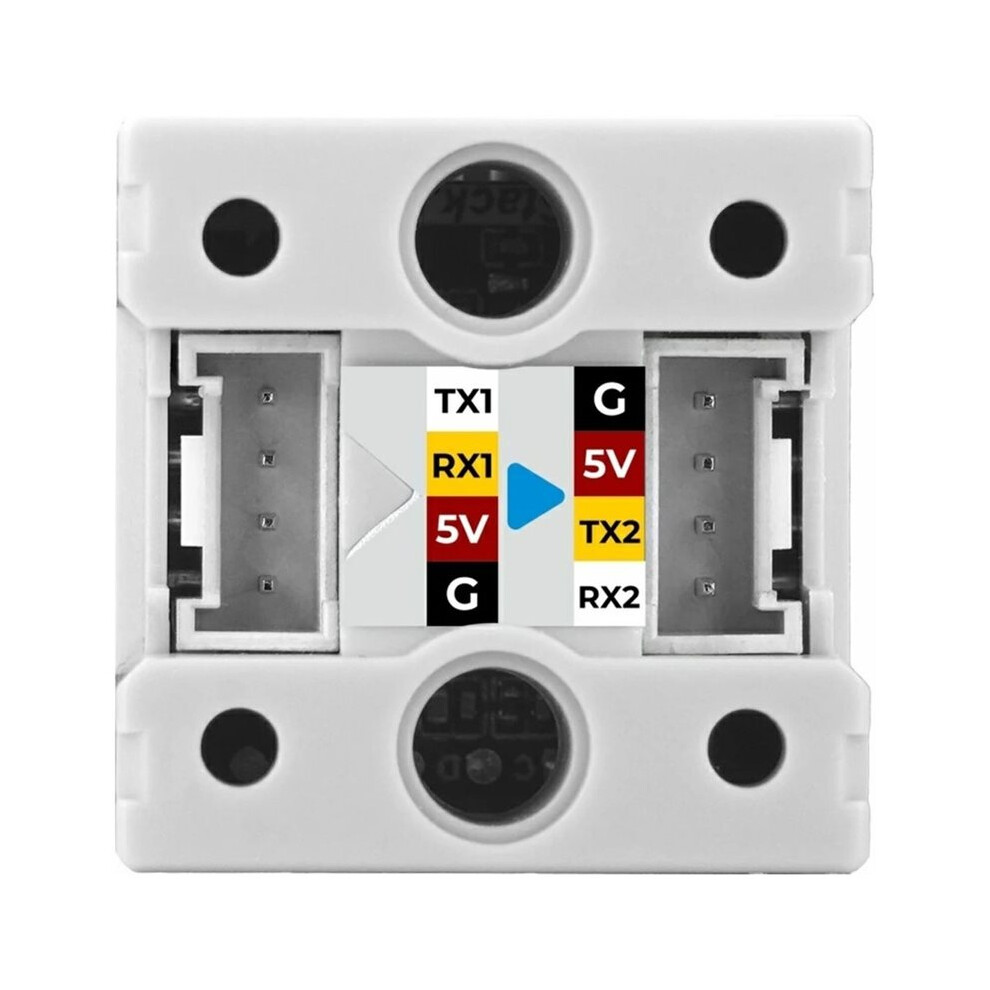

Interface Specification: 2x HY2.0-4P
Slider Position Detection: 12-bit ADC, Output Range 0 ~ 4095
RGB LED: 1x WS2812C
Operating Power Consumption: [email protected] (Typical Operating State)
Color: Gray
Material: plastic

Package Contents:
1 * Chain
