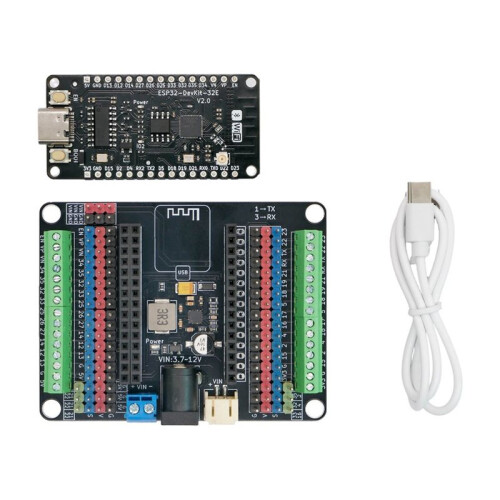

ESP32-Devkitc Development Board+ESP32 Breakout Board V2.0 Compatible with ESP32 Board PH2.0 Interface

ESP32-Devkitc Development Board+ESP32 Breakout Board V2.0 Compatible with ESP32 Board PH2.0 Interface Popis

High compatibility: Features three rows of female headers, supporting two sizes of ESP32 development boards and ensuring compatibility with most ESP32 boards the market
Onboard power management chip: Supports a wide input voltage range of 3.7V-12V and a maximum output current of 3A, easily driving high-current peripherals such as servo

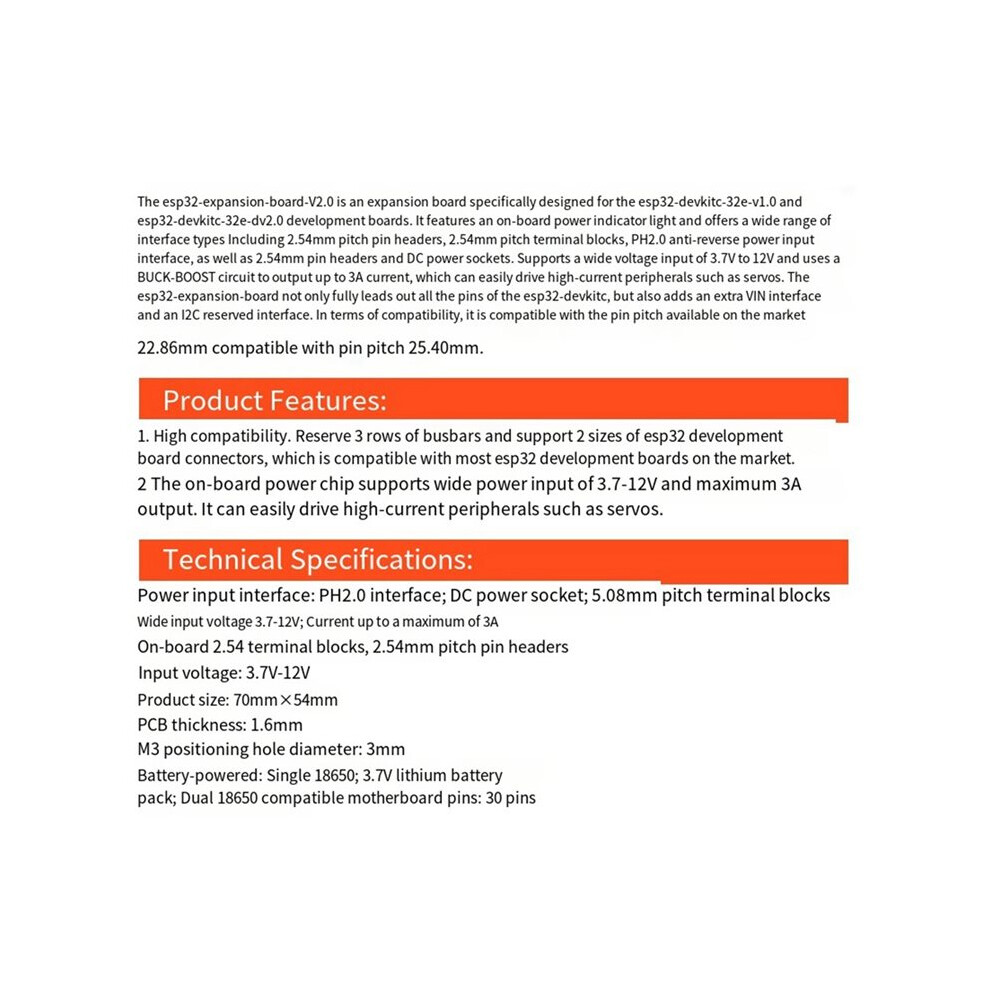

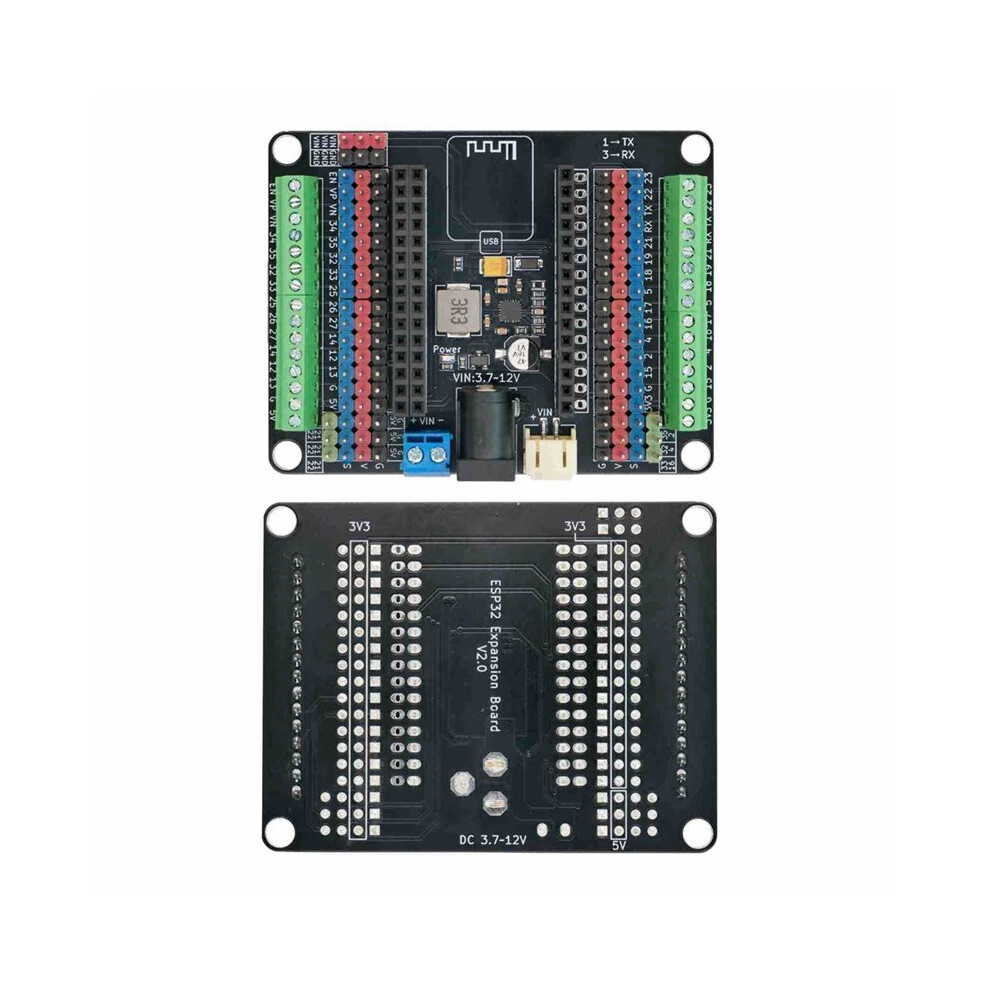

The esp32-expansion-board-V2.0 is an expansion board designed specifically for the esp32-devkitc-32e-v1.0 and esp32-devkitc-32e-v2.0 development boards. It features an onboard power indicator and offers a wide range of interfaces, including 2.54mm-pitch pin headers, 2.54mm-pitch terminal blocks, a PH2.0 reverse-polarity-protected power input, and a power jack. It supports a wide input voltage range of 3.7V to 12V and utilizes a buck-boost circuit capable of delivering to 3A of current, easily driving high-current peripherals such as servos. In addition to fully breaking out all pins from the esp32-devkitc, the board includes extra VIN and I2C interfaces. Regarding compatibility, it supports both the 22.86mm and 25.40mm pin-header spacings commonly found the market.

Technical Specifications.jpg
Power input interfaces: PH2.0 connector; power jack; 5.08mm pitch terminal block
Wide input voltage range: 3.7V-12V; maximum current: 3A
Onboard 2.54mm pitch terminal block and pin headers
Input voltage: 3.7V-12V

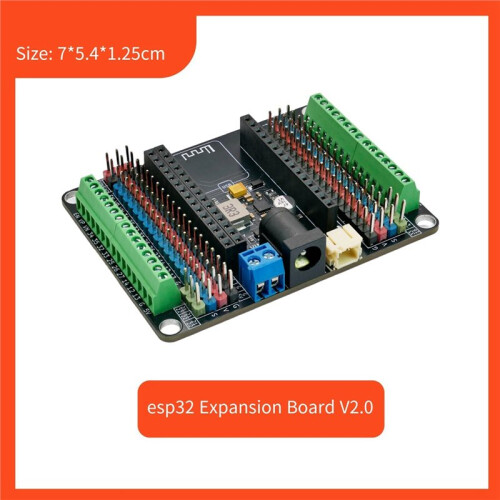

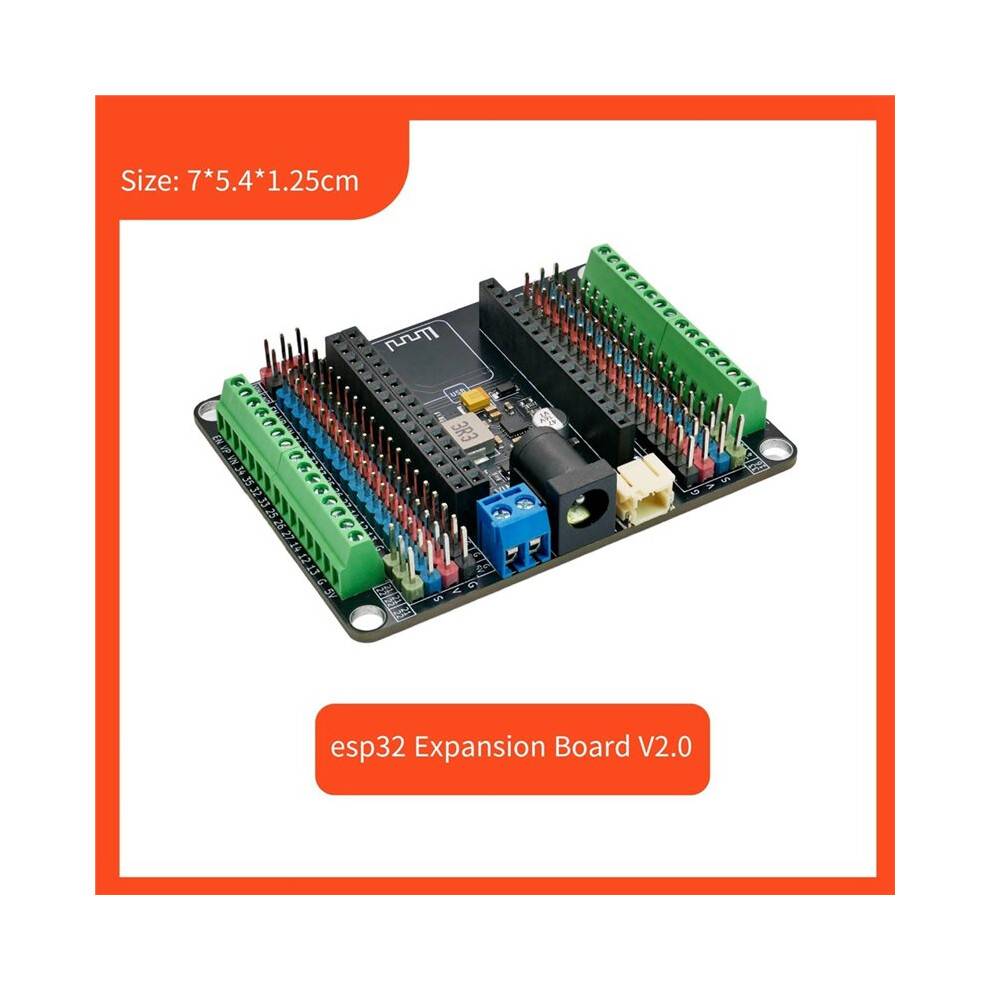

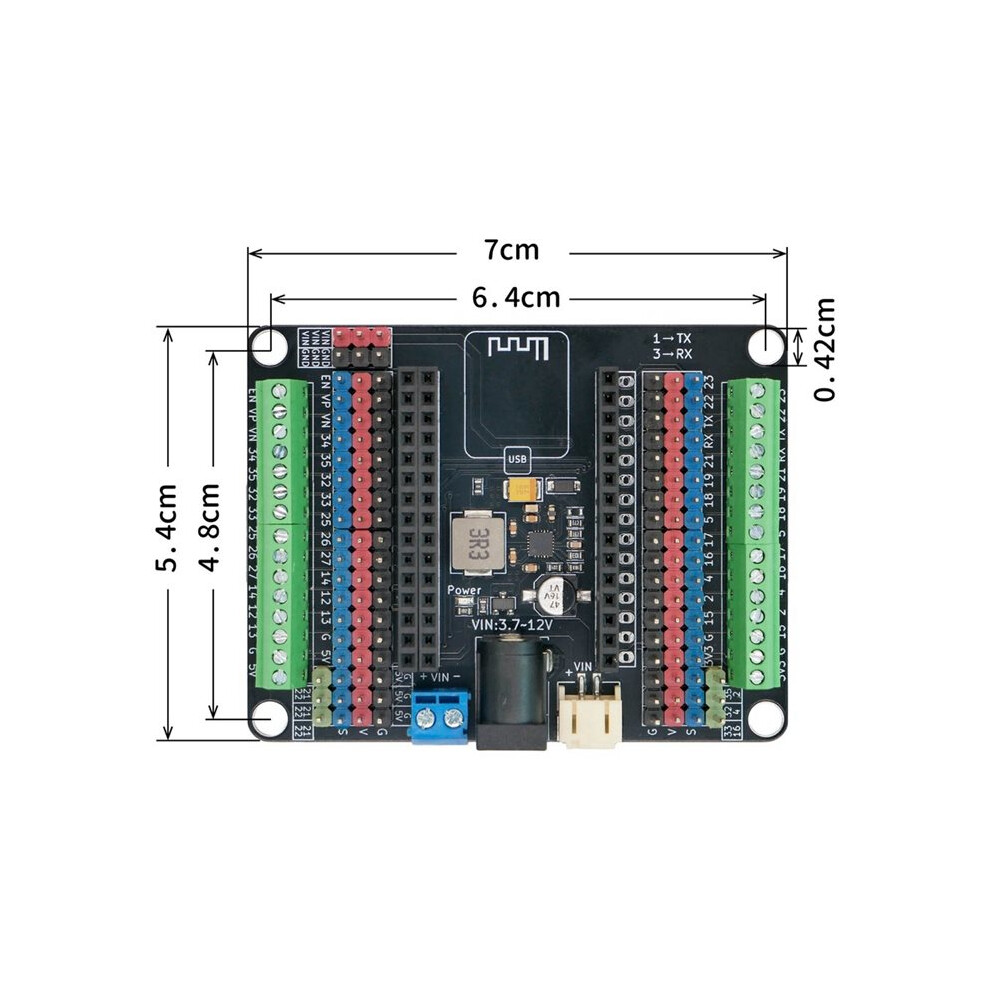

Product dimensions: 70mm x 54mm
PCB thickness: 1.6mm
M3 mounting hole diameter: 3mm
Battery power options: Single 18650; 3.7V Li-ion battery pack; dual 18650
Compatible mainboard pin count: 30-pin
Color: As Shown
Material: PCB

Package Contents:

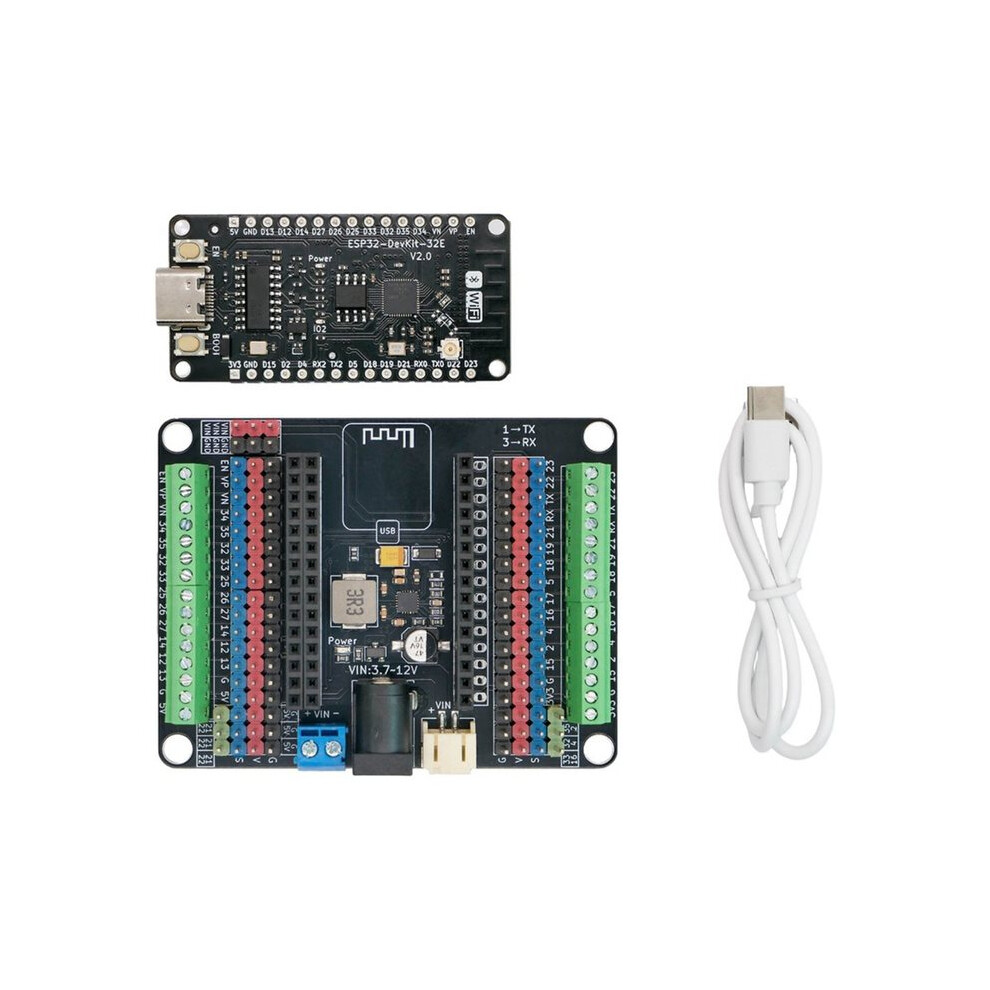

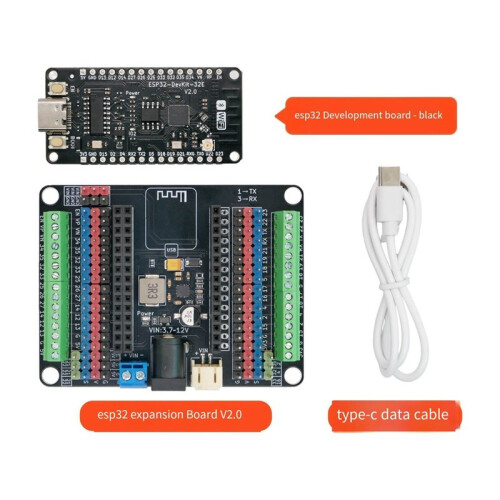

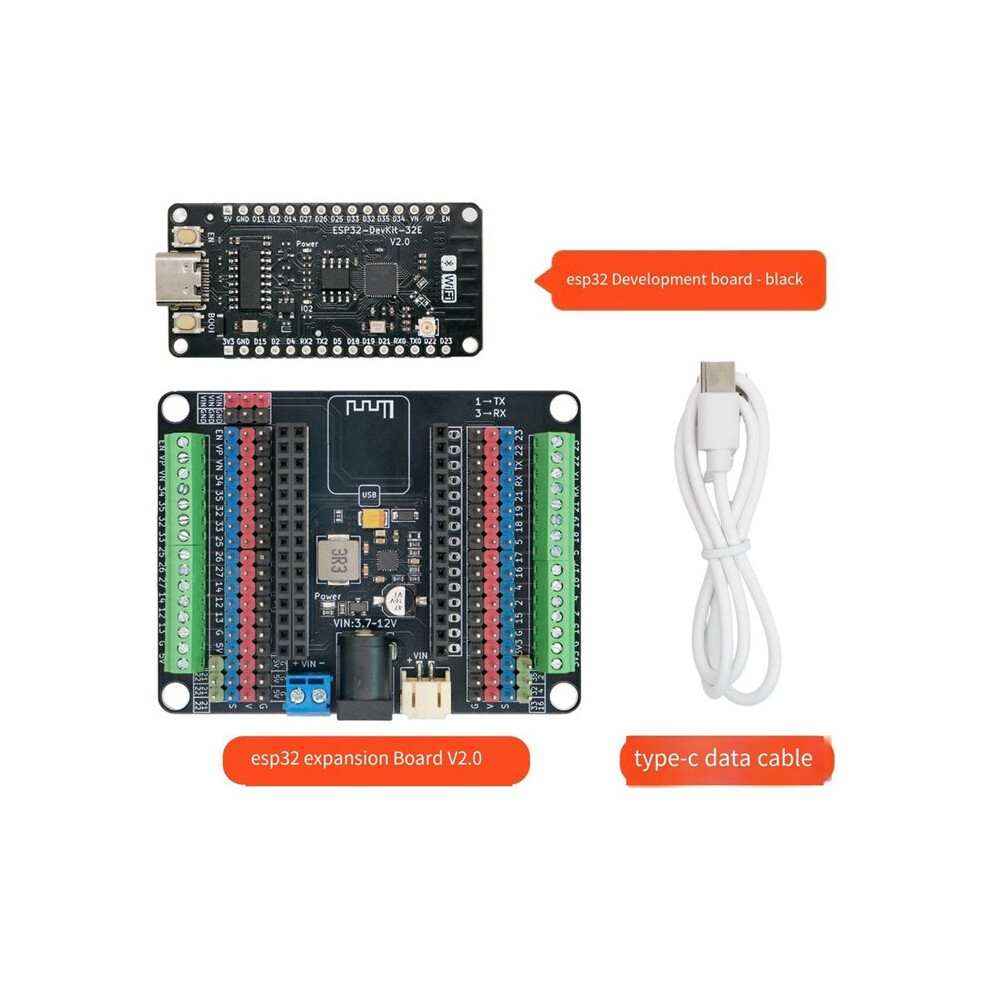

1*ESP32 V2.0 Breakout Board KITS( color is random)
