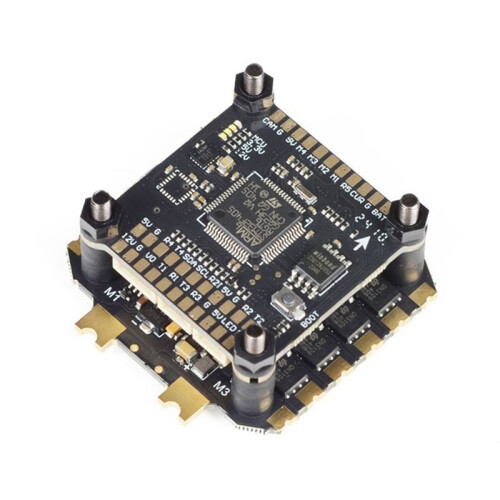

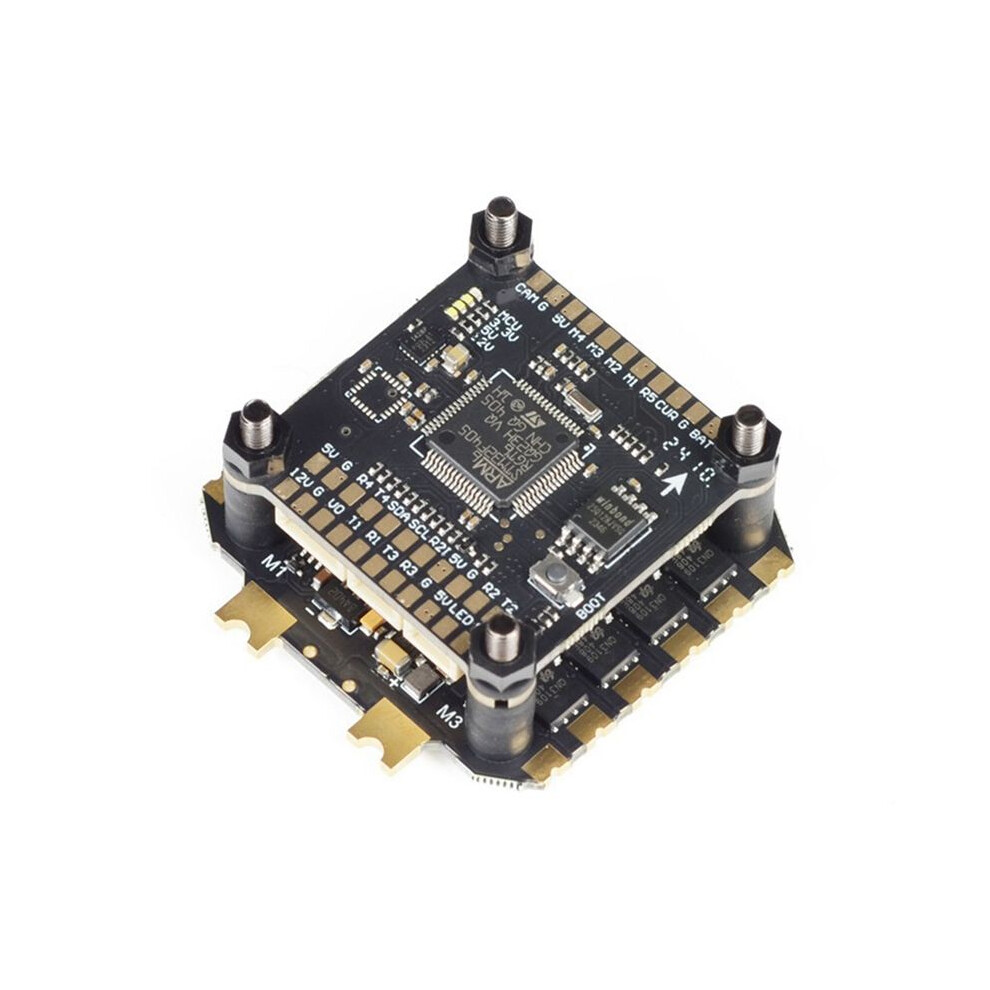

F405 65A FPV Stack F405 Flight Controller 60A 4-in-1 ESC 30.5MMx30.5MM for FPV Freestyle Drones

F405 65A FPV Stack F405 Flight Controller 60A 4-in-1 ESC 30.5MMx30.5MM for FPV Freestyle Drones Popis

F405 65A 30.5MMx30.5MM Flight Controller
MCU: STM32F405
IMU(Gyro): ICM42688p (Default)
Black box:16M Black Box
OSD: BetaFlight OSD (AT7456E chip)

USB Port:Type-C
for Air Unit connector: YES
Power Input: 3S - 6S Lipo
BEC Output: 5V output, the total current load is 3A
12V output, the total current load is 2.5A
UART: 5 sets
UART1 for VTX data setting
UART2 for RC link (R21 for SBUS receiver)
UART3 Vacancy
UART4 for GPS
UART5 Dedicated for ESC telemetry
ESC Signal: M1 - M4
I2C:YES (SDA & SCL pads can be used for magnetometer)
LED Pad: YES (Used for WS2812 LED control)
Buzzer Pad: YES
BOOT Button: YES
Firmware Target Name: STM32F405
Mounting: 30.5 x 30.5mm (4mm hole diameter)
(The product appearance and printed words may vary depending the batch, but this does not affect use)
Color: Black
Material: PCB

Package Contents:
1 x FPV Stack Kit
