For NTC Thermistor to Voltage 10K NTC to 0-5V 0-10V Linear Conversion Transmitter

For NTC Thermistor to Voltage 10K NTC to 0-5V 0-10V Linear Conversion Transmitter Popis

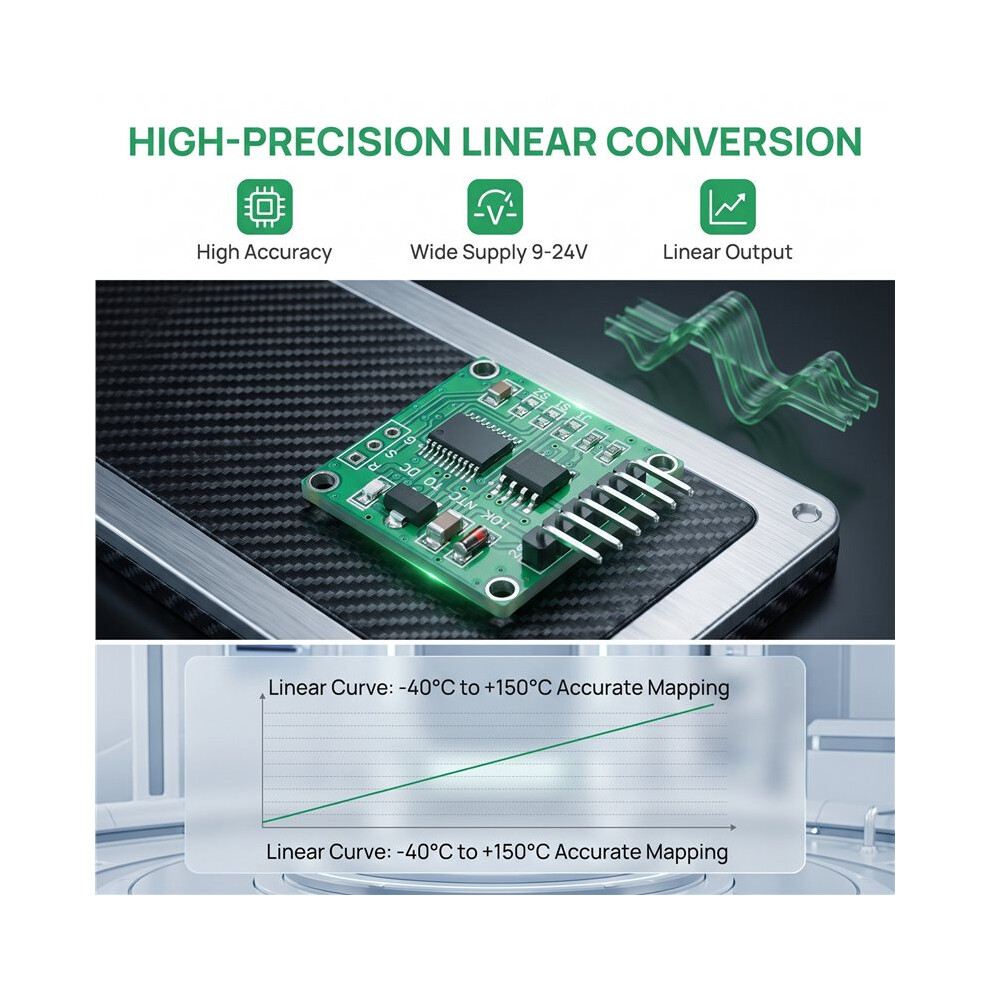

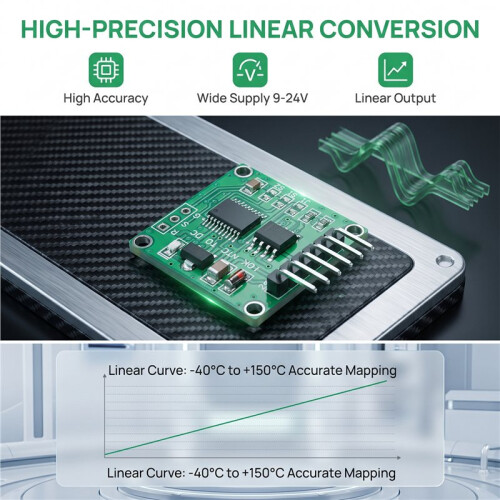

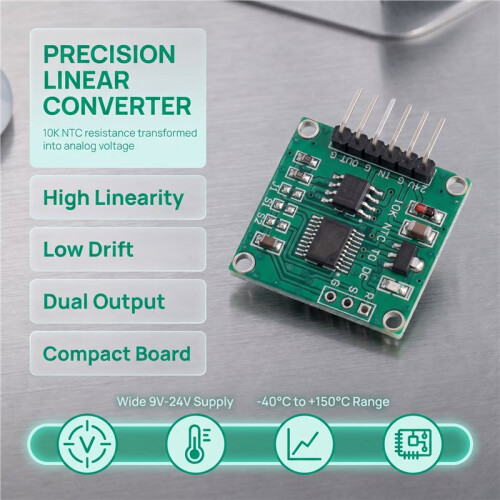

10K for NTC to 0-5V/0-10V linear conversion This for NTC thermistor to voltage converter transforms temperature changes into precise analog signals, supporting both 0-5V and 0-10V output for accurate monitoring and control in various applications.
High accuracy and stable performance Engineered for reliable operation, the device ensures consistent linear conversion from for NTC thermistor resistance to voltage, making it ideal for temperature sensing in industrial and electronic systems.

Feature:
This is a linear conversion module,
The input for ntc resistance signal is converted to temperature (voltage signal) output by internal chip processing.
There are two output voltage range options.
Module parameters:

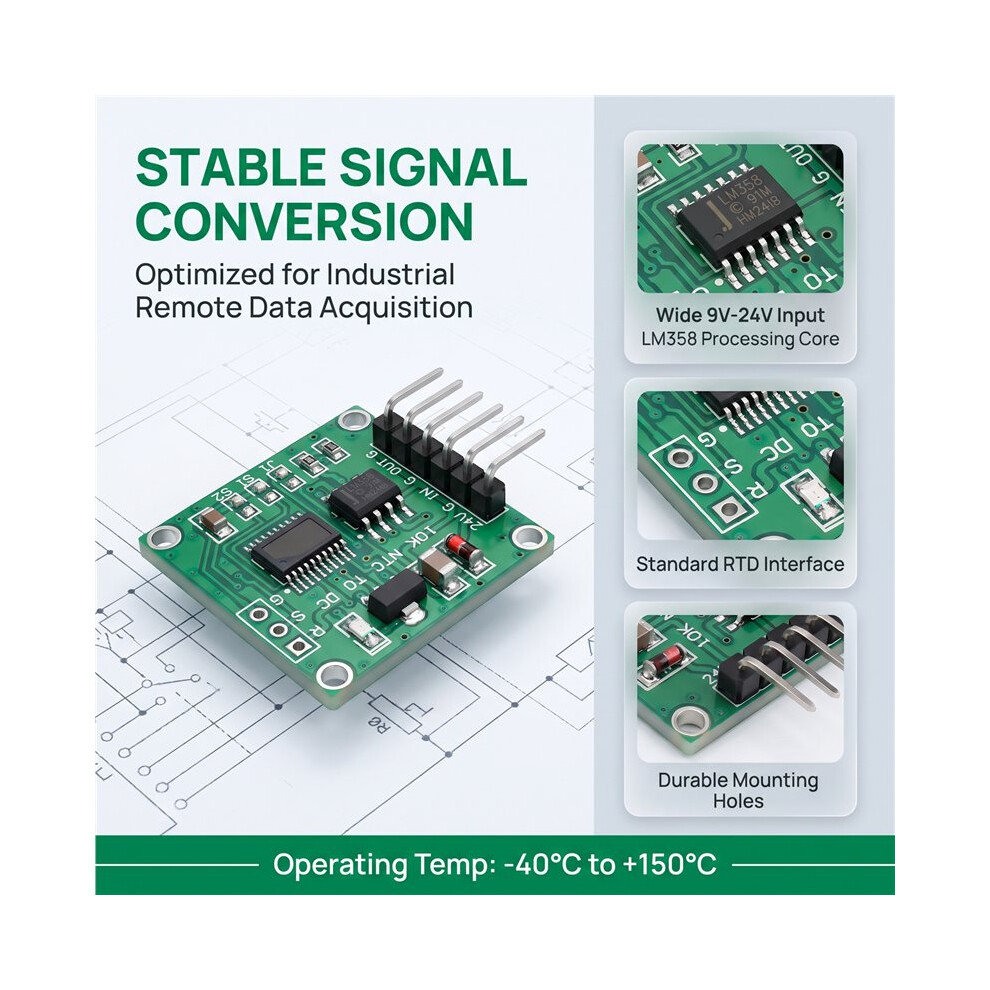

1, the working voltage: 9V ~ 24V
2, the input resistance: for NTC 10K thermal resistance
3, the output voltage: 0.00V ~ 5.00V / 0.00V ~ 10.00V
4, the temperature range: -40 ~ +150 (degrees).

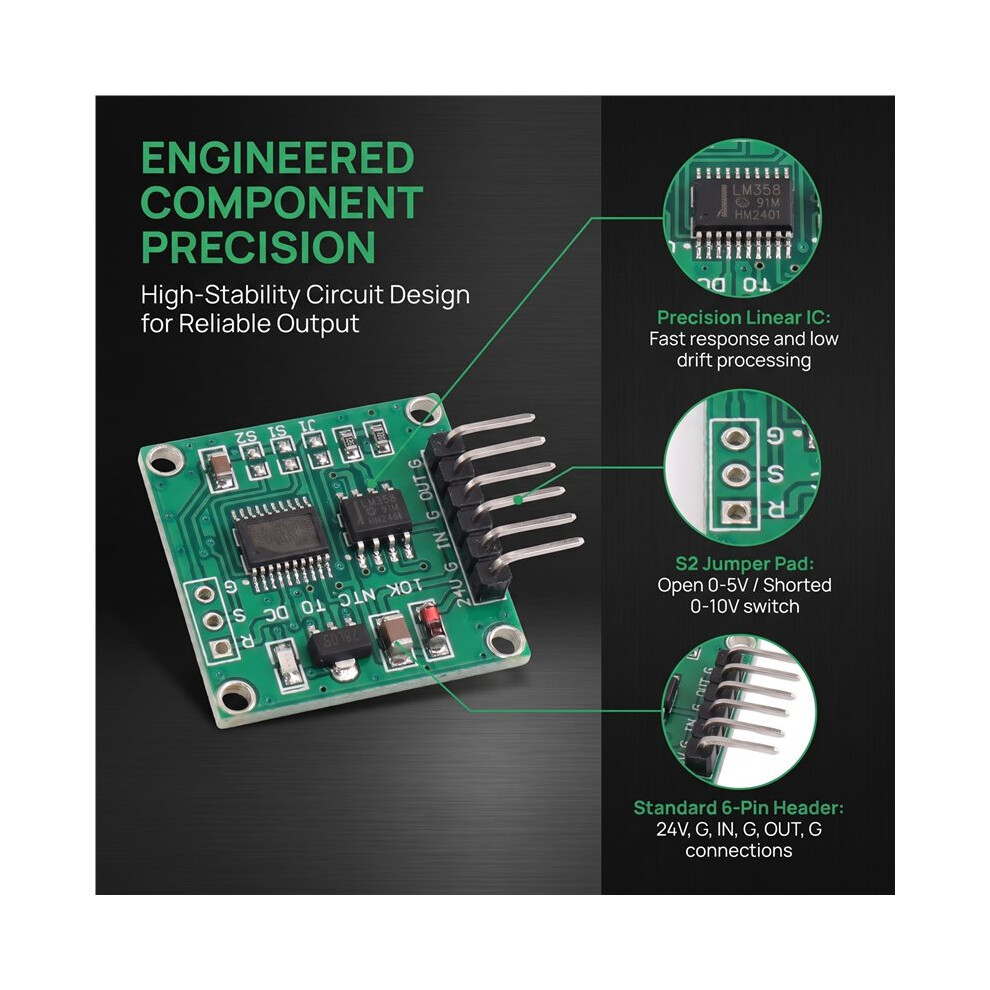

5, the output: the circuit board S2 pad: open (output 0.00V ~ 5.00V); shorted (output 0.00V ~ 10.00V), the default is open.
6, the scope of application: remote data acquisition and control equipment;

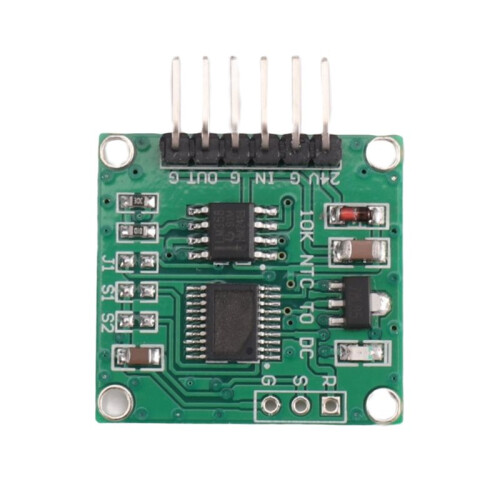

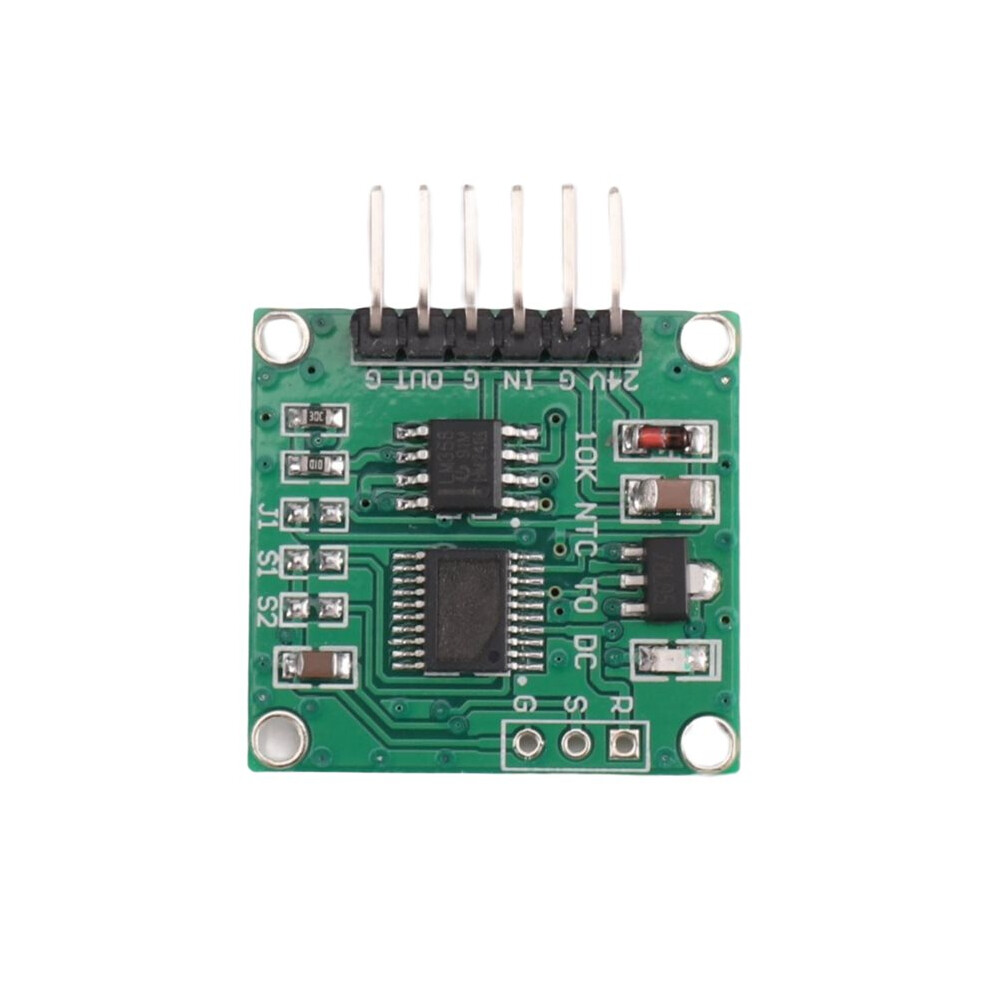

The module interface:
24V: positive power connector (9V ~ 24V).
G: Power ground interface.
IN: Thermal resistance positive terminal.
G: RTD negative terminal.
OUT: Signal output interface (0.00V to 5.00V / 0.00V to 10.00V).
G: Power ground interface.
Note :
Output 0.00V ~ 10.00V, the power supply voltage to 15 volts power supply.
Output (0.00V ~ 5.00V) Resolution: 0.0263157V / C (V / C)
Output (0.00V ~ 10.00V) Resolution: 0.0526315V / C (V / C)
Calculation of the measured temperature formula:
(Output voltage (V) / resolution) -40 C = measured temperature (C).
Color: As Shown
Material: PC+Metal

Package Contents:
1* module
