High-Current Regulated Power Supply Board Adjustable Step-Down Converter for Experimental Setups Automotive Modification

High-Current Regulated Power Supply Board Adjustable Step-Down Converter for Experimental Setups Automotive Modification Popis

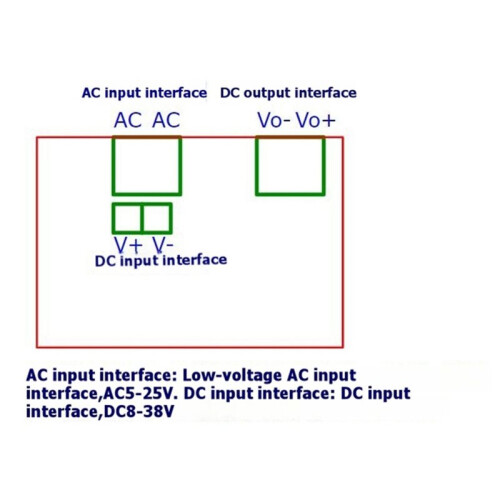

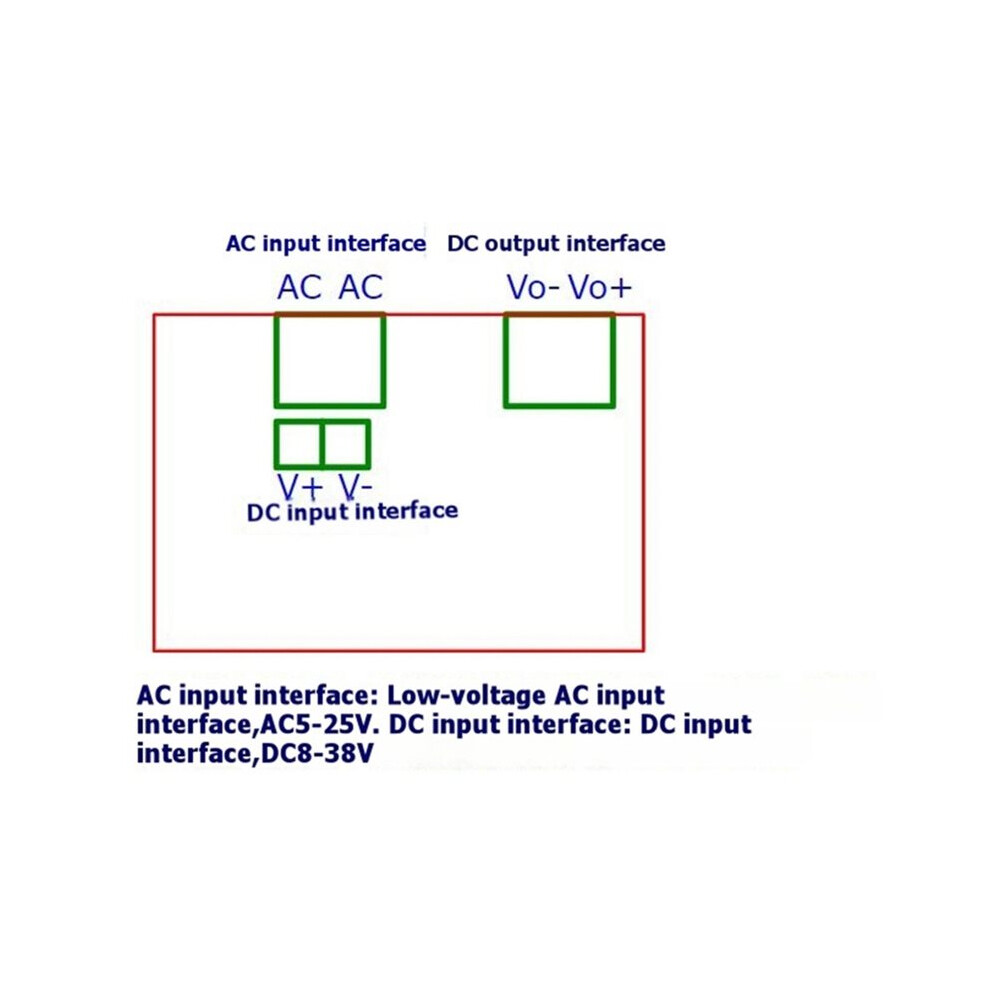

Dual-Input Operating Mode: Supports both AC and inputs via dedicated onboard . The AC input does not require polarity distinction, allowing for flexible and convenient wiring.
Synchronous Buck Rectification: Utilizes a synchronous step-down (buck) circuit architecture, offering higher conversion efficiency and lower heat generation compared to traditional designs.

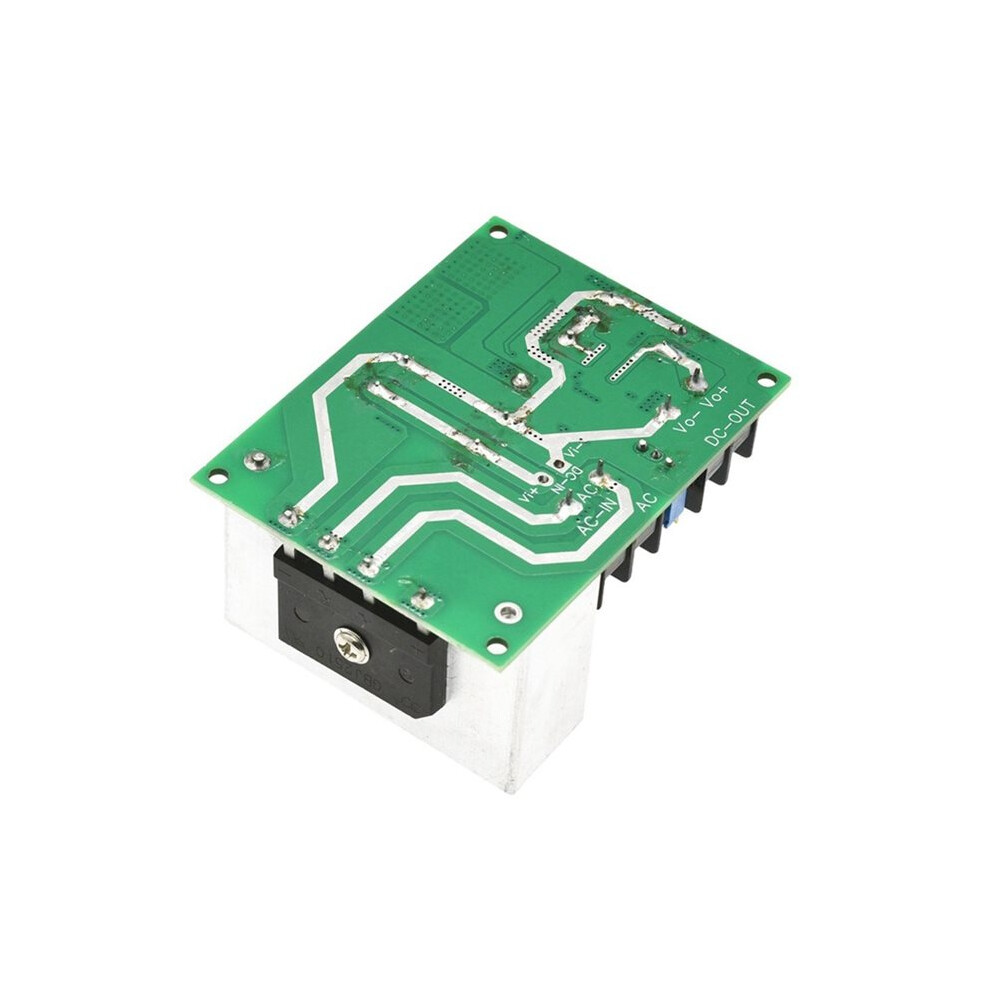

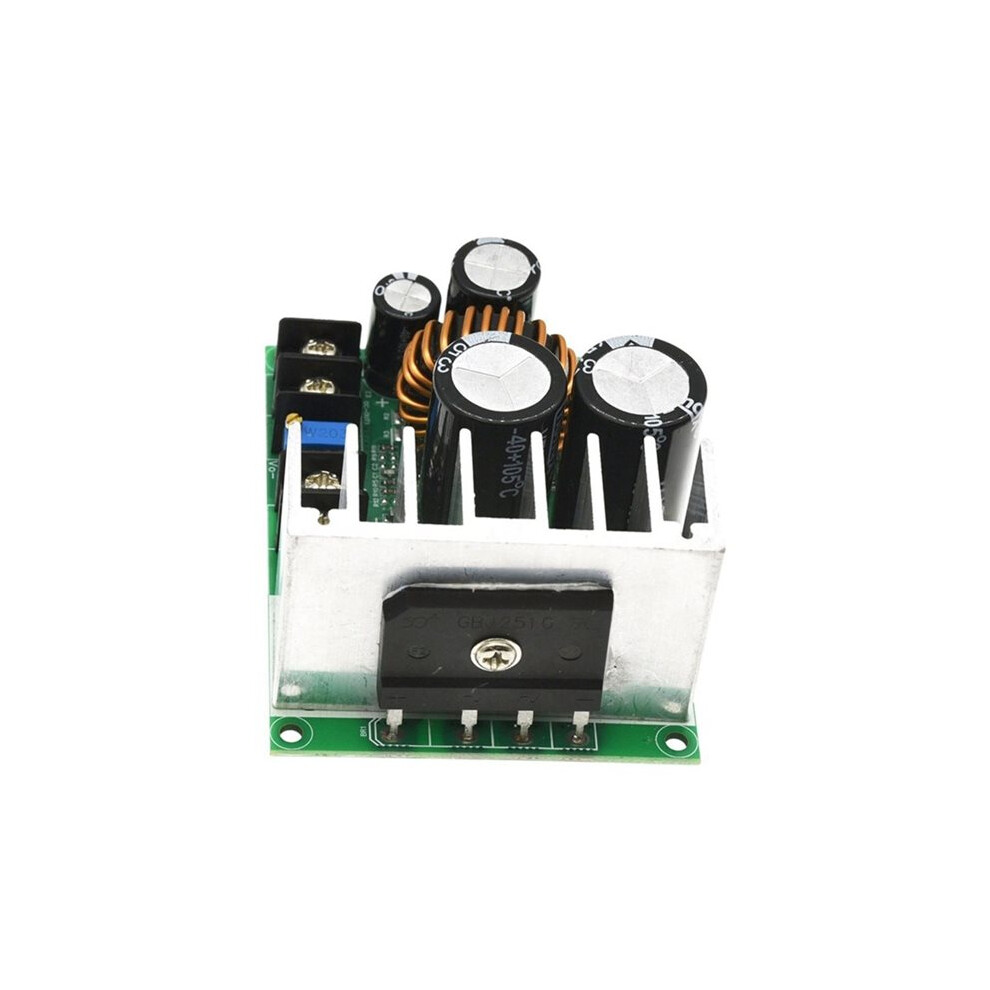

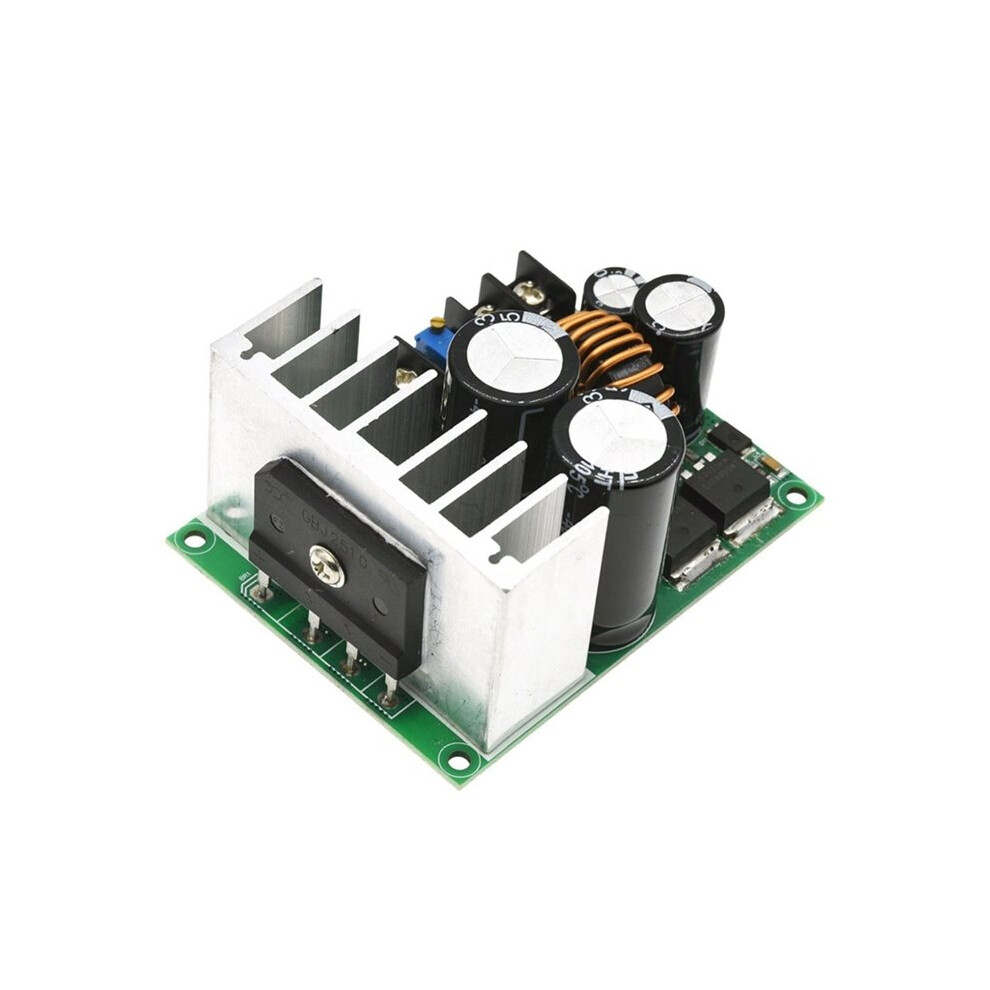

Onboard 15A High-Current Rectifier Bridge: Features a built-in 15A rectifier bridge, enabling direct input from low-voltage AC .
High-Quality Sendust (FeSiAl) Inductor: Equipped with a 10A-rated Sendust inductor, ensuring excellent resistance to magnetic saturation and stable power delivery even under high-current loads.
Continuously Adjustable Wide-Range Voltage: The output voltage can be precisely and linearly adjusted from 3.3V to 32V, meeting the diverse power supply requirements for various experiments and engineering projects.

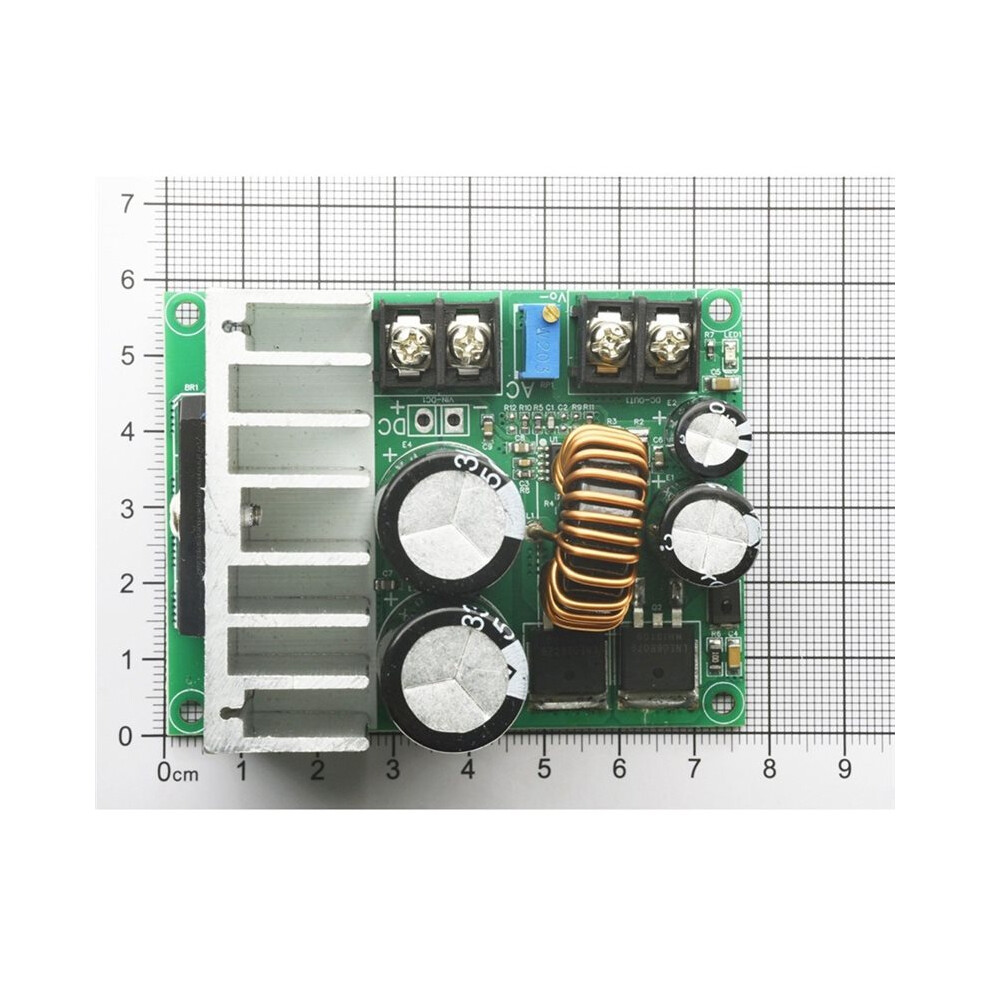

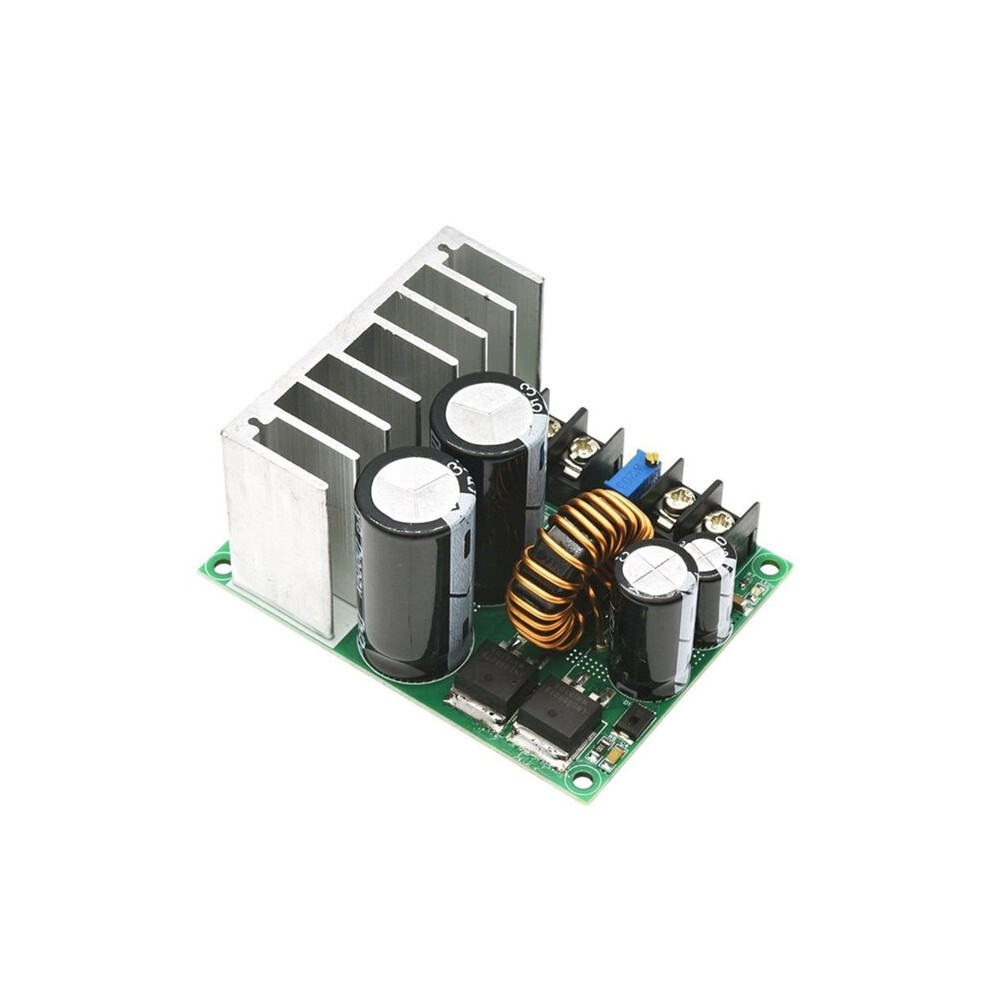

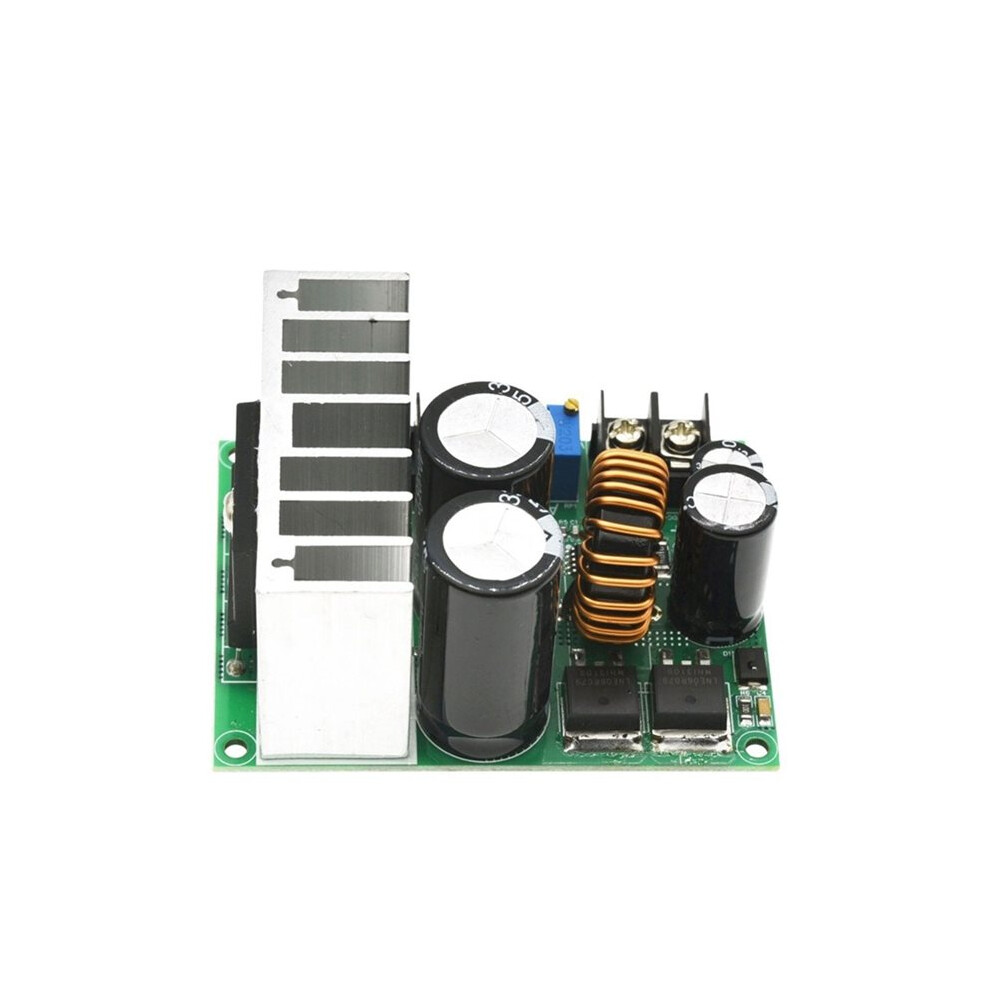

Product Name: High-Current, Low-Voltage AC/ Adjustable Step-Down (Buck) Power Supply Module
Circuit Architecture: Synchronous Rectification Buck Topology
AC Input Range: 5V ~ 25V AC
Input Range: 5V ~ 38V (8V ~ 38V recommended)
Output Voltage Range: 3.3V ~ 32V (continuously adjustable via potentiometer)
Rated Output Current: 7.8A (nominal continuous operating current)
Rectifier Bridge Rating: 15A
Inductor Specification: 10A Sendust (Fe-Si-Al) Core Coil Inductor
Operating Voltage Differential: As this is a step-down (buck) module, the input voltage must be higher than the target output voltage (a differential of 2V is recommended)
Color: As Shown
Material: PCB

Package Contents:
1*Module
