ICESugar FPGA Development Board Open Source RISC-V Based ICE40UP5k USB-C Interface for IoT/ AI Projects
Nové
Na sklade
Prečo si zamilujete nakupovanie na OnBuy:
- Získajte cashback pri každom nákupe – použite ho okamžite na ďalšiu objednávku
- Doprava zadarmo – na milióny produktov na celej stránke
- Zákazníci nás milujú – 126,000 hodnotení s “Vynikajúcim” hodnotením
47,21 €
56,66 €
17 % zľava!
+5,05 € doručenie
1%
Čo je okamžitý Cashback?
Zistiť viac
Ceny produktov predávaných spoločnosťou OnBuy sú uvedené s DPH.
K dispozícii sú aj bezúročné možnosti platby
Zobraziť celý popis a podrobnosti o produkte
Doručenie: Štandard (5,05 €) | pon 22 - sob 27 jún
Predáva: SK Shopping center
Vrátenie tovaru: 30 dní
180-dňová ochrana platieb
Popis a podrobnosti
Zhrnutie
- Features
- iCE40UP5k main chip, 5280 LUT/128KB SPRAM/PLL/ SPI/I2C/DSP/PWM
- On-board iCELink debugger, supporting drag-and-drop programming, USB CDC serial port and JTAG
- Lead out all the IO with standard PMOD connector and can connect with other PMOD devices
- Totally use open source tool chain to develop
ICESugar FPGA Development Board Open Source RISC-V Based ICE40UP5k USB-C Interface for IoT/ AI Projects Popis
Features
iCE40UP5k main chip, 5280 LUT/128KB SPRAM/PLL/ SPI/I2C/DSP/PWM
-board iCELink debugger, supporting drag-and-drop programming, USB CDC serial port and JTAG
Lead out all the IO with standard PMOD connector and can connect with other PMOD devices
Totally use open source tool chain to develop

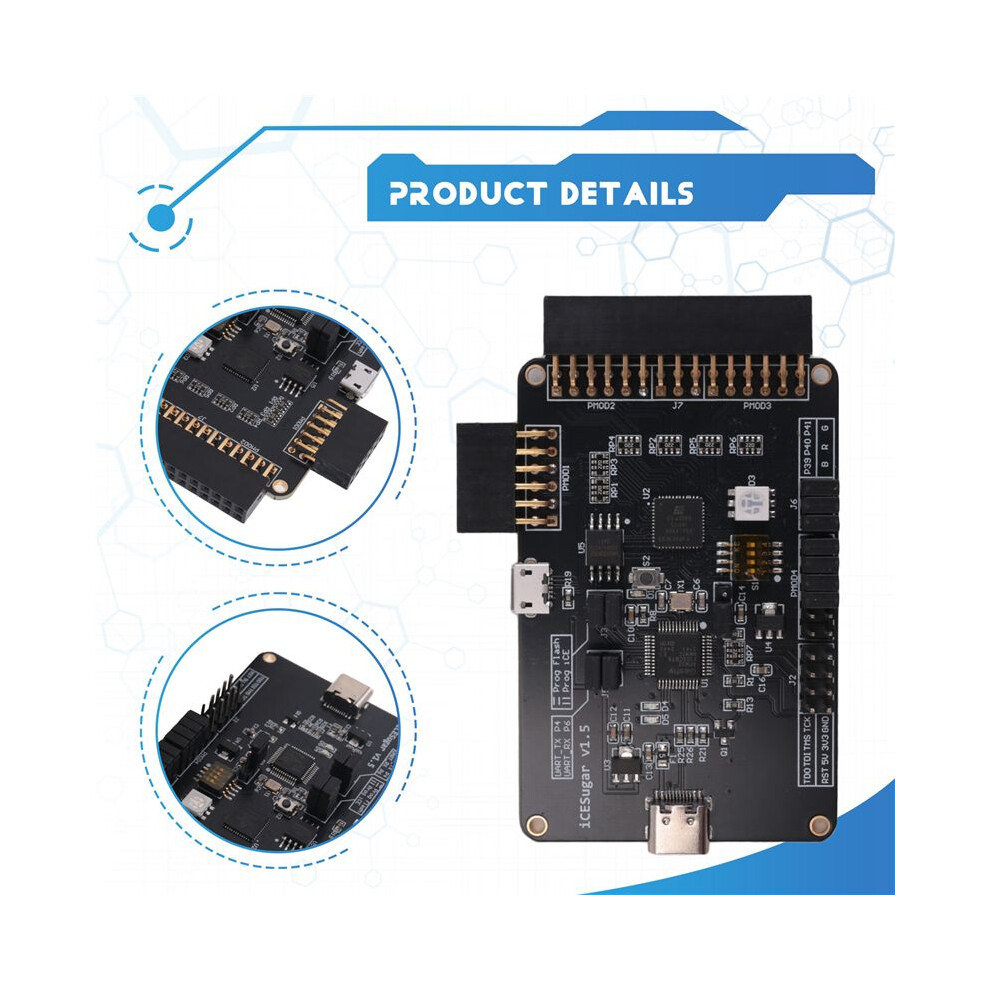

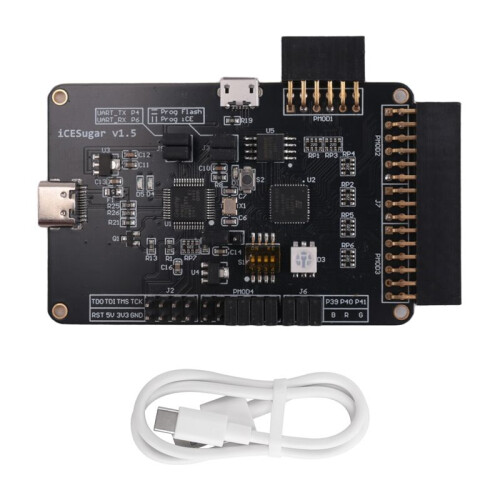

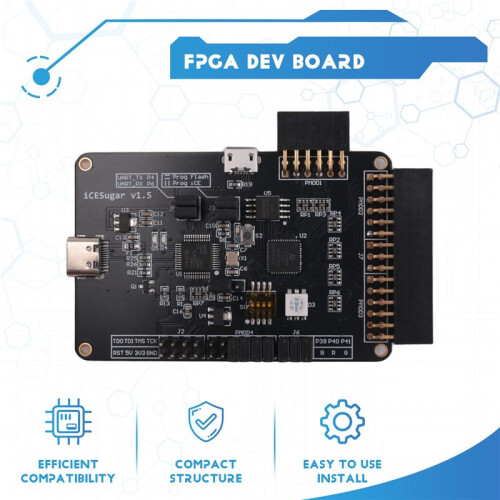

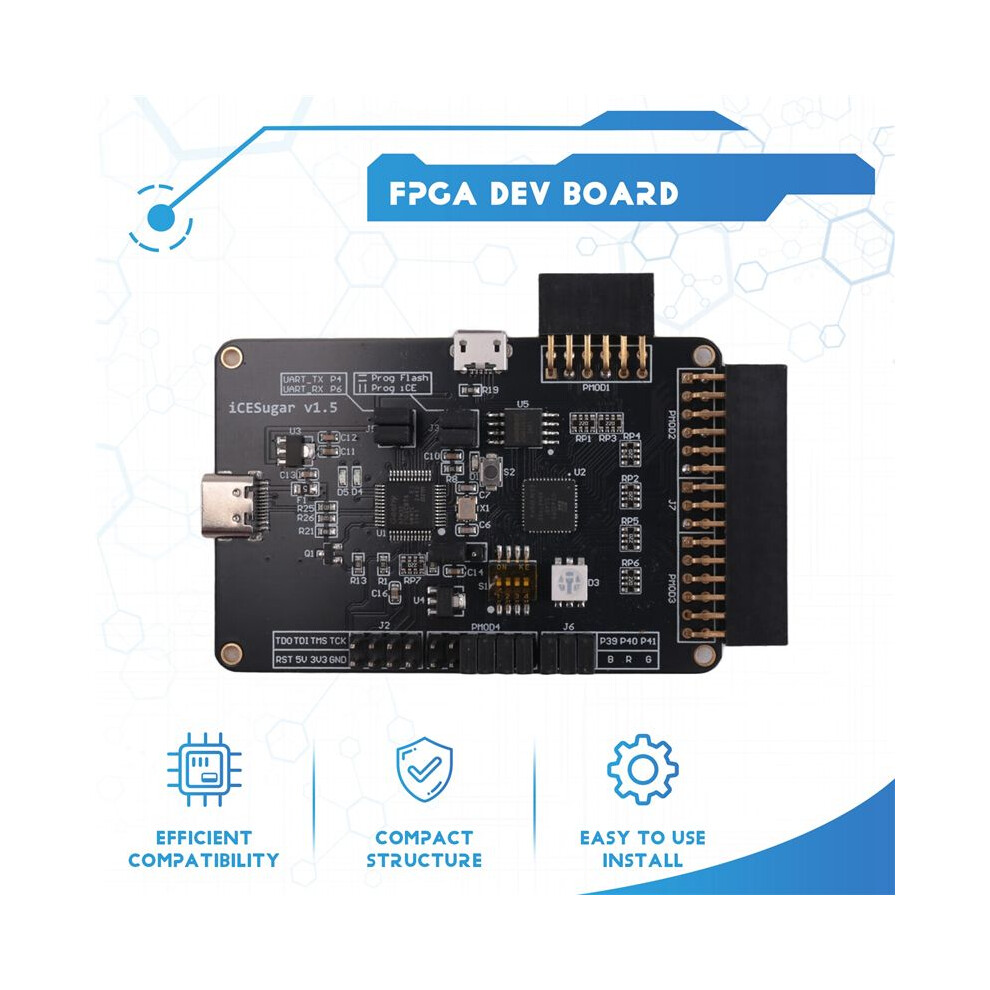

iCESugar is a open source FPGA development board based Lattice iCE40UP5k.
Though it's small and exquisite, it contains rich peripheral resources board including RGB LED,,TYPE-C-USB, Micro-USB.

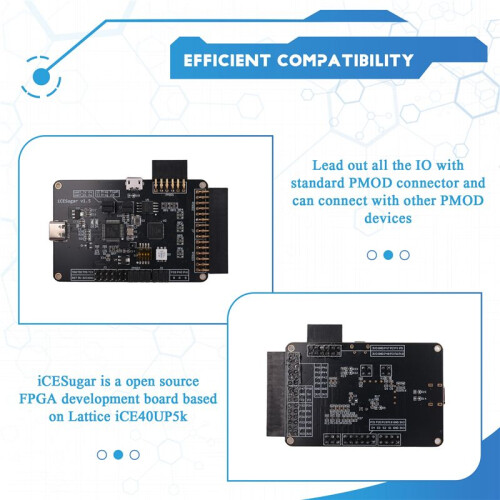

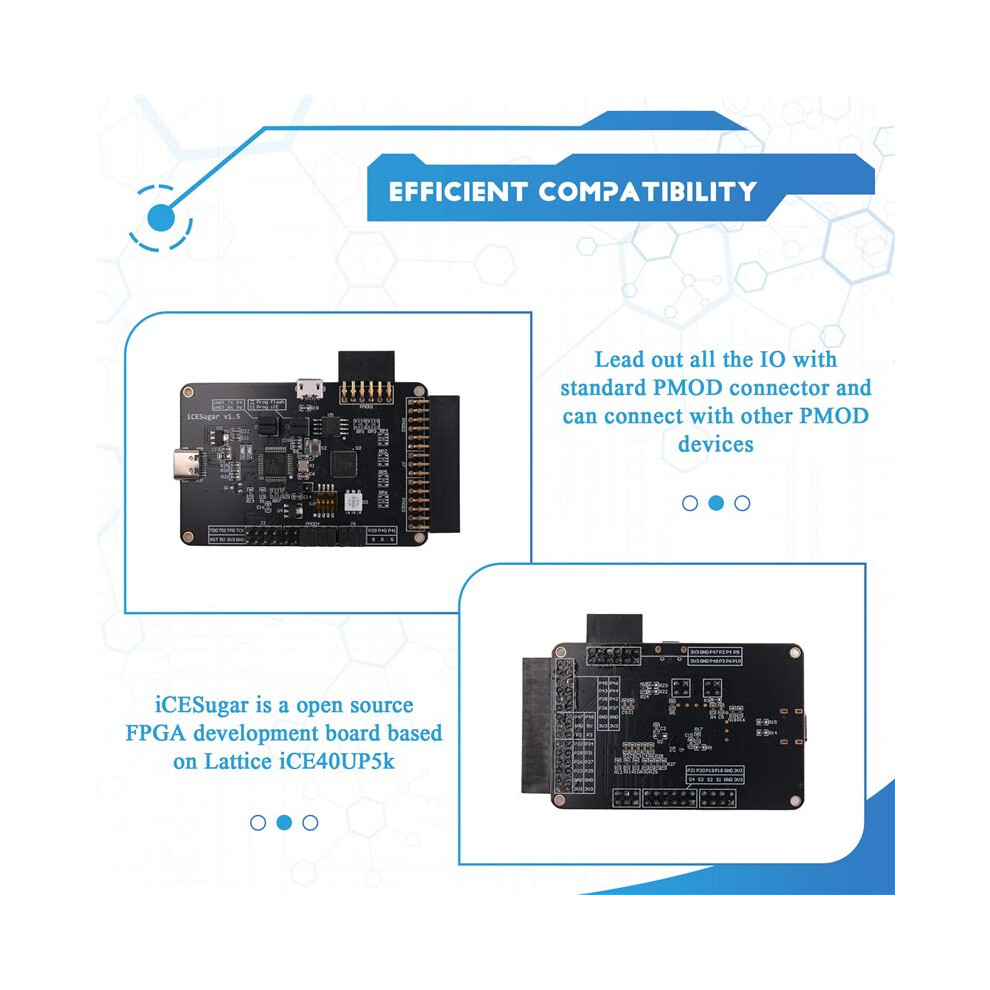

Most of the IO are led out by standard PMOD connector and can connect with other PMOD device.
Also, it has a -board debugger called iCELink which is based ARM Mbed DAPLink. You can just drag the FPGA bitstream into the virtual disk to program with a convenience, since the iCELink supports drag-and-drop programming, USB CDC serial port and JTAG.
Built-in 8MB SPI-Flash and support DUAL/QUAD SPI& QPI
Color: Black
Material: PCB

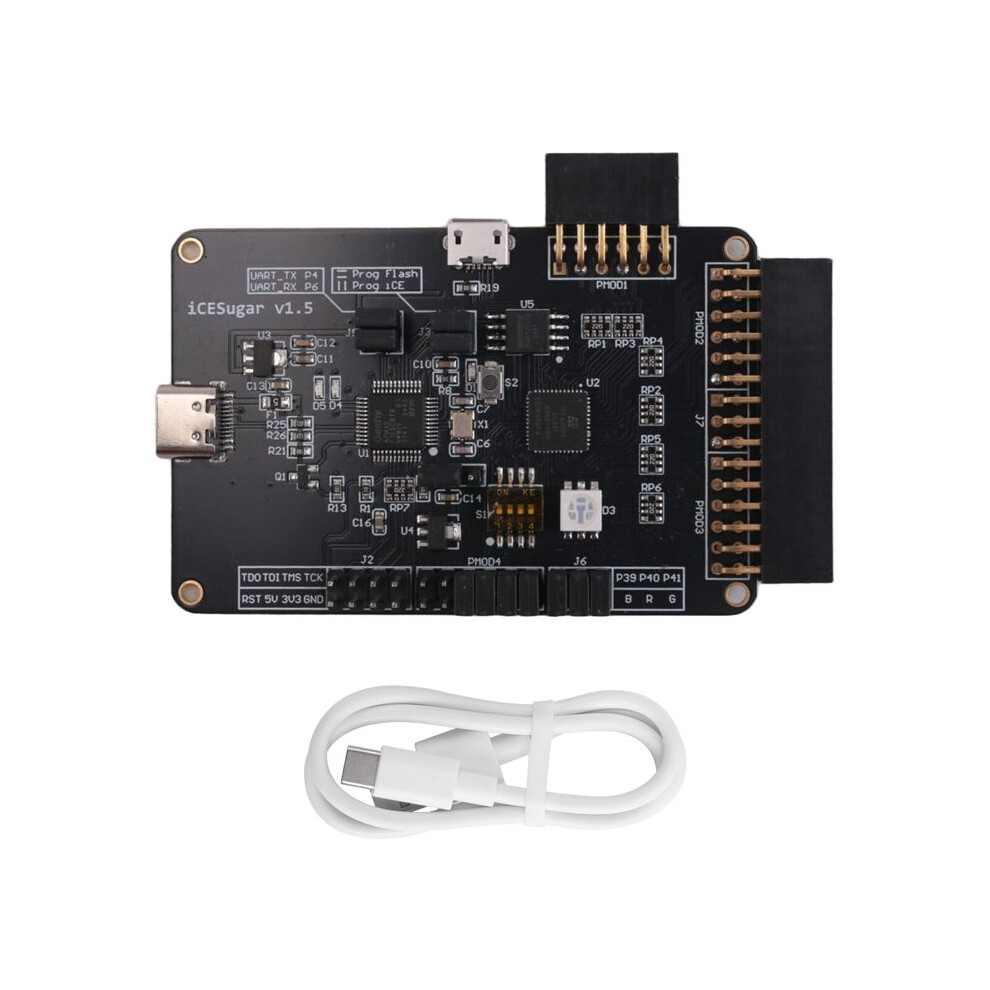

Package Contents:
1 x iCESugar FPGA Development Board
1 x TPYE-C Cable
Podrobnosti
| OPC | PRJKHMH |
|---|---|
| Kódy | 6131180482813 (EAN) |
Údaje o produkte
| Height | 1cm |
|---|---|
| Width | 12cm |
| Length | 14cm |
| Weight | 0.0425kg |
| Colour | Black |
| Material | PCB |
