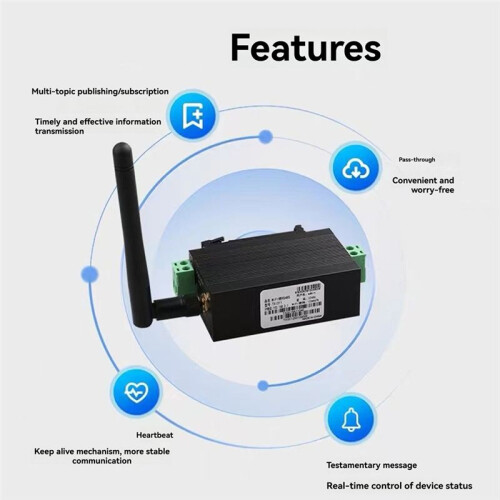

Modbus Wifi Serial Server Rs485 to Wifi Rail Type Wireless Network Communication Rtu Module Mqtt Gateway

Modbus Wifi Serial Server Rs485 to Wifi Rail Type Wireless Network Communication Rtu Module Mqtt Gateway Popis

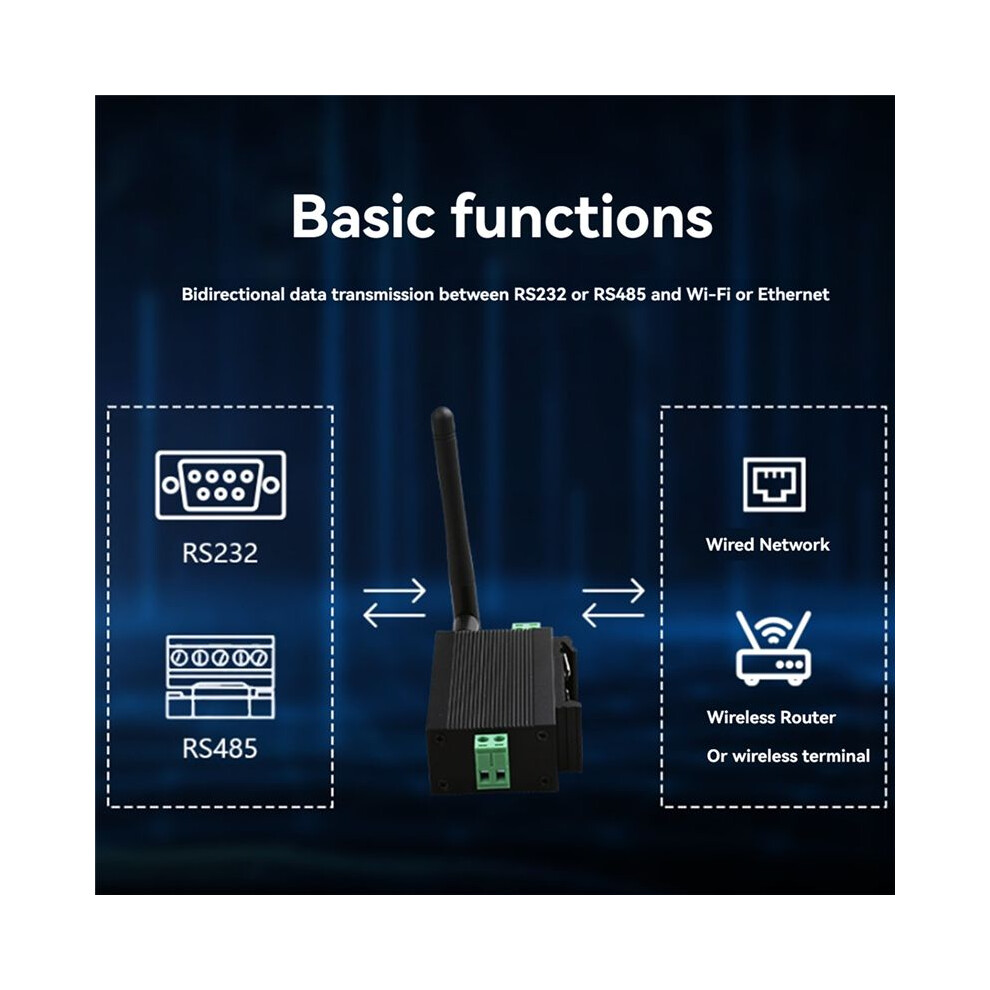

Realize bidirectional data transmission between RS232 or RS485 and Wi-Fi or Ethernet
Modbus gateway function,Support Modbus multi-host polling, Modbus RTU & Modbus TCP conversion
Communication protocol,Full coverage of transparent transmission protocols, TCP/UDP/HTTP/MQTT
Data security cannot be ignored,TCP/HTTP/MQTT protocols can all achieve transmission encryption and combine two-way certificate verification to ensure data security
Rich WIFI modes,AP,STA,AP+STA,Bridging and Routing

network standards:IEEE 802.11.b/g/n
Network transfer rate:11g:54Mbps 11n: 72.2Mbps
interface:RS485
UART working mode:TCP server, TCP client, UDP, Modbus TCP/IP, MQTT
baud rate:600bps-230400bps
data bits:7,8
Verification method:No parity/odd parity/even parity
Stop bit:1,2
indicator light:Power supply, WIFI
power supply:DC6V-30V
Power consumption:Power consumption Less than 0.7W
working temperature:-40C-85C
storage temperature:Storage temperature -40C-85C
humidity:10%-90%, no condensation
size:68.8x41.4x25mm
The product appearance and printed words may vary depending the batch, but this does not affect use
Colour:As Shown
Material:plastic

Package Contents:
1 x Wifi Serial Server
