Rf Voltage Controlled Oscillator Frequency Source Broadband Vco 515Mhz---1150Mhz

Rf Voltage Controlled Oscillator Frequency Source Broadband Vco 515Mhz---1150Mhz

Nové

Na sklade

Prečo si zamilujete nakupovanie na OnBuy:

Získajte cashback pri každom nákupe – použite ho okamžite na ďalšiu objednávku
Doprava zadarmo – na milióny produktov na celej stránke
Zákazníci nás milujú – 127,000 hodnotení s “Vynikajúcim” hodnotením

Zobraziť celý popis a podrobnosti o produkte

Množstvo

19,44 €

22,15 € 12 % zľava!

+1,67 € doručenie

1% Čo je okamžitý Cashback? Zistiť viac

Pridať do košíka

Ceny produktov predávaných spoločnosťou OnBuy sú uvedené s DPH.

K dispozícii sú aj bezúročné možnosti platby

Zobraziť celý popis a podrobnosti o produkte

Doručenie: Štandard (1,67 €) | str 1 - uto 7 júl

Predáva: SKbuy

Vrátenie tovaru: 30 dní

180-dňová ochrana platieb

Pridať do košíka

Popis a podrobnosti

Zhrnutie

Microwave broadband transistor is optimized by computer simulation, this product mainly realizes the generation of broadband RF signal, the output frequency range can cover 515MHz---1150MHZ, such a wide range can be used as RF product test source.
Can also do a variety of communication modulation VCO, can be used as a built-in oscillator of RF, the signal of two such a wide range of VCO into the mixer, you can generate DC --- 500MHZ of various frequency signals, so as to achieve the role of generating new frequencies, the application is very wide.
RF indicators are as follows:
Frequency range: 515MHZ-1150MHZ
Output power: 7dBm, which is 5 milliwatts.

Rf Voltage Controlled Oscillator Frequency Source Broadband Vco 515Mhz---1150Mhz Popis

Microwave broadband transistor is optimized by computer simulation, this product mainly realizes the generation of broadband RF signal, the output frequency range can cover 515MHz---1150MHZ, such a wide range can be used as RF product test source.
Can also do a variety of communication modulation VCO, can be used as a built-in oscillator of RF, the signal of two such a wide range of VCO into the mixer, you can generate --- 500MHZ of various frequency signals, so as to achieve the role of generating new frequencies, the application is very wide.
RF indicators are as follows:
Frequency range: 515MHZ-1150MHZ
Output power: 7dBm, which is 5 milliwatts.

Output harmonics: -22dBc

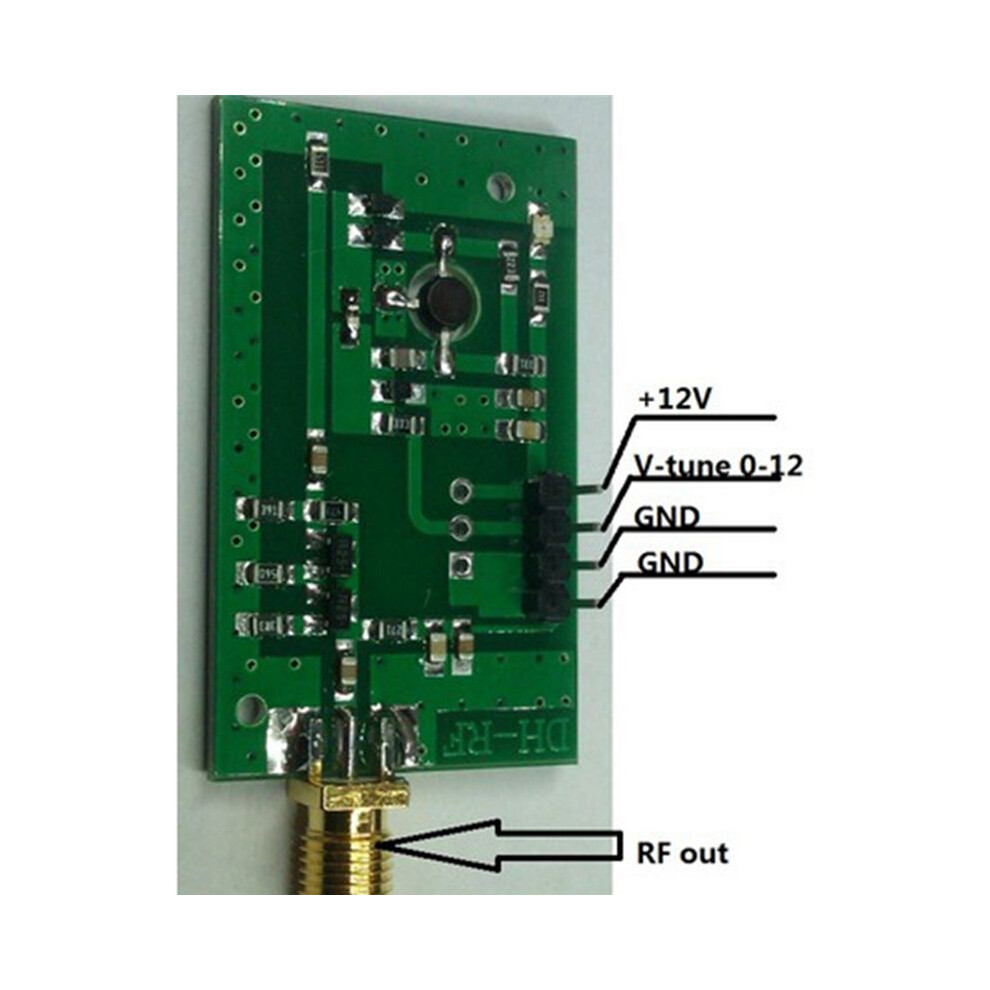

Supply voltage: 12V, current 50 mA
Frequency regulation voltage range: 0-12V
Output RF interface: SMA female
Material: PCB
Color as shown

Package Contents:
1 x Rf Voltage Controlled Oscillator

Podrobnosti

OPC	PPTWQ2H
Kódy	6032565285756 (EAN)

Obrázky produktu

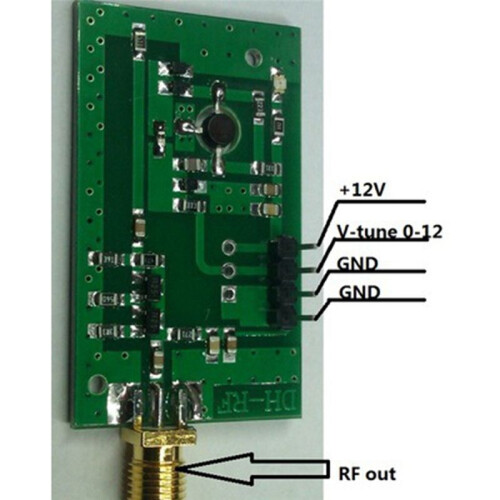

Rf Voltage Controlled Oscillator Frequency Source Broadband Vco 515Mhz---1150Mhz 1

Rf Voltage Controlled Oscillator Frequency Source Broadband Vco 515Mhz---1150Mhz 2

Údaje o produkte

Height	2cm
Width	8cm
Length	11cm
Weight	0.008kg
Colour	as shown
Material	PCB
