RK3566 Development Board ARM Microcontroller 4K 60fps WiFi-BT with Wired Network for Linux Android 1G+16G

RK3566 Development Board ARM Microcontroller 4K 60fps WiFi-BT with Wired Network for Linux Android 1G+16G Popis

The RK3566 development board (V5 version) is equipped with Rockchip RK3566 processor. RK3566 is a quad-core 64-bit processor of Rockchip Technology. The 22nm advanced process has a main frequency of to 1.8GHz and provides many embedded powerful hardware engines to optimize the performance of high-end applications

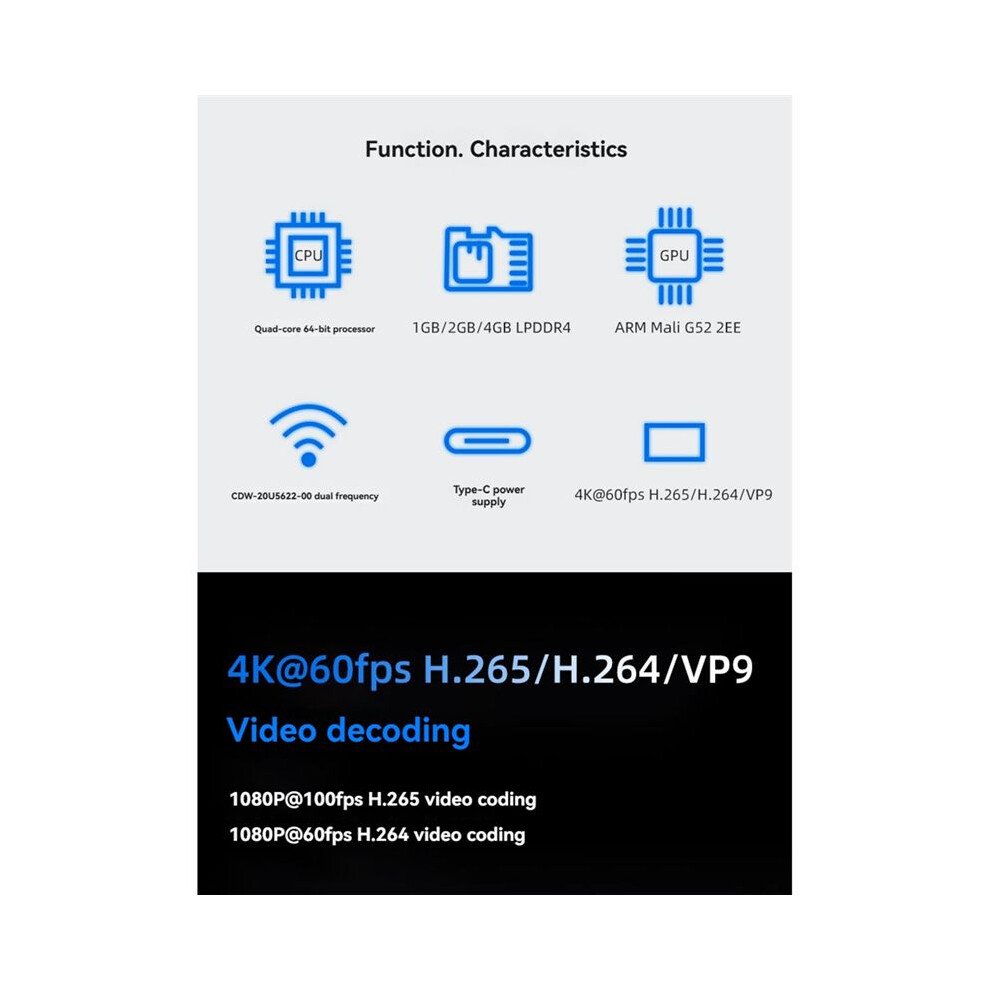

RK3566 supports almost full-format H.264 decoder at 4K 60fps, H.265 decoder at 4K 60fps, H.264/H.265 encoder at 1080p 60fps, high-quality JPEG encoder/decoder, and embedded 3D GPU makes RK3566 fully compatible with OpenGLES1.1/2.0/3.2, OpenCL 2.0 and Vulkan 1.1

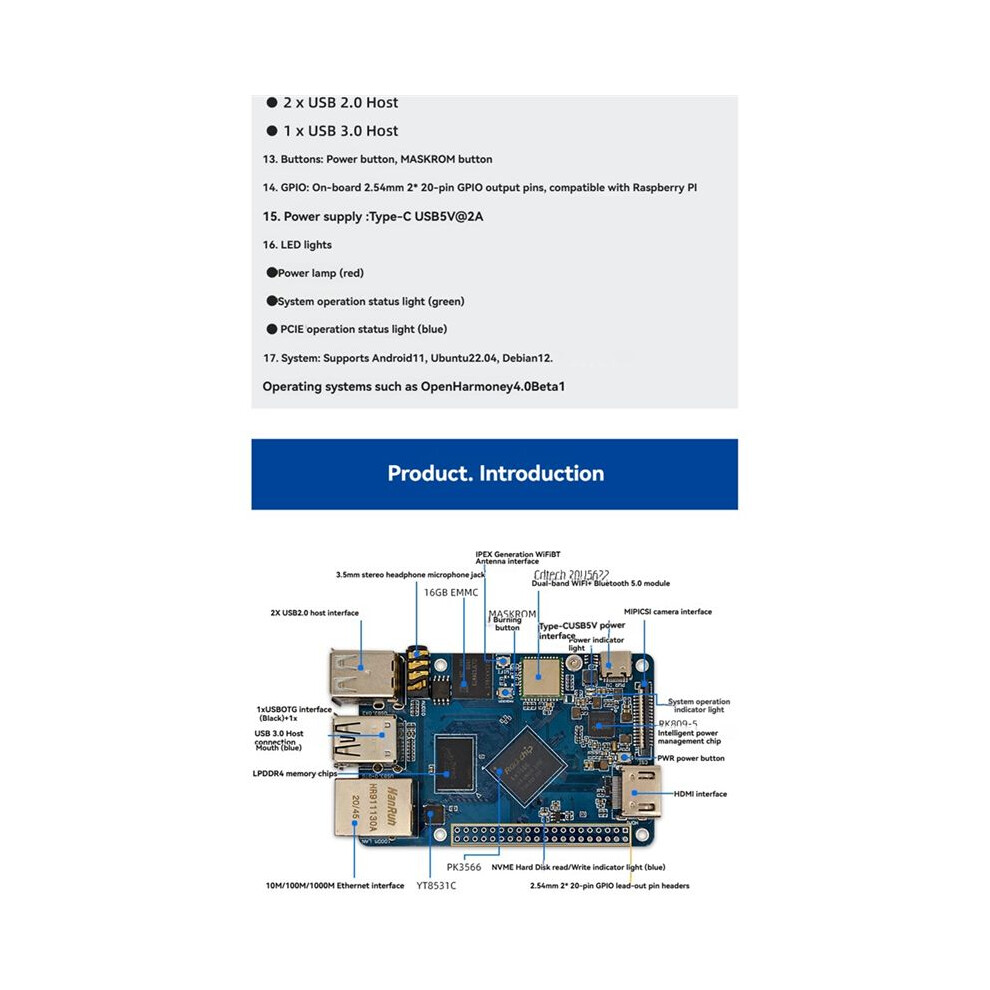

The development board integrates WiFi5, BT5.0, Gigabit Ethernet, , USB OTG, USB2.0, USB3.0, 3.5mm headset interface, PCIE, UART Debug interface and 2x20Pin GPIO lead-out port, size compatible with for Raspberry Pi
It is not only a microcomputer that can realize audio and video entertainment, but also can be used for Linux/Android programming learning and project development, supporting for Android11, for Ubuntu22.04, for Debian12, for OpenHarmoney 4.0 Beta1 and other operating systems

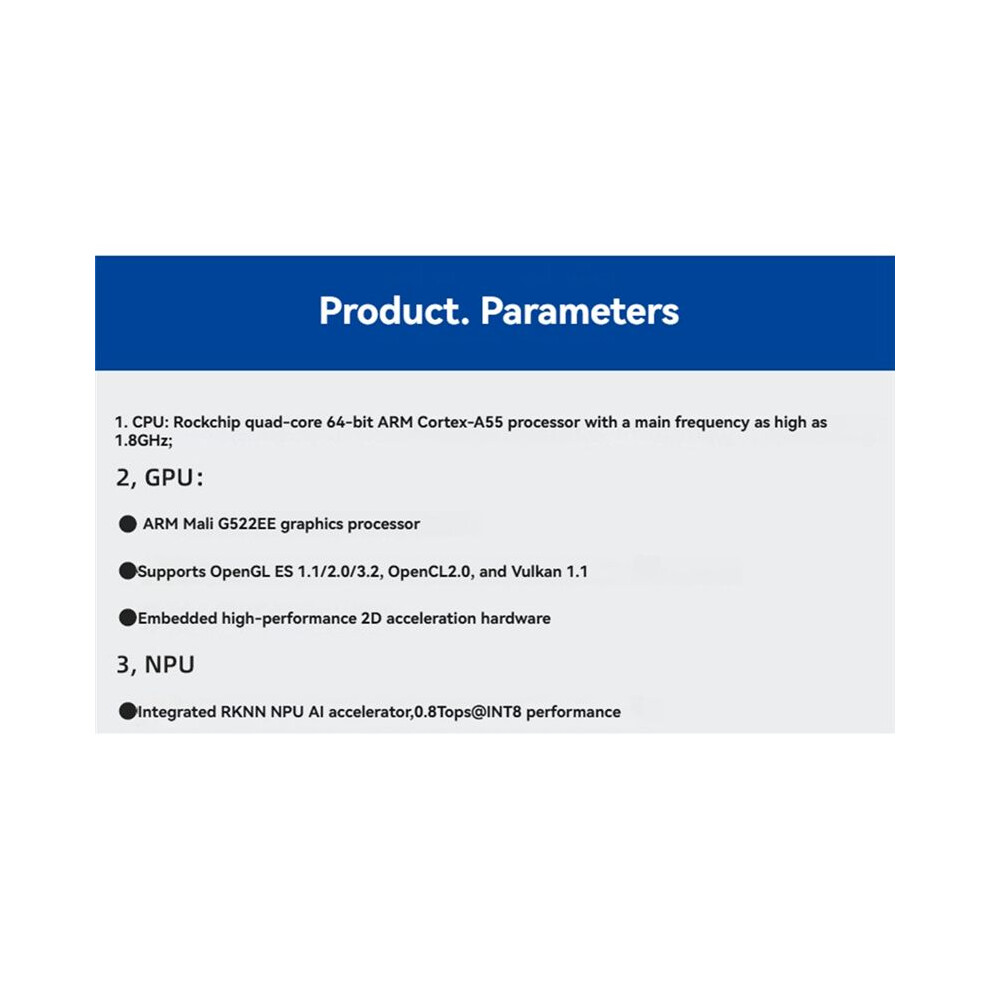

CPU: Rockchip quad-core 64-bit ARM Cortex-A55 processor, main frequency to 1.8GHz;
GPU:
ARM Mali G52 2EE processor
Support OpenGL ES 1.1/2.0/3.2, OpenCL2.0, Vulkan 1.1
Embedded high-performance 2D acceleration hardware
NPU:
Integrated RKNN NPU AI accelerator, 0.8TopS INT8 performance

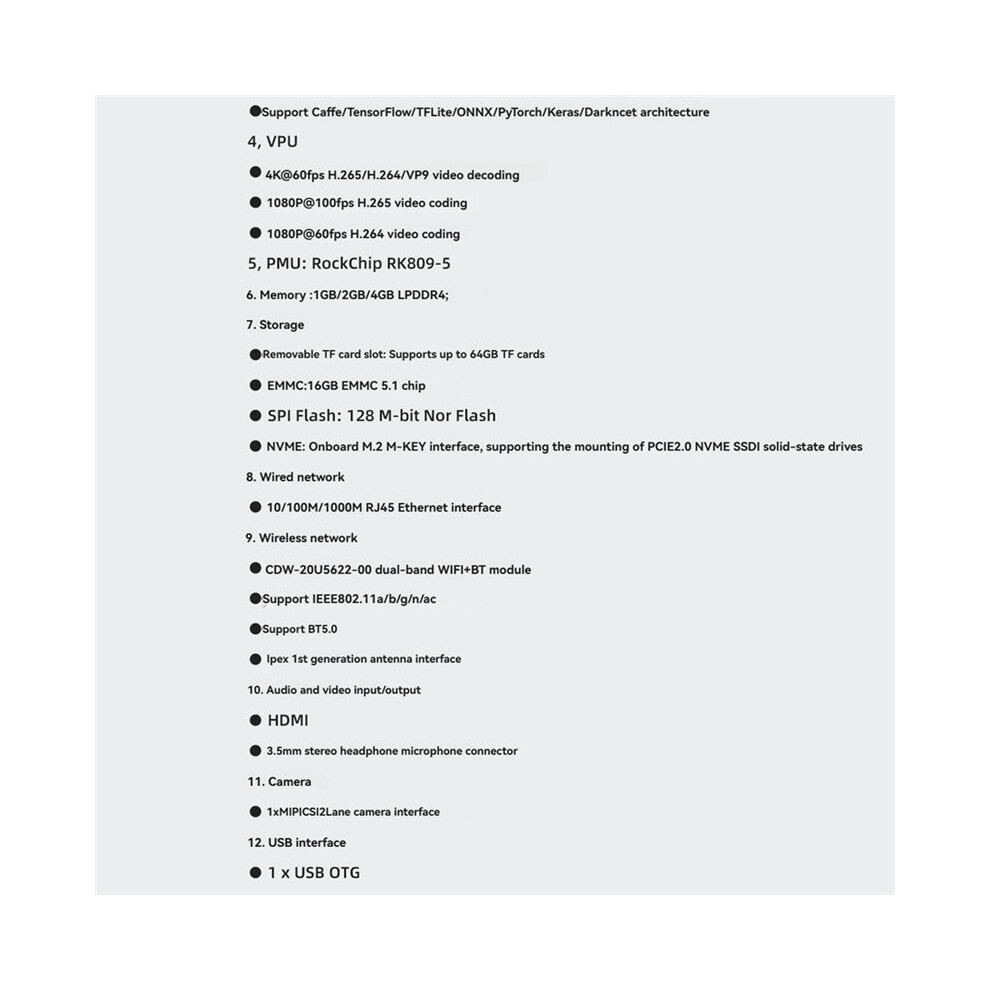

Support for Caffe/for TensorFlow/for TFLite/for ONNX/for PyTorch/for Keras/for Darknet architecture
(The product appearance and printed words may vary depending the batch, but this does not affect use)
Memory: 1G+16G
Color: As Shown
Material: PCB

Package Contents:
1 x Development Board Kit
