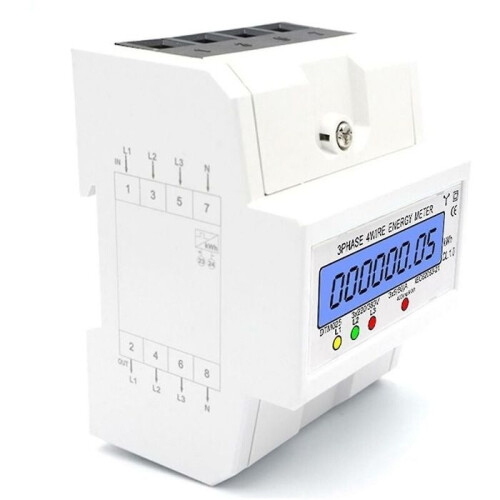

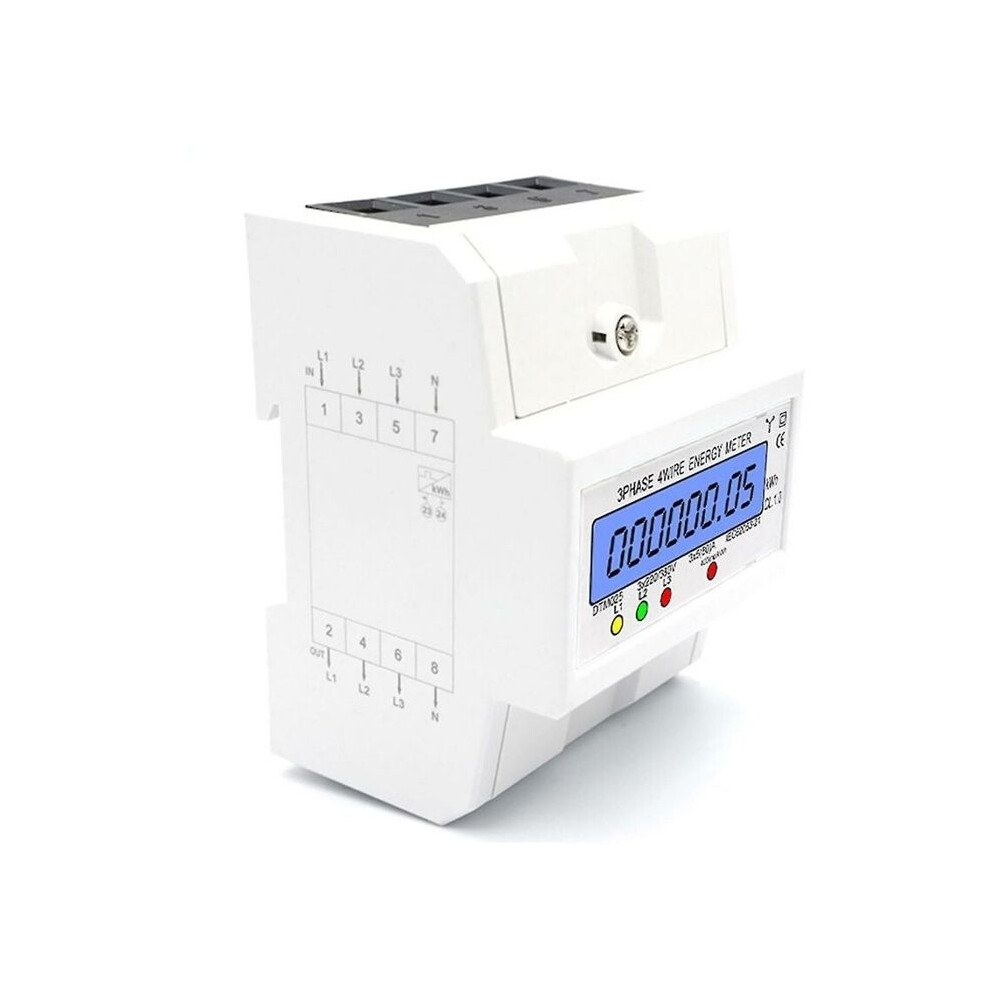

Three-phase, 4-wire energy meter, 3x220/380V, 5-80A, DIN rail, backlit LCD display

Three-phase, 4-wire energy meter, 3x220/380V, 5-80A, DIN rail, backlit LCD display Popis

Product Overview

This is a three-phase, four-module DIN rail meter designed for accurate measurement of active power consumption. Made of flame-retardant ABS material, it offers high durability and resistance to shock and temperature variations. Equipped with a backlit LCD screen, it clearly displays power consumption data. Technical Specifications: Housing Color: Transparent/White (Optional) Material: Flame-retardant ABS Screen: Backlit LCD Current: 3x5 (80) A Voltage: 3x220/380 V Accuracy Class: 1.0 Standard: IEC62053-21 Frequency: 50/60 Hz Pulse Constant: 400 imp/kWh Power Consumption: 2 W Starting Current: 0.004 A Operating Temperature: -20 ~ 55 C Storage Temperature: -25 ~ 70 C Product Dimensions: 100 * 76 * 65 mm Product Weight: 380 g Package Dimensions: 110 * 80 * 70 mm Package Weight: 400 g Compatibility and Accessories: Compatible with 35 mm DIN rail mounting. Package Contents: 1 electricity meter and 1 user manual. Installation: Easy to install due to its compact and lightweight design. It can be mounted on a standard DIN rail, simplifying the installation process. Applications: Ideal for sub-metering and monitoring energy consumption in various electrical systems. Convenient for professionals and DIY enthusiasts.
