Waveshare PoE HAT(E) for Raspberry Pi Ethernet Power over Expansion Board for Raspberry Pi 3B+/4B for IEEE 802.3Af 2PCS

New

37,54 €

Podobné produkty, ktoré by sa vám mohli páčiť

Trackpady

Would you like us to let you know when it's back?

Pridať do košíka

Popis a podrobnosti

Zhrnutie

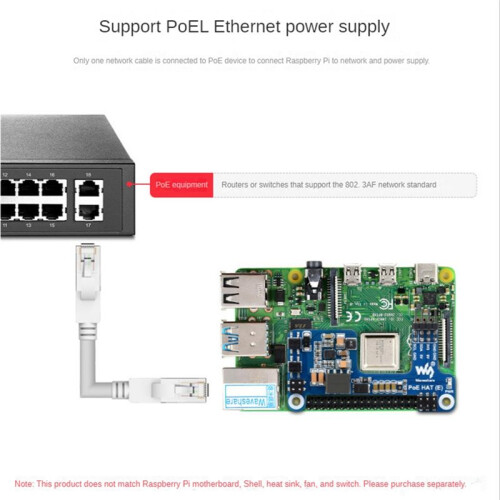

This is a Power over Ethernet (PoE) expansion board for Raspberry Pi 3B+/4B that supports the IEEE 802.3af network standard. If you already have a PoE router or switch that supports the IEEE 802.3af network standard, with this expansion board, you can connect the Raspberry Pi to the network and power supply with just one network cable.
Suitable for Raspberry Pi 3B+/4B, can be used together with Raspberry Pi shell, does not take up more space
Support PoE Power over Ethernet, support IEEE 802.3af PoE network standard
Fully isolated switch mode power supply (SMPS).

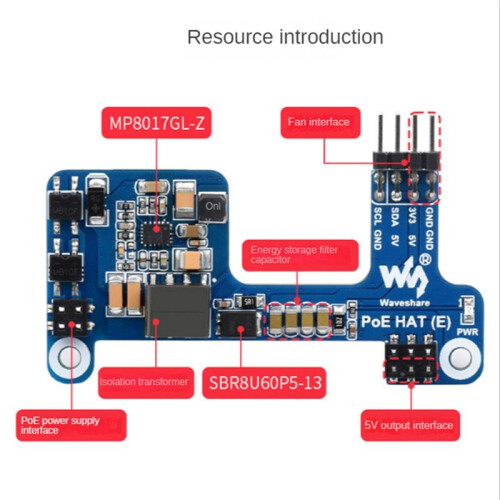

Adopting a more compact component layout scheme, the overall volume is smaller and the use is more flexible

Waveshare PoE HAT(E) for Raspberry Pi Ethernet Power over Expansion Board for Raspberry Pi 3B+/4B for IEEE 802.3Af 2PCS Popis

This is a Power over Ethernet (PoE) expansion board for Raspberry Pi 3B+/4B that supports the IEEE 802.3af network standard. If you already have a PoE router or that supports the IEEE 802.3af network standard, with this expansion board, you can connect the Raspberry Pi to the network and power supply with just one network cable.
Suitable for Raspberry Pi 3B+/4B, can be used together with Raspberry Pi shell, does not take more space
Support PoE Power over Ethernet, support IEEE 802.3af PoE network standard
Fully isolated mode power supply (SMPS).
Adopting a more compact component layout scheme, the overall volume is smaller and the use is more flexible

PoE power input: 37V ~57V input
Power output: 5V 2.5A output
Network Standard: Support IEEE 802.3af PoE
Colour:
Material:PCB
Size:65 x 32MM

Package Contents:
2 x Poe HAT Expansion Board
